Linear Light Design for Modern Offices: Layout, Uniformity and Continuous Runs
master dwproDirect answer: A successful office linear-light design aligns the run, distribution and control zones with desks, circulation and daylight—not merely with the ceiling grid. Define the task and viewing direction, calculate the maintained result, coordinate joins and feeds, then commission the continuous run as one maintainable system.
Linear light has become a familiar feature in modern offices because it can create clean visual order while providing a flexible ambient or task-aligned layer. It is also easy to specify badly. Long lines can reveal poor joins, uneven brightness, glare on screens, awkward ceiling coordination or a control group that does not match how people use the space.
For Singapore workplace projects, plan the lighting together with the reflected ceiling plan, furniture, partition layout, HVAC, sprinklers, daylight and operating schedule. A linear profile is not a lighting calculation, and a continuous run is not automatically uniform or comfortable.
1. Start with the room logic, not the product length
Map the activities in each zone: focused desk work, collaboration, presentation, reception, circulation or quiet rooms. Record mounting height, desk orientation, monitor positions, ceiling services, reflective surfaces and access constraints. This creates the inputs for distribution, spacing, output and controls.
Use runs to support desk rows or circulation where that geometry improves visual clarity and the installation can be coordinated.
Review the luminaire’s brightness, distribution and placement from seated screen positions as well as standing views.
Plan feeds, drivers, suspension, joiners, access and replacement before a continuous ceiling detail is released.
2. Choose direct, indirect or combined distribution deliberately
Distribution governs where the light goes and how the ceiling and workplane will appear. A direct run can put useful light on desks; an indirect component can brighten the ceiling and soften contrast where the geometry and surface reflectance support it. Combined systems need a calculation that considers both components. Do not assume that a visually bright ceiling guarantees enough maintained illuminance for the task.
Compare the exact product configuration and optics, not only the family name. Ask for photometric information, input power, mounting method, driver and dimming options, colour data and the proposed layout. Maintained illuminance, uniformity and glare are project results; they are not interchangeable with luminaire lumens or efficacy.
3. Detail continuous runs as a system
A continuous linear installation needs a coordinated module plan. Identify starting points, end caps, corner or T-junction details, suspension locations, expansion or alignment requirements, feed positions and emergency-lighting interfaces. Coordinate these with ceiling grids, access panels, detectors and diffusers before ordering. A neat elevation can still fail on site if a feed, join or service conflicts with another trade.
Check how the run will look after installation. Small differences between modules, poor alignment or inconsistent diffuser appearance are more visible in a continuous line than in isolated fittings. Use a representative mock-up for prominent reception, client-facing or large open-office runs. Confirm the preferred colour appearance and check samples beside the intended ceiling and workstation finishes.
4. Protect screen comfort and daylight response
For display work, reflected glare depends on the relationship between the fitting, screen, window and user. Locate rows and desks to avoid placing bright reflections in normal sightlines. Perimeter zones often need separate control from interior zones because available daylight changes through the day. Well-distributed diffuse light and thoughtful screen orientation are practical starting points; a calculation and a mock-up confirm the design.
Lighting controls should follow use. A meeting room may need scenes and local override; an open office may need scheduling plus perimeter daylight response; circulation may need an occupancy sequence. Define sensor coverage, hold time, manual override, default state and the person responsible for commissioning. A “dimmable” driver alone does not provide a usable controls strategy.
5. Commission and maintain the completed scheme
Before handover, test representative zones with normal furniture, blinds and monitors in place. Verify switching, dimming, occupancy response, daylight response, emergency interfaces and the as-left settings. Retain the lighting layout, module and driver schedule, control records, addressing information and replacement procedure. This makes later tenant changes and fault diagnosis more controlled.
Specification rule: state the required calculation outputs, module layout, mounting, optics, colour, controls, emergency scope, acceptance tests and handover records. It is easier to compare proposals when every bidder responds to the same operating brief.

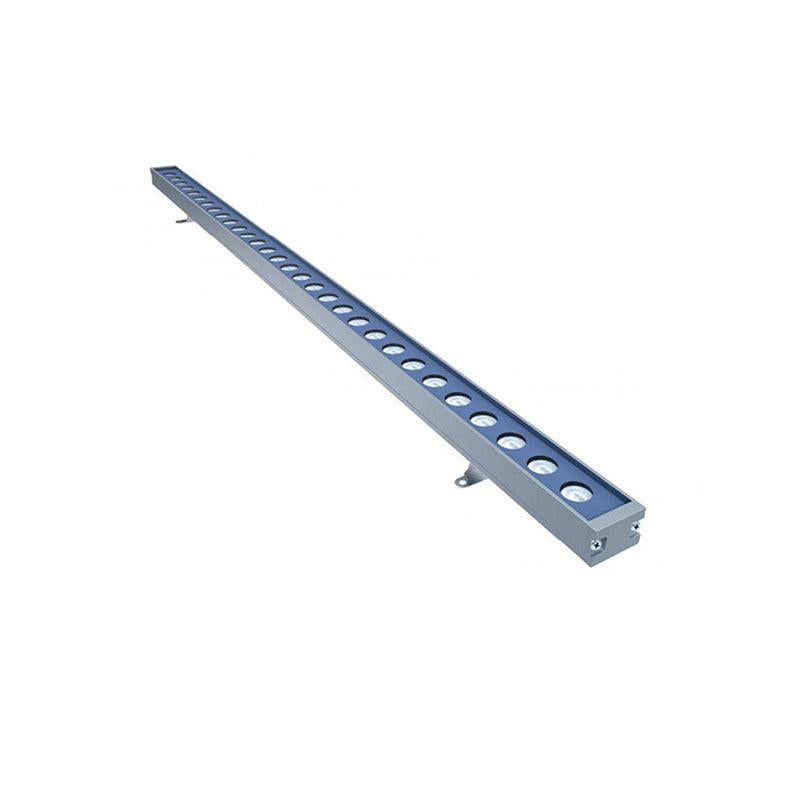

Linear-light product starting points
These products are catalogue starting points. Confirm their final configuration, photometry, mounting and electrical/control compatibility for the office design.
Linear-light design checklist
- Map desk rows, screens, viewing directions, daylight and ceiling services.
- Review project-specific maintained illuminance, spacing, uniformity and glare.
- Coordinate modules, joins, feeds, suspension, drivers and access.
- Specify zones, scenes, sensor logic, override and commissioning tests.
- Record the as-built layout, product configuration and replacement method.
FAQs
Are linear lights suitable for offices?
They can be suitable for ambient, task-aligned or architectural layers when the distribution, mounting, layout and controls are matched to the workplace.
How do continuous light runs stay visually consistent?
Use a coordinated module plan, compatible components, careful alignment and a representative mock-up for prominent areas. Review colour appearance and diffuser consistency before full release.
Do linear lights reduce glare?
Not automatically. Glare depends on brightness, optics, placement, screens, windows and viewing direction. Evaluate the whole visual environment.
Turn the ceiling plan into a lighting brief
Share the floor plan, reflected ceiling plan, desk layout, hours, controls intent and maintenance constraints before comparing products.
References accessed 14 July 2026: BCA Green Mark 2021; OSHA workstation lighting guidance. Verify applicable requirements with the appointed qualified professional.
