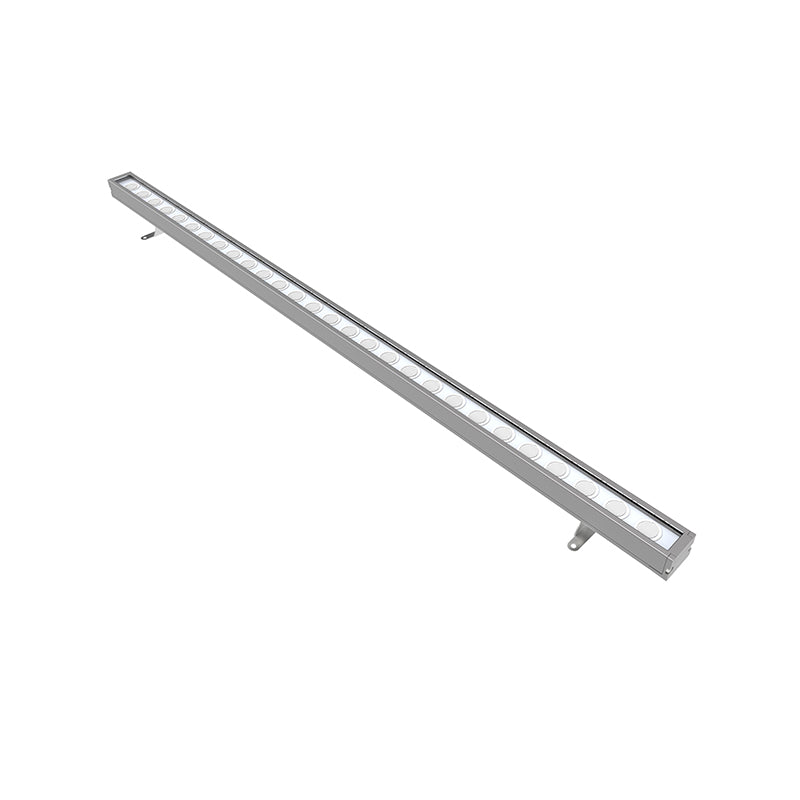

Line light LL700

Line light LL700

Recessed linear fixture rated to IP67. Wall/ floor -recessed luminaire for use with fluorescent lamps and LEDs. Tempered glass with integrated CREE XPE LED chipset. Luminaire ready for pass-through wiring. Architectural line light with CW, WW, NW, Red, Green, Blue, Amber color options and it can be controlled by DMX. The color of the phase change can be modified through the program, which is very suitable for commercial squares, scenic spots, and buildings. Aluminum material with good heating dissipation and robust protection to make sure the line lighting can normally work for 50,000 hours.

For this wall washer light, we can make lengths of 0.3 meters, 0.5 meters and 1 meter. This is to choose the right length match for different projects. It is also possible to carry out one end cable or both ends cable at the same time.



.

LED Light source High Power LED
Light Color RGB,CW.WW,NW,Red,Green,Blue,Amber
Material Aluminium
Optics 10° / 20° / 40° / 60°
Power N/A
Power supply N/A
Dimention 1OOOX45XH56
Weight 1.8KG
IP Rating IP67
Approvals CE.RoHS,IP
Ambient temperature -20°C – +45°C
Average life 50,000Hrs
Accessories(Optional) N/A
Applications Indoor/Outdoor

LL700 LINE LIGHT

MODEL NO. LED Brand Color BEAM PowerMode Input Wiring Cable Power Luminous Flux Dimention DrillSize
LL700D-1M-12 CREE CW,WW, NW,Red Green,Blue,Amber 10/S20/40/F60 Constant voltage 24VDC Parallel 0.5M 2X0.75mm²Cable or 0.2M Plug 13W 1200LM 1000X45XH56 N/A
LL700D-1M-24 CREE CW,WW, NW.Red Green,Blue,Amber 10/S20/40/F60 Constant voltage 24VDC Parallel 0.5M 2X0.75mm²Cable or 0.2M Plug 26W 2400LM 1000X45XH56 N/A
LL700D-0.5M-6 CREE CW,WW, NW,Red Green,Blue,Amber 10/S20/40/F60 Constant voltage 24VDC Parallel 0.5M 2X0.75mm²Cable or 0.2M Plug 6.5W 600LM 500X45XH56 N/A
LL700D-0.5M-12 CREE CW.WW, NW,Red Green,Blue,Amber 10/S20/40/F60 Constant voltage 24VDC Parallel 0.5M 2X0.75mm²Cable or 0.2M Plug 13W 1200LM 500X45XH56 N/A
LL700D-0.3M-4 CREE CW,WW, NW,Red Green,Blue,Amber 10/S20/40/F60 Constant voltage 24VDC Parallel 0.5M 4X0.5mm²Cable or 0.2M Plug 4.5W 400LM 300X45XH56 N/A
LL700D-1M-12-M OSRAM CW.WW, NW,Red Green,Blue,Amber 120 Constant voltage 24VDC Parallel 0.5M 2X0.75mm²Cable or 0.2M Plug 13W 1200LM 1000X45XH56 N/A
LL700-1M-12-DMX CREE CW,WW, NW,Red Green,Blue,Amber 10/S20/40/F60 Constant voltage 24VDC DMX Controller Parallel 0.5M 4X0.5mm²Cable or 0.2M Plug 13W 1200LM 1000X45XH56 N/A
LL700-1M-24-DMX CREE CW,WW, NW,Red Green,Blue,Amber 10/S20/40/F60 Constant voltage 24VD CDMX Controller Parallel 0.5M 4X0.5mm²Cable or 0.2M Plug 26W 2400LM 1000X45XH56 N/A
LL700-1M-16-DMX-RGBW CREE 4R+4G+4B+4W 10/S20/40/F60 Constant voltage 24VDC DMX Controller Parallel 0.5M 4X0.5mm²Cable or 0.2M Plug 17W N/A 1000X45XH56 N/A

LL700-1

LL700-2
