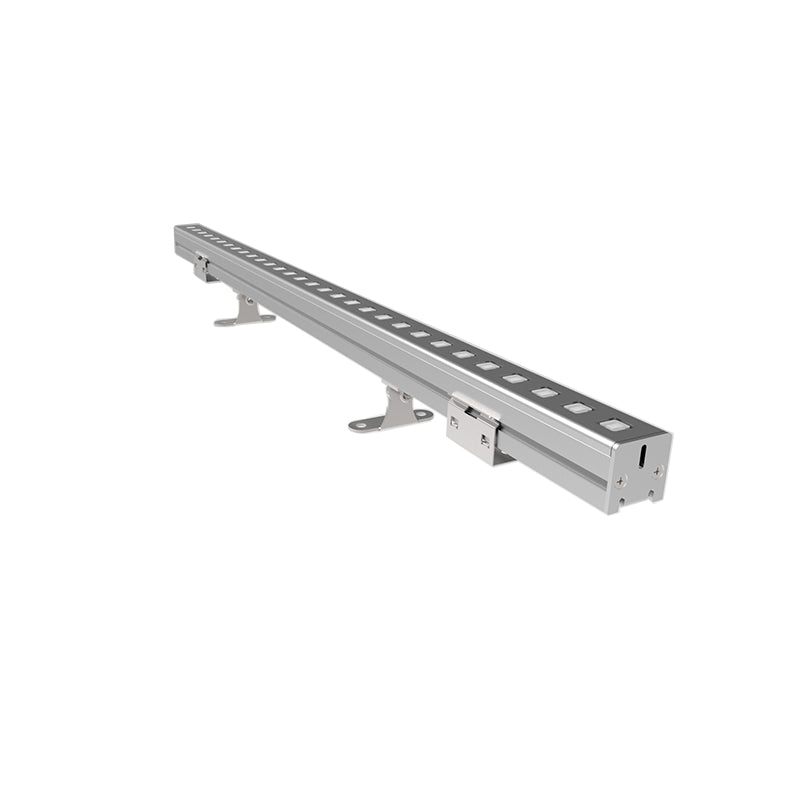

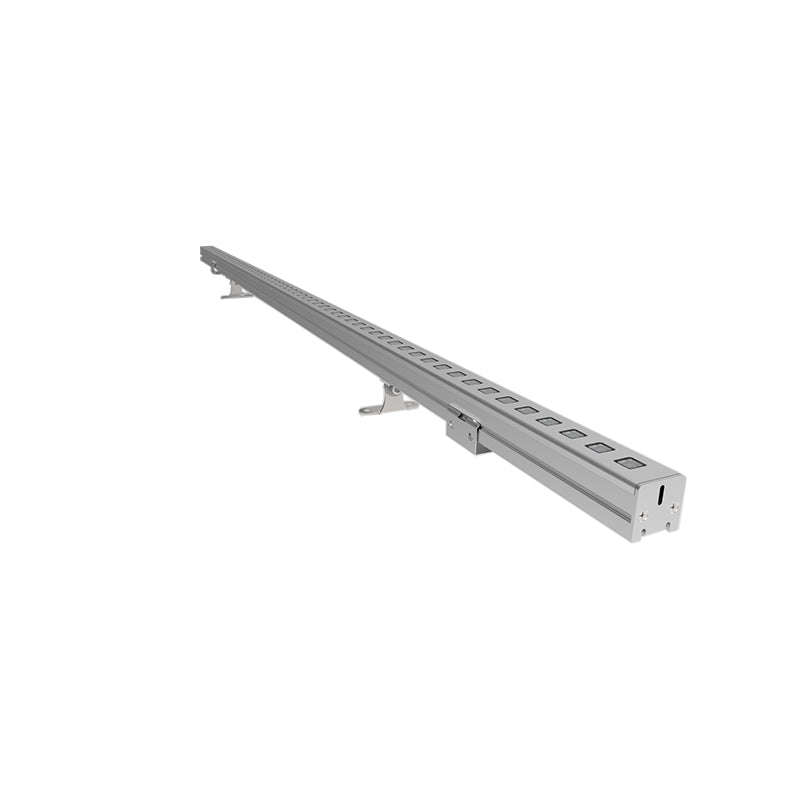

Line light EU2009
Line light EU2009
120 degree optic as standard for light projection. Aluminum construction rated to IP65, suitable for exterior applications. Supplied with optional mounting clips allowing for the fixture to be angled. The LED linear lamp has the function of long service life and energy saving.
The light source can use the principle of the three primary colors of red, green, and blue, and under the control of computer technology, the three colors have 256 gray levels and can be mixed into multiple colors at will. And this model has 500mm and 1000mm length to choose from. It is suitable for the lighting of medium and large buildings.
.
| LED Light source | SMD LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium |
| Optics | 120° |
| Power | 12W / 6.5W |
| Power supply | N/A |
| Dimention | 1000X45X50 / 500X45X50 |
| Weight | N/A |
| IP Rating | IP65 |
| Approvals | CE.RoHS |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | N/A |
| Applications | Ilndoor/Outdoor |
| Optional brand | OSRAM |
EU2009 LINE LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention |
| EU2009-1M | OSRAM | CW,WW,NW | 120° | Constant voltage | 24VDC | Parallel | 0.2M 2X1.0mm² Plug | 12W | 1000LM | 1000X45X50 |
| EU2009-0.5M | OSRAM | CW,WW,NW | 120° | Constant voltage | 24VDC | Parallel | 0.2M 2X1.0mm² Plug | 6.5W | 500LM | 500X45X50 |
| EU2009DMX-1M | EDISON | RGB | 120° | Constant voltage | 24VDC DMX contronller | Parallel | 0.2M 4X0.5mm² Plug | 12W | N/A | 1000X45X50 |
| EU2009DMX-0.5M | EDISON | RGB | 120° | Constant voltage | 24VDC DMX contronller | Parallel | 0.2M 4X0.5mm² Plug | 6.5W | N/A | 500X45X50 |
| DMX decoder in built | *IES Data support. | |||||||||
