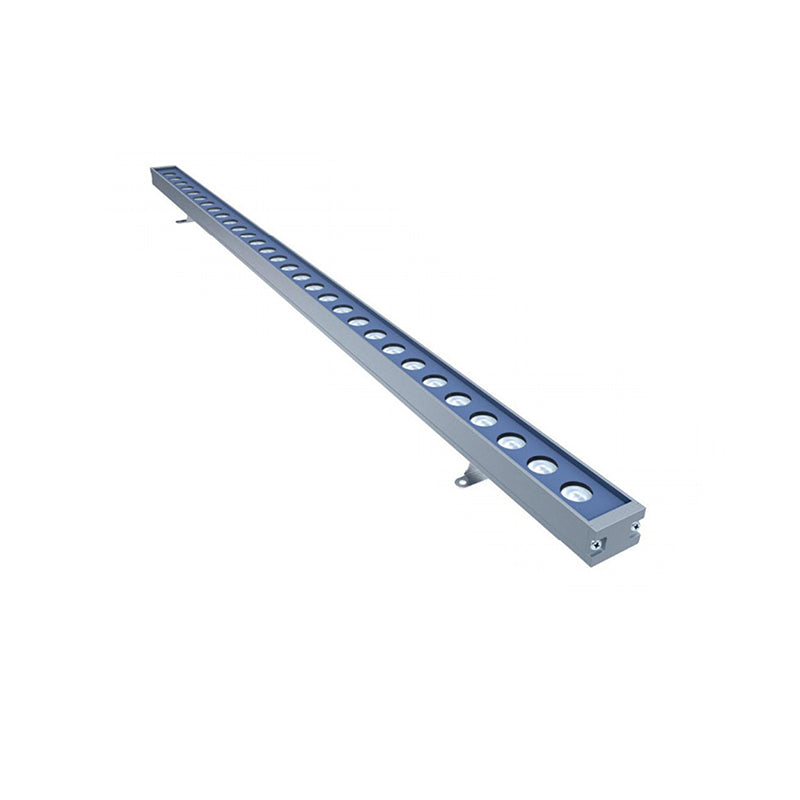

Line light LL710
Line light LL710
Recessed linear fixture rated to IP67. Wall/ floor-recessed luminaire for use with fluorescent lamps and LEDs. Tempered glass with integrated CREE XPE LED chipset. Luminaire ready for pass-through wiring. This is an economical version based on LL700. This wall washer light can be used in commercial building, or under the bridge and other application environments. The one meter recessed linear lighting is equipped with 12 1W lens. 15/20/30/45/60 degree optic as standard for light projection.
The line lighting has a lifetime of 50,000 hours. It gives you the choice of Light colors: CW, WW, NW, Red, Green, Blue, Amber, RGB. LL710 can be used as commercial led outdoor light, industrial lighting, linear underground light and recessed landscape lighting.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green.Blue,Amber |
| Material | Aluminium |
| Optics | 15° / 20° / 30° / 45°/ 60° |
| Power | 12W |
| Power supply | 24VDC |
| Dimention | 1OOOX4OXH55 |
| Weight | N/A |
| IP Rating | IP67 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C – +45°C |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor |
LL710 LINE LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Power | Luminous Flux | Dimention | DrillSize |
| LL710D | CREE | CW.WW, NW.Red Green,Blue,Amber | 15/S20/30/45/F60 | Constant voltage | 24VDC | Parallel | 12W | 800LM | 1000X40XH55 | N/A |
| LL710DM | OSRAM | CW,WW, NW,Red Green,Blue,Amber | 120 | Constant voltage | 24VDC | Parallel | 12W | 500LM | 1000X40XH55 | N/A |
| LL710DMX-RGB | CREE | 4R+4G+4B | 15/S20/30/45/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 12W | N/A | 1000X40XH55 | N/A |
| LL710-1M-12W -DMX-RGB | Edison | RGB(FullColor) | 15/S20/30/45/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 12W | N/A | 1000X40XH55 | N/A |
| DMX decoder in built | ||||||||||
■ Project map
