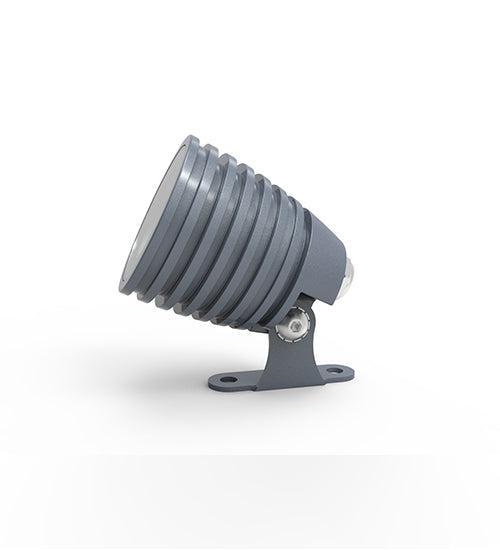

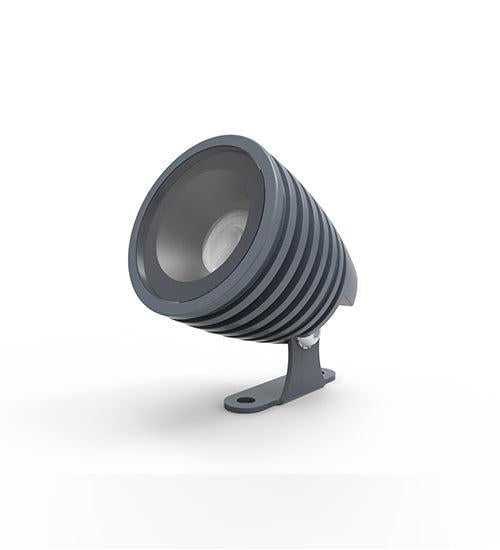

Wall light ML105
Wall light ML105
Tempered glass. This anodized aluminum version of our ML105 provides a sleeker, less obtrusive presence in your garden. It gives you the choice of LED colors, wide or narrow beam angles and ±100° tilting head. Tempered glass. The IP value is rated to 65, which allows it to be outdoor wall lamp or indoor wall lamp. Unique design, threaded round appearance, equipped with CREE led package. It gives you the choice of LED colors: CW, WW, NW, Red, Green, Blue, Amber.
Aluminum die-casting process, the heat dissipation of the product can bring more stable quality assurance to the product. The placement of the lamp beads is relatively deep, and the black reflector can greatly reduce the glare. The products are exquisite, compact and cost-effective. Products with constant voltage and constant current options can be used as garden spot light, external LED lights, yard spot light, wall mounted step light.
| LED Light source | High Power LED |
| Light Color | CW.WW.NW,Red,Green,Blue.Amber |
| Material | Aluminium |
| Optics | S2O° / F6O° |
| Power | 1X3W |
| Power supply | N/A |
| Dimention | D45X7O |
| Weight | N/A |
| IP Rating | IP65 |
| Approvals | CE.RoHS,IP |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor |
ML105 WALL LIGHT

| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| ML105 | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 700mA | Series | 1.1M 2X0.4mm² Cable | 1X3W | N/A | D45X70 | N/A |
| ML105D | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | 1.1M 2X0.4mm² Cable | 1X3W | N/A | D45X70 | N/A |
| *IES Data support. | |||||||||||
