Wall light ML104
Wall light ML104

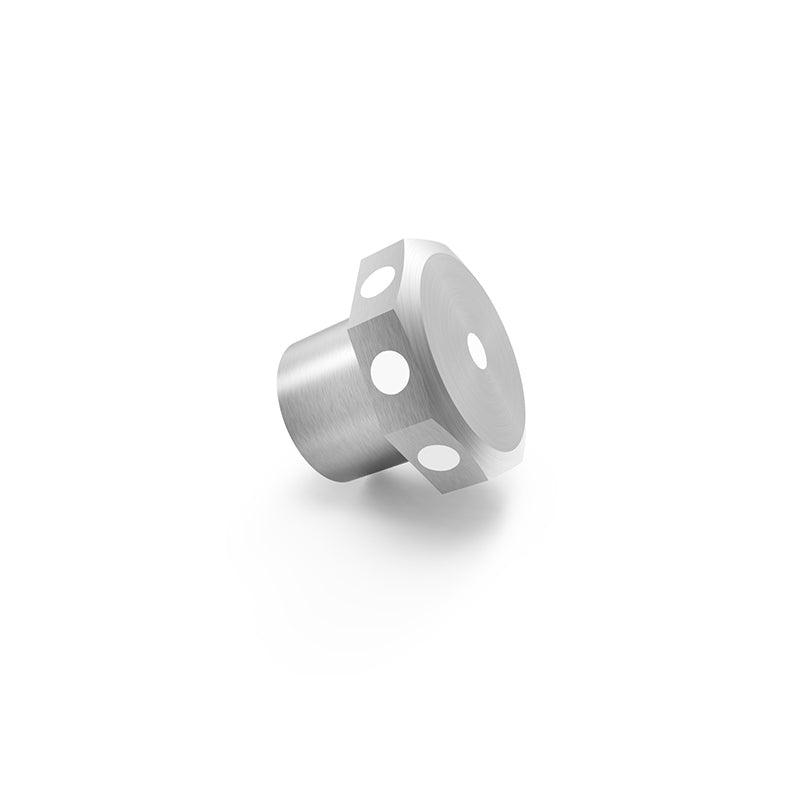

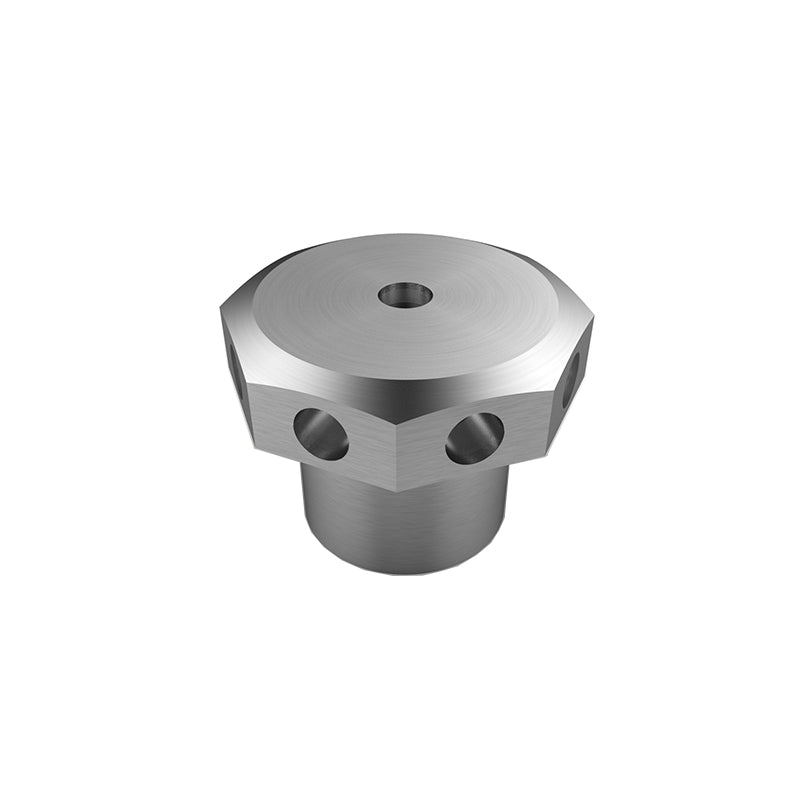

Contemporary, chic, yet rugged, the ML104 decorative mini-light adds style to floors, bars, walls and stairs. Tempered glass. Made from marine grade stainless steel and IP rated to 68 ensures you can use this product indoors or out. The mini bar wall light gives you the choice of Light colors: RGB, CW, WW, NW, Red, Green, Blue, Amber.
IK10 ensures that even if it is a big impact, it will not be damaged. There are eight light-emitting holes around, and one light on top of it. Fully stainless steel wall lights with nice octagonal shape and it is easy to install. The multi-faceted design gives the product’s light spot a more design sense. Every aspect allows you to see the craftsmanship level of EURBORN. The size of the product is 38*38*30, and the compact product design can make the lighting of the project have unexpected effects.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | N/A |
| Power | 1W |
| Power supply | N/A |
| Dimention | 38X38X30 |
| Weight | 110g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape/Submersible |
ML104 WALL LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| ML104 | CREE | CW,WW, NW,Red Green,Blue,Amber | N/A | Constant current | 350mA | Series | 1.1M 2X0.4mm²Cable | 1W | N/A | 38X38X30 | D27 |
| ML104D | CREE | CW,WW, NW,Red Green,Blue,Amber | N/A | Constant voltage | 24VDC | Parallel | 1.1M 2X0.4mm²Cable | 1.2W | N/A | 38X38X30 | D27 |
| ML104RGB | Edison | RGB | N/A | Constant voltage | RGB24VDC | Parallel | 1.1M 4X24AWG Cable | 1W | N/A | 38X38X30 | D27 |
| *IES Data support. | |||||||||||
