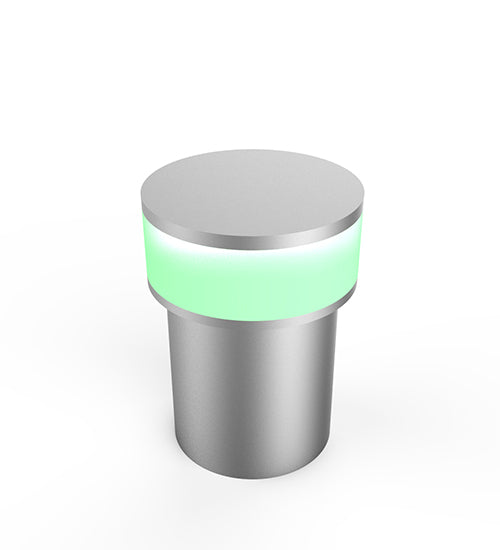

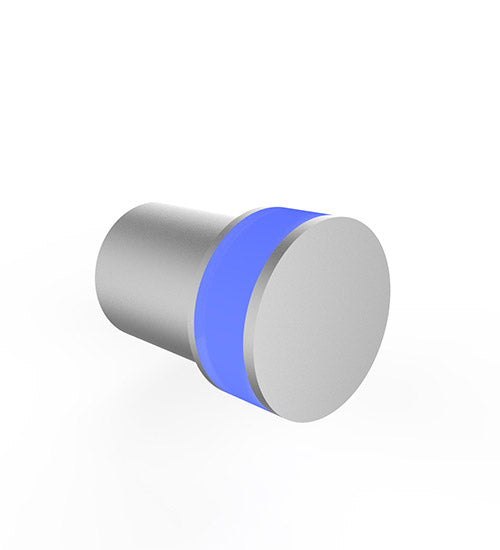

Wall light ML103
Wall light ML103
Add impact to any area with the ML103 wall light. An elegant ‘O’ effect is created around the unit in a choice of 7 ambient LED colors. Tempered glass. Finished to a high standard using anodized aluminum, this trendy mini-light will look great in superior establishments and homes. IP65 ensures the most basic waterproof and dust-proof function. The elegant appearance of this modern wall lamp is pleasing to the eye even when not used during the day.
Multiple color temperatures can be selected. When applied under the outdoor eaves or indoor corridors and semi-outdoor use places, the environment is embellished with more interesting and personalized words. Use as step lighting, deck lighting, wall recessed light, deck stair lights.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium |
| Optics | N/A |
| Power | 1W |
| Power supply | N/A |
| Dimention | D32X44 |
| Weight | 56g |
| IP Rating | IP65 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor |
ML103 WALL LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| ML103 | CREE | CW,WW, NW,Red Green,Blue,Amber | N/A | Constant current | 350mA | Series | 1.1M 2X0.4mm2 | 1W | N/A | D32X44 | D27 |
| ML103D | CREE | CW,WW, NW.Red Green,Blue,Amber | N/A | Constant voltage | 24VDC | Parallel | 1.1M 2X0.4mm² Cable | 1.3W | N/A | D32X44 | D27 |
| ML103RGB | Edison | RGB | N/A | Constant voltage | RGB24VDC | Parallel | 1.1M 4X24AWG Cable | 1W | N/A | D32X44 | D27 |
| *IES Data support. | |||||||||||
