Wall light ML1021
Wall light ML1021
Miniature display light featuring Stainless Steel construction rated to IP65 making this product suitable for both interior and exterior applications. The product is directional and thus perfect for lighting focal features on the wall or within display cabinets. Tempered glass.Incorporates an integrated CREE USA LED white chip set powered at 1W or 2W. A low energy, no maintenance solution。 There are three models of this wall lights. There are several options for the lamp holder. And the lamp holder can be manually rotated to achieve the desired light direction. Many hotels have chosen this exquisite for decoration and lighting.

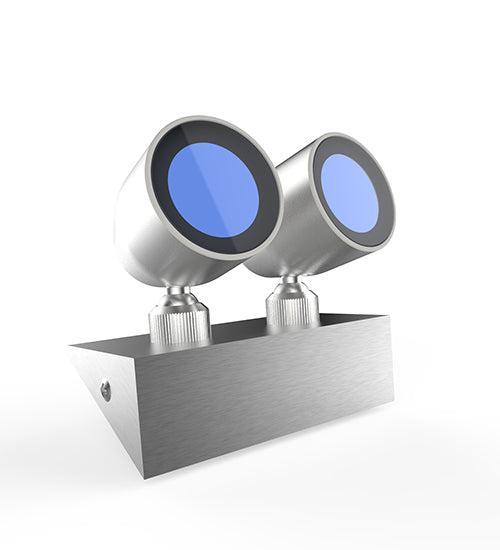

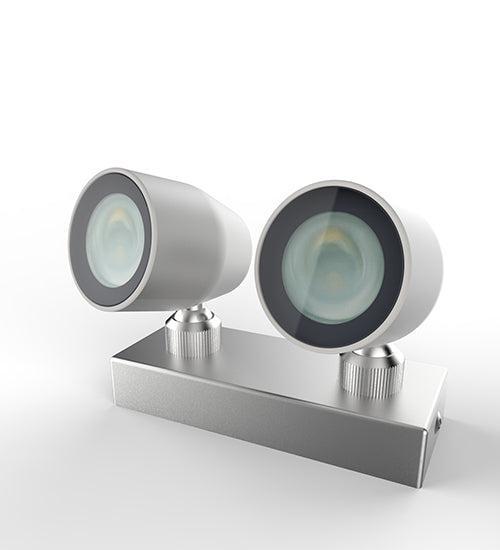

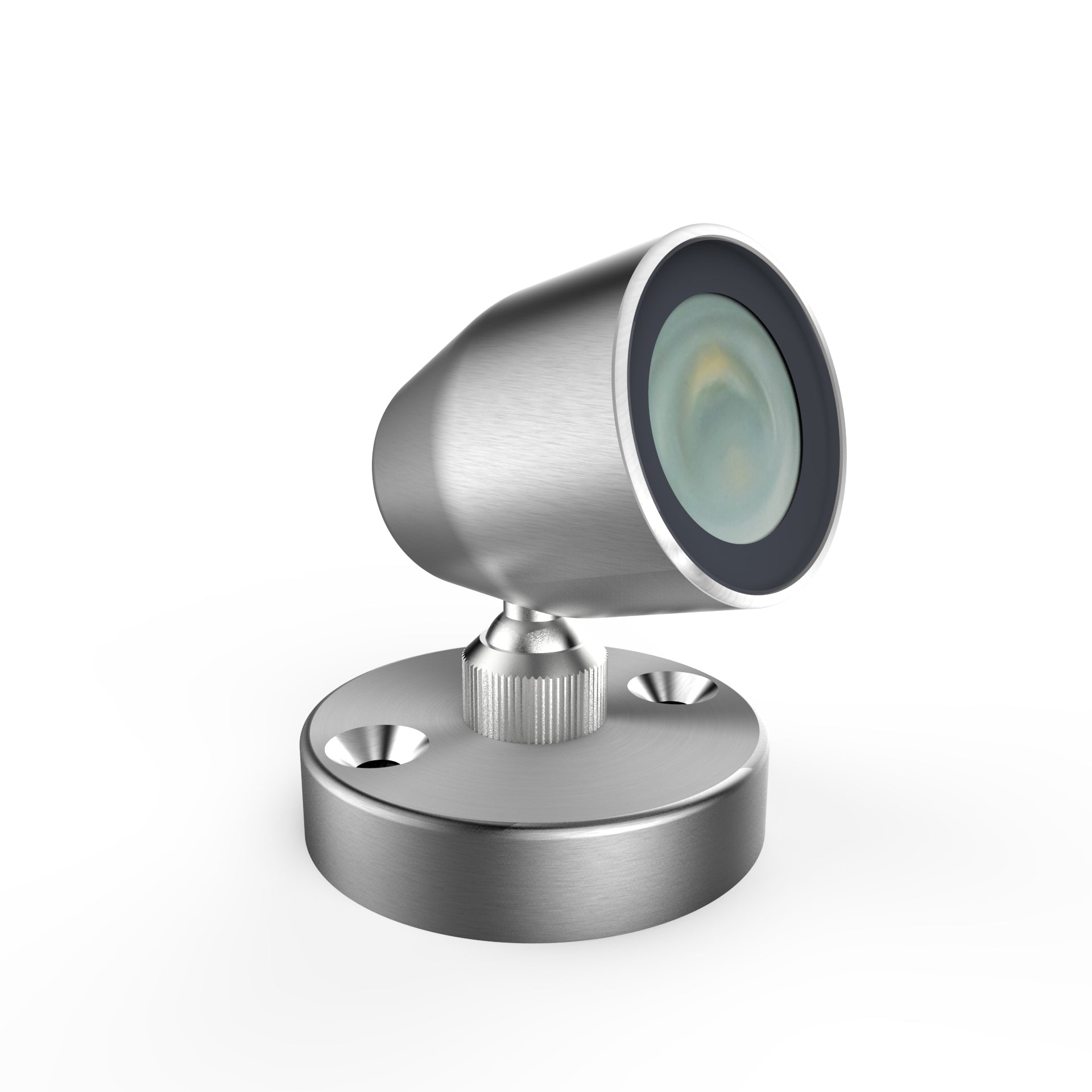

ML1021 is made of one 1W lamp and a base, also a family series composed of ML1021, PL021, PL023, and PL026. You can also see the appearance from small to large on the homepage of our website more intuitively.. ML1022 and ML1022-30 are both made of two 1W lamp and a base while ML1022-30 has a 30 degree tilt angle. It gives you the choice of beam angle 20/60 and Light colors: CW, WW, NW, Red, Green, Blue, Amber.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S2O° / F6O° |
| Power | 1W/ 2W |
| Power supply | N/A |
| Dimention | N/A |
| Weight | N/A |
| IP Rating | IP65 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape |
ML102 WALL LIGHT

| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| ML1021 | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 1W | 1.1M 2X24AWG Cable | 100LM | D45X53 | N/A |
| ML1022 | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 2W | 1.1M 2X24AWG Cable | 200LM | 35X75X56 | N/A |
| ML1022-30 | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 2W | 1.1M 2X24AWG Cable | 200LM | 43X75X56 | N/A |
| *IES Data support. | |||||||||||
