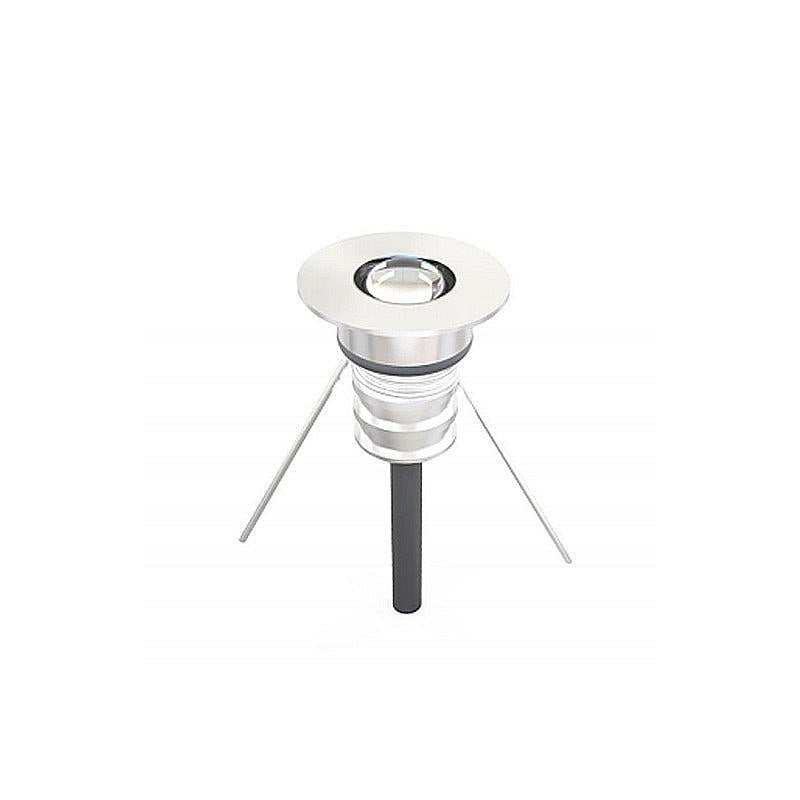

Wall light EU1820
Wall light EU1820
Miniature recessed fixture complete with integral OSRAM LED package and 70 degree beam option. IP65 wall light is made of Aluminum. Frosted optic serves to minimize glare coupled with a diffuse beam distribution.Small Product footprint ensures versatile application. Easy to install into the panels. This lamp is delicate and compact with power options of 1W and 0.3W. Aluminium material make sure the ability of heating dissipation. Suitable for multiple lamps installed on the ceiling, giving a sense of starry sky.
This product was installed on the ceiling of a large conference hall by one of our customers, and it used nearly 7000pcs in total. Presents a sense of the firmament of the universe. The entire lamp bead adopts a convex installation design, just like the morning dew drops make the product look more agile.
| LED Light source | LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium |
| Optics | 70° |
| Power | 1W / 0.3W |
| Power supply | 350mA/ 24VDC |
| Dimention | D24XH25 |
| Weight | 30g |
| IP Rating | IP65 |
| Approvals | CE.RoHS |
| Ambient temperature | -20°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | YES |
| Applications | Indoor |
EU1820 WALL LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| EU1820 | OSRAM | CW,WW,NW,Red, Green,Blue,Amber | 70° | Constant current | 350mA | Series | 0.5M 2X0.4mm²Cable | 1W | 60LM | D24XH25 | D17 |
| EU1820D | OSRAM | CW.WW.NW.Red, Green,Blue,Amber | 70 ° | Constant voltage | 24VDC | Parallel | 0.5M 2X0.4mm²Cable | 1W | 60LM | D24XH25 | D17 |
| EU1820D-0.3 | OSRAM | CW.WW.NW.Red, Green,Blue,Amber | 70° | Constant voltage | 24VDC | Parallel | 0.5M 2X0.4mm² Cable | 0.3W | 20LM | D24XH25 | D17 |
| *IES Data support. | |||||||||||
■ Project map
