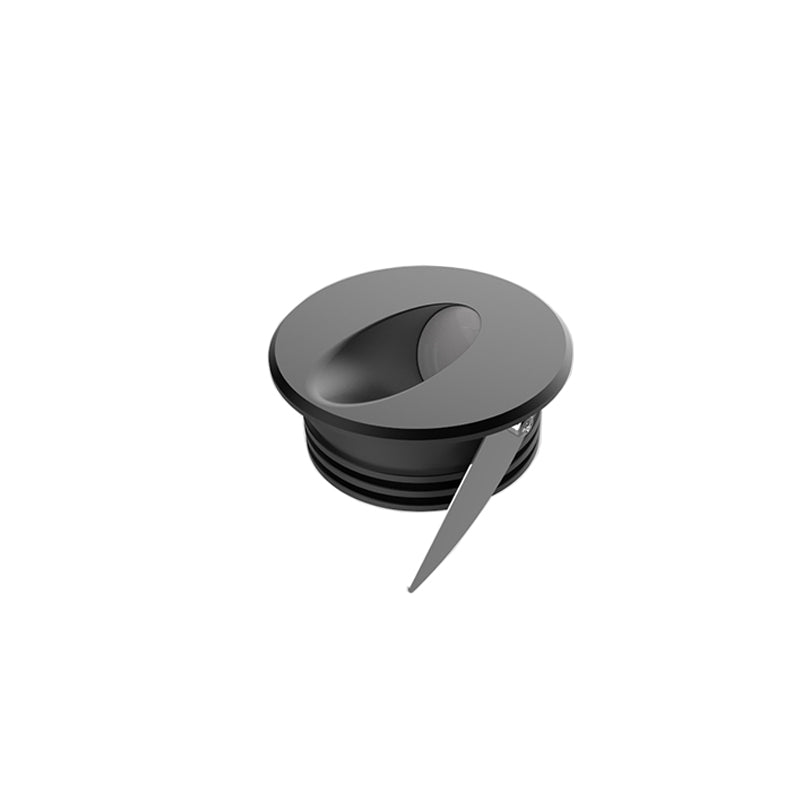

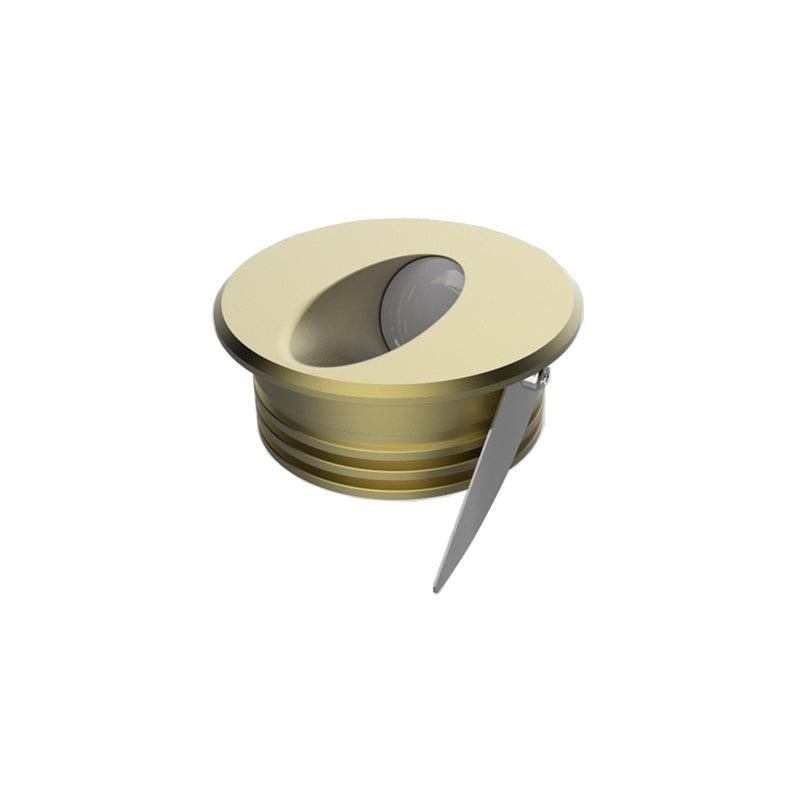

Wall light EU1808
Wall light EU1808
Miniature recessed fixture complete with integral CREE LED package and 60 degree beam option. Aluminum surface mounted projector.Tempered glass with construction rated to IP44 with single aperture for asymmetric emission. Product footprint of 64mm diameter ensures versatile application. Just as you can understand from the appearance that the surface treatment process of the product is very difficult, with the efforts of our engineering team, we will continue to update the product process.
The one-eyed side luminous design allows the irradiated light to form a beautiful spot. Unique stylish chic wall lighting design. The design of the side shrapnel can be well fixed and can be installed quickly. 4 colors on the surface are processed by electroplating with 1 and 3 power options. The modern wall light is suitable installing in lobby, showroom, corridor, path road, etc.
| LED Light source | Hight Power LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium |
| Optics | 60° |
| Power | 1W/ 3W |
| Power supply | N/A |
| Dimention | D64X43 |
| Wight | 170g |
| IP Rating | IP44 |
| Approvals | CE.RoHS |
| Ambient temperature | -2O°C~+45°C |
| Average Life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor |
EU1808 WALL LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| EU1808 | CREE | CW,WW, NW, Red Green,Blue,Amber | 60° | Constant current | 350mA | Series | 0.5m 2*0.75H05RN-F Cable | 1W | 95LM | D64X43 | D60 |
| EU1808-3W | CREE | CW,WW, NW, Red Green,Blue,Amber | 60° | Constant voltage | 700mA | Series | 0.5m 2*0.75H05RN-F Cable | 3W | 160LM | D64X43 | D60 |
| *IES Data support. | |||||||||||
