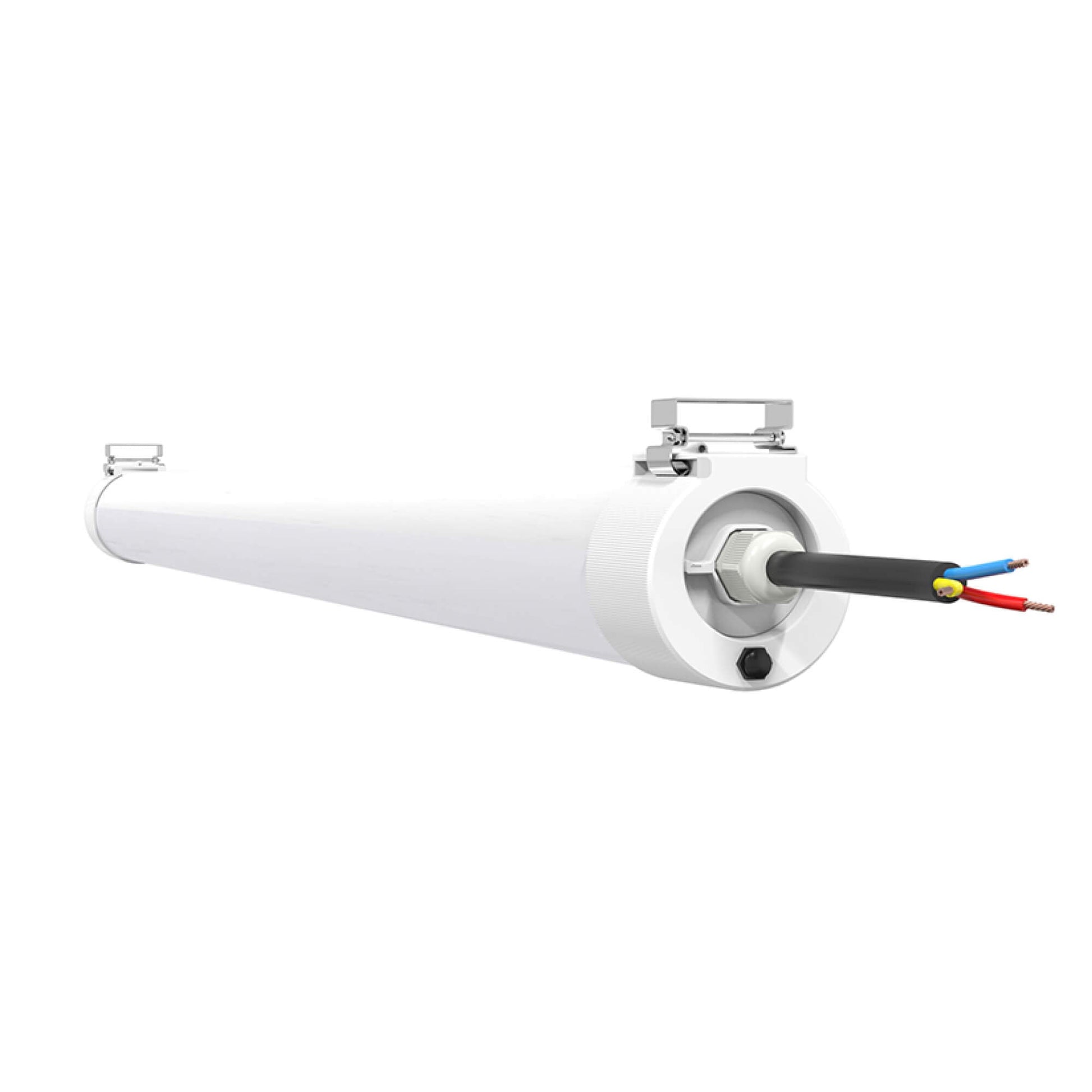

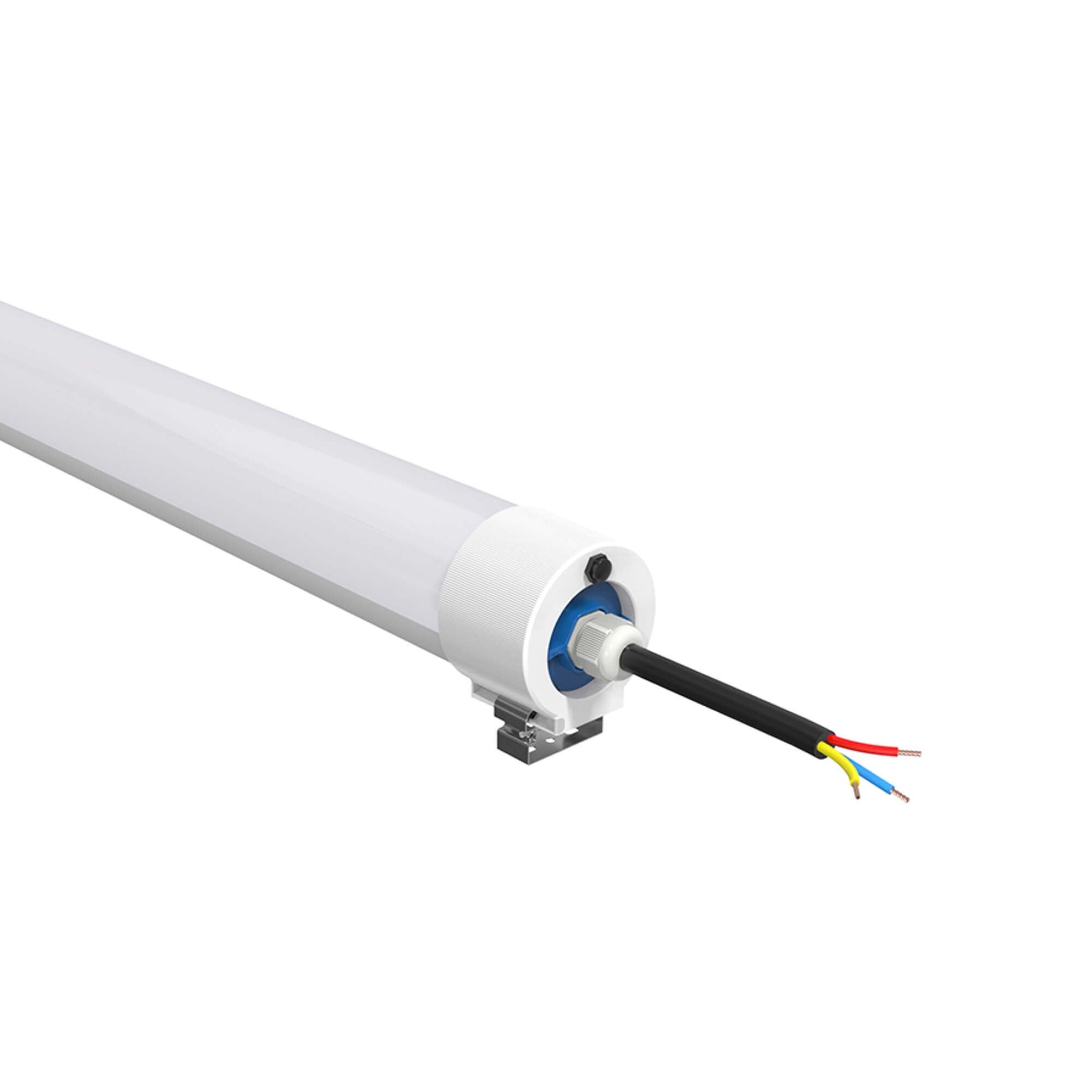

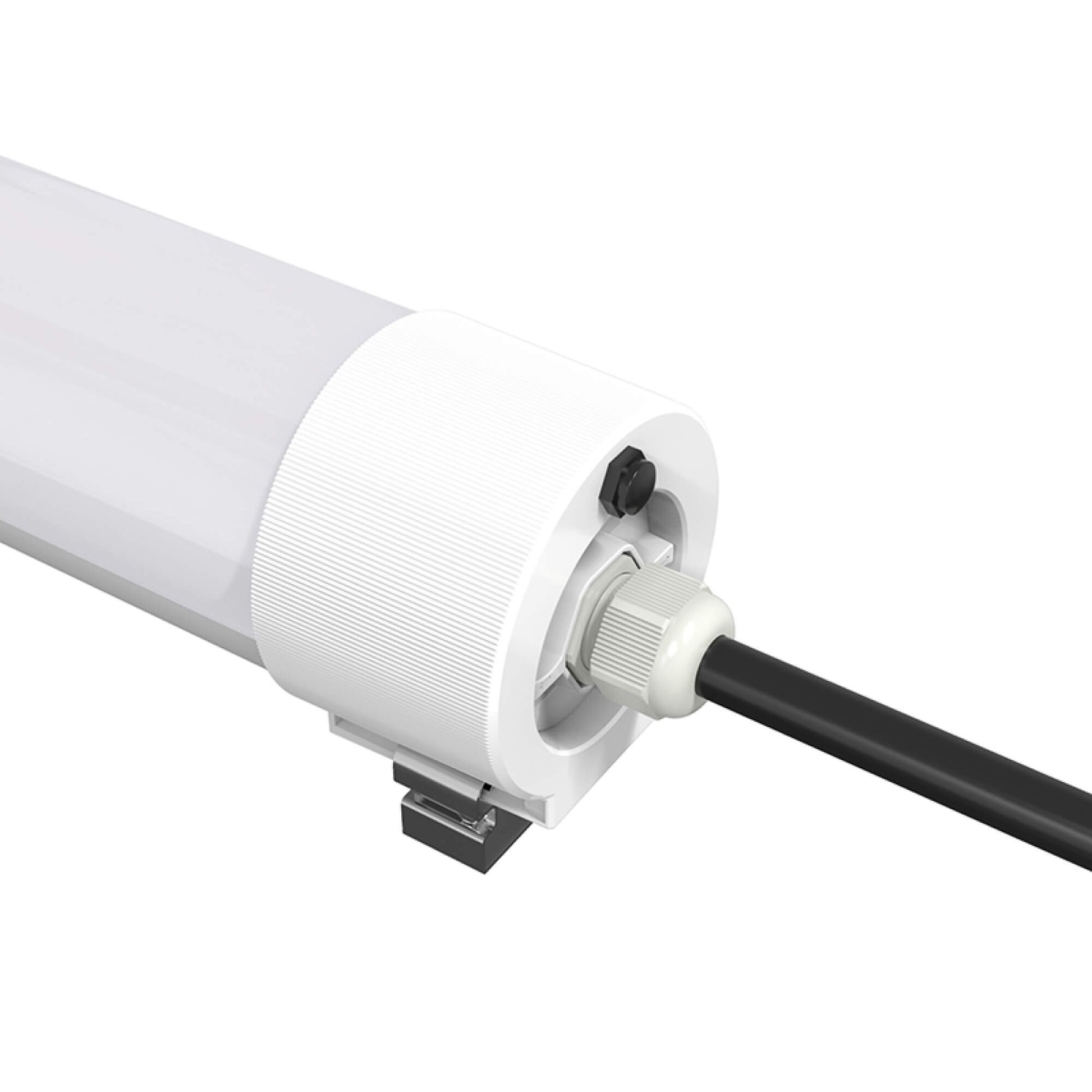

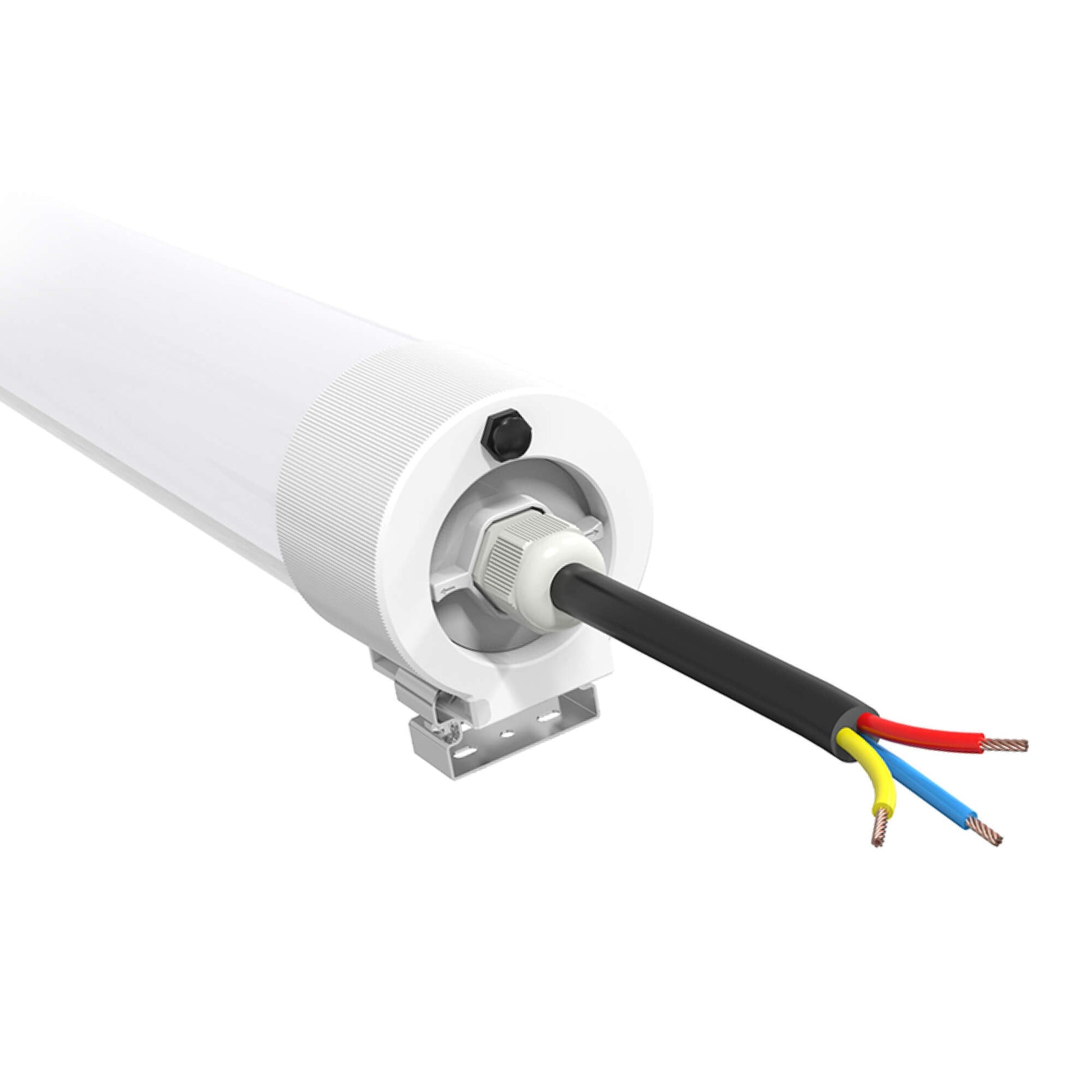

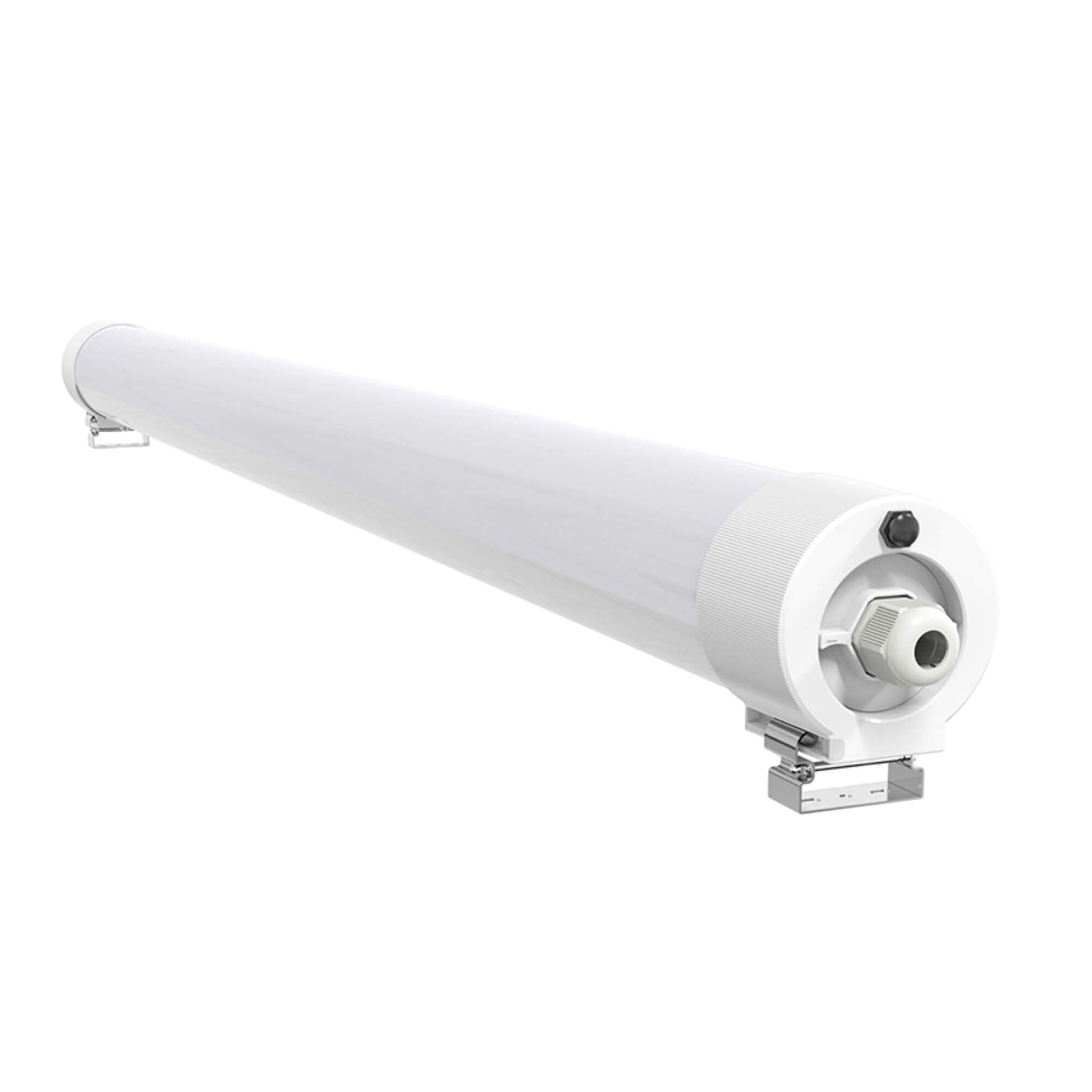

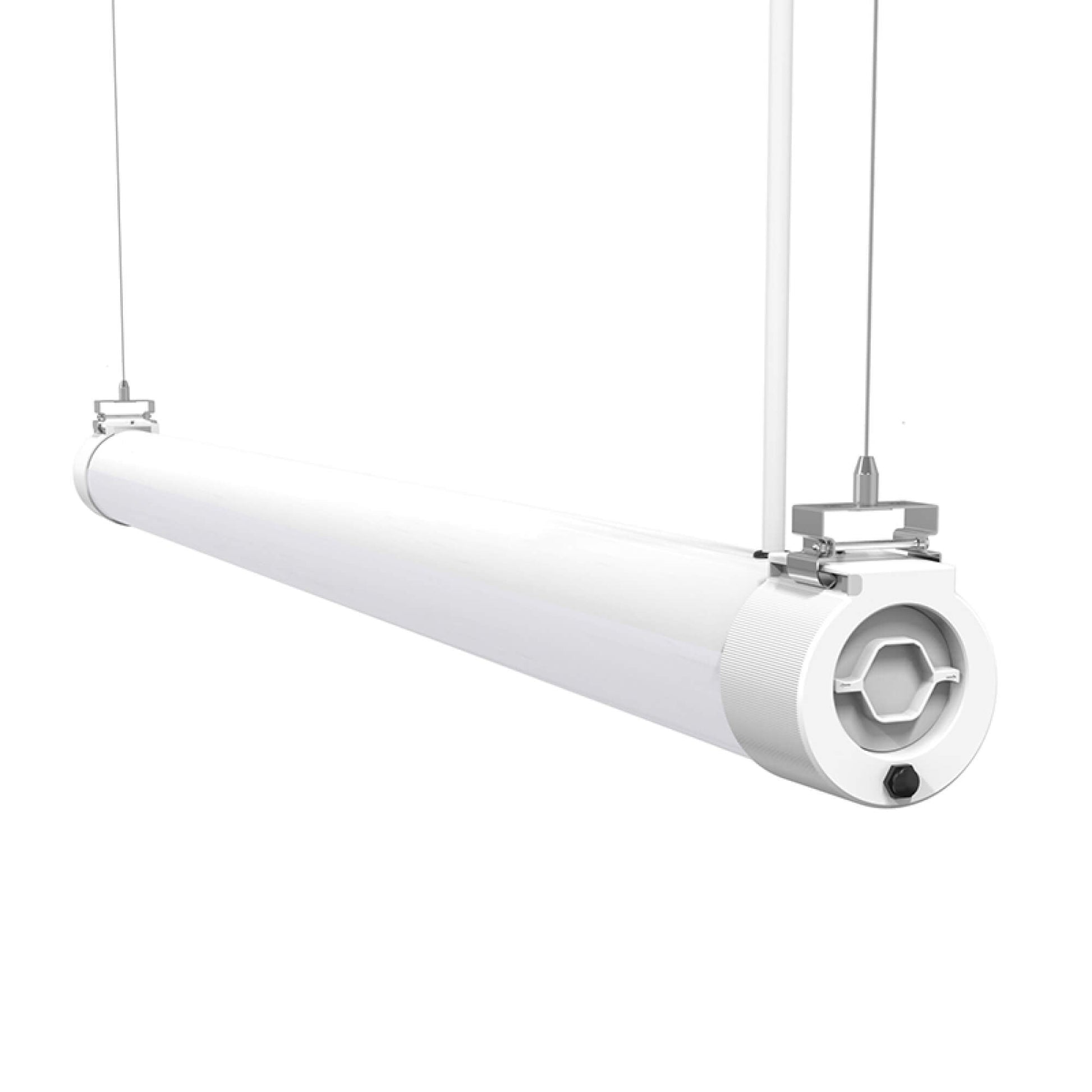

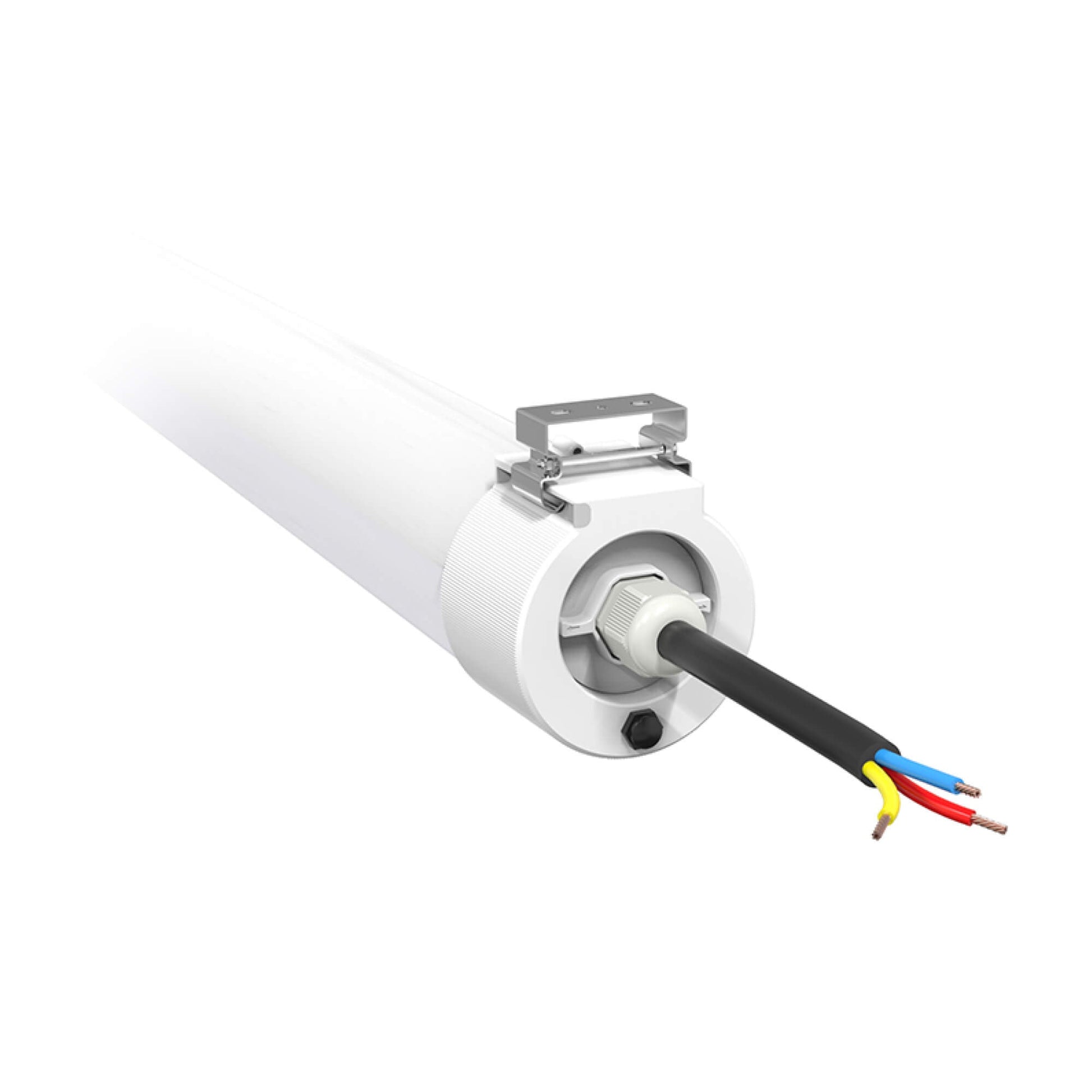

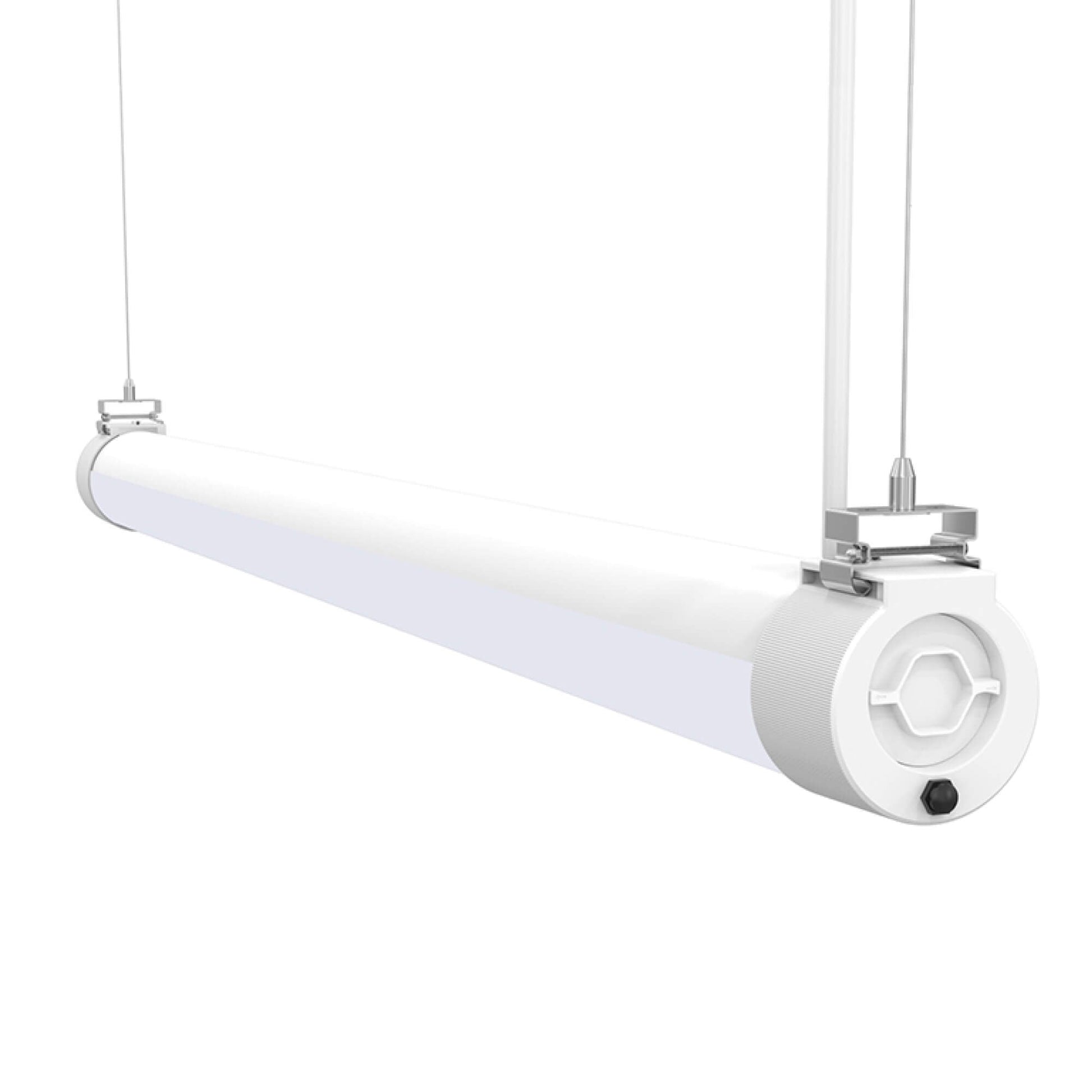

LED Explosion Proof Vapor Proof

LED Explosion Proof Vapor Proof

Specification

  • Fixture Type：LED Vapor Tight Light
  • Lead Time: Ships in 1-2 weeks
  • Qualifications: DLC Standard/DLC Premium, ETL/CETL List
  • Voltage: Universal voltage 120-277V
  • CCT Adjustable: 3000K/3500K/4000K/5000K
  • Dimmable: 0-10V dimming standard
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models


Controls Features

  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth
  • Model: C2316
  • Warranty: 5 years
  • Wattage Adjustable: 18 to 60Watts
  • CRI(Color rendering index): >80
  • Lumen output: 1950 lm-7800 lm

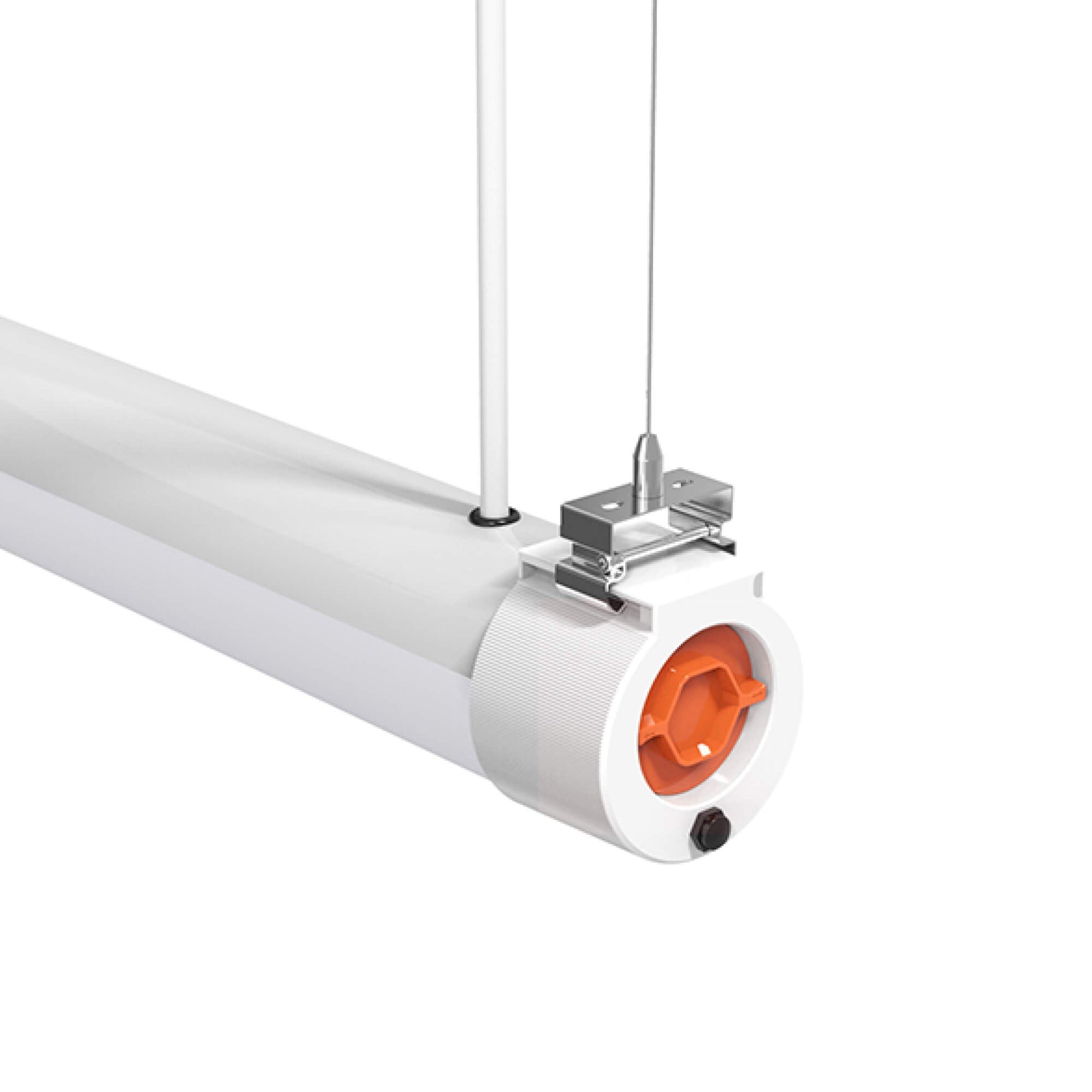

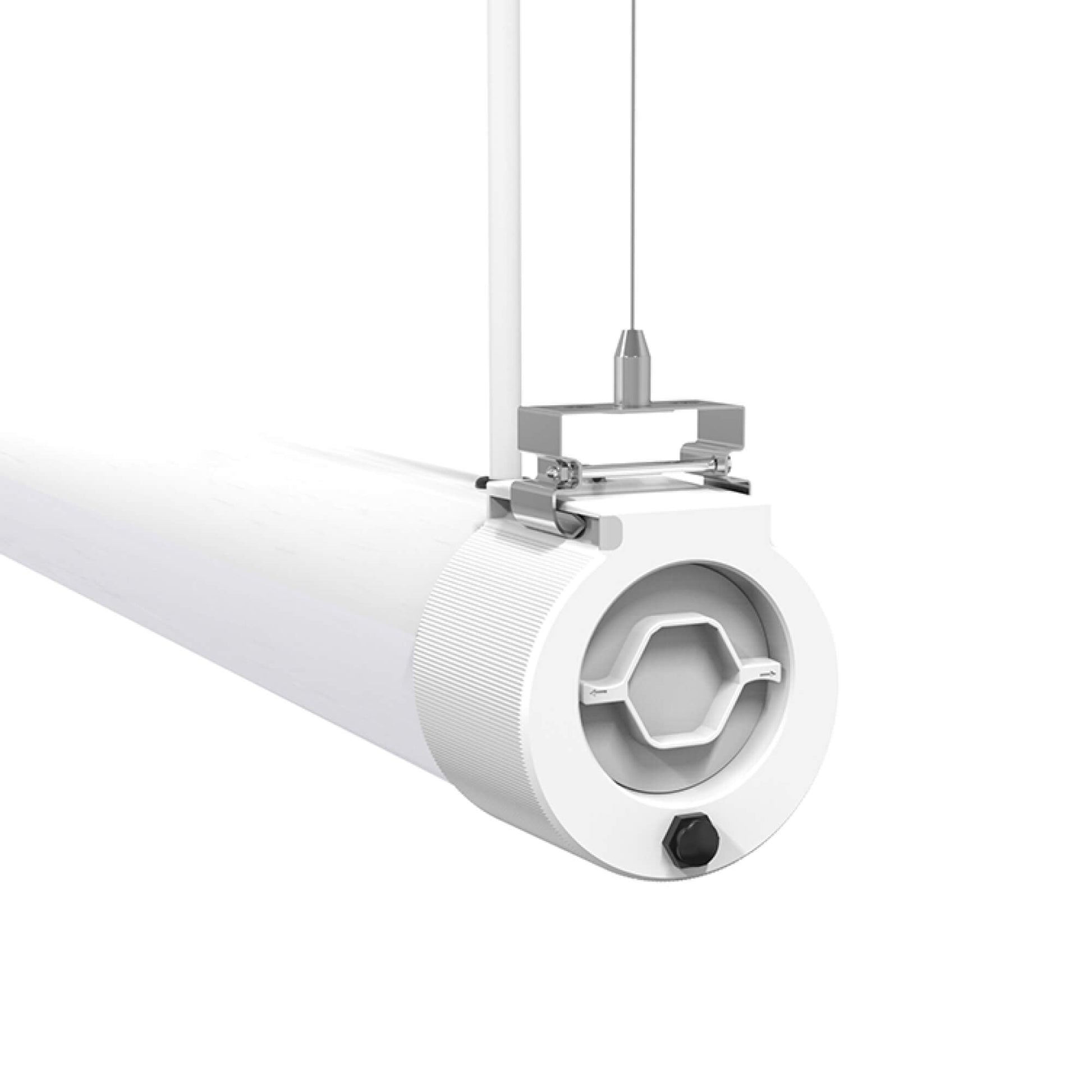

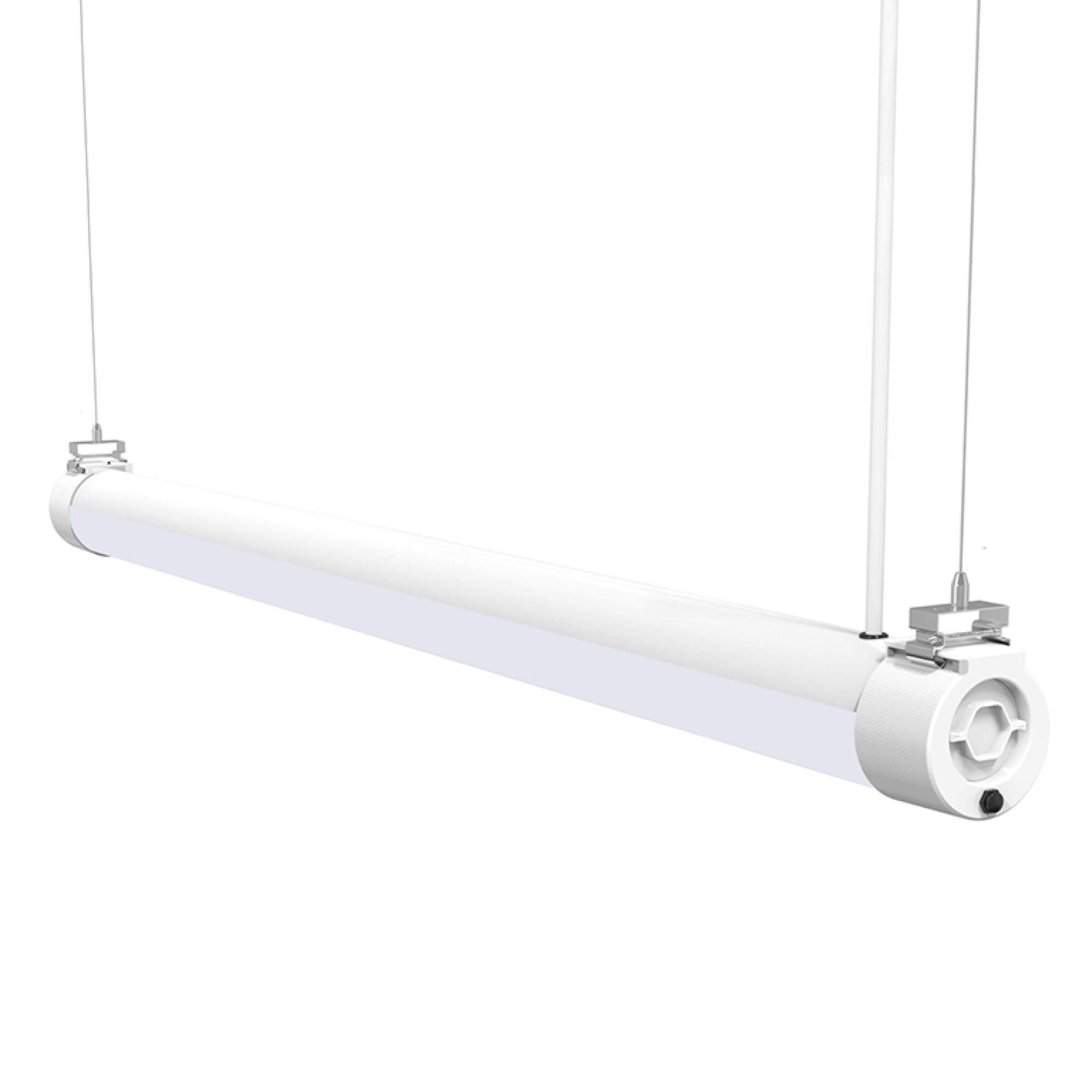

  • Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)



Accessories

SENSOR control, Emergency kits, suspension kits.


Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Specification


C2316-182F C2316-364F C2316-505F C2316-608F
Size 660x76x76mm 1260x76x76mm 1560x76x76mm 2440x76x76mm
Nominal Wattage 18W 36W 50W 60W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2340 lm 4680 lm 6500 lm 7800 lm
Nominal Efficacy 130lm/W 130lm/W 130lm/W 130lm/W
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
