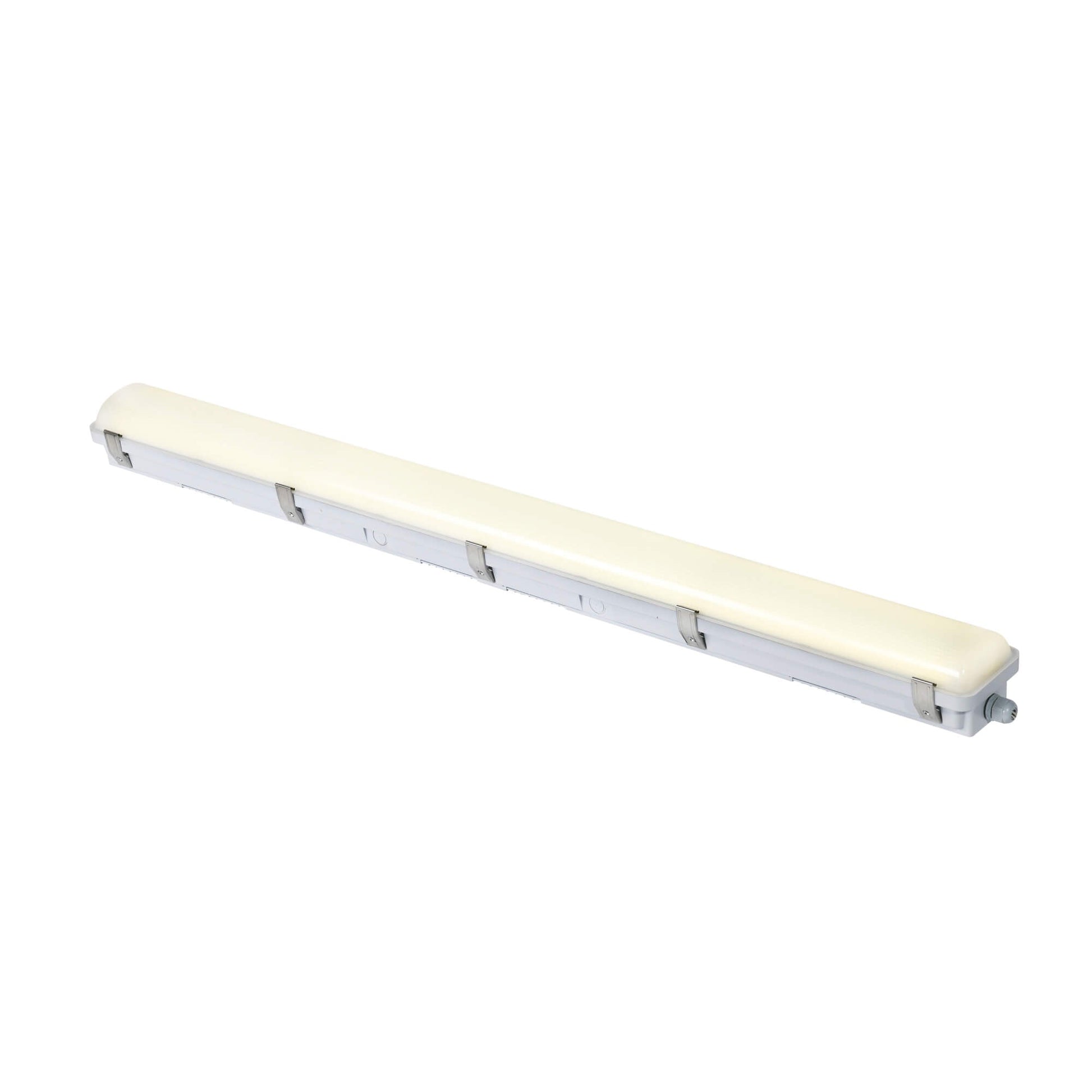

• Halcon Lighting Vapor Tight LED light fixture, designed for industrial and humid environments, energy-efficient, IP65 rated and NSF certified

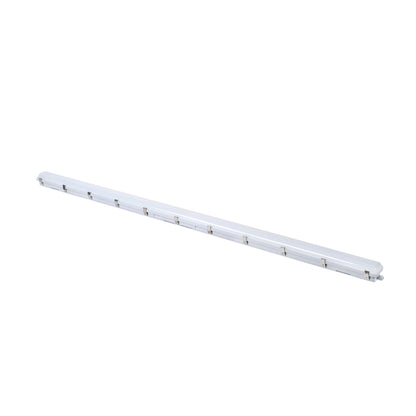

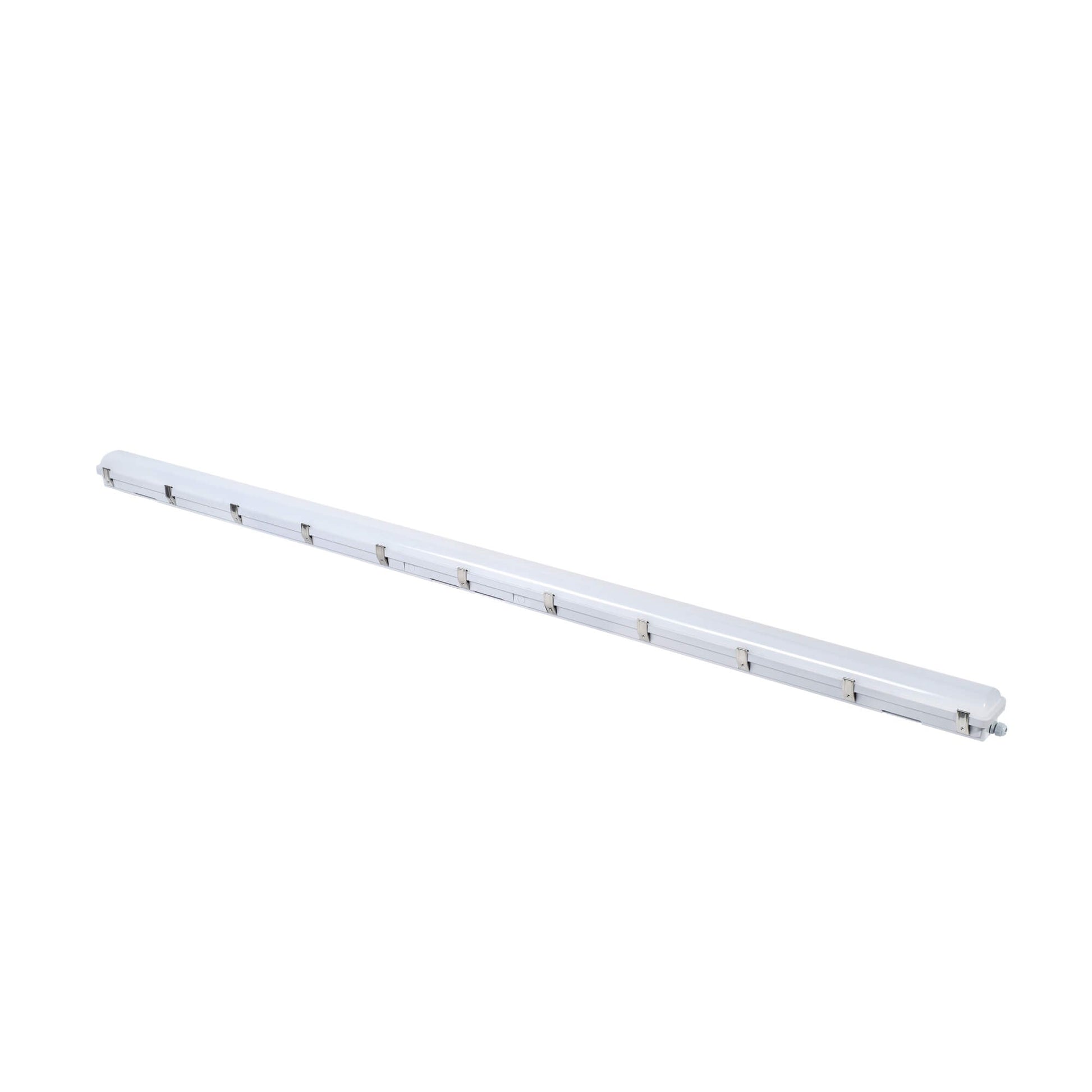

  • Halcon Lighting Vapor Tight LED Light Fixture 8ft model, IP65 rated and NSF certified for industrial and food processing environments

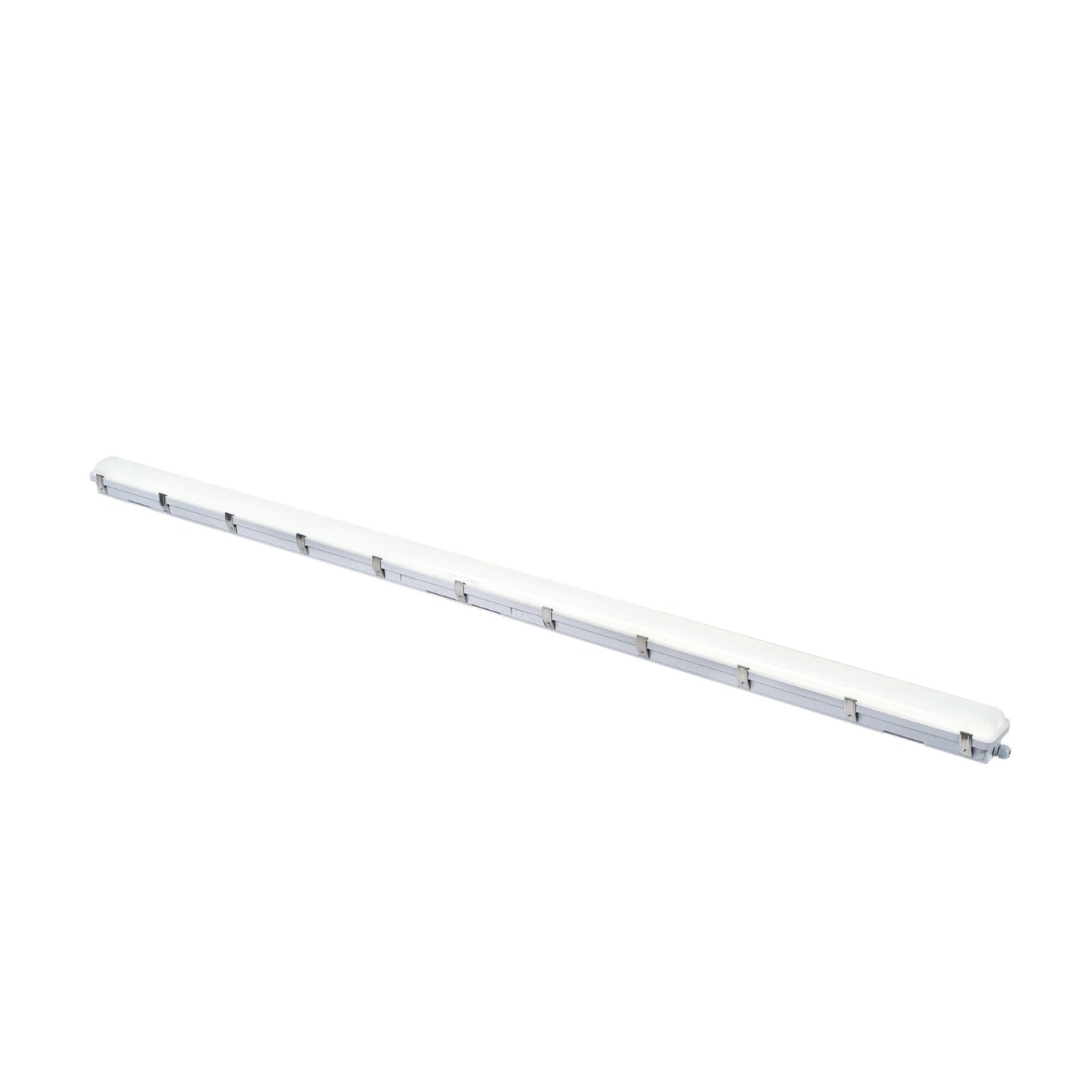

  • Halcon Lighting Vapor Tight LED light, 8ft model, designed for wet and humid conditions, ideal for industrial use and food processing facilities, wall mounted or ceiling installation

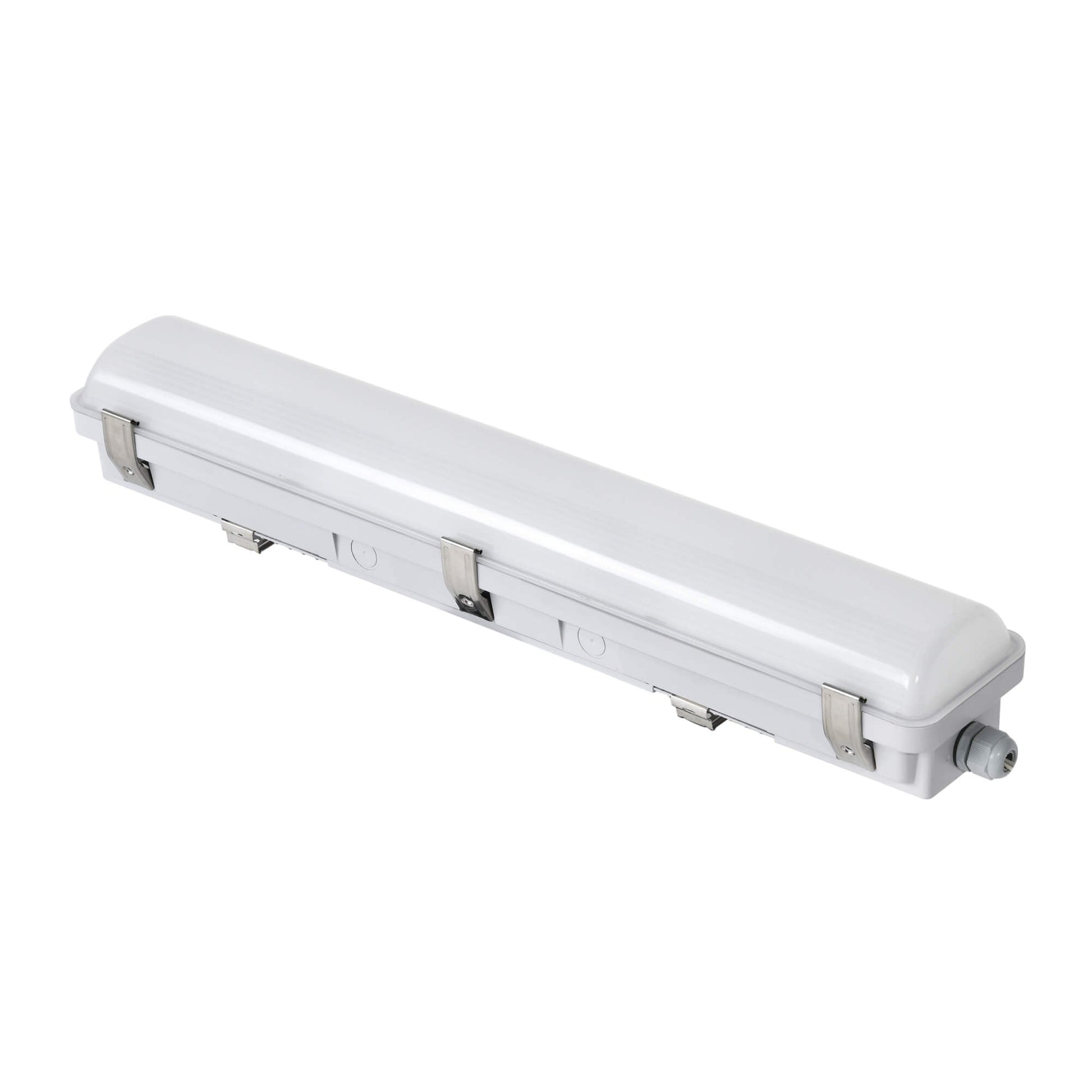

  • Vapor Tight LED light C2103 2ft model, white finish, designed for harsh environments, IP65 rated, suitable for industrial and wet locations

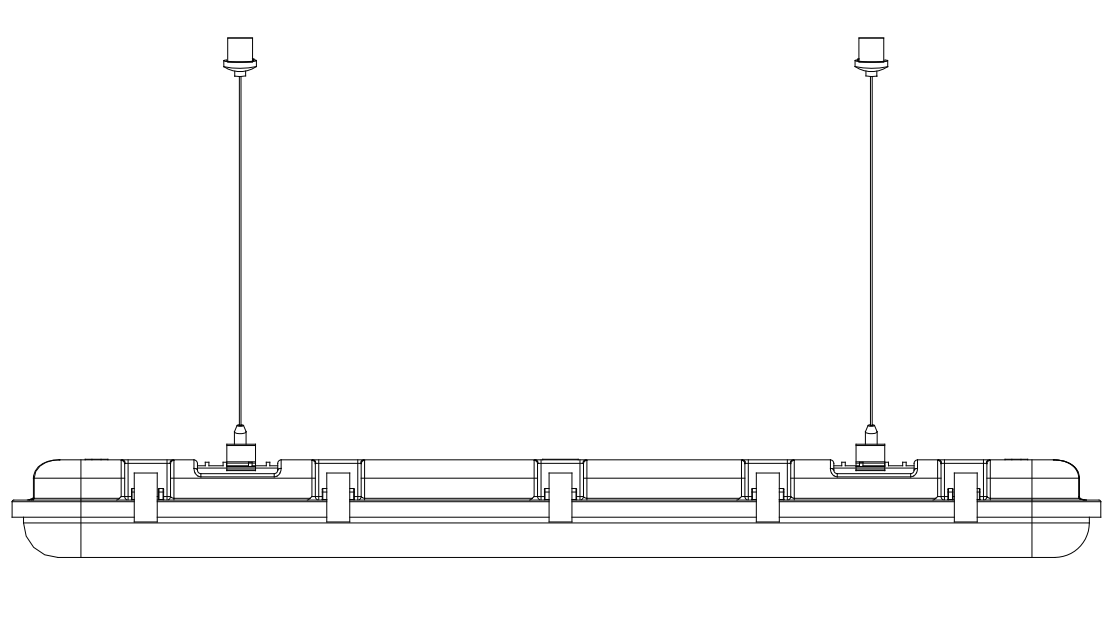

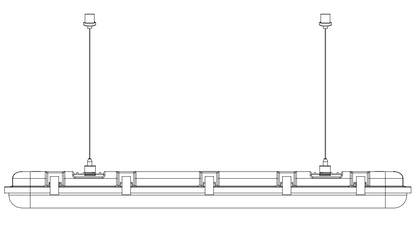

  • LED vapor tight light fixture with adjustable suspension cables

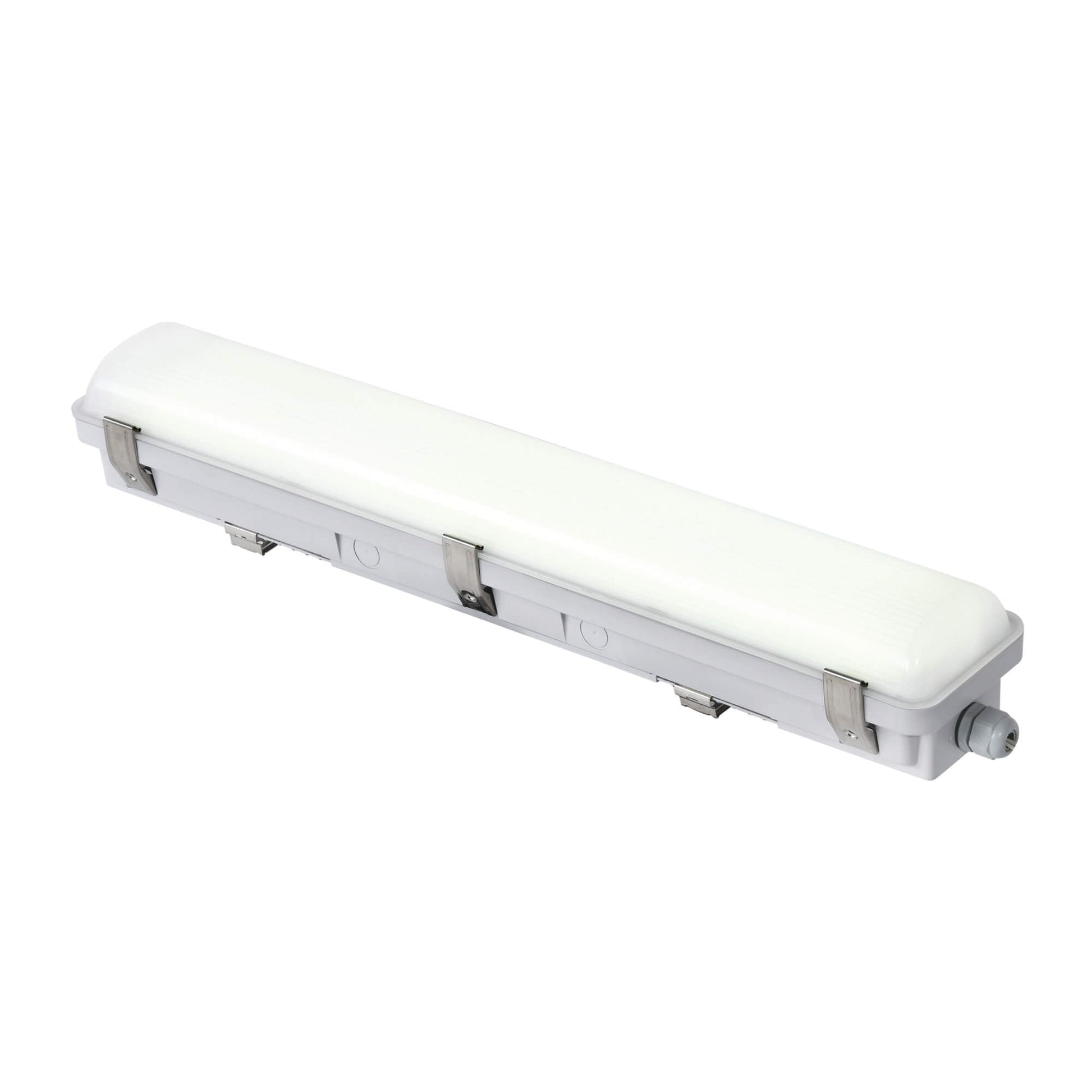

  • Halcon Lighting Vapor Tight LED light fixture, IP65 rated and NSF certified, for wet and humid environments

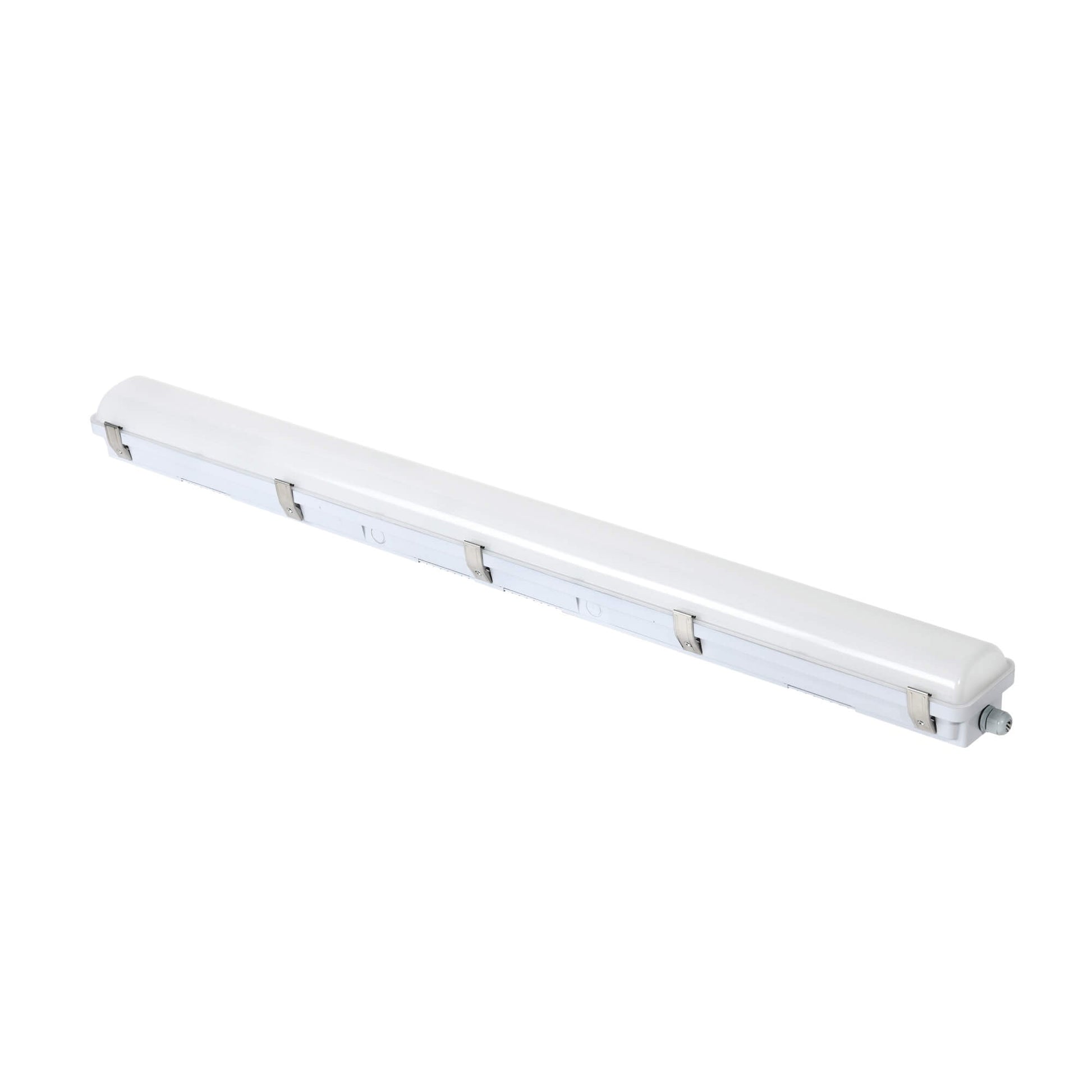

  • Halcon Lighting Vapor Tight LED light linkable fixture suitable for harsh industrial conditions and food processing plants
1 7

2ft 4ft 8ft LED Vapor Tight Light With Motion Sensor 65/75/90W Tunable 3500K/4000K/5000K CCT Selectable 130lm/W IP65 Waterproof Light For Parking Carport Car Wash

2ft 4ft 8ft LED Vapor Tight Light With Motion Sensor 65/75/90W Tunable 3500K/4000K/5000K CCT Selectable 130lm/W IP65 Waterproof Light For Parking Carport Car Wash

Overview
Comparison Chart
Comparison Chart
Video

Specification

  • Manufacturer： Halcon Lighting
  • Fixture Type：LED Vapor Tight Light
  • Lead Time: Ships in 1-2 weeks
  • Qualifications: DLC Standard/DLC Premium, ETL/CETL List
  • Voltage: Universal voltage 120-277V
  • CCT Adjustable: 3000K/3500K/4000K/5000K
  • Dimmable: 0-10V dimming standard
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models


Controls Features

  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth
  • Model: C2103
  • Warranty: 5 years
  • Wattage Adjustable: 15 to 100Watts
  • CRI(Color rendering index):>80
  • Lumen output:3250 lm-13000 lm



Accessories

SENSOR control, Emergency kits, suspension kits.


Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Comparison Chart


C2103-252F C2103-504F C2103-604F C2103-804F C2103-1008F
Size 600x110x88mm 1200x110x88mm 1200x110x88mm 1200x110x88mm 2385x110x88mm
Nominal Wattage 25W/20W/15W 50W/40W/30W 60W/50W/40W 80W/70W/60W 100W/90W/80W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3250 lm 6500 lm 7800 lm 10400 lm 13000 lm
Nominal Efficacy 130lm/W 130lm/W 130lm/W 130lm/W 130lm/W
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
