Underwater light GL140BP
Underwater light GL140BP
| Material | SUS316 |
| Surface | Polishing, wire drawing, passivation |
| PowerMode | External, constant current/voltage |
| Installation | Embedded installation of buried lamp |
| Weight | 0.5kg |
| Control | On/off, DMX dimming |
| Approvals | CE,RoHS,IP |
| Ambient temp. | -20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories | TS140 |
Note:Lamps with IP68 protection grade are suitable for underwater or above ground installation;

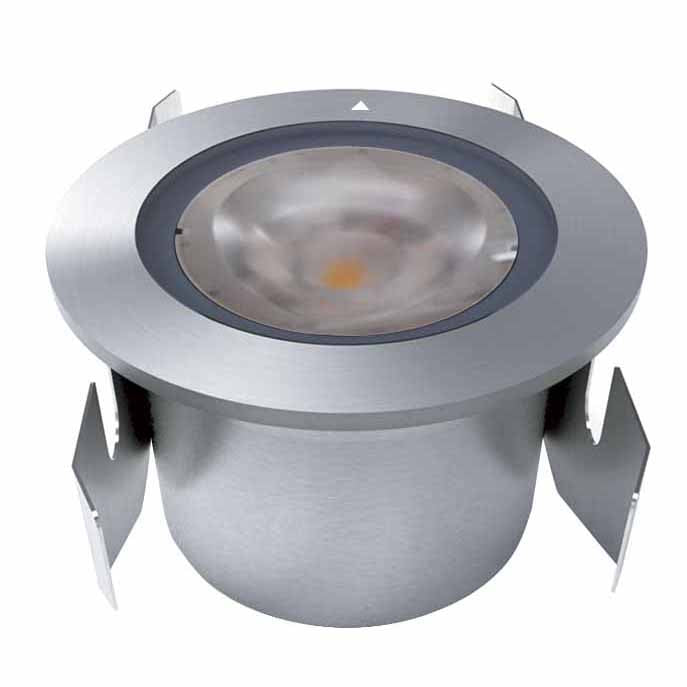

GL140BP Underwater light
Miniature recessed fixture complete with integral COB LED package and tilt5/20/30 degree beam options.Tempered glass, marine grade 316 Stainless Steel option with construction rated to IP68.Product footprint of 76mm diameter ensures versatile application.Inline driver options include switched,1T0V and DALI dimmable solutions.

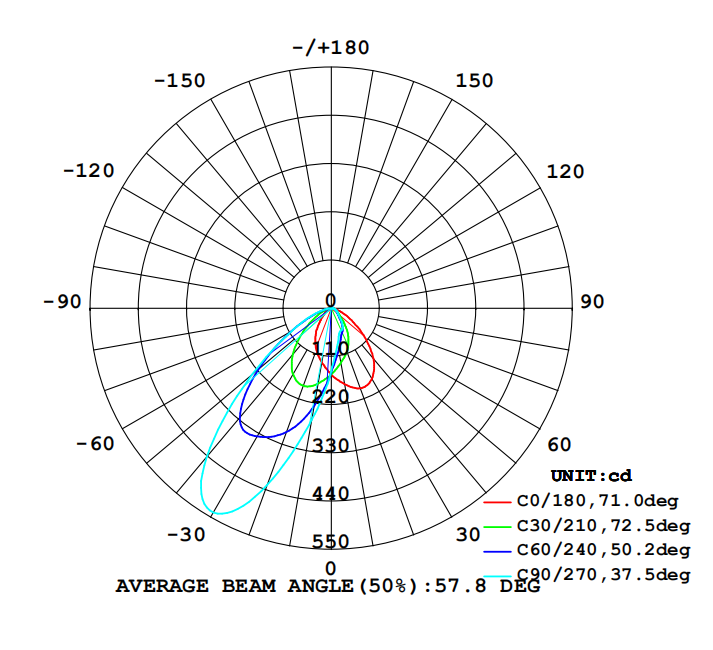

GL140BP 5W 4000K 30° 40×90°
| H(m) | Eavg(lx) | Emax(lx) |
D(cm) |
| 1 | 150.4 | 346.5 |
71.84 |
| 2 | 37.61 | 86.62 |
143.69 |
| 3 | 16.71 | 38.5 |
215.53 |
| 4 | 9.402 | 1.65 |
287.38 |
| 5 | 6.017 | 13.861 |
359.22 |
Power(w) |
Input Lum | linous Flux(lm) | Color(k) |
Color Index PowerMode | Wiring |
Cable | Beam (°) | Model No. | |
5 |
24VDC | 460 | C,W,N | 80 | Constant voltage |
Parallel | 3M 2×0.75mm2 | Tilt5° /20° /30° | GL140BPD |
5 |
24VDC DMX | 460 | C,W,N | 80 | Constant voltage | Parallel | 3M 2×0.75mm2 | Tilt5° /20° /30° | GL140BPDMX |
5 |
350mA | 460 | C,W,N | 80 | Constant current | Series | 3M 2×0.75mm2 | Tilt5° /20° /30° | GL140BP |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
Drive power supply to be provided separately page256/257
