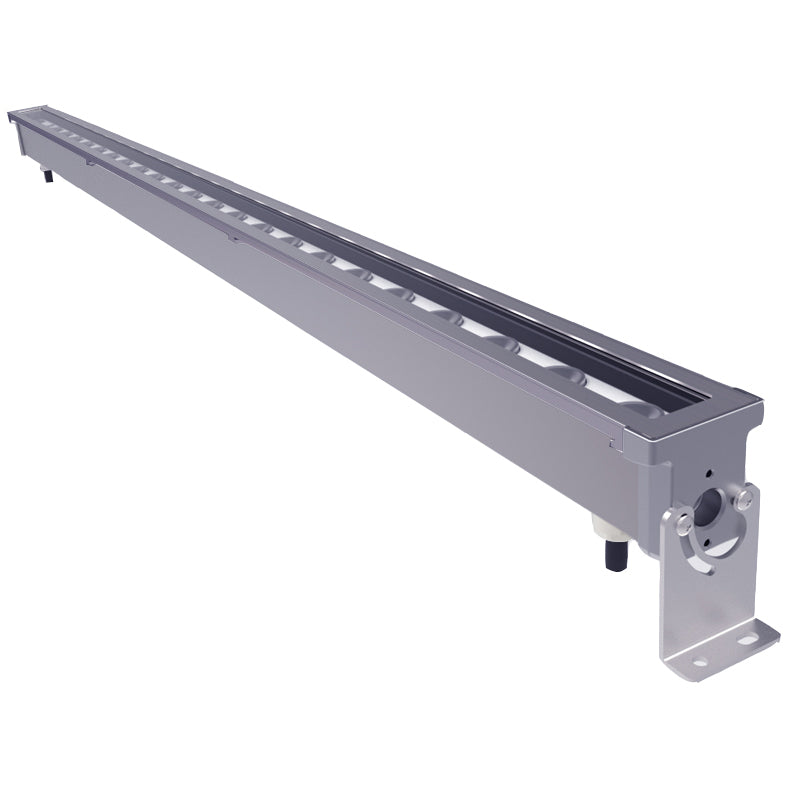

Underwater light EU1971
Underwater light EU1971
| Material | SUS304/SUS316 |
| Surface | Polishing, wire drawing, passivation |
| PowerMode | External, constant current/voltage |
| Installation | Screw installation,adjustable angle |
| Weight | |
| Control | On/off, DMX dimming, color dimming |
| Approvals | CE,RoHS,IP |
| Ambient temp. | -20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |
Note:Lamps with IP68 protection grade are suitable for underwater or above ground installation;
EU1971 Underwater light
Power(w) |
Input |
Luminous Flux (lm) |
Color(k) |
Color Index PowerMode | Wiring |
Cable | Beam (°) | Model No. | ||
12 |
24VDC | 950 | C,W,N,R,G,B,ARGB,RGBW | 80 | Constant voltage | Parallel | 0.3M 2×0.75mm2Plug | 20/30/45/ 60/ 10X45 /10X60 | EU1971D-0.5M-12L | |
12 |
24VDC |
DMX | 950 | C,W,N,R,G,B,ARGB,RGBW | 80 | Constant voltage | Parallel | 0.3M 2×1.0+3×0.2mm2Plug | 20/30/45/ 60/ 10X45 /10X60 | EU1971DMX-0.5M-12L |
12 |
24VDC | 950 | C,W,N,R,G,B,ARGB,RGBW | 80 | Constant voltage | Parallel | 0.3M 2×0.75mm2Plug | 20/30/45/ 60/10X45 /10X60 | EU1971D-1M-12L | |
12 |
24VDC |
DMX | 950 | C,W,N,R,G,B,A. | 80 | Constant voltage | Parallel | 0.3M 2×1.0+3×0.2mm2 Plug | 20/30/45/ 60/10X45 /10X60 | EU1971DMX-1M-12L |
12 |
350mA | 950 | C,W,N,R,G,B,ARGB,RGBW | 80 | Constant current | Series | 0.3M 2×0.75mm2Plug | 20/30/45/ 60/ 10X45 /10X60 | EU1971-0.5M-12L | |
24 |
24VDC |
1800 | C,W,N,R,G,B,A. | 80 | Constant voltage | Parallel |
0.3M 2×1.0+3×0.2mm2 Plug | 20/30/45/ 60/ 10X45 /10X60 | EU1971D-1M-24W | |
36 |
24VDC |
2700 | C,W,N,R,G,B,A, | 80 | Constant voltage | Parallel | 0.3M 2×1.0+3×0.2mm2 Plug | 20/30/45/ 60/ 10X45 /10X60 | * EU1971D-1M-36W | |
EU1971 12W 4000K 20°
H(m) |
Eavg(lx) |
Emax(lx) |
D(cm) |
| 1 | 8004 | 11979 |
27.44 |
| 2 | 2001 | 2995 |
54.87 |
| 3 | 899.3 | 1331 |
82.31 |
| 4 | 500.3 | 748.7 |
109.74 |
| 5 | 320.2 | 479.21 |
137.18 |
EU1971 12W 4000K 60°
H(m) |
Eavg(lx) |
Emax(lx) |
D(m) |
| 1 | 1116 | 1865 | 116 |
| 2 | 279 | 466.3 |
232 |
| 3 | 124 | 207.2 | 348 |
| 4 | 69.75 | 116.6 | 464.01 |
| 5 | 44.64 |
74.6 |
580.01 |
