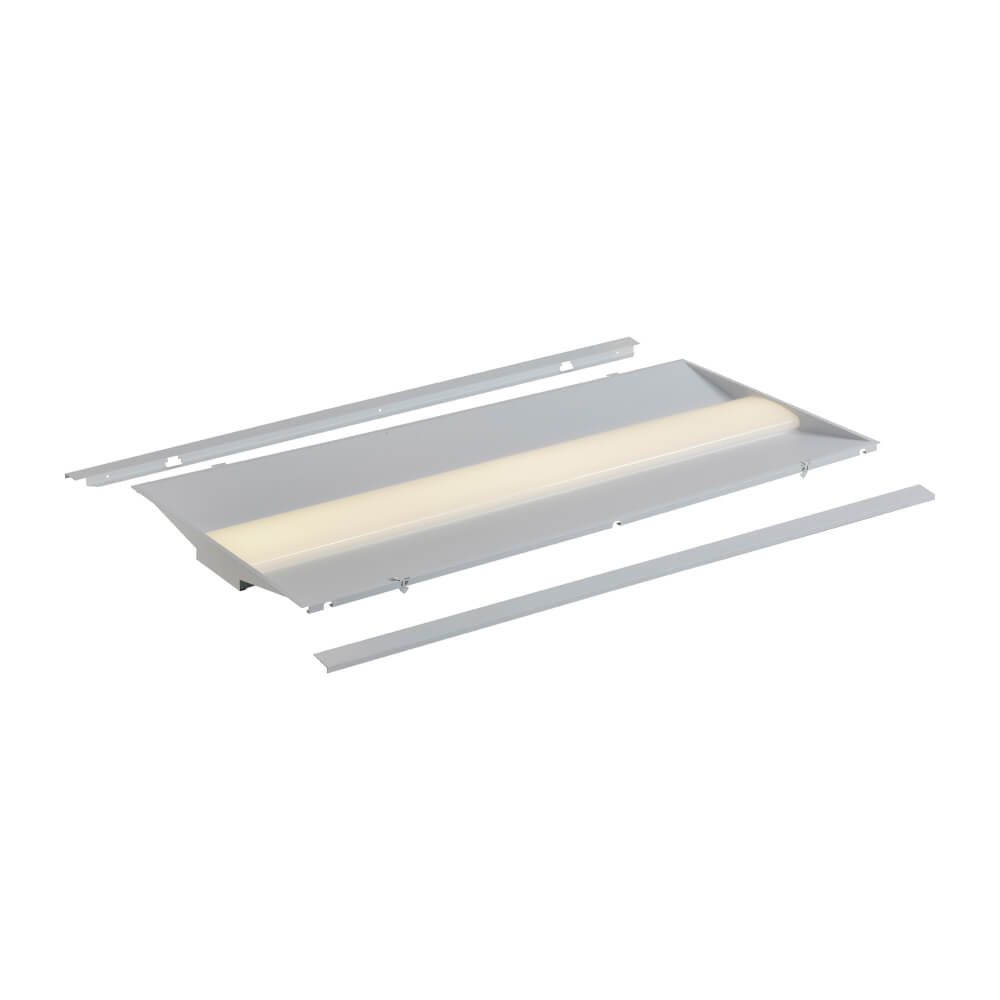

• Halcon LED Troffer Retrofit Kits HG-L249R with Wattage and CCT Select Option for Efficient Lighting Upgrade

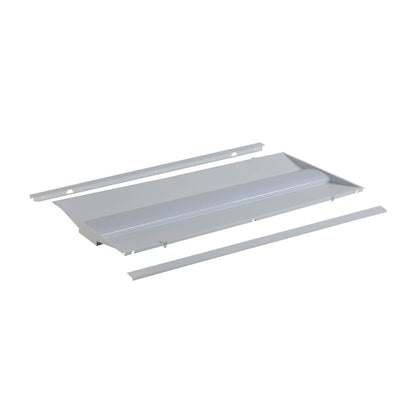

  • Halcon LED Troffer Retrofit Kit HG-L249R with Optional Trim Plates and Wattage CCT Select Feature for Energy-efficient Lighting Upgrade

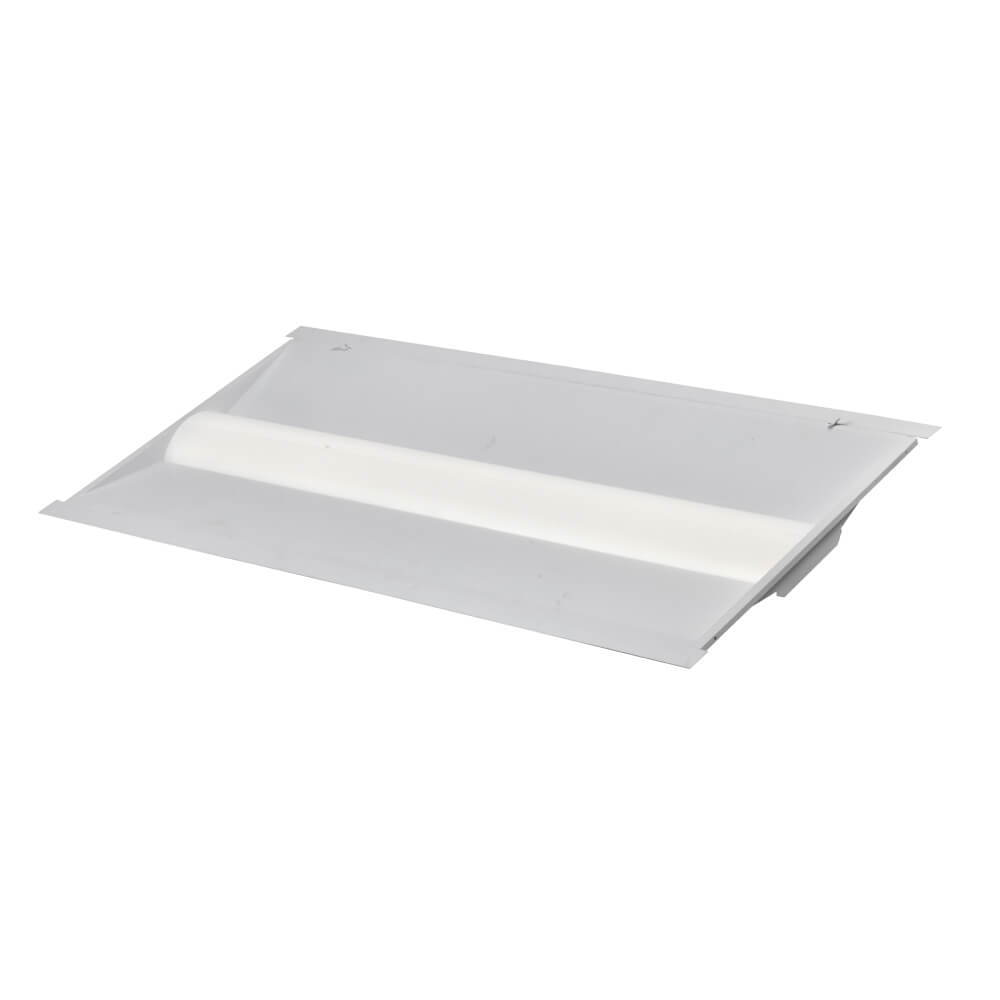

  • Halcon LED Troffer Retrofit Kit HG-L249R for quick upgrade to LED technology

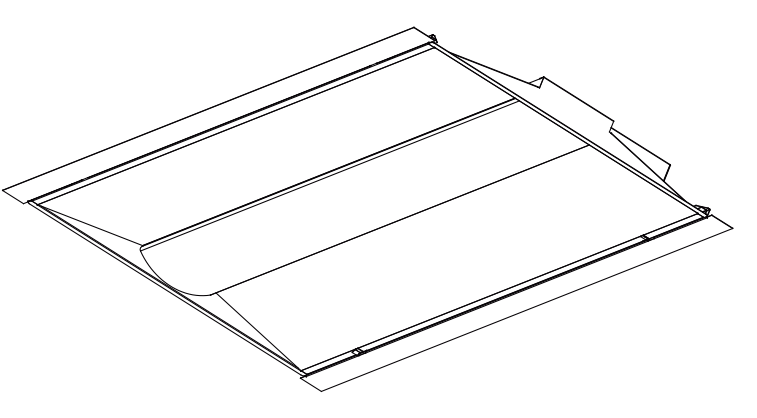

  • LED Troffer Retrofit Kit 2x2 design for upgrading fluorescent lighting

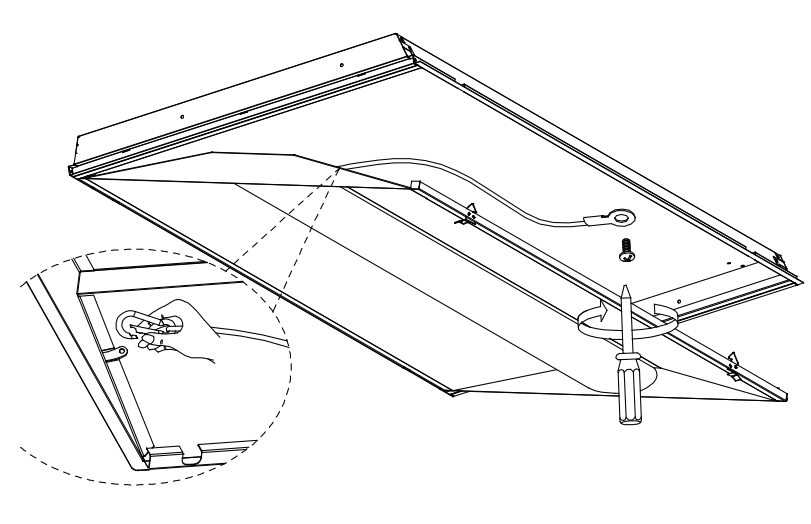

  • Hand installing LED Troffer Retrofit Kit with clip attachment

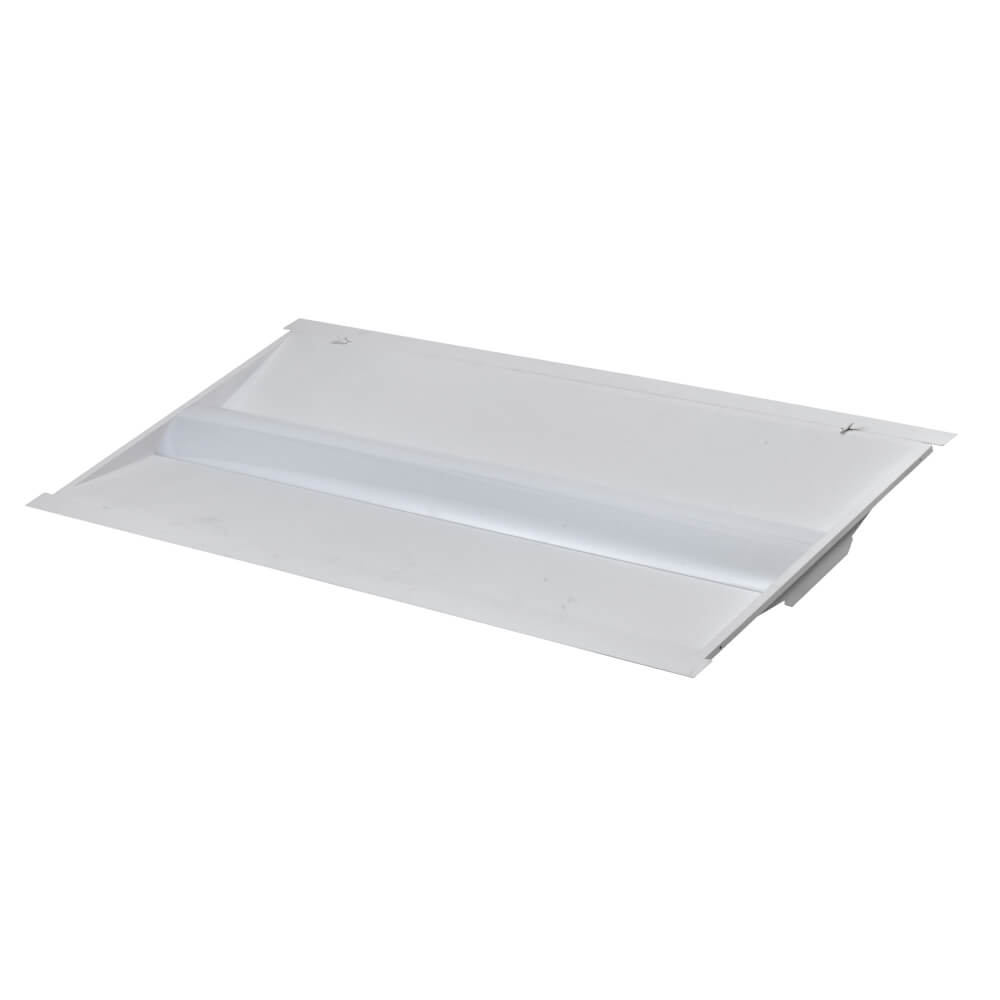

  • Halcon LED Troffer Retrofit Kits HG-L249R for efficient lighting upgrade with optional trim plates

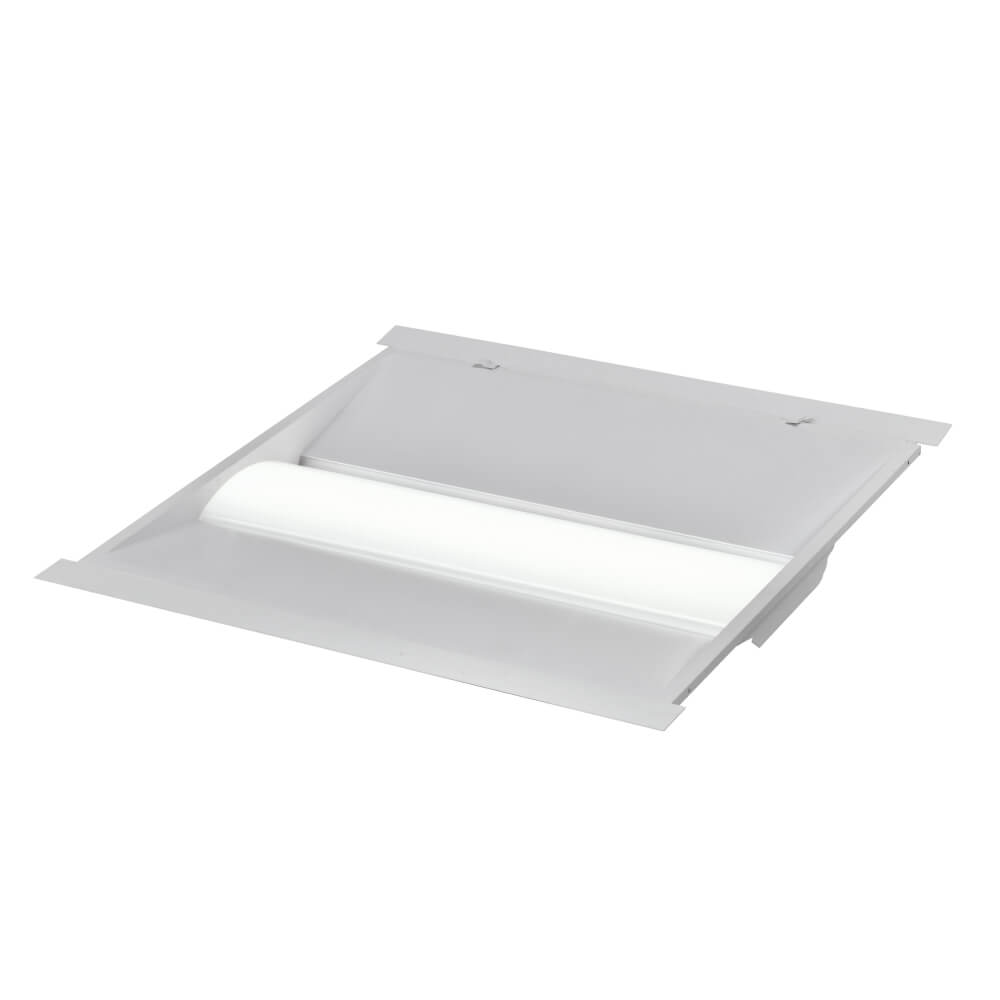

  • LED Troffer Retrofit Kit HG-L249R with optional trim plate for economical lighting upgrade.

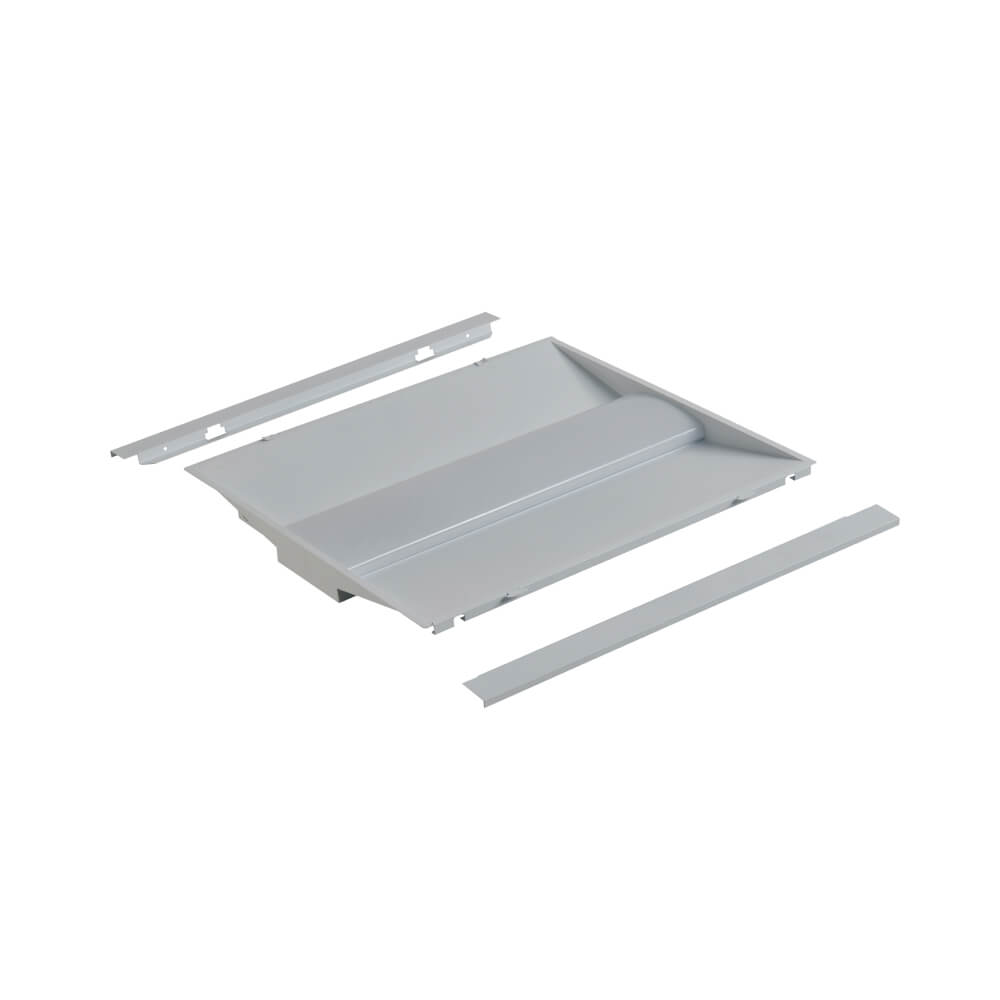

  • Halcon LED Troffer Retrofit Kit HG-L249R for efficient lighting upgrade with selectable wattage and CCT options.

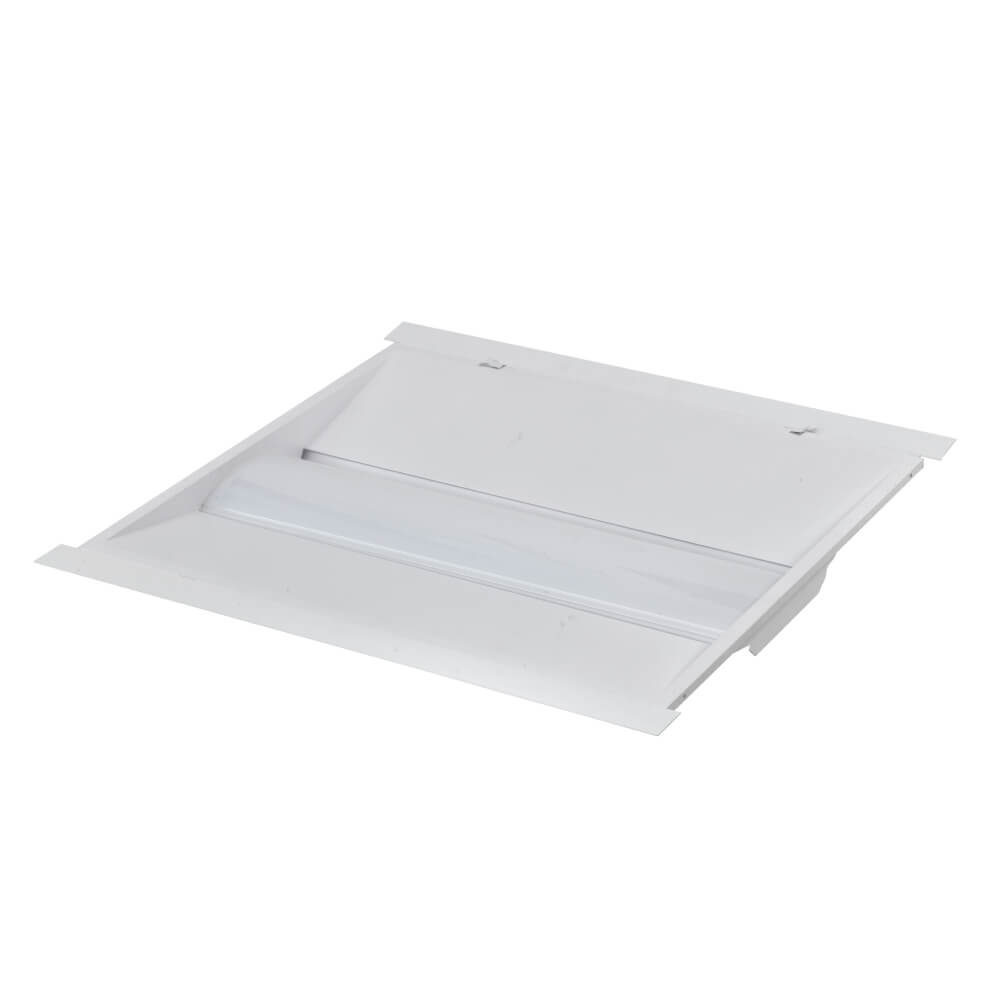

  • Halcon LED Troffer Retrofit Kit HG-L249R for upgrading existing lighting fixtures with energy-efficient LED technology.

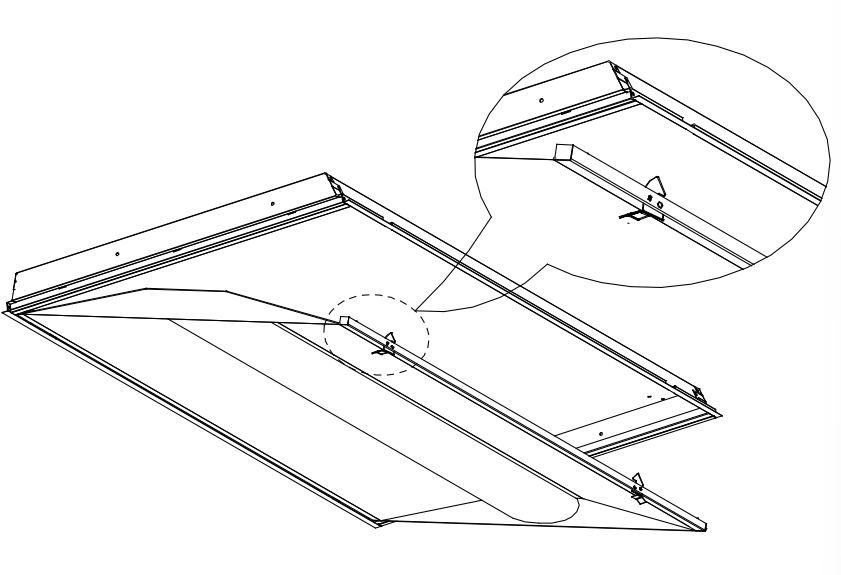

  • LED Troffer Retrofit Kit installation diagram with clip attachment for easy setup.

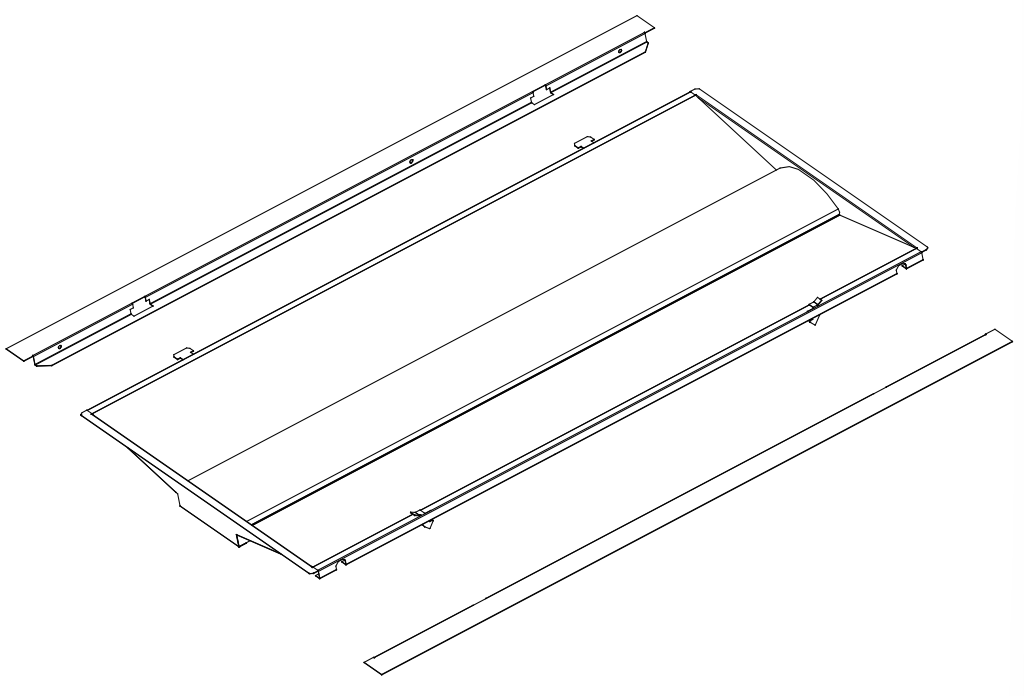

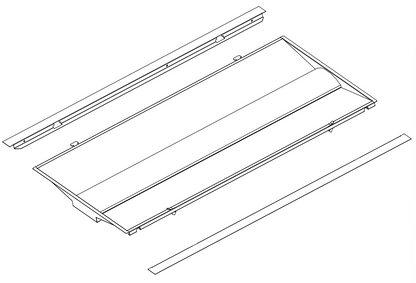

  • LED Troffer Retrofit Kit components and installation parts diagram

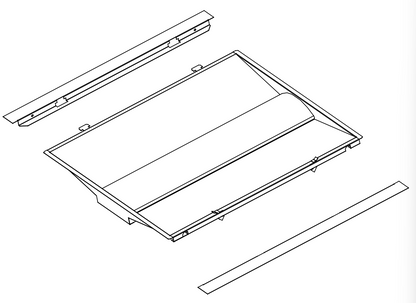

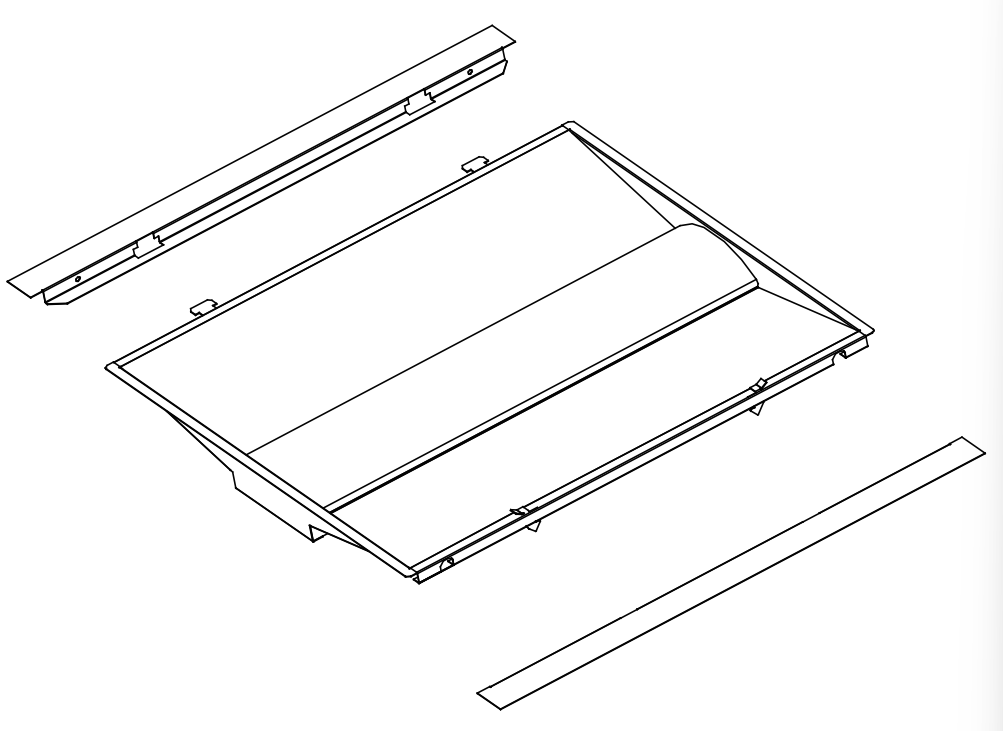

  • LED Troffer Retrofit Kit components diagram for easy installation
1 12

LED Troffer Retrofit Kits Upgrading Fluorescent Lighting Fixture 2x2 2x4 CCT And Wattage Selectable 3000-5000K 120-277V 0-10V Dimming ETL And DLC Listed Emergency And Sensor Control Ready

LED Troffer Retrofit Kits Upgrading Fluorescent Lighting Fixture 2x2 2x4 CCT And Wattage Selectable 3000-5000K 120-277V 0-10V Dimming ETL And DLC Listed Emergency And Sensor Control Ready

Overview
Comparison Chart
Comparison Chart

Specification


HG-L249R-22-15W/20W/30W HG-L249R-24-20W/25W/35W
Size 603x603x55mm 1213x603x55mm
Nominal Wattage 15W/20W/30W 20W/25W/35W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3750 lm 4375 lm
Nominal Efficacy 125 lm/w 125 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years
