LED Center Basket Troffer Power

LED Center Basket Troffer Power

Specification

• Manufacturer： Halcon Lighting
• Fixture Type：LED Troffer lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: AC 120-277V, 120-347V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 2'x2', 1'x4', 2'x4'
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features
  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth

• Model: HG-L249C
• Warranty: 5 years
• Wattage Adjustable: 20 to 35Watts / 30 to 50Watts
• CRI(Color rendering index):>80
• Lumen output: 4375 lm-6250 lm
• Light efficiency: 125 LP/W
• Aluminum body structure available in White finish
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)

Accessories

SENSOR control, Emergency kits, suspension kits.

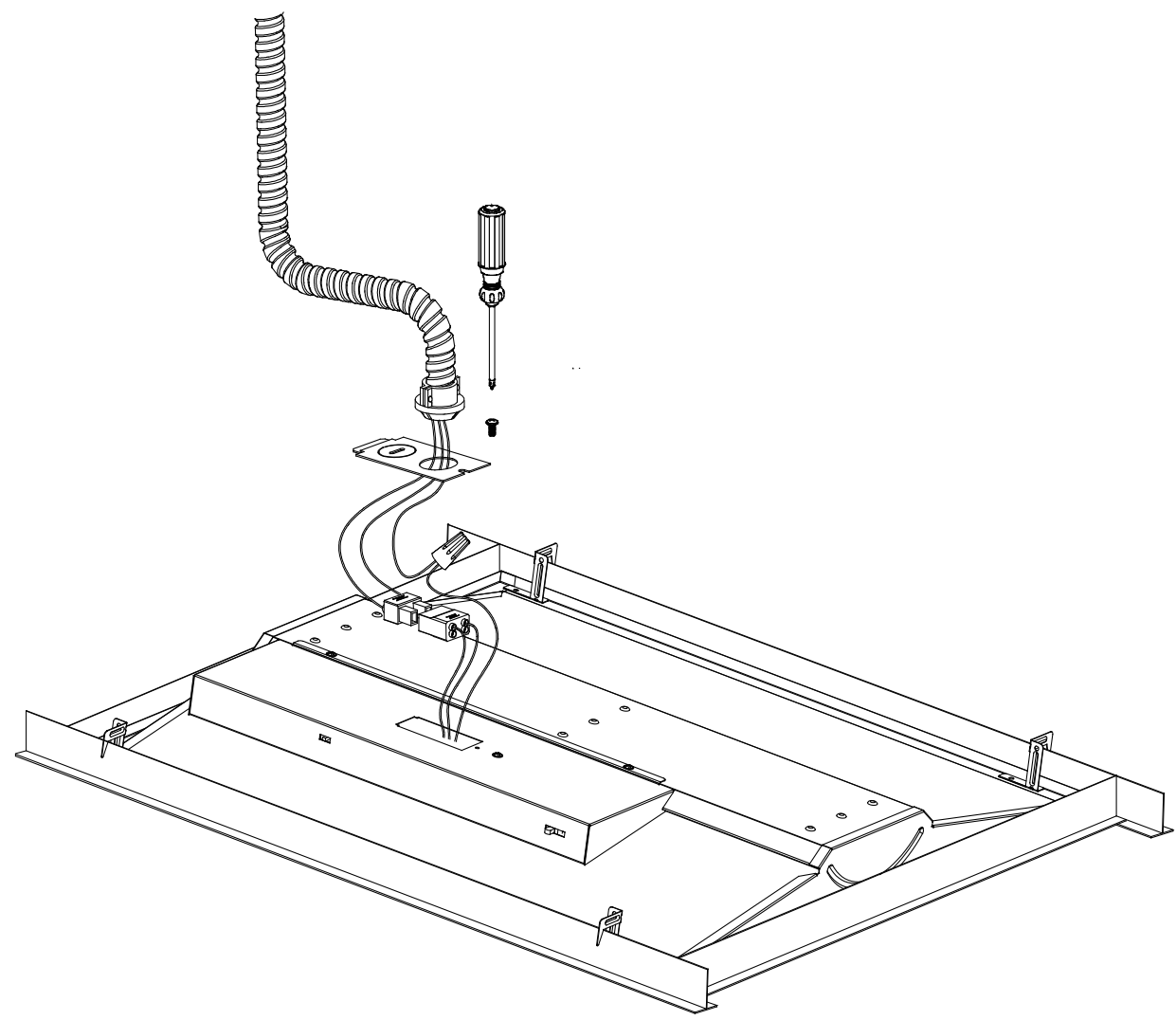

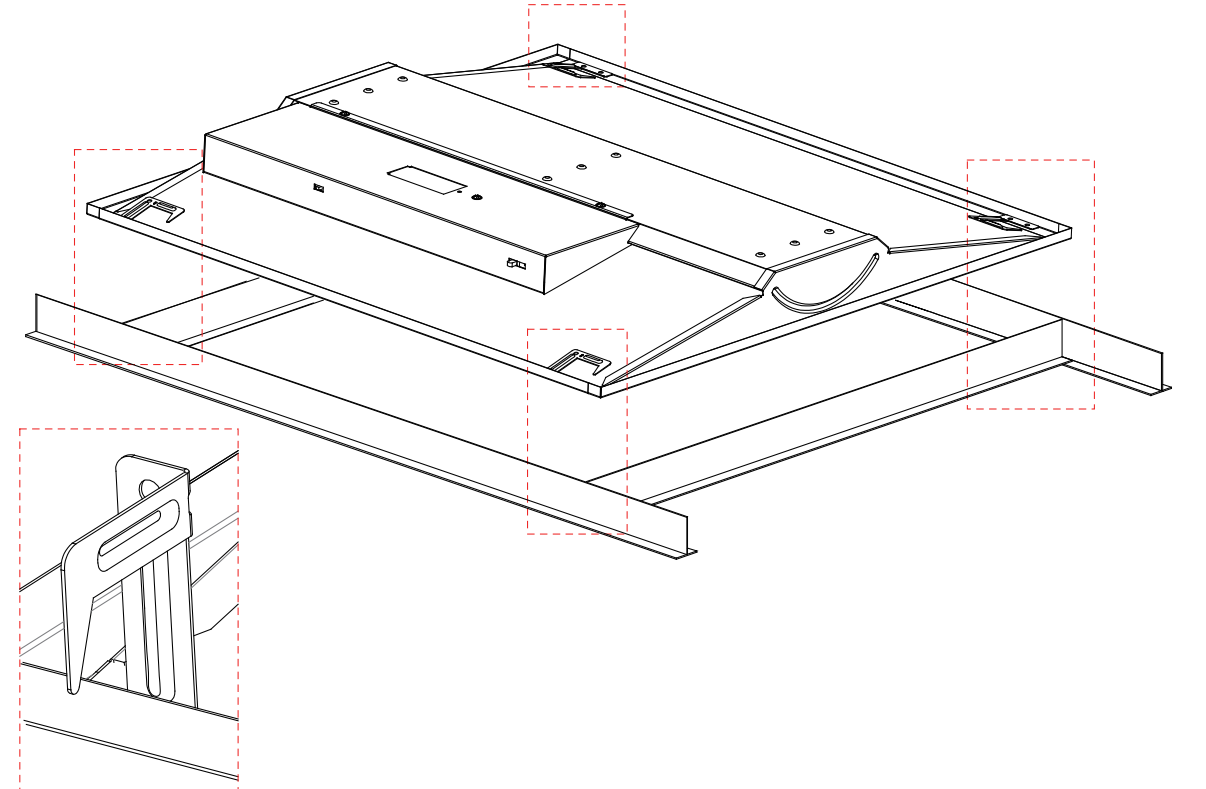

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Use Cases

halconlighting office
halconlighting meeting room
halconlighting meeting room
halconlighting meeting room
halconlighting office

Comparison Chart


HG-L249C-22/20W/30W/35W HG-L249C-22/30W/40W/50W HG-L249C-14/30W/40W/50W HG-L249C-24/30W/40W/50W HG-L249C-24/50W/60W/72W
Size 603x603x55mm 1213x303x55mm 1213x603x55mm 1213x603x55mm 1213x603x55mm
Nominal Wattage 20/30/35W 30/40/50W 30/40/50W 30/40/50W 50/60/72W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4375 lm 6250 lm 6250 lm 6250 lm 9000 lm
Nominal Efficacy 125 lm/w 125 lm/w 125 lm/w 125 lm/w 125 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
