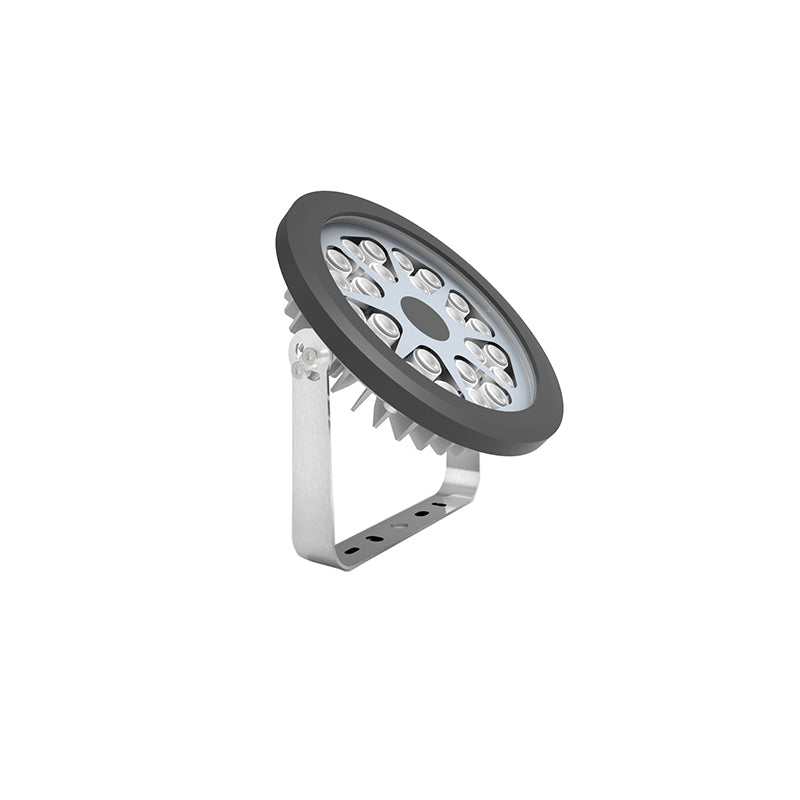

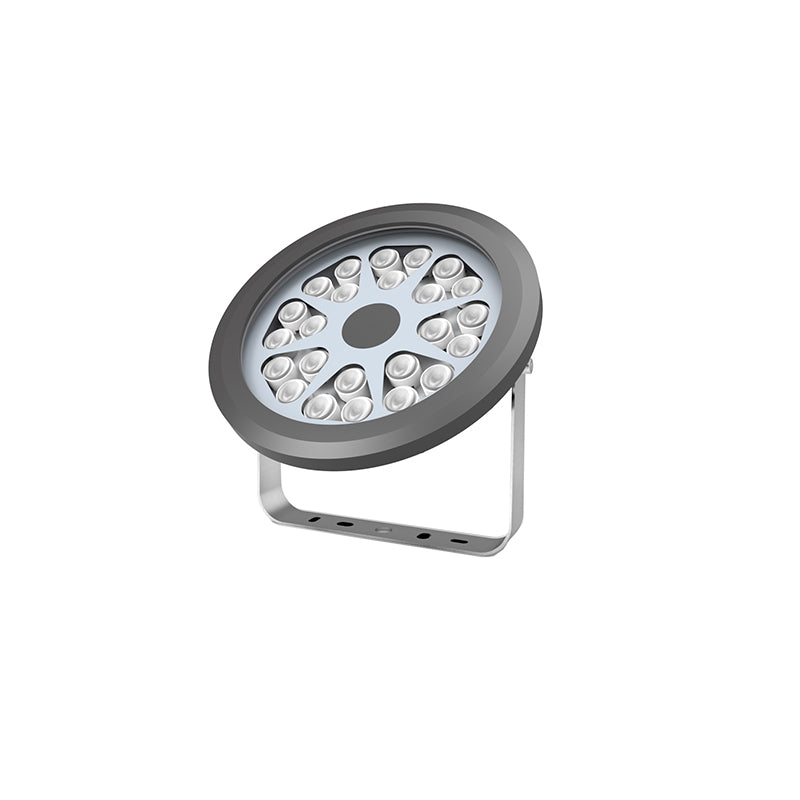

Spot light PL824
Spot light PL824
Bar stock aluminum surface mounted projector complete with Integral CREE LED(24pcs)package.Tempered glass,fixture rated to IP67 and configured to 10/20/40/60 degree beam options. NO mechanical joints to light source ensures robust protection against water ingress.Product runs cool meeting all touch temperature requirements.suitable for the illumination of small/medium trees,building exteriors,columns. This is one of the family series of PL608, PL612, PL618, and PL624. The maximum power of this high-power outdoor spotlights is 26W.
Used for the lighting of large walls and large garden projects. The light is stronger and farther. The shape of the lamp back is also conducive to heat dissipation, thereby enhancing the life of the product. Can be used as garden spike light, garden spot lights, external lighting applications.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red.Green,Blue,Amber |
| Material | Aluminium+SUS316(Bracket) |
| Optics | 10° / S2O° / 40° / F60° |
| Power | 24x1W |
| Power supply | N/A |
| Dimention | 22OXH243XT55 |
| Weight | 2.8KG |
| IP Rating | IP67 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape |
PL824 SPOT LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL824 | CREE | CW,WW, NW.Red Green,Blue,Amber | 10/S20/40/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 24W | 2200LM | 220 X H243X T55 | N/A |
| PL824D | CREE | CW,WW, NW.Red Green,Blue,Amber | 10/S20/40/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 26W | 2200LM | 220 X H243 X T55 | N/A |
| PL824RGB | CREE | 8R+8G+8B | 10/S20/40/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 24W | N/A | 220 X H243 X T50 | N/A |
| *IES Data support. | |||||||||||
