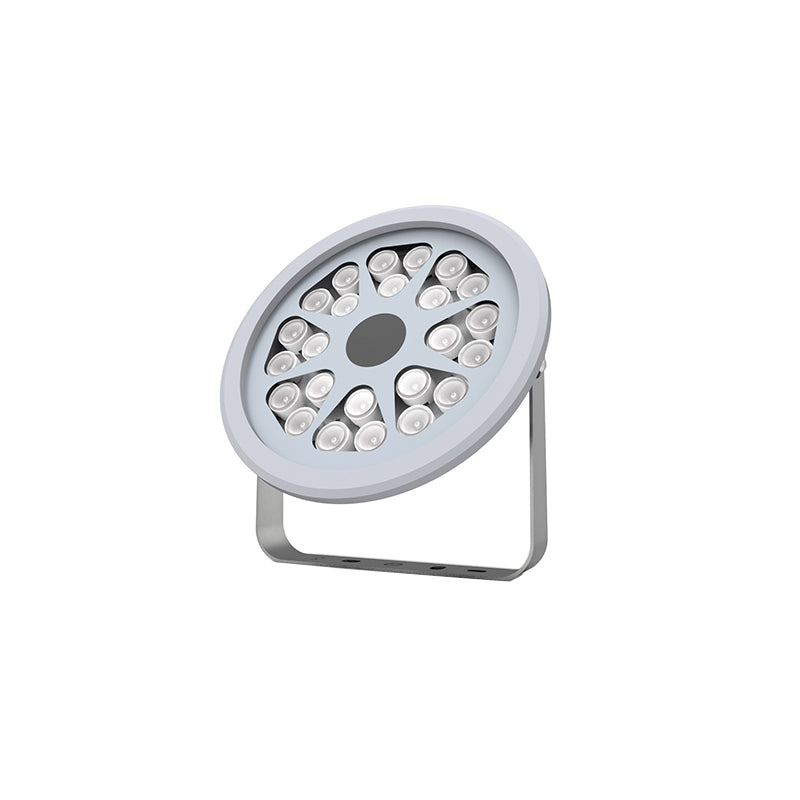

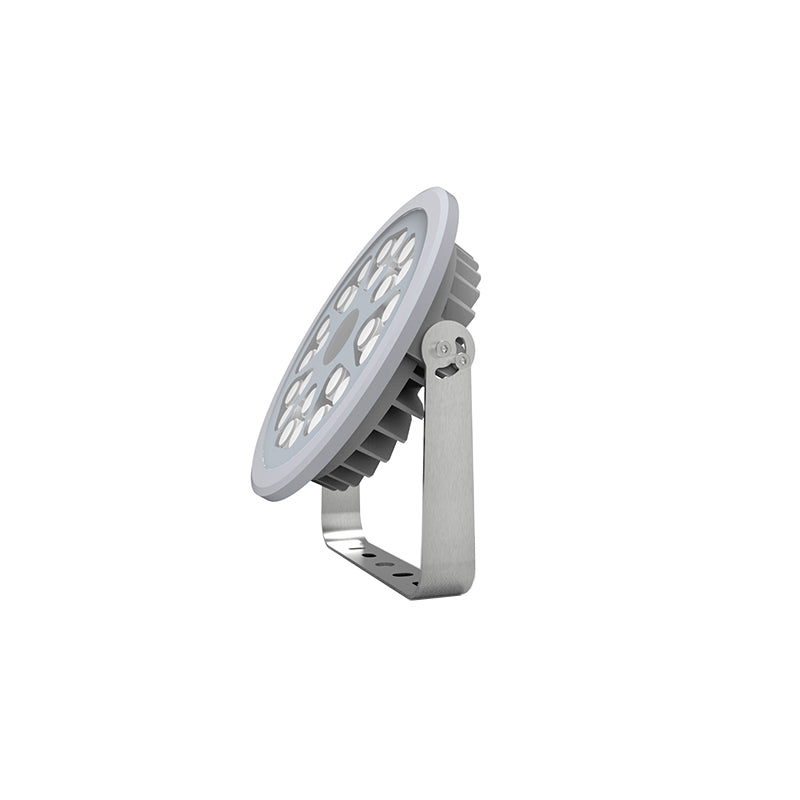

Spot light PL624
Spot light PL624
Bar stock aluminum surface mounted projector complete with integral CREE LED(24pcs) package.Tempered glass, fixture rated to IP67 and configured to 10/20/40/60 degree beam options. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Suitable for the illumination of small/medium trees, building exteriors, columns. Large landscape spot lighting with power 24*1W. Beautiful silver-gray color appearance with fully die cast aluminium material. It gives you the choice of Light colors: RGB, CW, WW, NW, Red, Green, Blue, Amber. DMX control is also workable, color changing function can be realized as required.
The design of the black circle in the middle of the surface of this landscape lighting design is to make the customer’s LOGO printed in the most obvious position to help customers strengthen the brand effect. The maximum power of this modern outdoor lighting fixtures is 26W. For large-area commercial buildings or gardens, the best decorative LED lighting can be made.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium+SUS316(Bracket) |
| Optics | 10° / S2O° / 40° / F60° |
| Power | 24x1W |
| Power supply | N/A |
| Dimention | 214XH236XT5O |
| Weight | 1.7KG |
| IP Rating | IP67 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape |
PL624 SPOT LIGHT

| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL624 | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/40/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 24W | 2200LM | 214XH236XT50 | N/A |
| PL624D | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/40/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 26W | 2200LM | 214XH236XT50 | N/A |
| PL624RGB | CREE | 8R+8G+8B | 10/S20/40/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 24W | N/A | 214XH236XT50 | N/A |
| PL624DMX-RGB | CREE | 8R+8G+8B | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 26W | N/A | 214XH236XT50 | N/A |
| DMX decoder in built | *IES Data support. | ||||||||||
