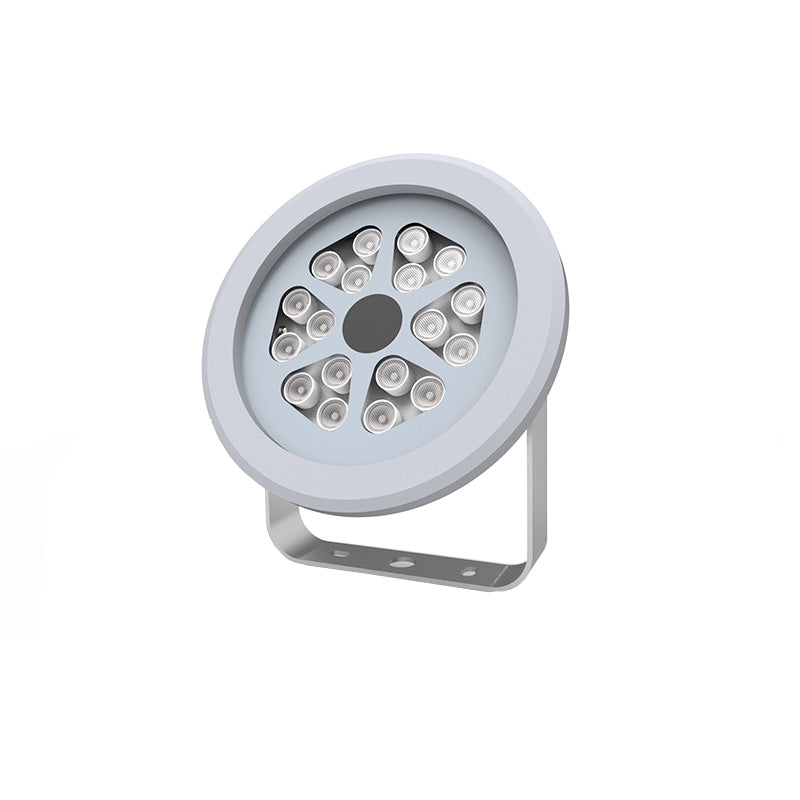

Spot light PL618
Spot light PL618
Bar stock aluminum surface mounted projector complete with Integral CREE LED(18pcs)package.Tempered glass .fixture rated to IP67 and configured to 10/20/40/60 degree beam options.NO mechanical joints to light source ensures robust protection against water ingress.Product runs cool meeting all touch temperature requirements.suitable for the illumination of small/medium trees,building exteriors, columns. The maximum power of this landscape lighting fixtures is 20W. We try our best to ensure the internal heat dissipation of the product and at the same time make the back design of the product as light and not cumbersome as possible.
When the number of lamp beads is so large, we are more strict with the worker’s operation skills, because each frame is only the size of just 3 lamp beads, and there can be no deviation.IP67 allowing submersion in water and completely prevent the intrusion of foreign objects and dust. This allows the led spotlights to work normally for 50,000 hours under outdoor condition. Aluminum spot lights with power 18*1W. Round spot light are especially suitable for landscape lighting.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium+SUS316(Bracket) |
| Optics | 10° / S2O° / 40° / F60° |
| Power | 18x1W |
| Power supply | N/A |
| Dimention | 148XH17OXT45 |
| Weight | 1.1KG |
| IP Rating | IP67 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape |
PL618 SPOT LIGHT

| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL618 | CREE | CW,WW, NW,Red, Green,Blue,Amber | 10/S20/40/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 18W | 1700LM | 148XH170XT45 | N/A |
| PL618D | CREE | CW,WW, NW.Red Green.Blue,Amber | 10/S20/40/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 20W | 1700LM | 148XH170XT45 | N/A |
| PL618RGB | CREE | 6R+6G+6B | 10/S20/40/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 18W | N/A | 148XH170XT45 | N/A |
| PL618DMX-RGB | CREE | 6R+6G+6B | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 20W | N/A | 148XH170XT45 | N/A |
| PL618DMX-RGB | Edison | RGB(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 20W | N/A | 148XH170XT45 | N/A |
| PL618DMX-RGBW | Edison | RGBW(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 20W | N/A | 148XH170XT45 | N/A |
| DMX decoder in built | *IES Data support. | ||||||||||
