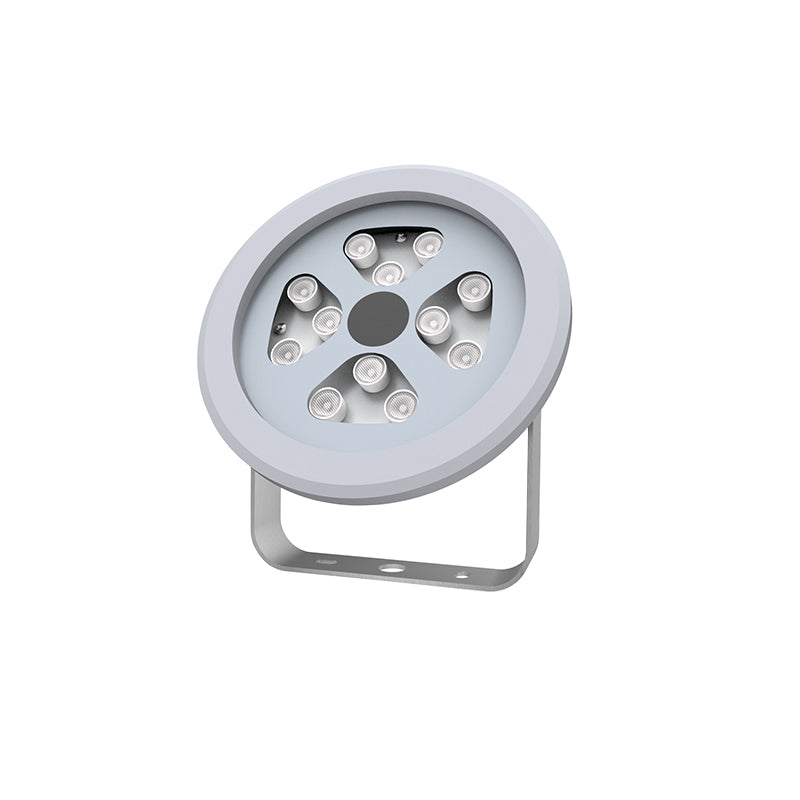

Spot light PL612
Spot light PL612
Bar stock aluminum surface mounted projector complete with Integral CREE LED(12pcs)package.Tempered glass,fixture rated to IP67 and configured to 10/20/40/60 degree beam options.NO mechanical joints to light source ensures robust protection against water ingress.Product runs cool meeting all touch temperature requirements.suitable for the illumination of small/medium trees,building exteriors,columns. Silver-gray aluminum spot lights with power 18*1W and IP67 allowing submersion in water and completely prevent the intrusion of foreign objects and dust. This allows the led spotlights to work normally for 50,000 hours under outdoor condition.
The on-site installation environment of this outdoor LED lamp is more in contact with soil. In order to avoid the acidic corrosion of the soil and the corrosiveness of outdoor rainwater, the bracket we will install is marine grade 316 stainless steel. In this way, we can help customers to minimize costs while ensuring quality.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium+SUS316(Bracket) |
| Optics | 10° / S2O° / 40° / F6O° |
| Power | 12x1W |
| Power supply | N/A |
| Dimention | 148XH17OXT45 |
| Weight | 1.1KG |
| IP Rating | IP67 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/La ndscape |
PL612 SPOT LIGHT
| MODEL NO. | LED Brand | Color | Bema | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL612 | CREE | CW.WW, NW,Red Green,Blue,Amber | 10/S20/40/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 12W | 1300LM | 148XH170XT45 | N/A |
| PL612D | CREE | CW.WW, NW,Red Green,Blue,Amber | 10/S20/40/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 13W | 1300LM | 148XH170XT45 | N/A |
| PL612RGB | CREE | 4R+4G+4B | 10/S20/40/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 12W | N/A | 148XH170XT45 | N/A |
| PL612DMX-RGB | CREE | 4R+4G+4B | 10/S20/40/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 13W | N/A | 148XH170XT45 | N/A |
| PL612DMX-RGB | Edison | RGB(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 13W | N/A | 148XH170XT45 | N/A |
| PL612DMX-RGBW | Edison | RGBW(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 11M 4X0-5mm² Cable | 13W | N/A | 148XH170XT45 | N/A |
| DMX decoder in built | *IES Data support. | ||||||||||
