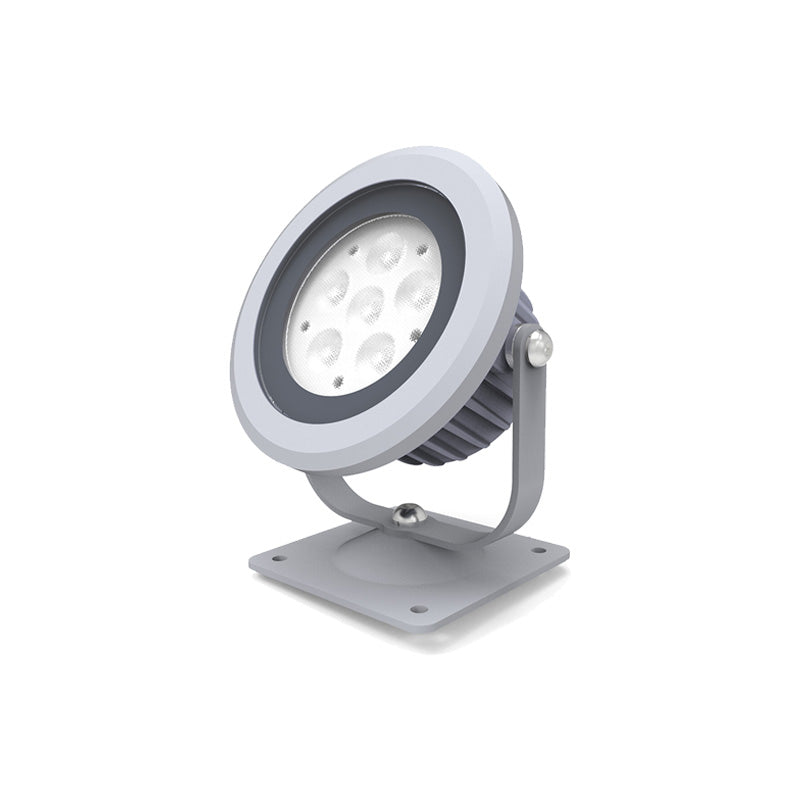

Spot light PL608
Spot light PL608
Bar stock aluminum surface mounted projector complete with Integral CREE LED(6pcs)package.Tempered glass,fixture rated to IP67 and configured to 10/40 degree beam options.No mechanical joints to light source ensures robust protection against water ingress.Product runs cool meeting all touch temperature requirements.suitable for the illumination of small/medium trees,building exteriors,columns. Mini aluminum spot lights with power 6*1W. Lightweight and easy to install, suitable for installation in many places, small parks, gardens, lawns, backyards, etc. Color temperature can be controlled according to the requirements of the scene. The surface gray and the processing of craftsmanship make it have an industrial design style.
This garden lamp post can be set to RGB or DMX RGB control. Installed in the garden project can better beautify the entire landscape. Can be used as tree lights, outdoor home lighting, industrial outdoor lighting, spotlight lighting.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium |
| Optics | S1O° / F4O° |
| Power | 6×1 W (3x1W) |
| Power supply | N/A |
| Dimention | 93X70X112 |
| Weight | 3OOg |
| IP Rating | IP67 |
| Approvals | CE.RoHS.IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/La ndsca pe |
PL608 SPOT LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL608 | CREE | CW,WW, NW,Red Green,Blue,Amber | S10/F40 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 6W | 500LM | 93X70X112 | N/A |
| PL608D | CREE | CW,WW, NW,Red Green,Blue,Amber | S10/F40 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 6.5W | 500LM | 93X70X112 | N/A |
| PL608RGB | CREE | 2R+2G+2B | S10/F40 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 6W | N/A | 93X70X112 | N/A |
| PL608DMX-RGB | CREE | 2R+2G+2B | S10/F40 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 6.5W | N/A | 93X70X112 | N/A |
| PL608DMX-RGB | Edison | RGB(Fullcolor) | S10/F40 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 6.5W | N/A | 93X70X112 | N/A |
| PL608DMX-RGBW | Edison | RGBW(Fullcolor) | S10/F40 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 6.5W | N/A | 93X70X112 | N/A |
| DMX decoder in built | *IES Data support. | ||||||||||
■ Project map
