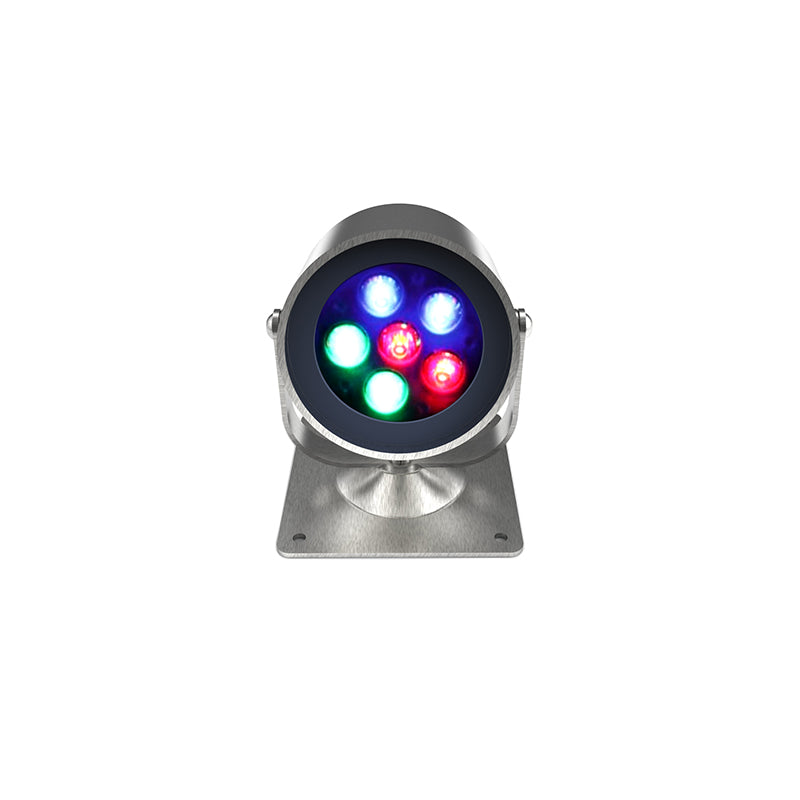

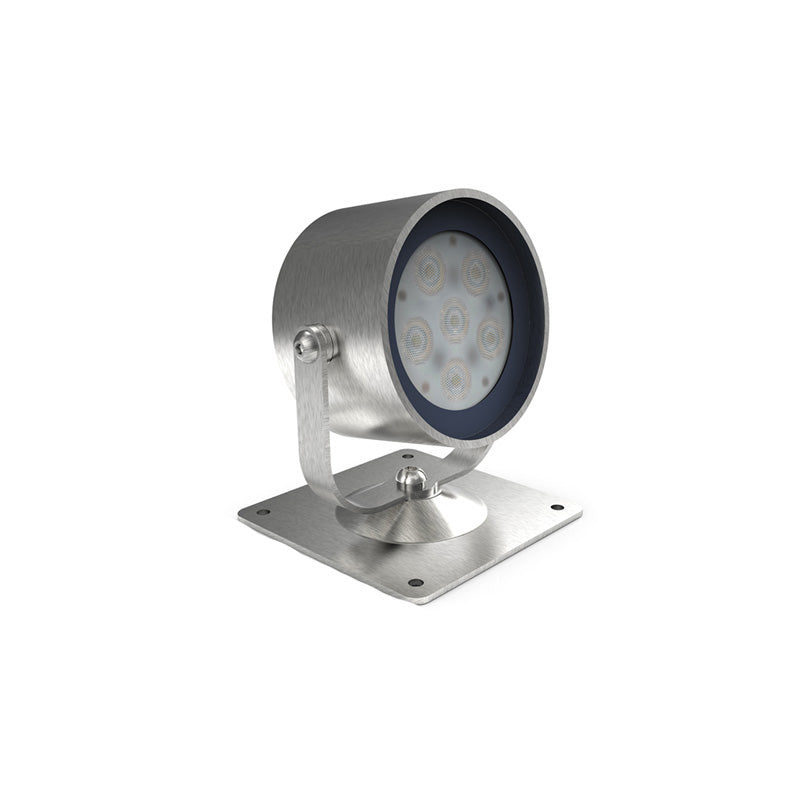

Spot light PL026
Spot light PL026
Marine Grade 316 stainless steel miniature surface mounted fixture complete with integral CREE LED package. Tempered glass,fixture Rated to IP 68 allowing submersion in water thus negating commonissues arising from lack of soil drainage.10/40 degree beam Options .NO mechanical joints to light source ensures robust Protection against water ingress .product runs cool meeting all Touch temperature requirements. Ideal as a surface mounted miniature marker light. This exterior spot lighting with exquisite appearance. PL026 is equipped with 6 led with power of 6W, mainly used to illuminate and highlight statues, rocks, plants, exhibits, etc.
This landscape spot lighting’s color can be controlled by DMX, customers can design their favorite color changes according to their own style. A family series composed of ML1021, PL021, PL023, and PL026. You can also see the appearance from small to large on the homepage of our website more intuitively. This model can not only be used for commercial led outdoor lighting, waterproof garden lights, stainless steel outdoor lights, garden street lights, but also for special occasions. It is installed under the waterfall in the square to brighten the waterfall at night. It is best to change the form of various light effects.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S1O° / F40° |
| Power | 6W |
| Power supply | N/A |
| Dimention | 85X85X104 |
| Weight | 1.05kg |
| IP Rating | IP68 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape/Submersible |
PL026 SPOT LIGHT

| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL026 | CREE | CW,WW, NW, Red Green,Blue,Amber | S10/F40 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 6W | 500LM | 85X85X104 | N/A |
| PL026D | CREE | CW,WW, NW, Red Green.Blue,Amber | S10/F40 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 6.5W | 500LM | 85X85X104 | N/A |
| PL026RGB | CREE | 2R+2G+2B | S10/F40 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 6W | N/A | 85X85X104 | N/A |
| PL026DMX-RGB | CREE | 2R+2G+2B | S10/F40 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 6.5W | N/A | 85X85X104 | N/A |
| PL026DMX-RGB | Edison | RGB(Fullcolor) | S10/F40 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 6.5W | N/A | 85X85X104 | N/A |
| PL026DMX-RGBW | Edison | RGBW(Fullcolor) | S10/F40 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 6.5W | N/A | 85X85X104 | N/A |
| DMX decoder in built | *IES Data support. | ||||||||||
