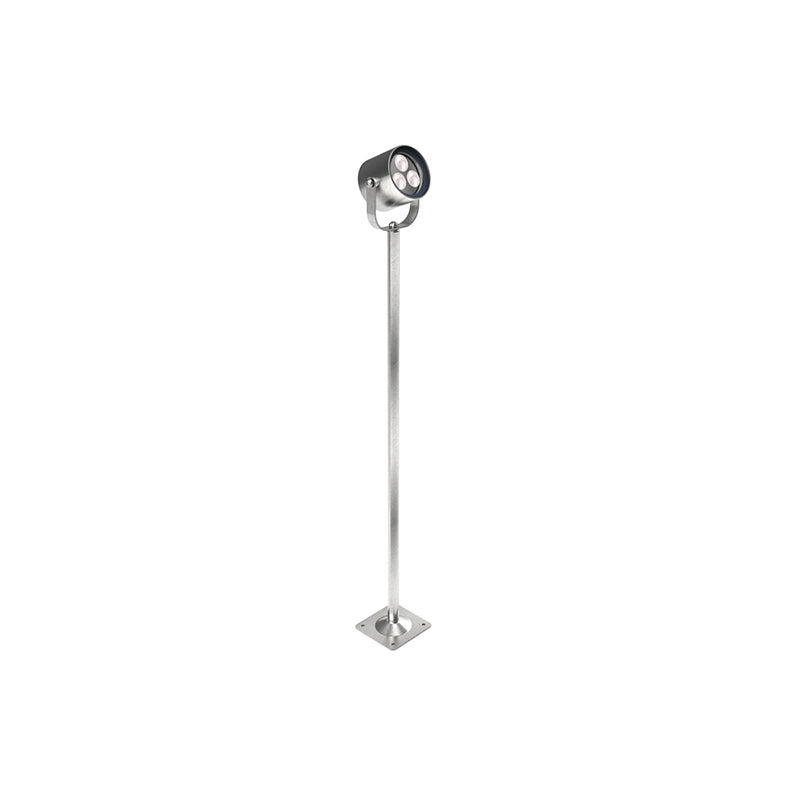

Spot light PL023-2L

Marine grade 316 stainless surface mounted fixture complete With integral CREE LED package.Tempered glass,fixture rated to IP68 allowing submersion.20/60 degree beam options,product Functions with 350mA constant current driver.NO mechanical joints to light source ensures robust protection against water ingress.Product runs cool meeting all touch temperature requirements.

Elevated light source(500mm)allows for a down light effect to be Created to paths and boundaries. The garden spot light is equipped with a 20cm or 50cm pole, which is very suitable for placing in some high bushes to illuminate and highlight plants, trees, sculptures, or as path light, etc. Mini spot lighting with low power of 3W ensure the low carbon emissions. Stainless steel IP68 lighting make the lamp have stronger anti-corrosion and anti-oxidation ability outdoors.

LED Light source	High Power LED
Light Color	RGB,CW,WW,NW,Red,Green,Blue,Amber
Material	SUS316
Optics	S2O° / F6O°
Power	3W
Power supply	N/A
Dimention	N/A
Weight	N/A
IP Rating	IP68
Approvals	CE,RoHS,IP
Ambient temperature	-2O°C ~ +45°C
Average life	5O,OOOHrs
Accessories(Optional)	N/A
Applications	Indoor/Outdoor/Landscape/Submersible

PL023-2L SPOT LIGHT

MODEL NO.	LED Brand	Color	Beam	PowerMode	Input	Wiring	Cable	Power	Luminous Flux	Dimention	DrillSize
PL023-2L	CREE	RGB,CW,WW, NW,Red Green,Blue,Amber	S20/F60	Constant current	350mA	Series	3M 2X0.75mm² Cable	3W	300LM	70x70x300	N/A
PL023D-2L	CREE	CW,WW, NW,Red Green,Blue,Amber	S20/F60	Constant voltage	12/24VDC	Parallel	3M 2X0.75mm² Cable	3.5W	300LM	70x70x300	N/A
PL023-5L	CREE	RGB,CW,WW, NW,Red Green,Blue,Amber	S20/F60	Constant current	350mA	Series	3M 2X0.75mm² Cable	3W	300LM	70x70x600	N/A
PL023D-5L	CREE	CW,WW, NW,Red Green,Blue,Amber	S20/F60	Constant voltage	12/24VDC	Parallel	3M 2X0.75mm² Cable	3.5W	300LM	70x70x600	N/A
										*IES Data support.

PL023-2

PL023-1
