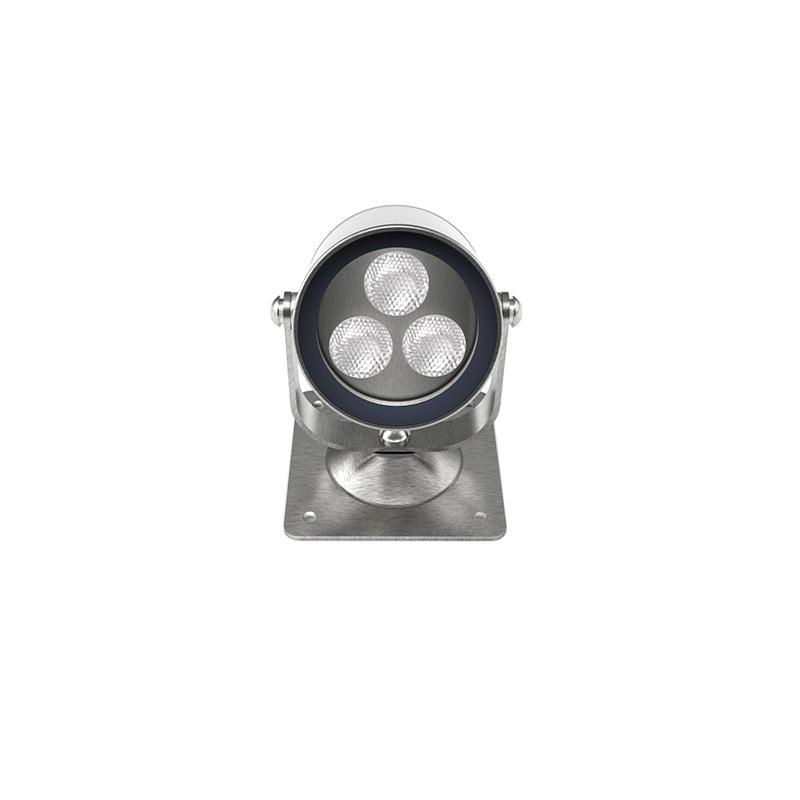

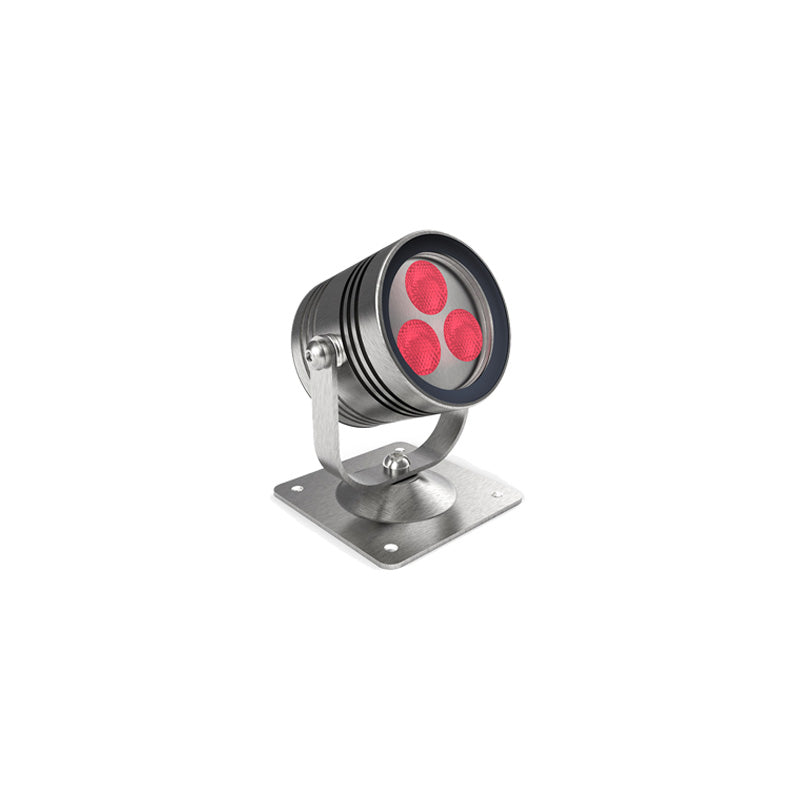

Spot light PL023
Spot light PL023
Marine Grade 316 stainless steel miniature surface mounted fixture Complete with integral CREE LED package glass , fixture Rated to IP68 allowing submersion in water thus negating common Issues arising from lack of soil drainage.20/45/60 degree beam Options.NO mechanical joints to light source ensures robust Protection against water ingress.product runs cool meeting all touch Temperature requirements.Ideal as a surface mounted miniature Marker light. Mini outdoor spot light with power 3*1W can be used as wall washer light, residential landscape light, garden spot lighting. It gives you the choice of Light colors: RGB, CW, WW, NW, Red, Green, Blue, Amber. A family series composed of ML1021, PL021, PL023, and PL026.
You can also see the appearance from small to large on the homepage of our website more intuitively. EURBORN is committed to caring about the details ignored by others. For every fine grain on the product, we use the best materials and processing for the screws. It can be used as the application of metal outdoor light fixures, stainless steel spot lights, and waterproof water fall lights.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green.Blue,Amber |
| Material | SUS316 |
| Optics | S2O° / F6O° |
| Power | 3x1W |
| Power supply | N/A |
| Dimention | 70x70x89 |
| Weight | 750g |
| IP Rating | IP68 |
| Approvals | CE.RoHS.IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape/Submersible |
PL023 SPOT LIGHT

| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL023 | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 3W | 300LM | 70x70x89 | N/A |
| PL023D | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 3.5W | 300LM | 70x70x89 | N/A |
| PL023RGB | Edison | RGB | 10/20/45/60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 9W | N/A | 70x70x89 | N/A |
| PL023DMX-RGB | Edison | RGB | 45 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 3.5W | N/A | 70x70x89 | N/A |
| DMX decoder in built | *IES Data support. | ||||||||||
