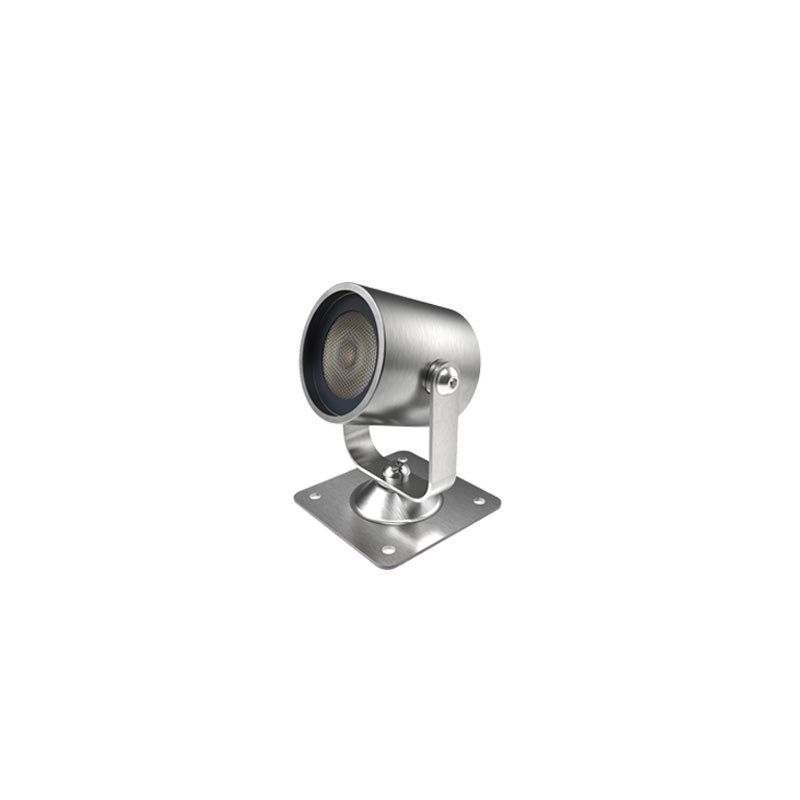

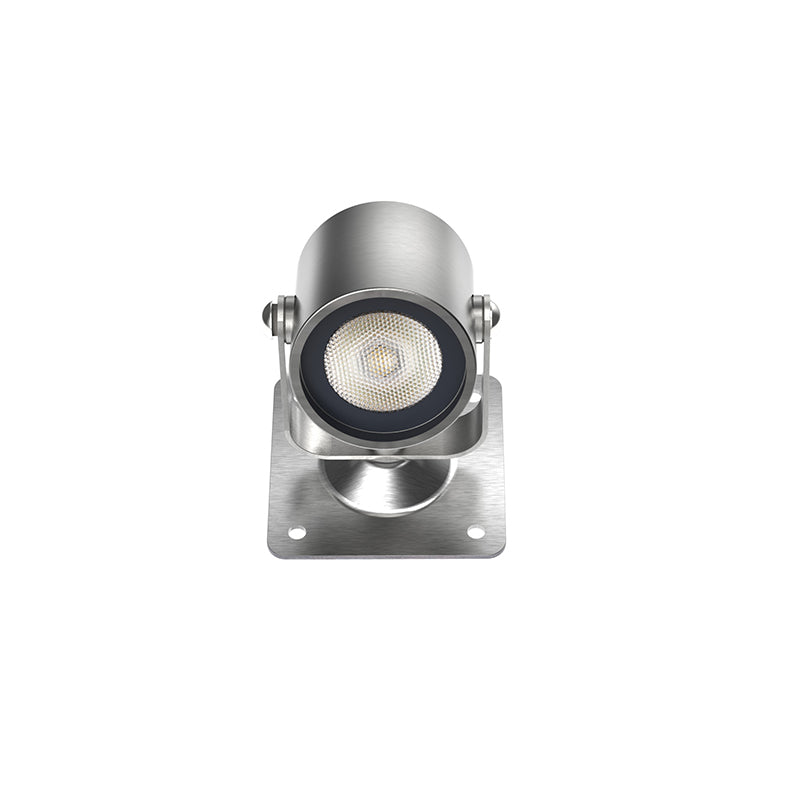

Spot light PL021
Spot light PL021
Marine grade 316 stainless steel miniature surface mounted fixture complete with integral CREE LED package.Tempered glass,fixture Rated to IP68 allowing submersion in water thus negating common Issues arising from lack of soil drainage.12/45 degree beam Options.NO mechanical joints to light source ensures robust Protection against water ingress .product runs cool meeting all Touch temperature requirements.Ideal as a surface mounted miniature marker light. Mini ground mounted spot lighting with one led and the power is 1W.
Product application is flexible, there are a variety of color temperatures for customers to choose. It is suitable to install in parks, yards, gardens, private pools, villas, indoor and outdoor walls. Can be used as an application for waterproof spot light, waterfall lights, stainless steel spike light.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S12° / F45° |
| Power | 1W |
| Power supply | N/A |
| Dimention | 60X60X78 |
| Weight | 500g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape/Submersible |
PL021 SPOT LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| PL021 | CREE | CW,WW, NW, Red, Green,Blue,Amber | 12/45 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 1W | 100LM | 60X60X78 | N/A |
| PL021D | CREE | CW,WW, NW, Red Green,Blue,Amber | 12/45 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 1.3W | 100LM | 60X60X78 | N/A |
| PL021RGB | Edison | RGB | 45 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 3W | N/A | 60X60X78 | N/A |
| PL021DMX-RGB | Edison | RGB | 45 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 3.5W | N/A | 60X60X78 | N/A |
| *IES Data support. | |||||||||||
