Spot light EU3060
Spot light EU3060
| Material | Aluminium |
| Surface | Tinting |
| PowerMode | External, constant current/voltage |
| Installation | Screw installation, adjustable angle |
| Weight | |
| Control | On/off |
| Approvals | CE,RoHS,IP |
| Ambient temp. | -20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |

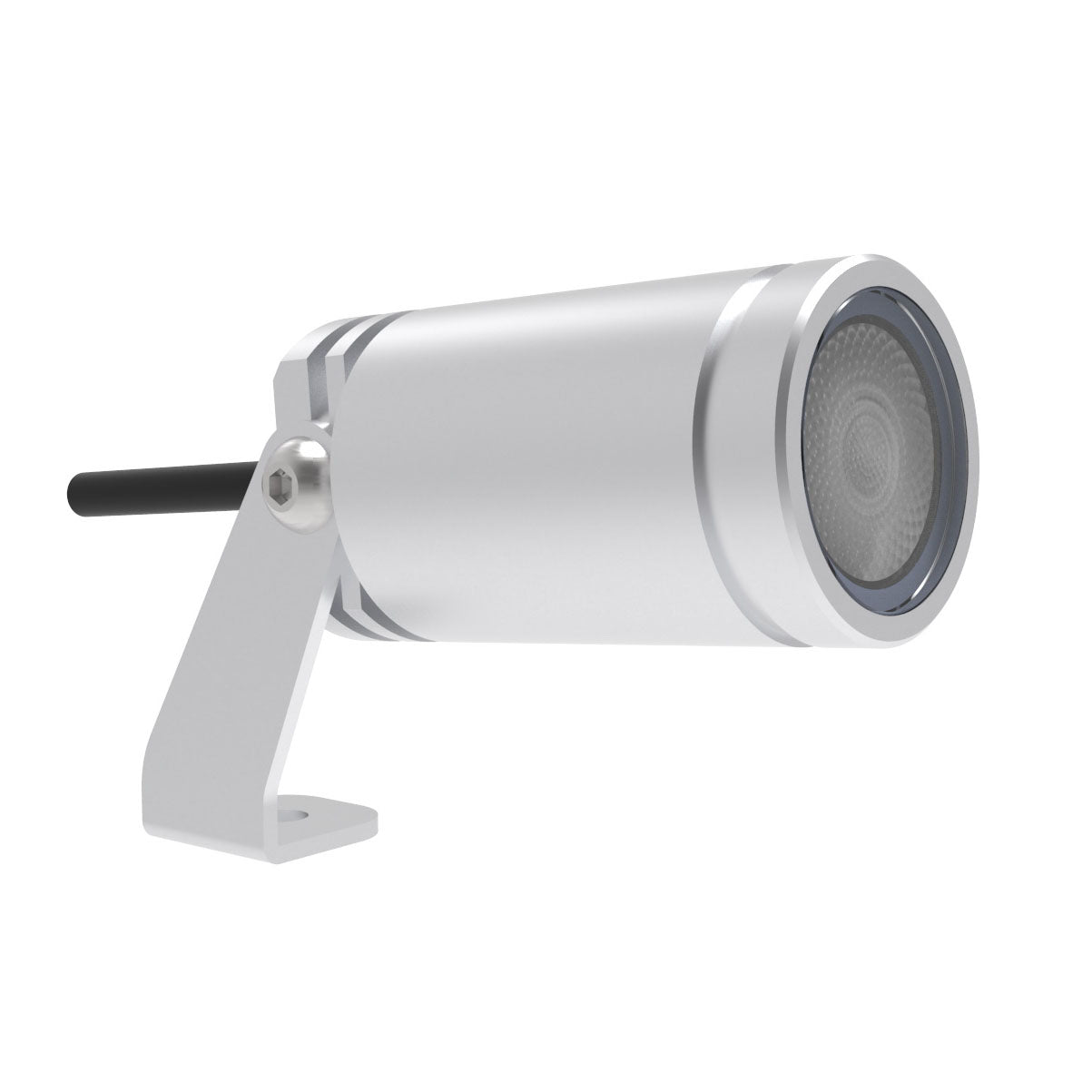

EU3060 Spot light
Tempered glass. This anodized aluminum version of our ML105 provides a sleeker, less obtrusive presence in your garden. It gives you the choice of LED colors, wide or narrow beam angles and ±100° tilting head.
EU3060 3W 4000K 20°
H(m) |
Eavg(lx) |
Emax(lx) |
D(cm) |
| 1 | 825.4 | 1230 |
33.47 |
| 2 | 206.4 | 307.5 |
69.95 |
| 3 | 91.72 | 136.7 |
100.42 |
| 4 | 51.59 | 76.87 |
133.89 |
| 5 | 33.02 | 49.2 |
167.36 |
| Power(w) | Input Lum | linous Flux (lm) |
Color(k) | Color Index PowerMode | Wiring |
Cable | Beam (°) |
Model No. | |
| 1.3 | 24VDC | 95 | C,W,N,R,G,B,A | 80 |
Constant voltage |
Parallel | 1.1M 2×0.4mm2 | 20/60/120 | EU3060D |
| 3 | 24VDC | 210 | C,W,N,R,G,B,A | 80 | Constant voltage |
Parallel | 1.1M 2×0.4mm2 | 20/60/120 | EU3060D-3W |
| 1 | 350mA | 95 | C,W,N,R,G,B,A | 80 | Constant current |
Series | 1.1M 2×0.4mm2 | 20/60/120 | EU3060 |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
Drive power supply to be provided separately page256/257
