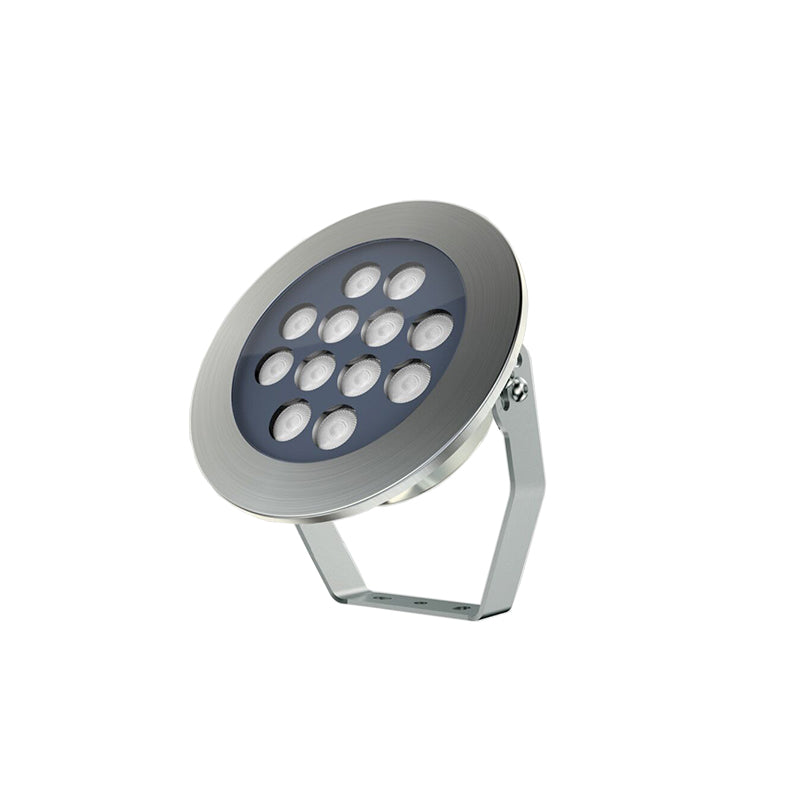

Spot light EU3042
Spot light EU3042
Bar stock stainless steel surface mounted projector complete with integral CREE LED package. Fixture rated to IP68. No mechanical joints to light source ensures robust protection against water ingress. Suitable for the illumination of small/medium trees, building exteriors, columns if the voltage less than 18W. Above 18W, the luminaires may only be operated under water, recessed luminaires for private and public swimming pools. Underwater luminaires in various sizes and light outputs for installation in concrete, foil, metal or synthetic pools. To avoid harmful deposits and dirt on the luminaires, the water must have a neutral pH value and must be free of components that attack metal.
The exterior spot light has the advantages of strong corrosion resistance, strong impact resistance, strong light transmittance, wide light radiation surface, and has a good waterproof design, which can be used underwater for a long time. It gives you the choice of beam angle and color temperature. This spot lighting can be controlled by DMX to make the color not monotonous.
.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316(Lamp cap)+SUS316(Lamp cup) |
| Optics | 20° / 60° (10° / 30° / 45°) |
| Power | 12W |
| Power supply | N/A |
| Dimention | D153XH173XT48 |
| Weight | 1KG |
| IP Rating | IP68 |
| Approvals | CE.RoHS |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape/Submersible |
| Optional brand | CREE |
EU3042 SPOT LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention |
| EU3042 | CREE | CW,WW,NW Red Green,Blue,Amber | S20/F60 (10/30/45) | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 12W | 1000LM | D153XH173XT48 |
| EU3042D | CREE | CW,WW,NW Red Green,Blue,Amber | S20/F60 (10/30/45) | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 13W | 1000LM | D153XH173XT48 |
| EU3042DM | OSRAM | CW,WW,NW Red Green,Blue,Amber | 120 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 13W | 500LM | D153XH173XT48 |
| EU3042DMX | CREE | CW,WW,NW Red Green,Blue,Amber | S20/F60 (10/30/45) | Constant voltage | 24VDC DMX Controller | Parallel | 3M 4X0.5mm² Cable | 13W | 1000LM | D153XH173XT48 |
| *EU3042D-24W | CREE | CW.WW.NW Red Green,Blue,Amber | S20/F60 (10/30/45) | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 24W | 2000LM | D153XH173XT48 |
| *EU3042D-36W | CREE | CW,WW,NW | S20/F60 (10/30/45) | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 36W | 2800LM | D153XH173XT48 |
| *EU3042DMX-RGB | Edison | RGB.RGBW | S20/F60 (10/30/45) | Constant voltage | 24VDC DMX Controller | Parallel | 3M 4X0.5mm² Cable | 13W | N/A | D153XH173XT48 |
| *EU3042DMX-24W-RGB | Edison | RGB.RGBW | S20/F60 (10/30/45) | Constant voltage | 24VDC DMX Controller | Parallel | 3M 4X0.5mm² Cable | 24W | N/A | D153XH173XT48 |
| *EU3042DMX-36W-RGBW | Edison | RGBW | S20/F60 (10/30/45) | Constant voltage | 24VDC DMX Controller | Parallel | 3M 4X0.5mm² Cable | 36W | N/A | D153XH173XT48 |
| * Underwater use only | *IES Data support. *Power could be customized |
|||||||||
