Spot light EU3040B
Spot light EU3040B
| Material | Aluminium |
| Surface | Tinting |
| PowerMode | External, constant current/voltage |
| Installation | Screw installation, adjustable angle |
| Weight | |
| Control | On/off, DMX dimming |
| Approvals | CE,RoHS,IP |
| Ambient temp. | -20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |

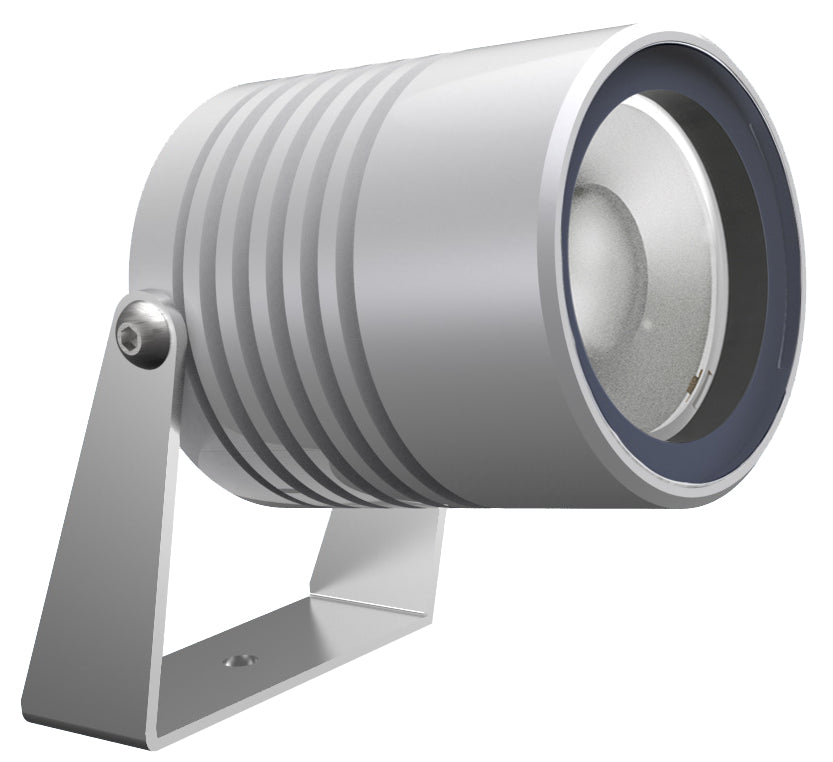

EU3040B Spot light
Finished to a high standard using anodized aluminum makes it suitable for both indoor and outdoor applications, construction rated to IP67 and configured to 15/24/36/50 degree beam angle. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements.
EU3040B 7W 4000K 20°
H(m) Eavg(lx) Emax(lx) D(cm)
| 1 | 2898 | 4344 |
42.57 |
| 2 | 724.6 | 1086 |
80.114 |
| 3 | 322 |
482.61 |
127.72 |
| 4 | 181.1 | 271.51 |
170.29 |
| 5 | 115.9 | 173.7 |
212.86 |
| Power(w) | Input Lum | linous Flux (lm) |
Color(k) | Color Index PowerMode | Wiring |
Cable | Beam (°) |
Model No. | |
| 7.5 | 24VDC | 800 | C,W,N | 80 |
Constant voltage |
Parallel | 1.1M 2×0.75mm2 | 15/24/36/50 | EU3040BD |
| 7.5 | 24VDC DMX | 800 | C,W,N | 80 | Constant voltage |
Parallel | 1.1M 2×0.5mm2 | 15/24/36/50 | EU3040BDMX |
| 7 | 600mA@11.3V | 800 |
C,W,N | 80 | Constant current |
Series | 1.1M 2×0.75mm2 | 15/24/36/50 | EU3040B |
