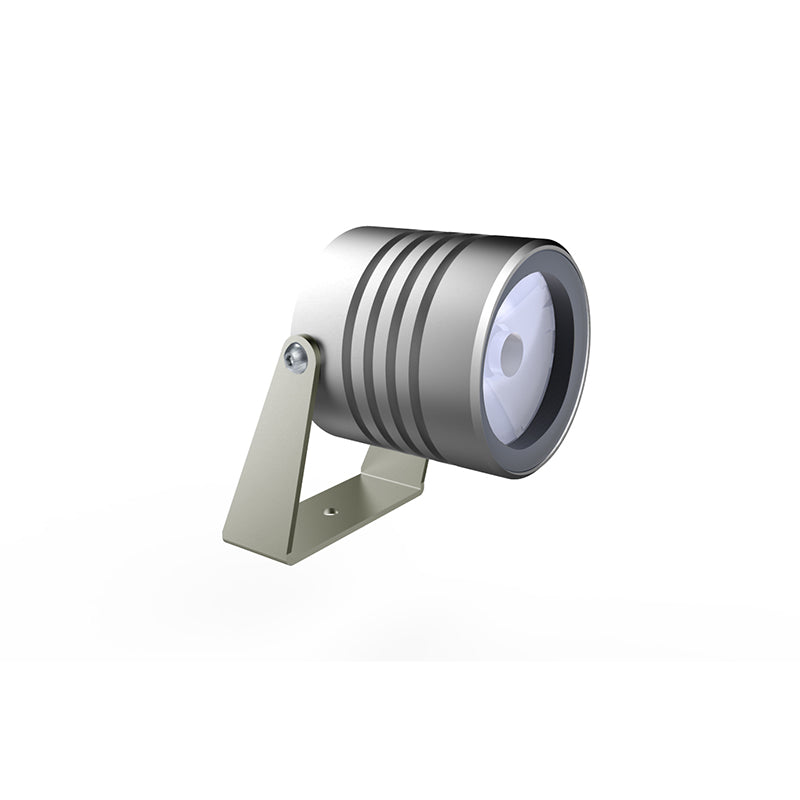

Spot light EU3040
Spot light EU3040
Finished to a high standard using anodized aluminum makes it suitable for both indoor and outdoor applications, construction rated to IP67 and configured to 3 degree beam angle. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW |
| Material | Aluminium |
| Optics | 3° |
| Power | 7W |
| Power supply | N/A |
| Dimention | D62XH93XT82 |
| Weight | N/A |
| IP Rating | IP67 |
| Approvals | CE.RoHS |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape |
| Optional brand | CREE |
EU3040 SPOT LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention |
| EU3040 | CREE | CW,WW,NW | 3° | Constant current | 600mA@11.3VDC | Series | 3M 2X0.75mm² Cable | 7W | 600LM | D62XH93XT82 |
| EU3040D | CREE | CW,WW,NW | 3° | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 7.5W | 600LM | D62XH93XT82 |
| EU3040DMX | CREE | CW,WW,NW | 3° | Constant voltage | 24VDC | Parallel | 3M 4X0.5mm² Cable | 7.5W | 600LM | D62XH93XT82 |
| *IES Data support. | ||||||||||
