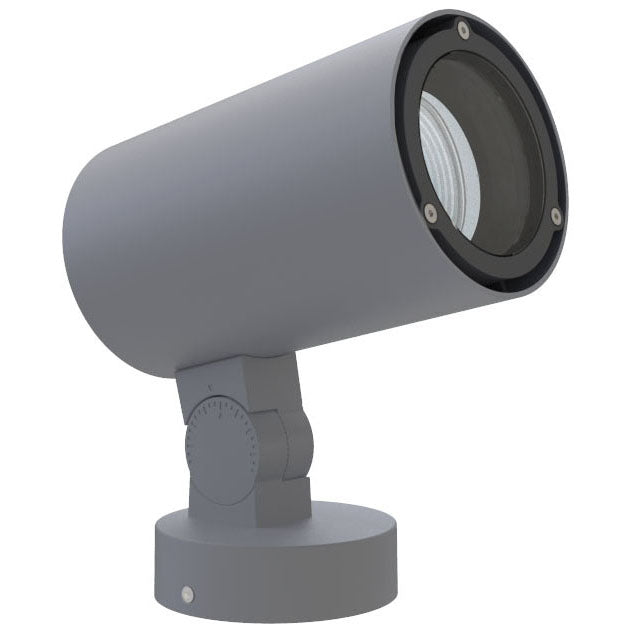

Spot light EU3039-1
Spot light EU3039-1
| Material | Aluminium |
| Surface | Powder coating, painting, tinting |
| PowerMode | Constant voltage |
| Installation | Screw installation, adjustable angle |
| Weight | |
| Control | On/off, DMX dimming |
| Approvals | CE,RoHS,IP |
| Ambient temp. | -20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |
EU3039-1 Spot light
EU3039-1 18W 4000K 20°
H(m) Eavg(lx) Emax(lx) D(cm)
| 1 | 1291 |
1729 |
76.29 |
| 2 | 322.7 | 432.2 |
152.57 |
| 3 | 143.4 | 192.1 |
228.83 |
| 4 | 80.67 | 108.1 |
305.15 |
| 5 | 51.63 | 69.15 |
381.44 |
| Power(w) Input |
Luminous (lm) |
;Flux Color(k) | Color Index PowerMode | Wiring Cable | Beam (°) | Model No. | |||
| 12 | 24VDC DMX | – | CCT ,RGBFC,RGBW-FC | – | Constant voltage | Parallel | 1.1M 4×0.5mm2 | 20/30/40/50/40X80 | EU3039-1DMX-12W |
| 18 | 24VDC DMX | – | CCT ,RGBFC,RGBW-FC | – | Constant voltage | Parallel | 1.1M 4×0.5mm2 | 20/30/40/50/40X80 | EU3039-1DMX-18W |
| 24 | 24VDC DMX | – | CCT ,RGBFC,RGBW-FC | – | Constant voltage | Parallel | 1.1M 4×0.5mm2 | 20/30/40/50/40X80 | EU3039-1DMX-24W |
| 12 | 220VAC | 1300 | C,W,N | 80 | Constant voltage | Parallel | 1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-12W |
| 18 | 220VAC | 1900 | C,W,N | 80 | Constant voltage | Parallel | 1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-18W |
| 24 | 220VAC | 2500 | C,W,N | 80 | Constant voltage | Parallel | 1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-24W |
| 27 | 220VAC | 2800 | C,W,N | 80 |
Constant voltage | Parallel | 1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-27W |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
