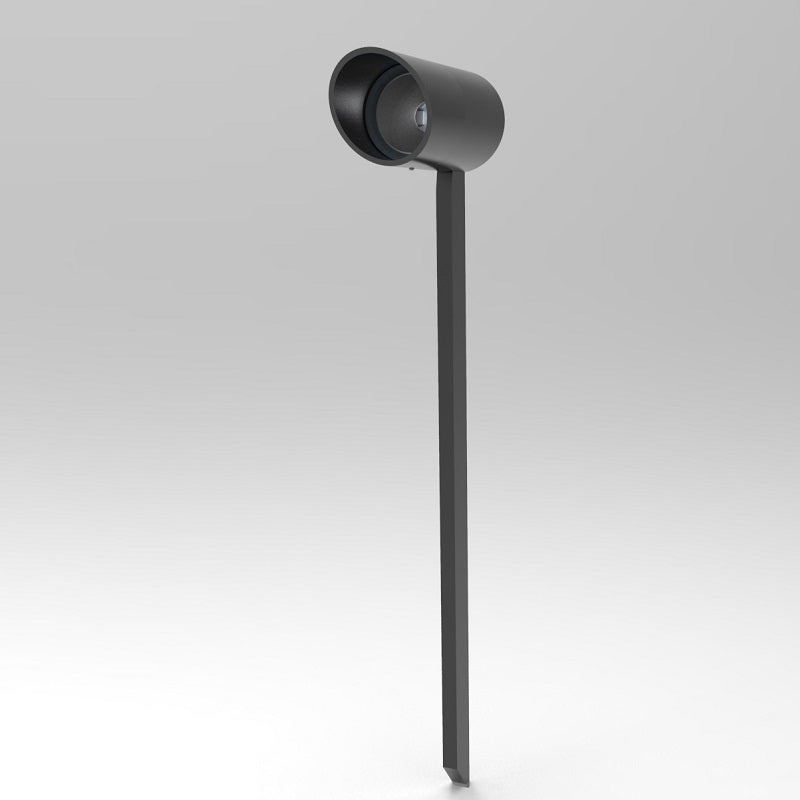

Spike Light EU5011
Spike Light EU5011
| Material | Aluminium |
| Surface | Tinting |
| PowerMode | External, constant voltage |
| Installation | installation |
| Weight | |
| Control | On/off, DMX dimming, color dimming |
| Approvals | CE’RoHS，JP |
| Ambient temp | .-20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |
EU5011
| Power(w) | Input | Luminous Flux Color(k)(lm) | Color Index PowerMode | Wiring |
Cable | Beam (°) | Model No. |
| 10 | 24VDC | 750 C,W,N,R,G,B,A | – Constant voltage | Parallel |
3M 2X0.75mm2 | 20/60 | EU5011D |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;

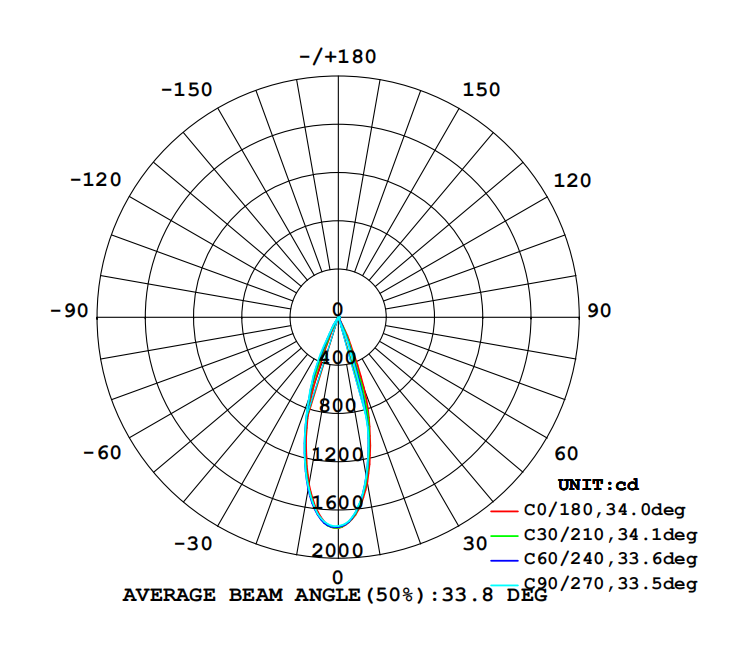

EU5011 10W 4000K 20°
Product lists V
| H(m) | Eavg(lx) | Emax(lx) |
D(cm) |
| 1 | 1208 | 1801 |
60.32 |
| 2 | 302 | 450.4 |
120.64 |
| 3 | 134.2 | 200.2 |
180.95 |
| 4 | 75.5 | 112.6 |
241.27 |
| 5 | 48.32 | 72.06 |
301.59 |
