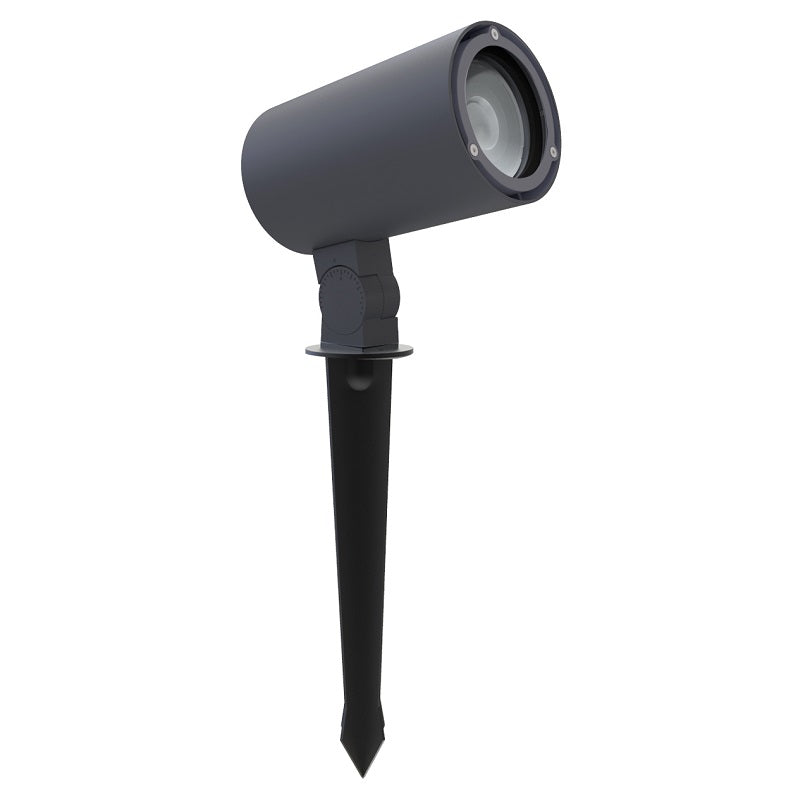

Spike Light EU3039-1-SP
Spike Light EU3039-1-SP
| Material | Aluminium |
| Surface | Powder coating, painting |
| PowerMode | External, constant current/voltage |
| Installation | Spike installation, adjustable angle |
| Weight | |
| Control | On/off, DMX dimming, color dimming |
| Approvals | CE,RoHS,IP |
| Ambient temp. | -20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories | |
EU3039-1-SP
Power(w) Input |
Luminous(lm) | Flux Color(k) | Color Index PowerMode | Wiring |
Cable | Beam (°) |
Model No. | ||
| 12 | 24VDC DMX | – | CCT ,RGB | – |
Constant voltage | Parallel |
1.1M 4×0.5mm2 | 20/30/40/50/40X80 | EU3039-1-SP-DMX-12W |
| 18 | 24VDC DMX | – | CCT ,RGB,RGBW-FC | – |
Constant voltage | Parallel | 1.1M 4×0.5mm2 |
20/30/40/50/40X80 | EU3039-1-SP-DMX-18W |
| 24 | 24VDC DMX | – | CCT ,RGB,RGBW-FC | – |
Constant voltage | Parallel | 1.1M 4×0.5mm2 | 20/30/40/50/40X80 | EU3039-1-SP-DMX-24W |
| 12 | 220VAC | 1300 | C,W,N | 80 | Constant voltage | Parallel |
1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-SP-12W |
| 18 | 220VAC | 1900 | C,W,N | 80 | Constant voltage | Parallel | 1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-SP-18W |
| 24 | 220VAC | 2500 | C,W,N | 80 | Constant voltage | Parallel | 1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-SP-24W |
| 27 | 220VAC | 2800 | C,W,N | 80 | Constant voltage | Parallel | 1.1M 3×1.0mm2 | 20/30/40/50/40X80 | EU3039-1A-SP-24W |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
EU3039-1 18W 4000K 20°
Product lists V
| H(m) | Eavg(lx) | Emax(lx) | D(cm) |
| 1 | 1291 | 1729 | 76.29 |
| 2 | 322.7 | 432.2 | 152.57 |
| 3 | 143.4 | 192.1 | 228.83 |
| 4 | 80.67 | 108.1 | 305.15 |
| 5 | 51.63 | 69.15 | 381.44 |
