S0180
S0180
Product Description
1. Main material: ADC12 die-cast aluminum lamp body.
2. Surface treatment: Electrostatic spray, customizable color.

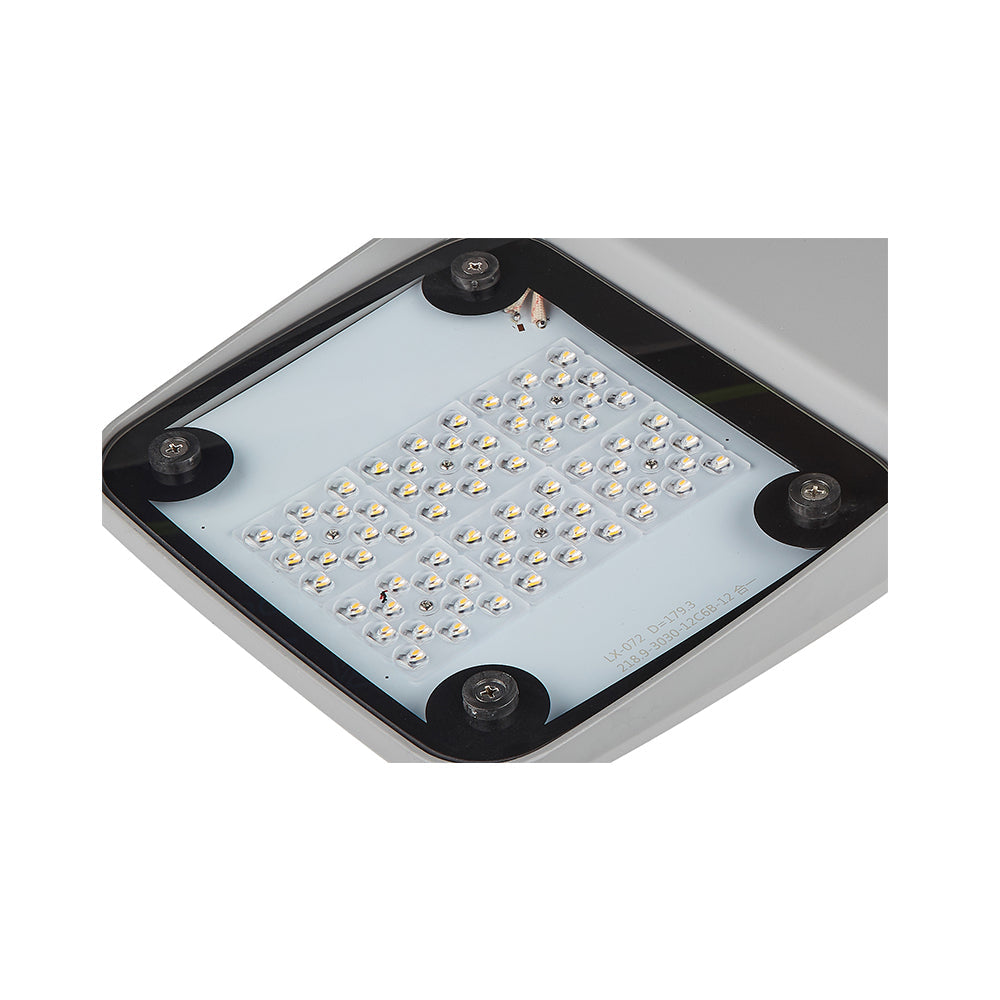

3. Optical components: Secondary optical lens light distribution.
4. Sealing structure: Waterproof structure, sealed silicone structural parts, protection grade IP66.
5. Control mode: ON-OFF/dimming/single lamp control is optional.
6. Installation method: Installation method:Equipped with ADC12 die-cast aluminum connecting sleeve and can be designed for rotating structure.
7. Connection method: Rubber wire extension connection.

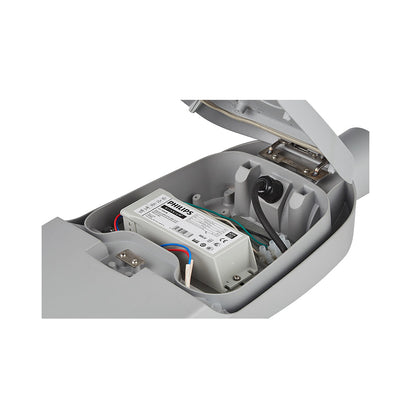

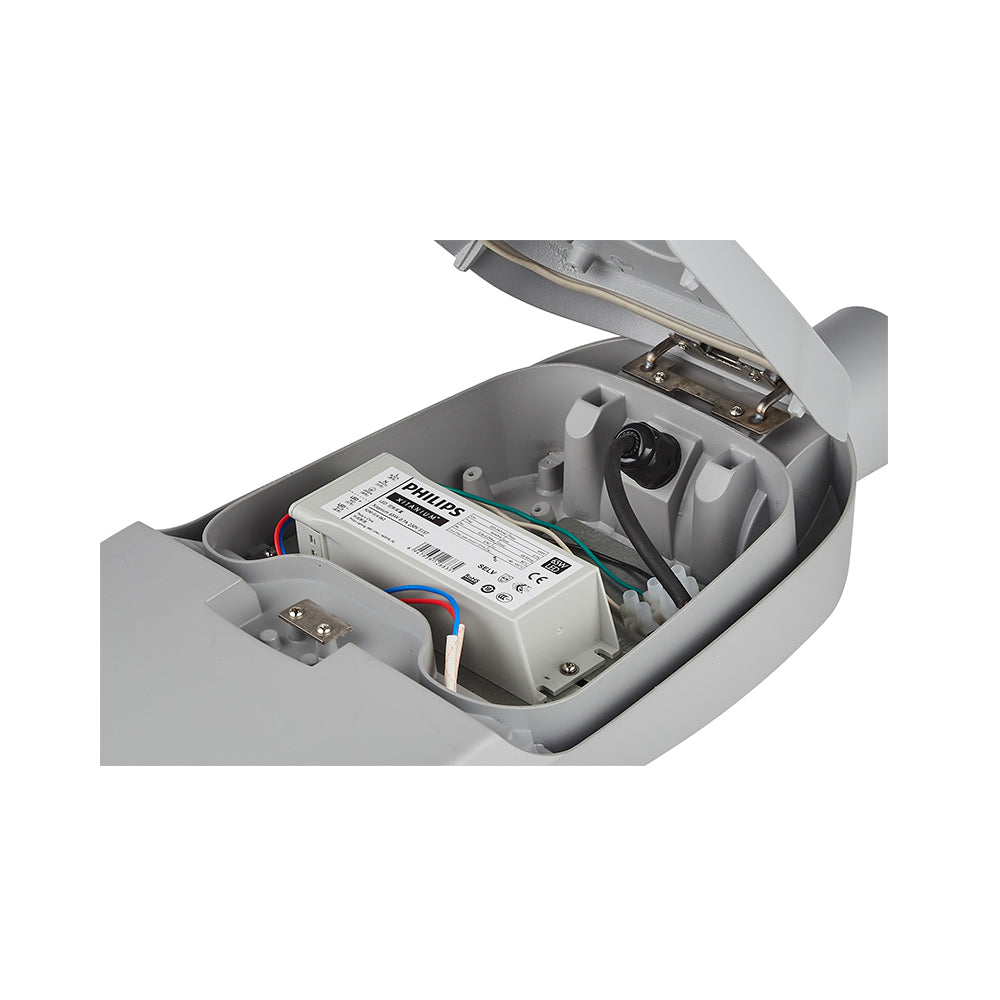

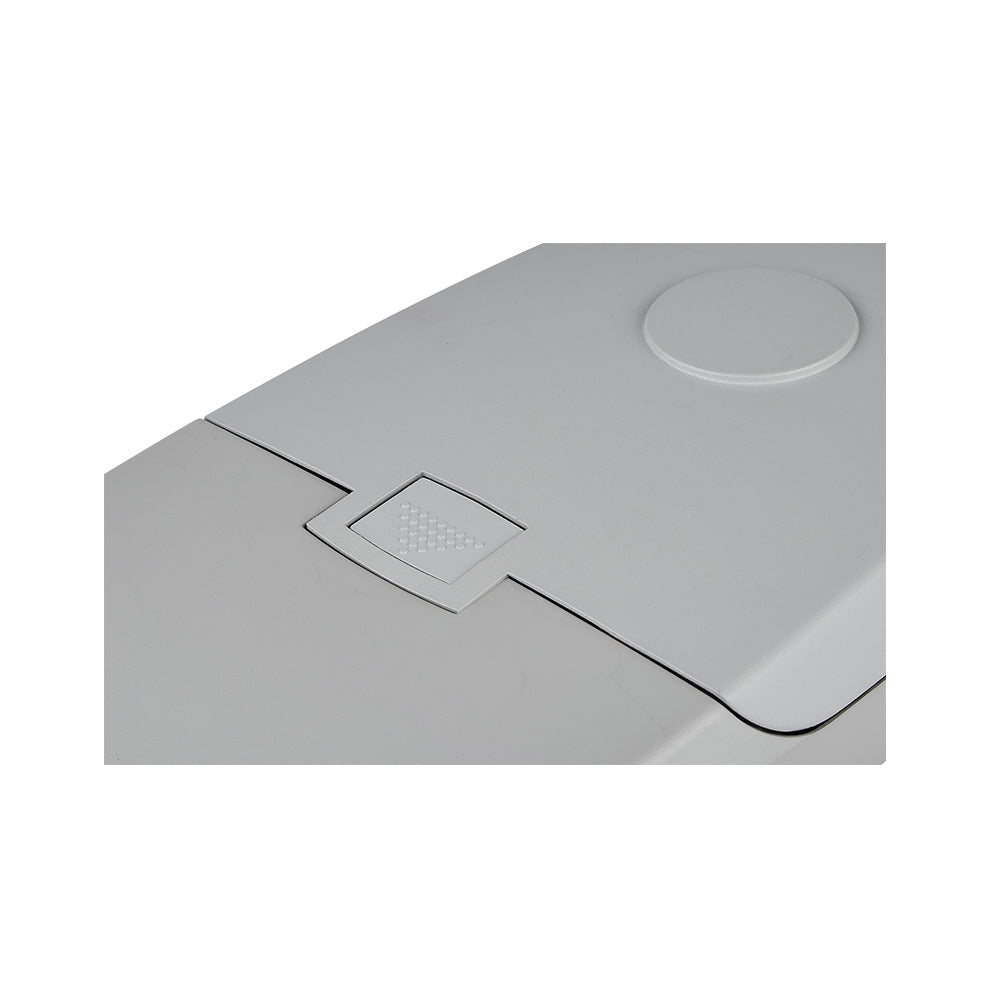

8. Others: The electrical cover is opened without tools.
Specification
1.Rated Power:40W/60W/80W
2.LED Quantity: 56pcs/84pcs/84pcs
3.Color Temperature:3000K / 4000K / 5700K
4.Input Voltage:90~305V AC
5.Initial Luminous Flux:4400 lm/6600 lm/8800 lm
Luminous Efficacy:110 lm/w
6.Life:>30000H
7.Protection Grade:IP 66
8.Temperature of Working Condition:-25˚C~50˚C
1. Main material: ADC12 die-cast aluminum lamp body.
2. Surface treatment: Electrostatic spray, customizable color.
3. Optical components: Secondary optical lens light distribution.
4. Sealing structure: Waterproof structure, sealed silicone structural parts, protection grade IP66.
5. Control mode: ON-OFF/dimming/single lamp control is optional.
6. Installation method: Installation method:Equipped with ADC12 die-cast aluminum connecting sleeve and can be designed for rotating structure.
7. Connection method: Rubber wire extension connection.
8. Others: The electrical cover is opened without tools.
Specification
1.Rated Power:40W/60W/80W
2.LED Quantity: 56pcs/84pcs/84pcs
3.Color Temperature:3000K / 4000K / 5700K
4.Input Voltage:90~305V AC
5.Initial Luminous Flux:4400 lm/6600 lm/8800 lm
Luminous Efficacy:110 lm/w
6.Life:>30000H
7.Protection Grade:IP 66
8.Temperature of Working Condition:-25˚C~50˚C
