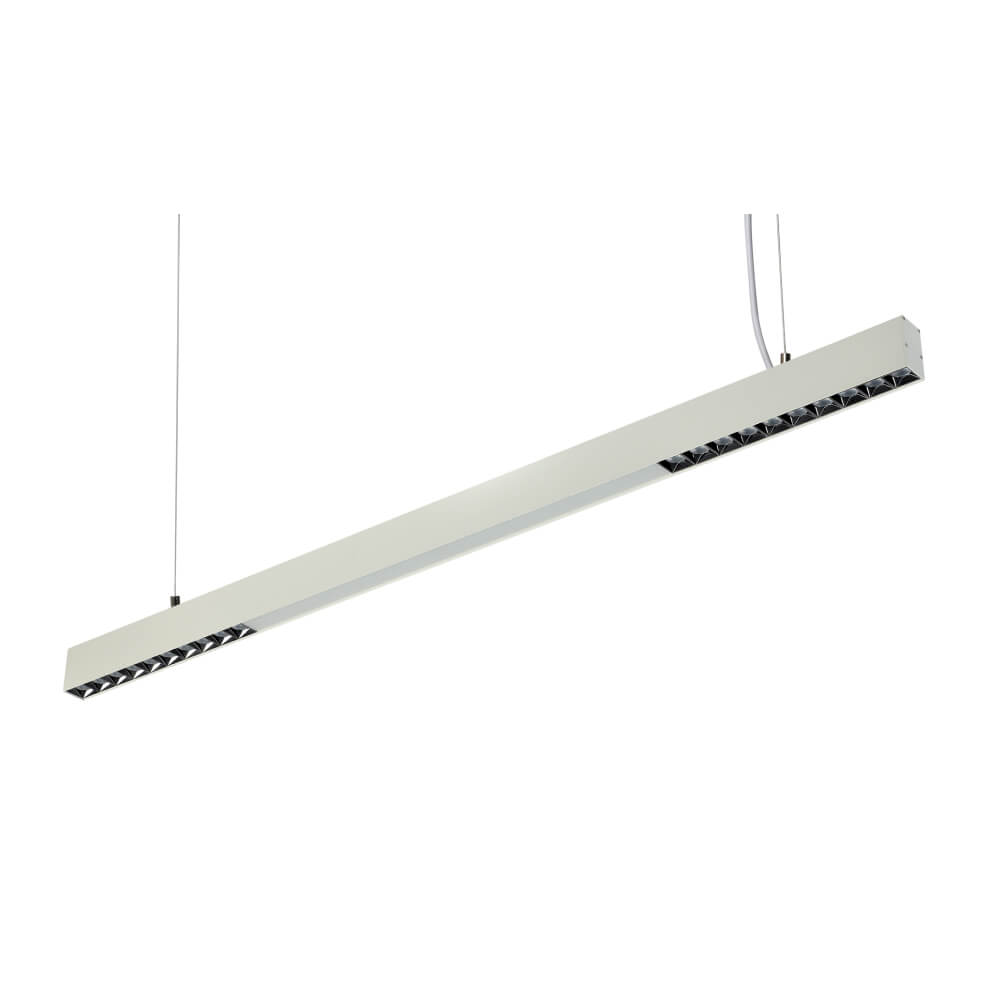

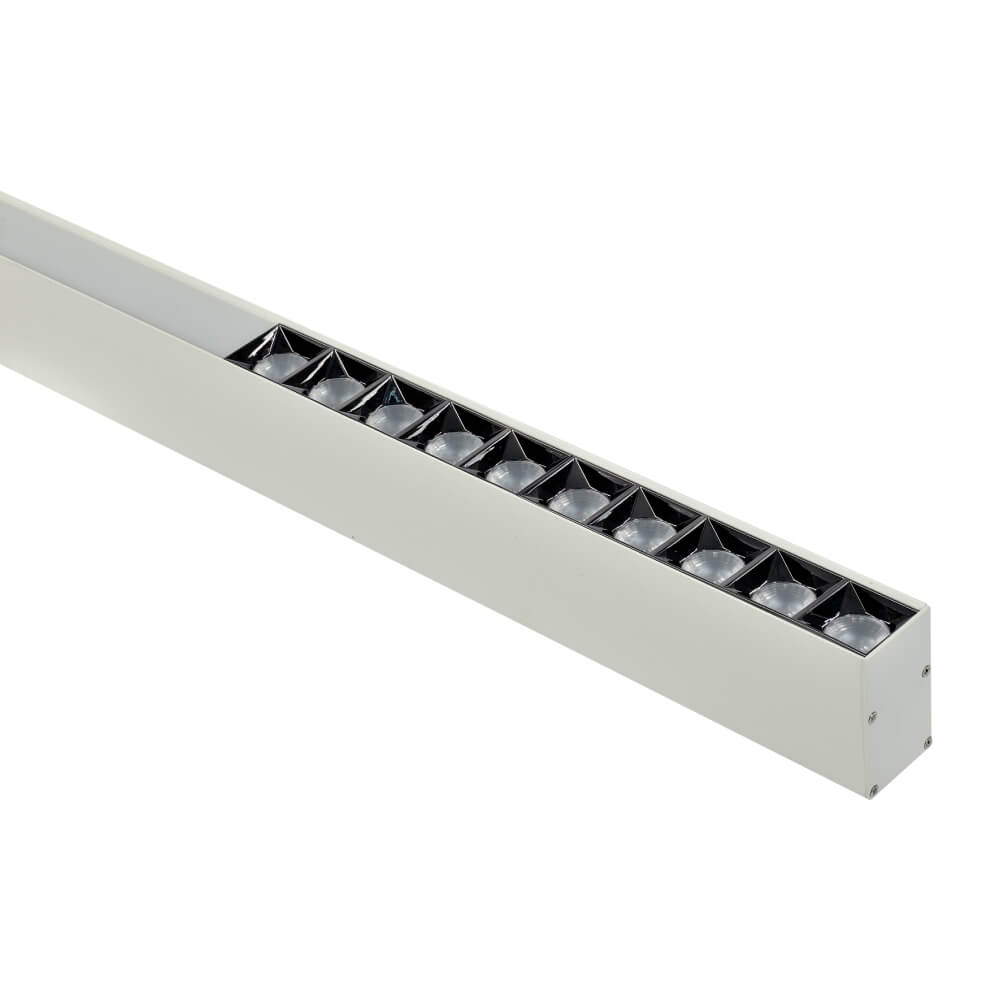

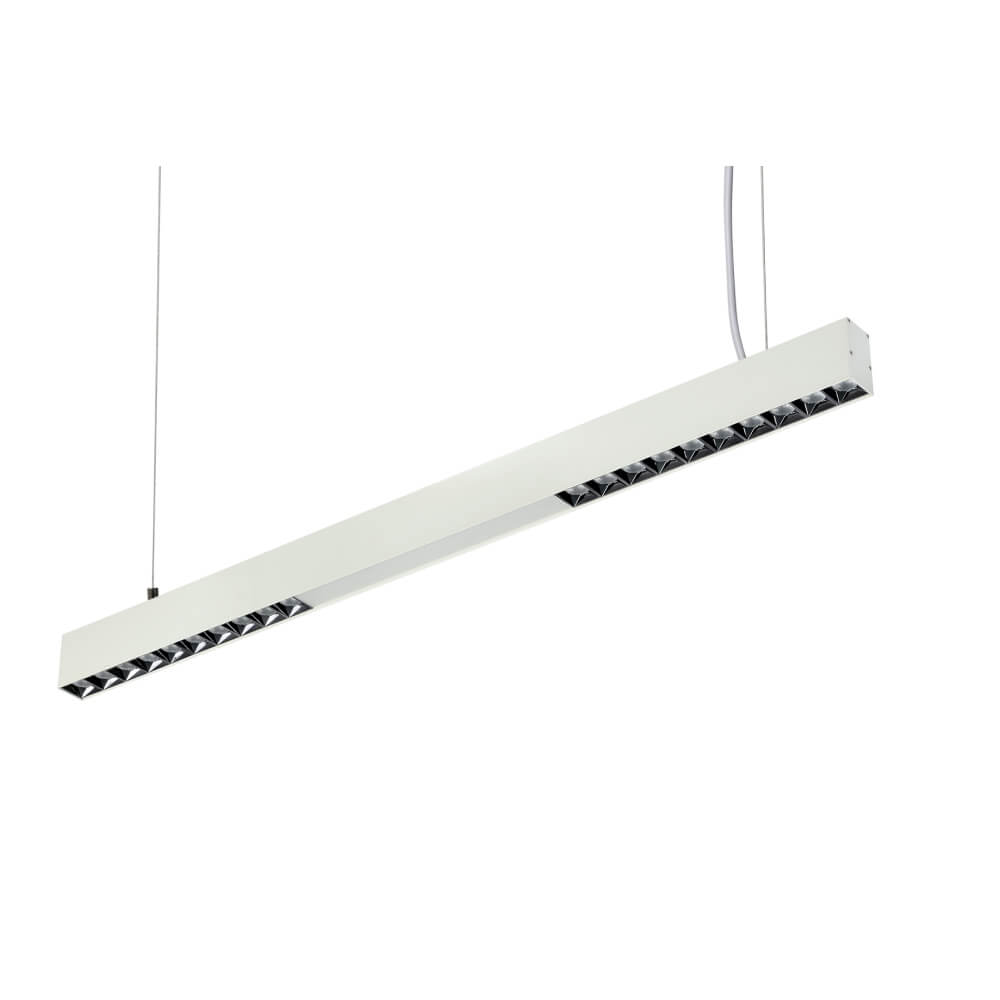

LED Pendant Linkable Linear Up And

Specification

	P1832-402F	P1832-604F	P1832-705F	P1832-1008F
Size	573x43x75mm	1206x43x75mm	1506x43x75mm	2445x43x75mm
Nominal Wattage	20/25/40W	40W/50W/60W	50W/60W/70W	80W/90W/100W
InputVoltage	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V
Lumen Delivered	4600 lm	6900 lm	8050 lm	11500 lm
Nominal Efficacy	115 lm/w	115 lm/w	115 lm/w	115 lm/w
CCT	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K
CRI	>80	>80	>80	>80
Power Factor	>0.9	>0.9	>0.9	>0.9
Dimming	0-10V	0-10V	0-10V	0-10V
Operating Temperature	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty	5 Years	5 Years	5 Years	5 Years
