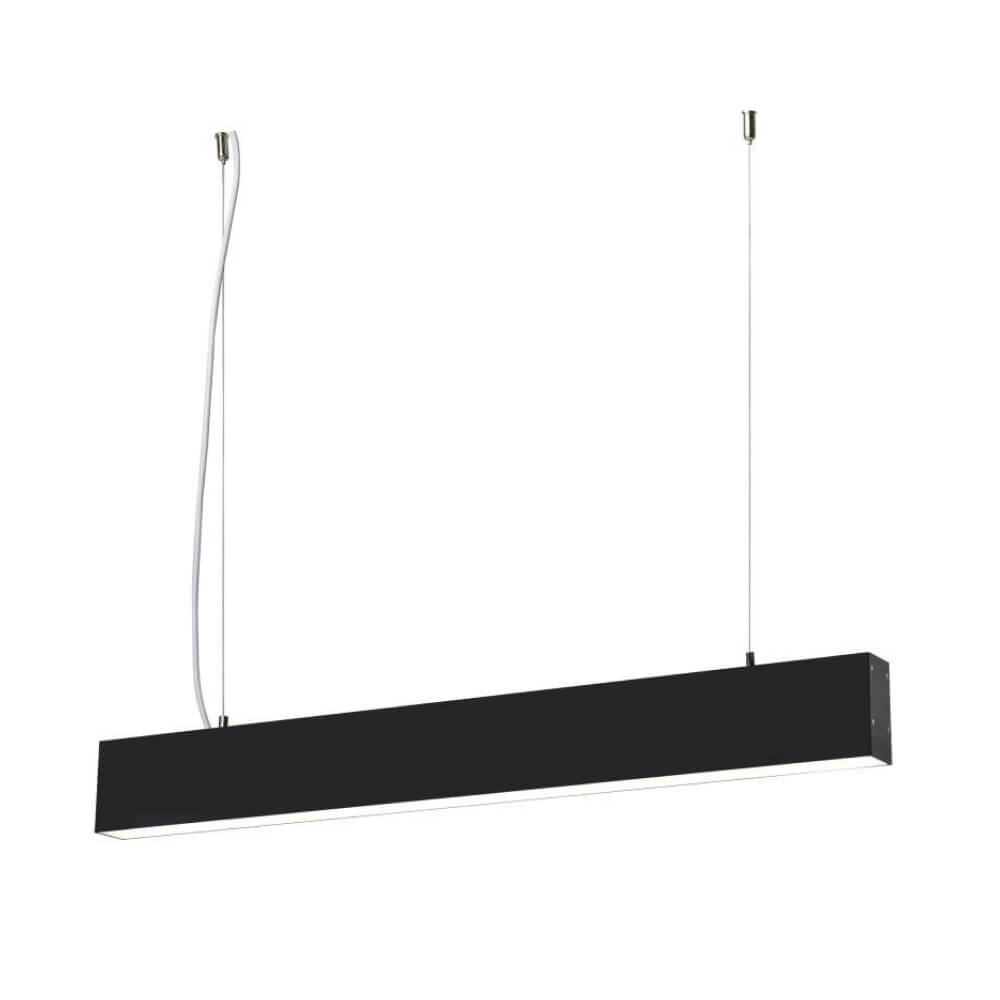

• Suspended LED Pendant Light Up/Down HG-L242UD by Halcon with 70:30 direct/indirect light split for commercial spaces

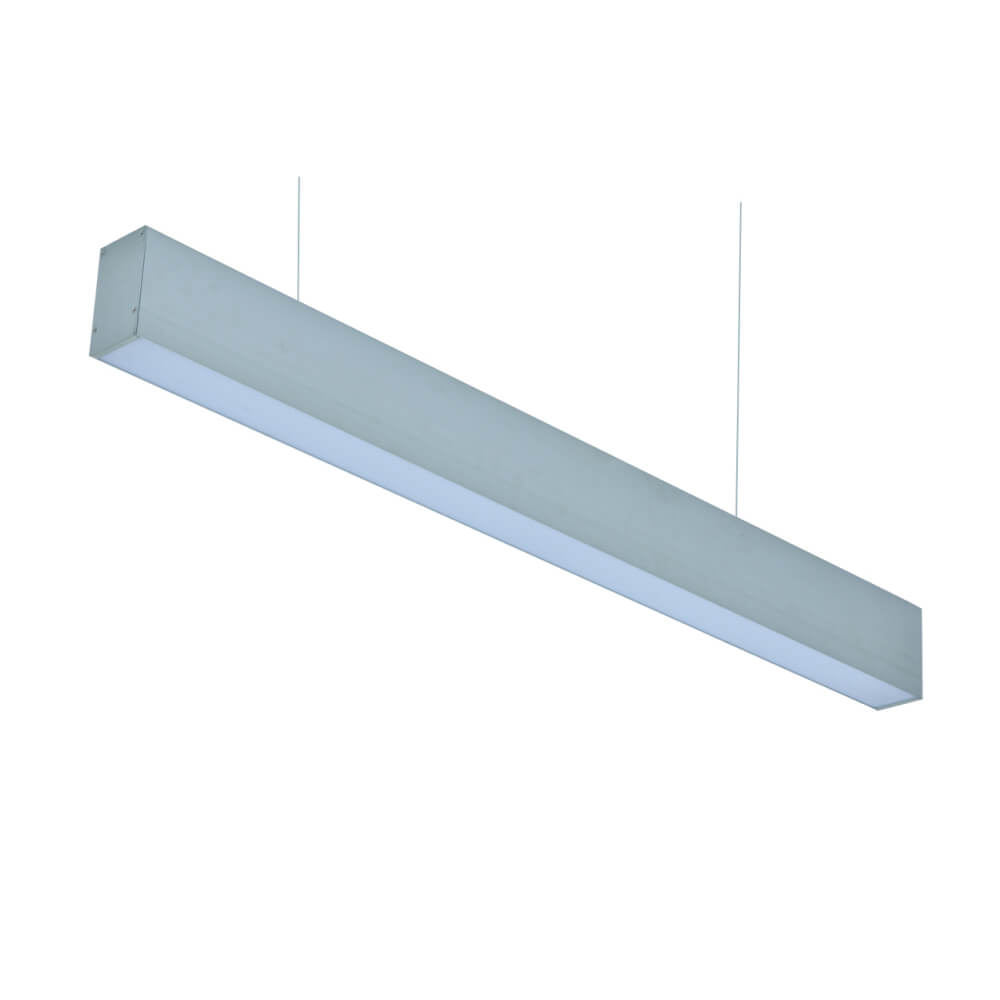

  • Suspended 1x4 LED pendant light with up/down direct/indirect illumination by Halcon Lighting, offering a 70:30 light split and emergency backup option

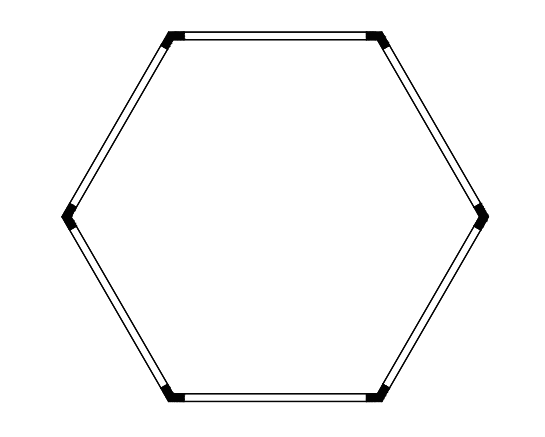

  • Blank hexagon outline for LED lighting design
  • Hexagon shape design for commercial LED light fixtures

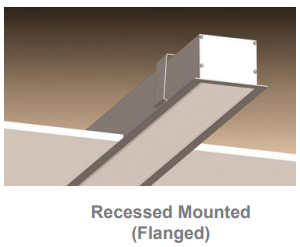

  • Recessed mounted LED lighting fixture design diagram

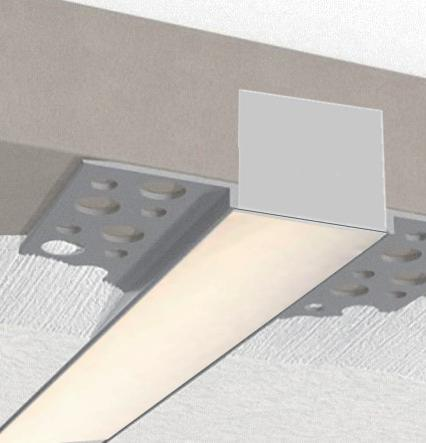

  • Recessed LED linear light fixture design with hexagon outline

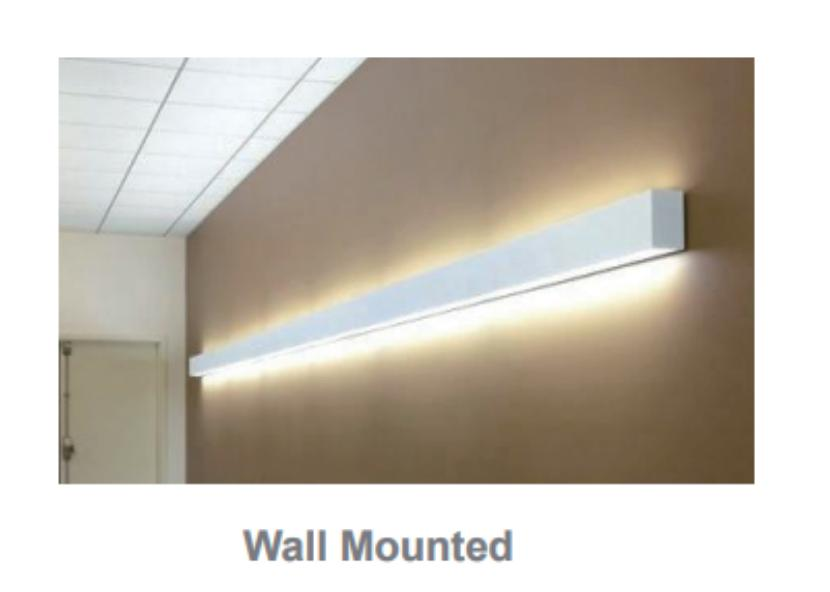

  • Wall mounted LED linear light fixture with ambient glow
1 7

LED Linear Architectural Pendant Light Linkable 2ft 4ft 8ft 120-277V 0-10V Dimming Emergency Back Up And Sensor Control Ready

LED Linear Architectural Pendant Light Linkable 2ft 4ft 8ft 120-277V 0-10V Dimming Emergency Back Up And Sensor Control Ready

Overview
Use Cases
Use Cases
Comparison Chart
Comparison Chart

Use Cases

halconlighting meeting room
halconlighting office
halconlighting meeting room

Specification


HG-L242UD-131F HG-L242UD-252F HG-L242UD-504F HG-L242UD-756F HG-L242UD-1008F HG-L242UD-1008F HG-L242UD-1008F
Size 374x50x75mm 574x50x75mm 1174x50x75mm 1474x50x75mm 1474x50x75mm 1774x50x75mm 2474x50x75mm
Nominal Wattage 6.5W/10W/13W 13W/19W/25W 25W/38W/50W 35W/55W/65W 50W/75W/100W 50W/75W/100W 50W/75W/100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 1495 lm 2875 lm 5750 lm 7475 lm 11500 lm 11500 lm 11500 lm
Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
