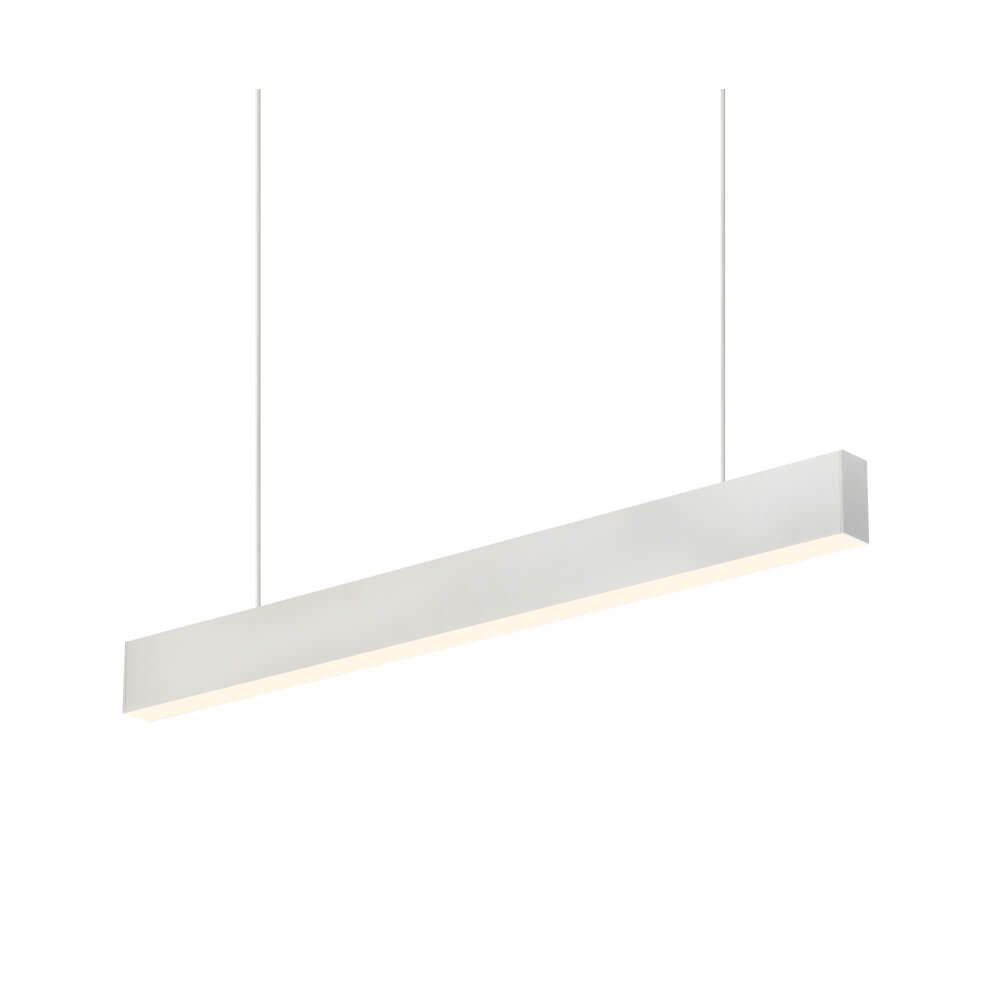

• 1x4 LED Direct/Indirect pendant light by Halcon Lighting with field-CCT and wattage selectable options for commercial spaces.

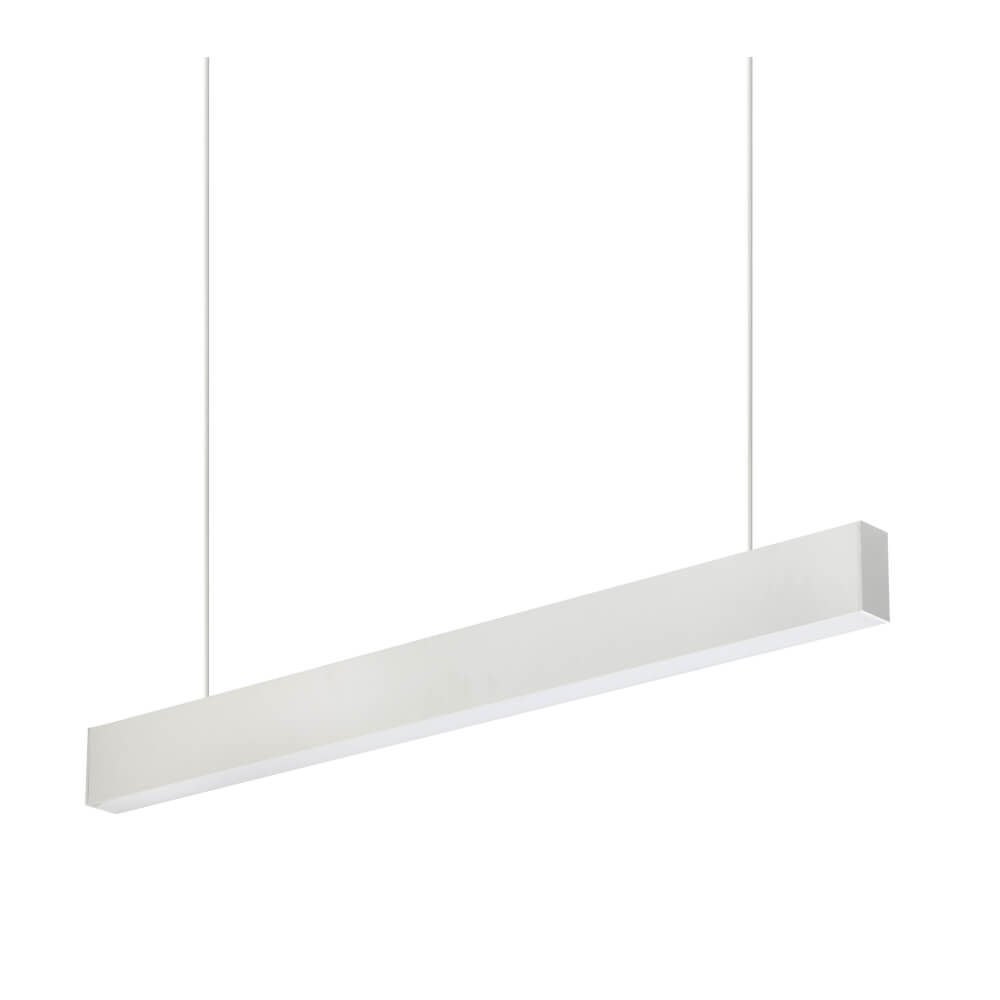

  • Halcon Lighting 1'x4' LED Pendant Light HG-L242S with Direct/Indirect 70:30 Lighting Split, Field-CCT Selectable, and Energy-Efficient Design

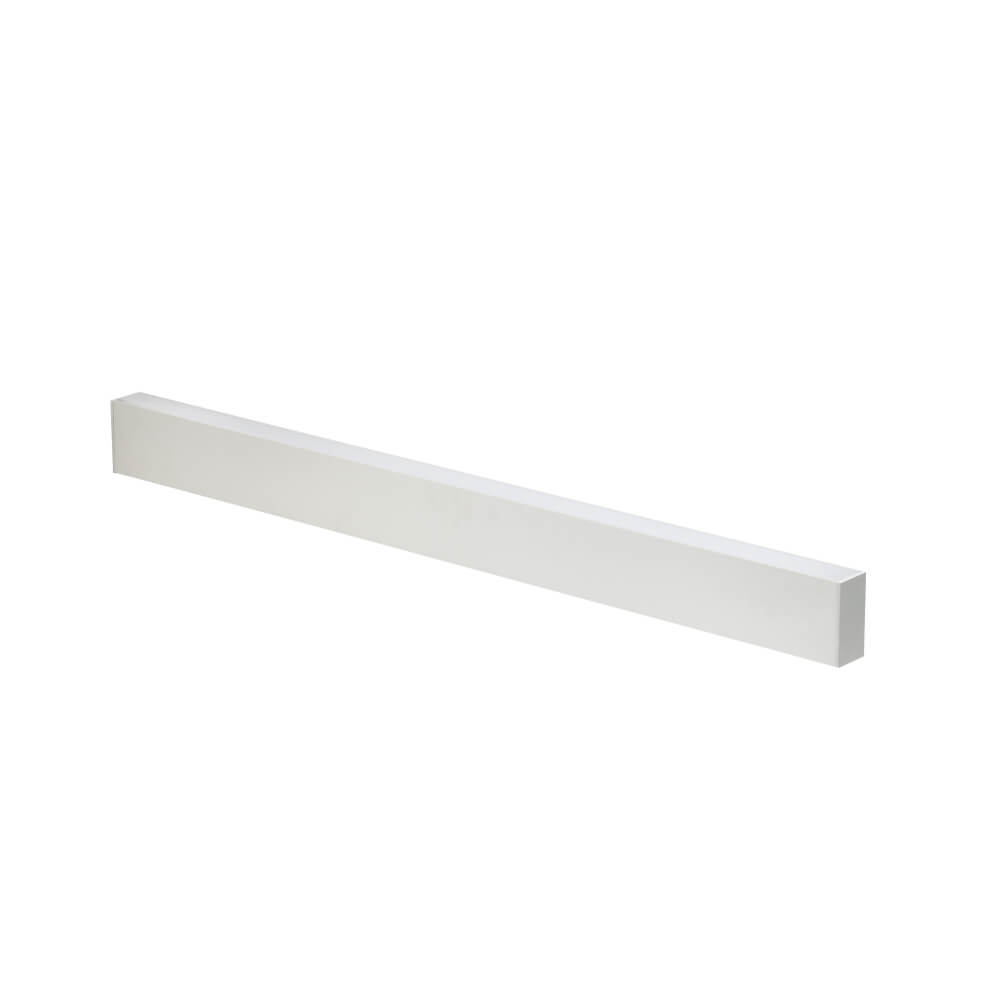

  • 1'x4' Halcon Lighting LED Pendant Light HG-L242S with Direct/Indirect up/down illumination and selectable features

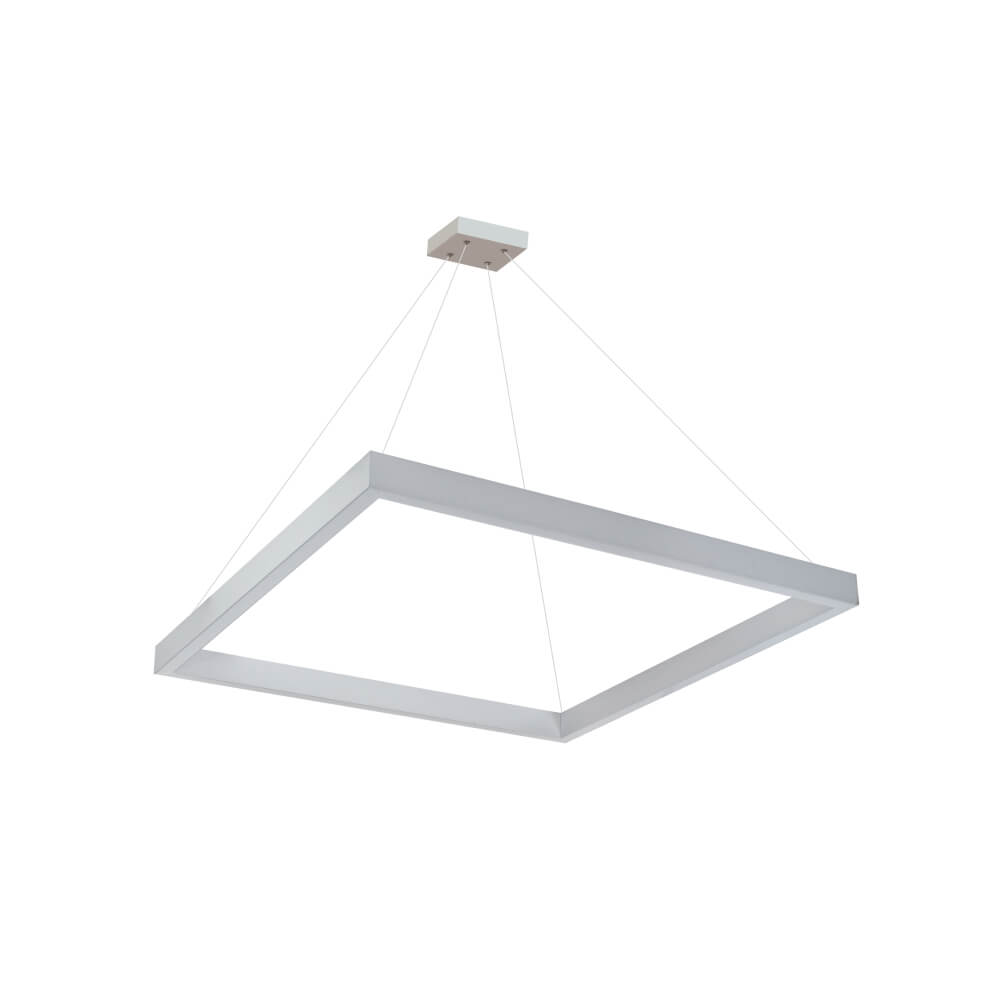

  • Modern LED Pendant Light HG-L242S with Direct/Indirect Illumination for Commercial Spaces

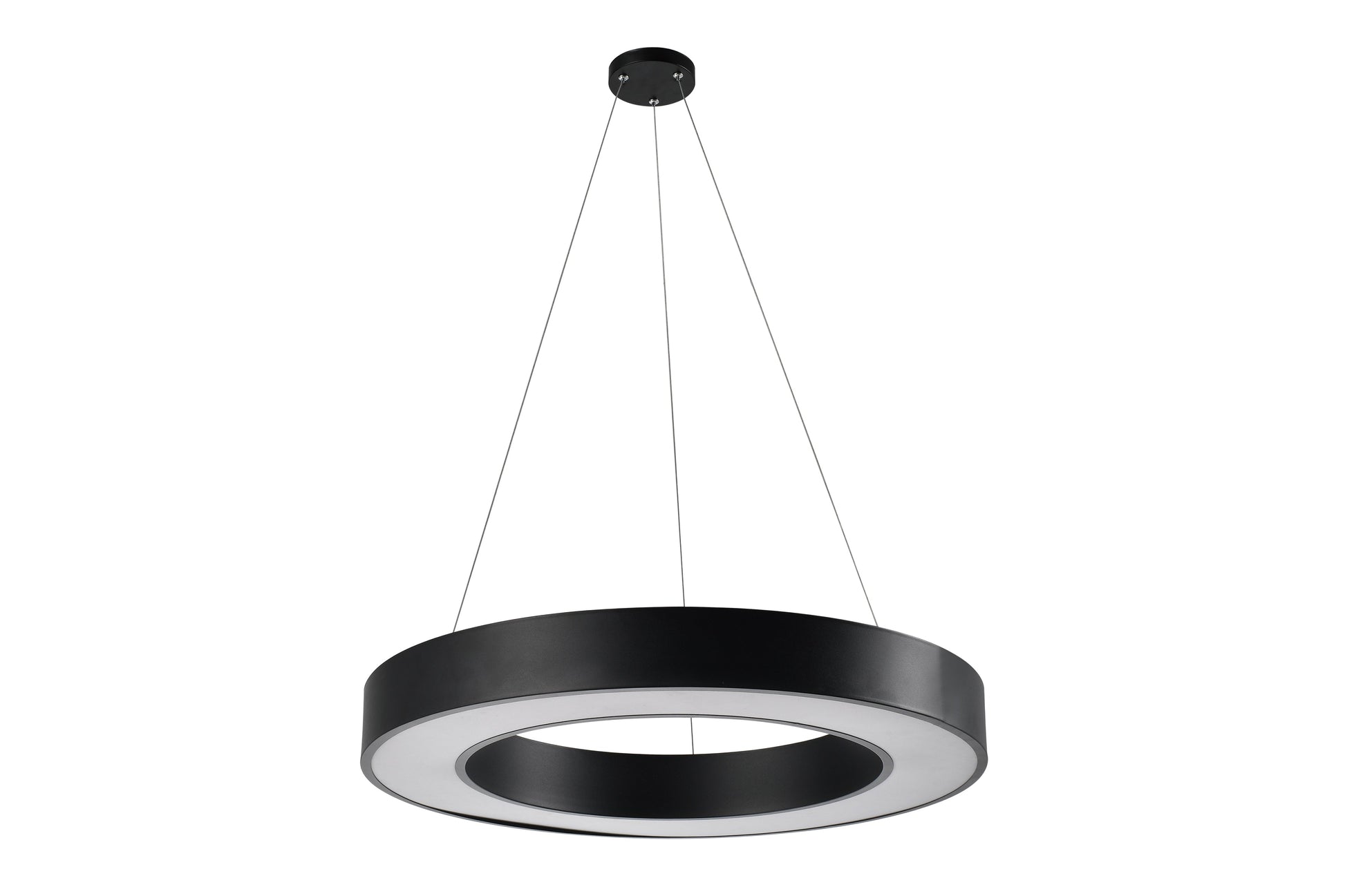

  • Black circular LED pendant light for modern commercial spaces

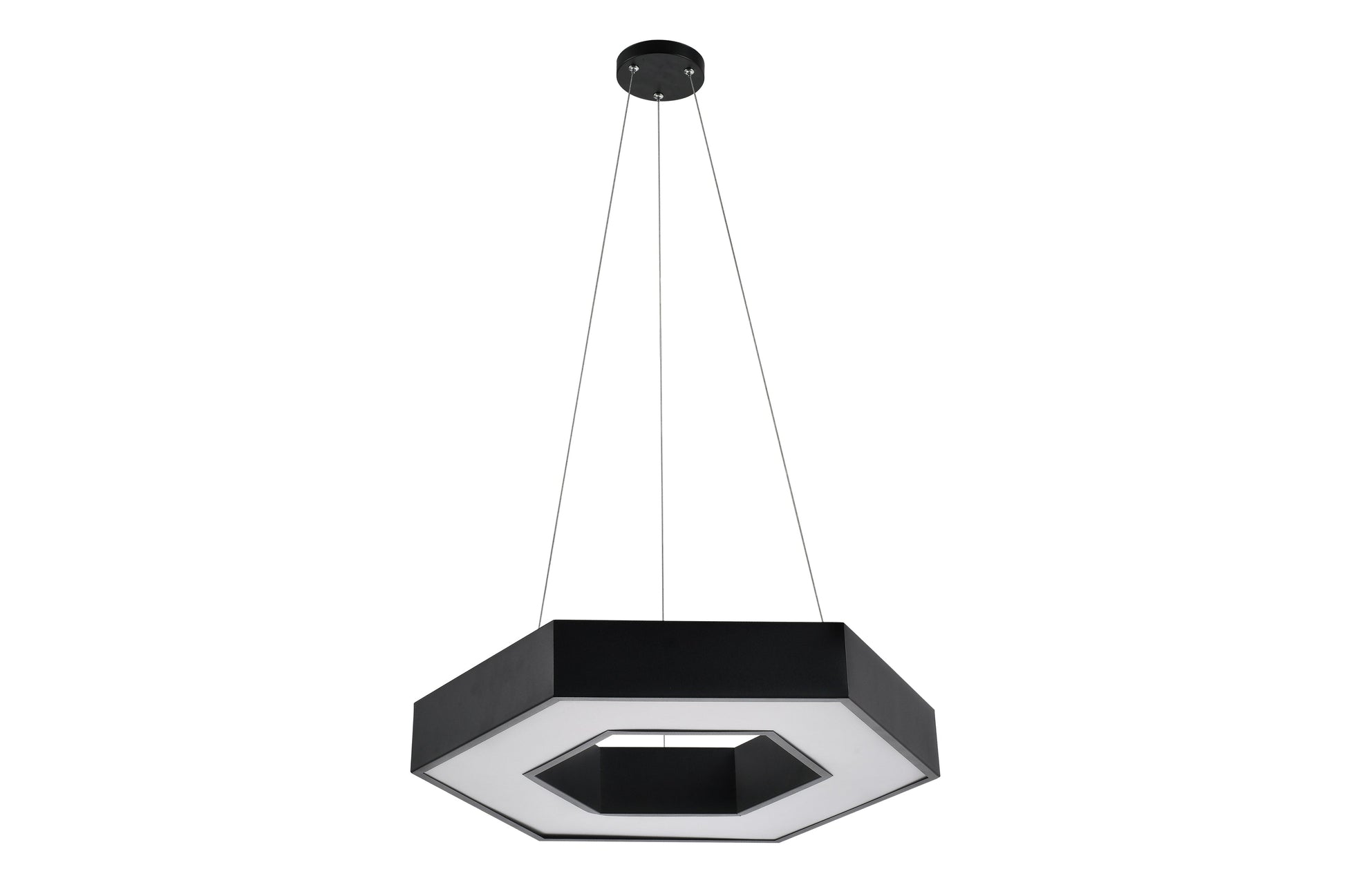

  • Hexagonal black LED pendant light for modern commercial interiors

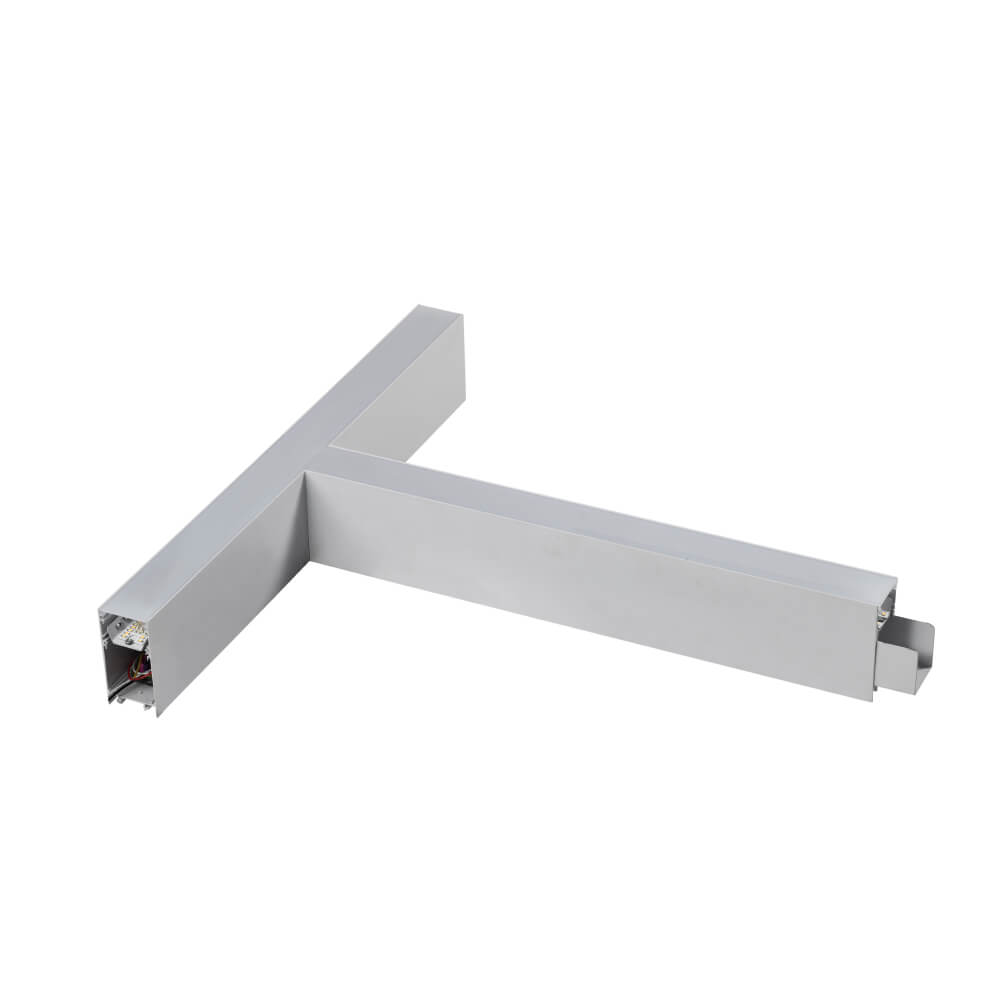

  • LED Pendant Light HG-L242S by Halcon Lighting with Direct/Indirect illumination and emergency backup option for commercial spaces

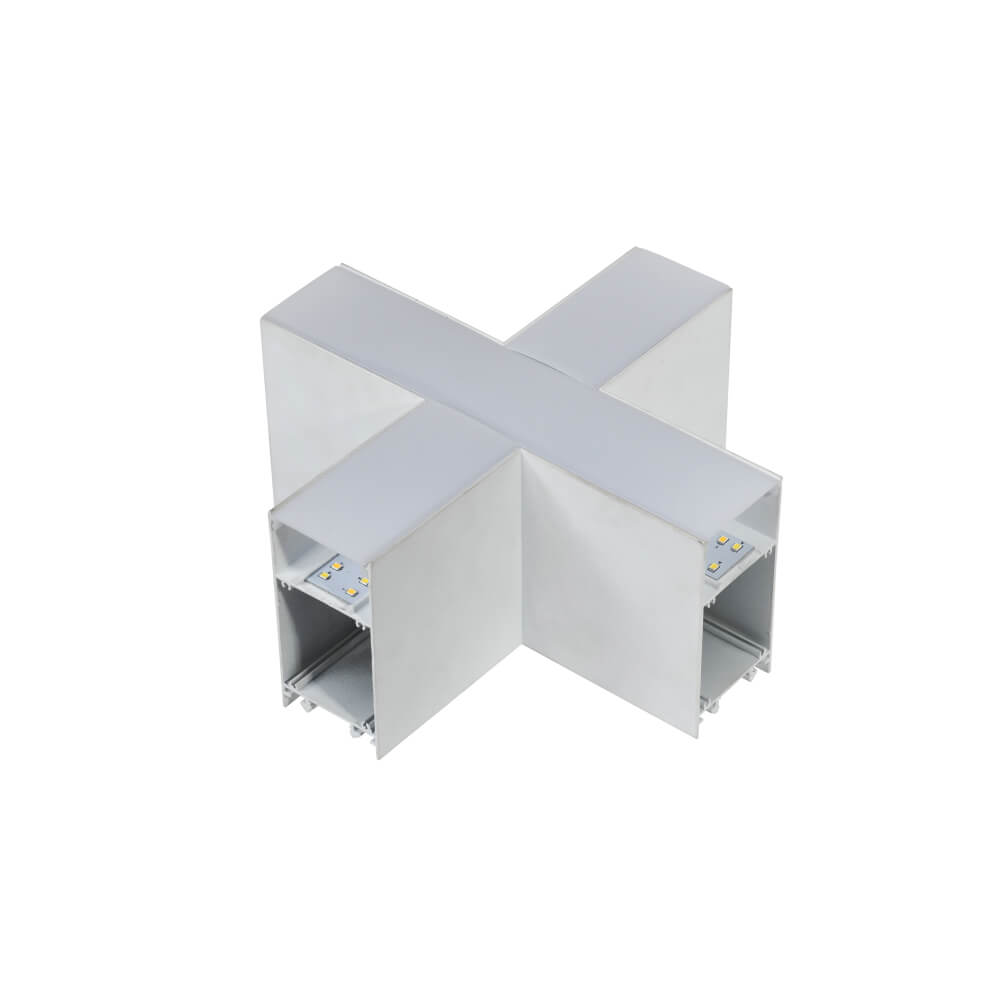

  • LED Pendant Light Linkable HG-L242S with direct/indirect up/down lighting feature for commercial spaces.

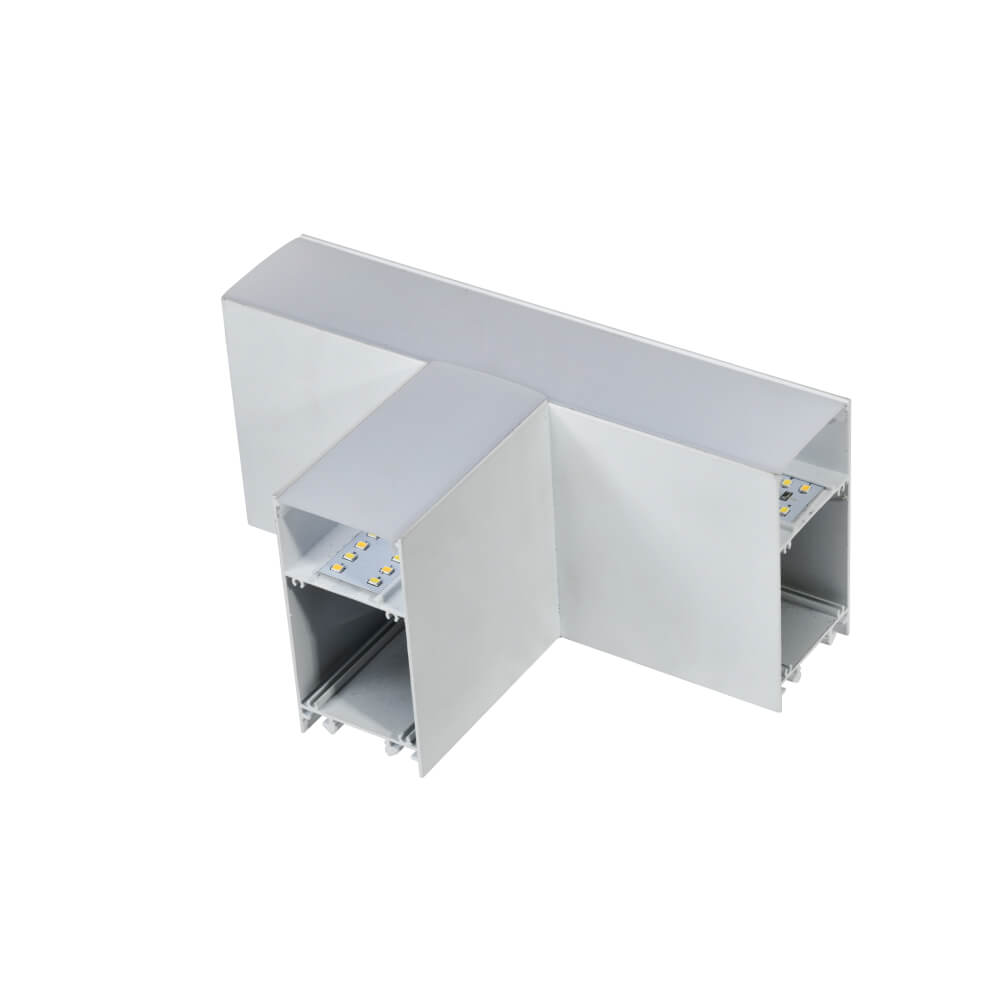

  • Halogen Lighting Direct/Indirect Pendant HG-L242S with 70:30 Light Split and Advanced LED Optical System for Commercial Use

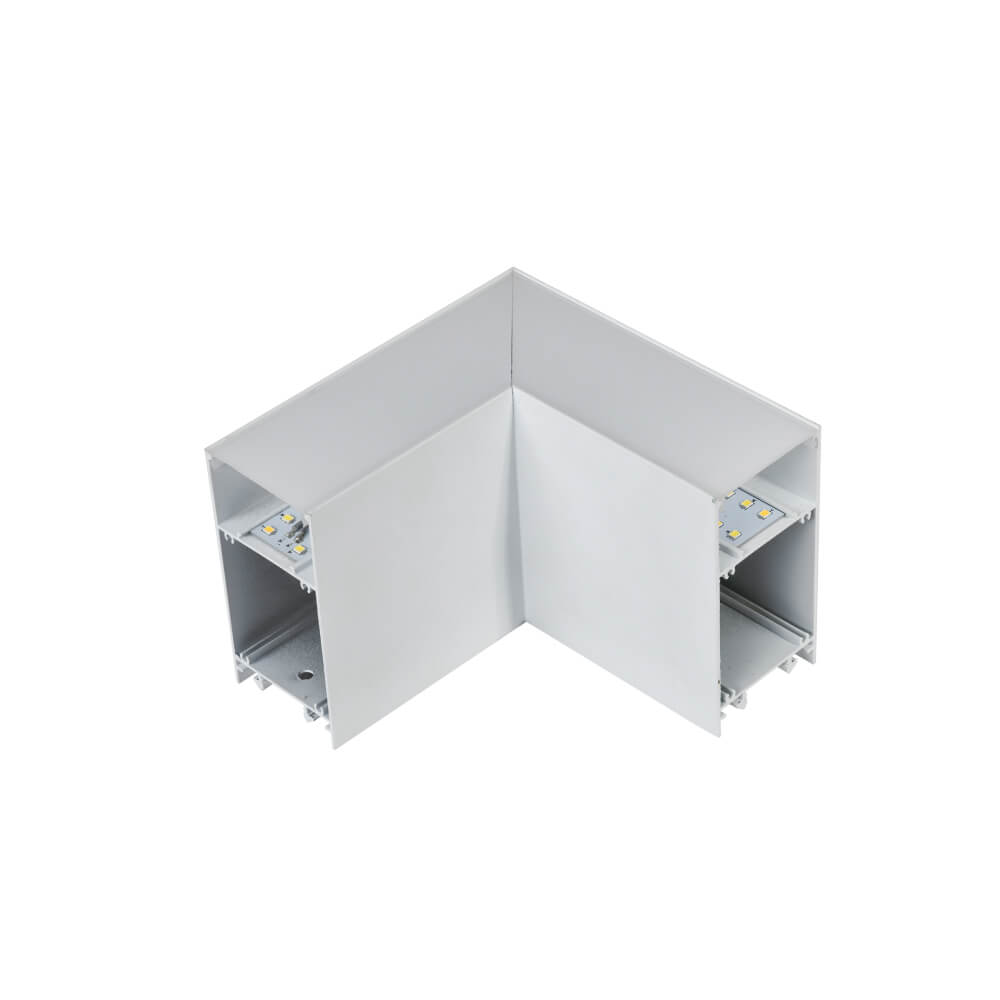

  • Halcon Lighting LED Pendant Light Linkable HG-L242S with up/down direct/indirect illumination for commercial spaces

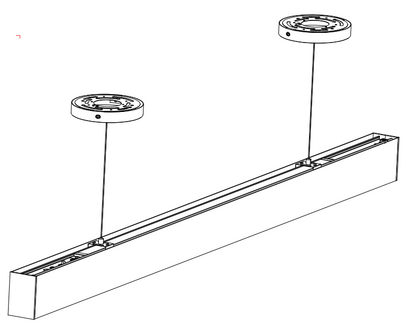

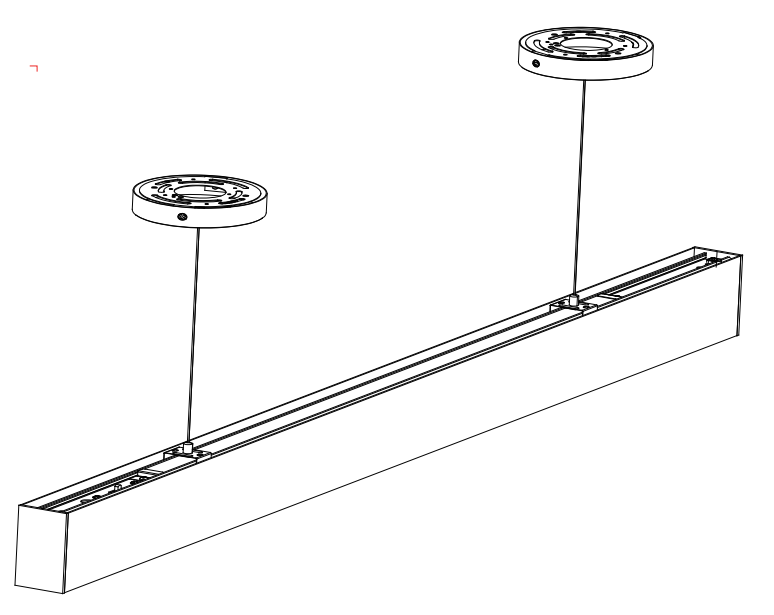

  • Linear pendant light fixture design with dual circular heads for modern spaces.

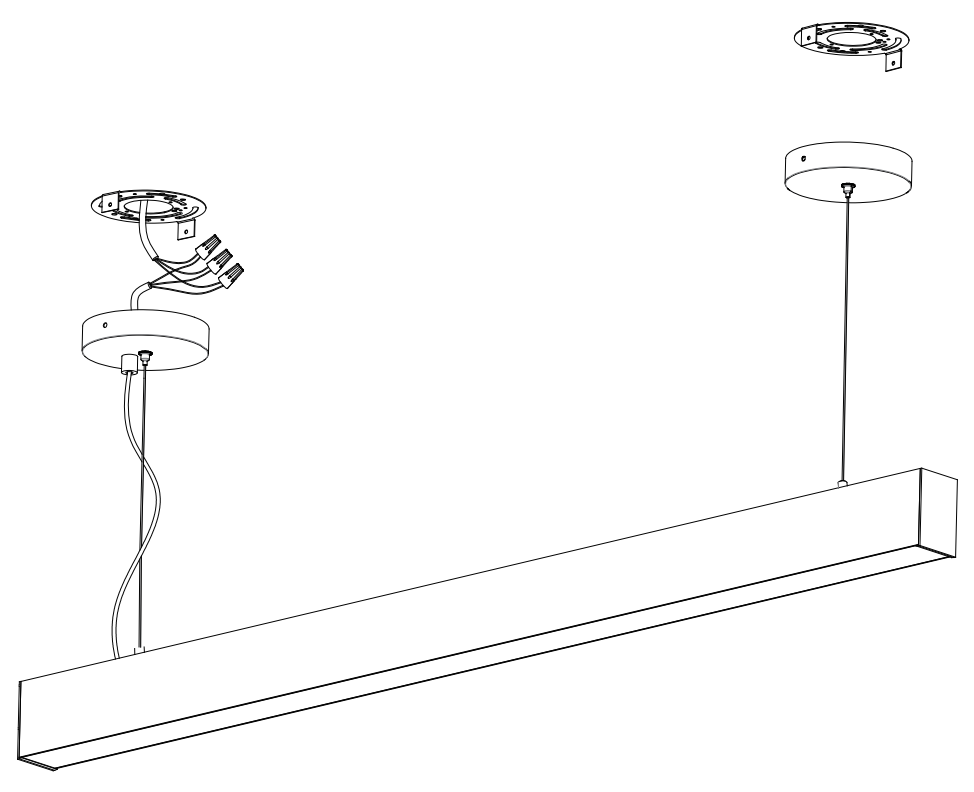

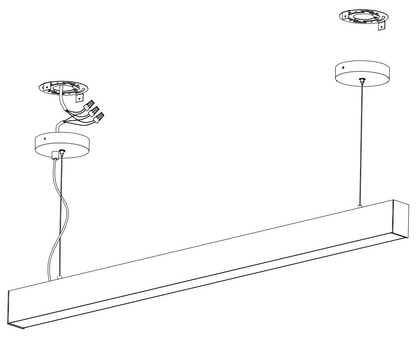

  • Linear pendant light fixture design with mounting hardware for easy installation

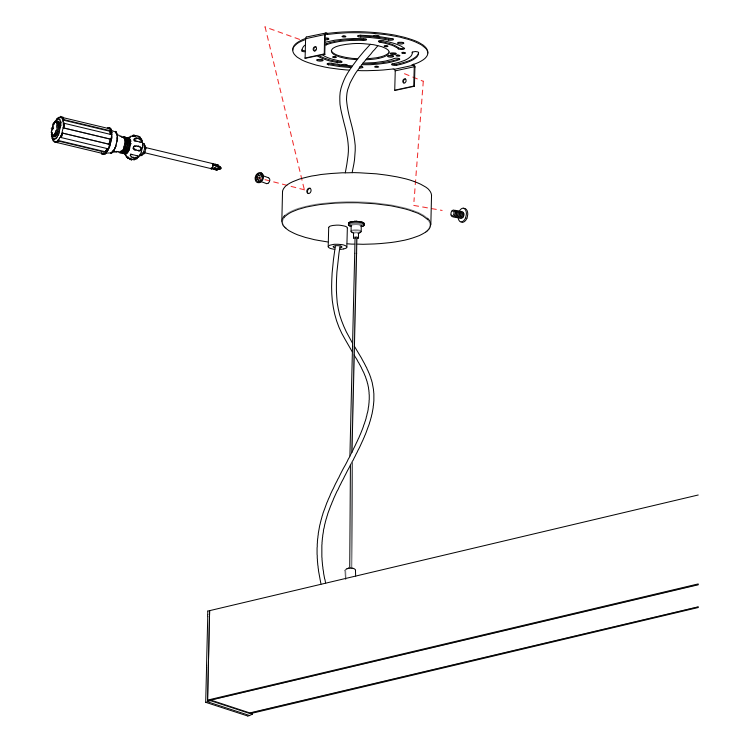

  • Installation guide for linear LED pendant light fixture with mounting plate.
1 13

The Linkable Linear Pendant Up And Down Light 2ft 4ft 8ft Combination With Different Shape 120-277V 0-10V Dimming ETL And DLC Listed Emergency And Sensor Control Ready

The Linkable Linear Pendant Up And Down Light 2ft 4ft 8ft Combination With Different Shape 120-277V 0-10V Dimming ETL And DLC Listed Emergency And Sensor Control Ready

Overview
Comparison Chart
Comparison Chart

Specification


HG-L242S-131F HG-L242S-252F HG-L242S-504F HG-L242S-756F HG-L242S-1008F HG-L242S-1008F HG-L242S-1008F
Size 374x50x100mm 574x50x100mm 1174x50x100mm 1474x50x100mm 1474x50x100mm 1774x50x100mm 2474x50x100mm
Nominal Wattage 6.5/10/13W 13/19/25W 25/38/50W 35/55/65W 50/75/100W 50/75/100W 50/75/100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 1495 lm 2875 lm 5750 lm 7475 lm 11500 lm 11500 lm 11500 lm
Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w
CCT 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
View full details
