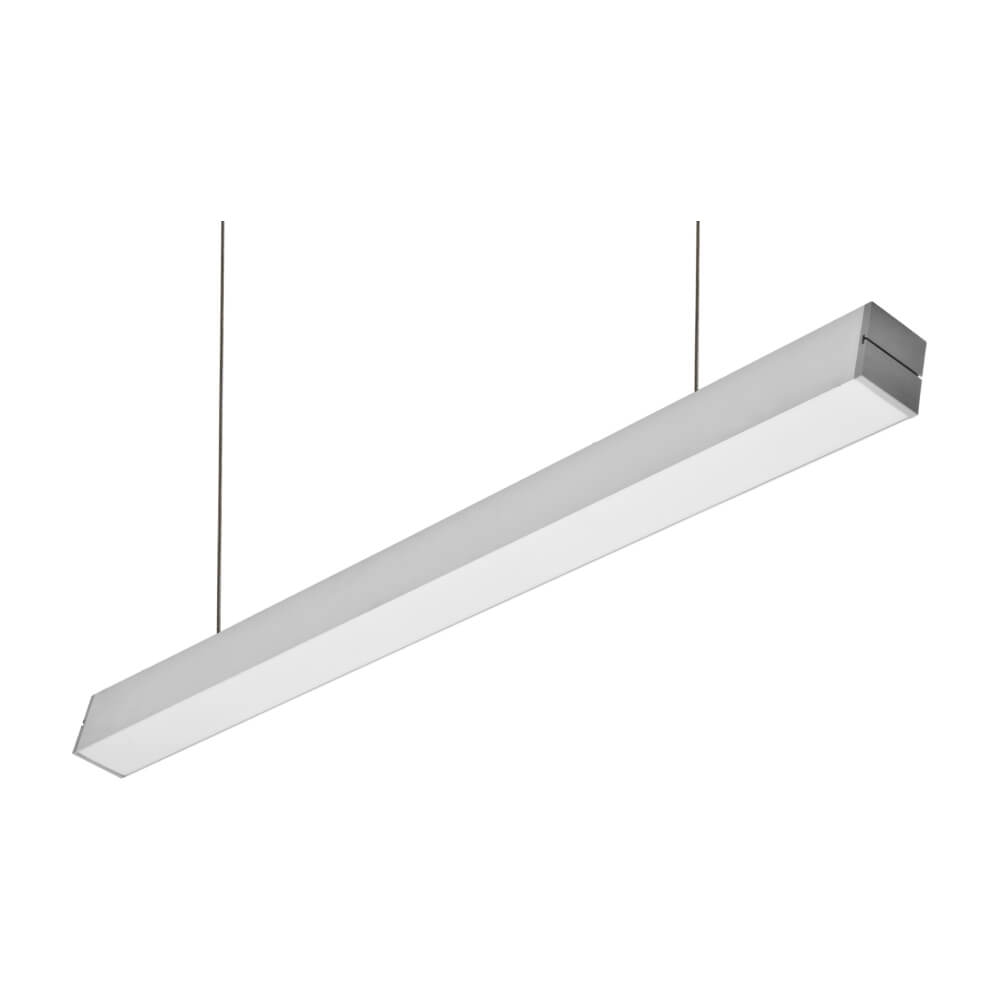

• "Suspended 1x4 LED Pendant Light Down HG-L242W by Halcon with Direct/Indirect 70:30 light split and field-selectable features"

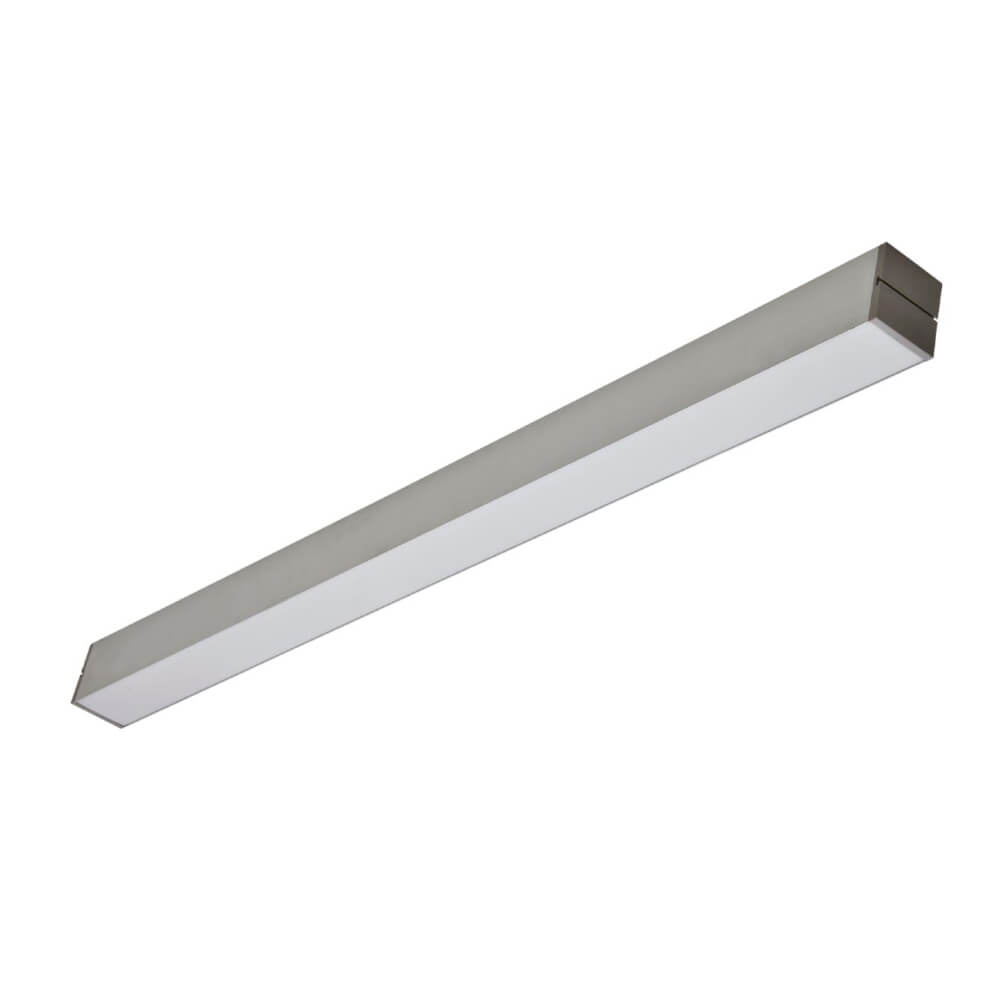

  • "Halcon LED Pendant Light Fixture 1x4 with Sensor Control Capability and Field-Adjustable CCT and Wattage"

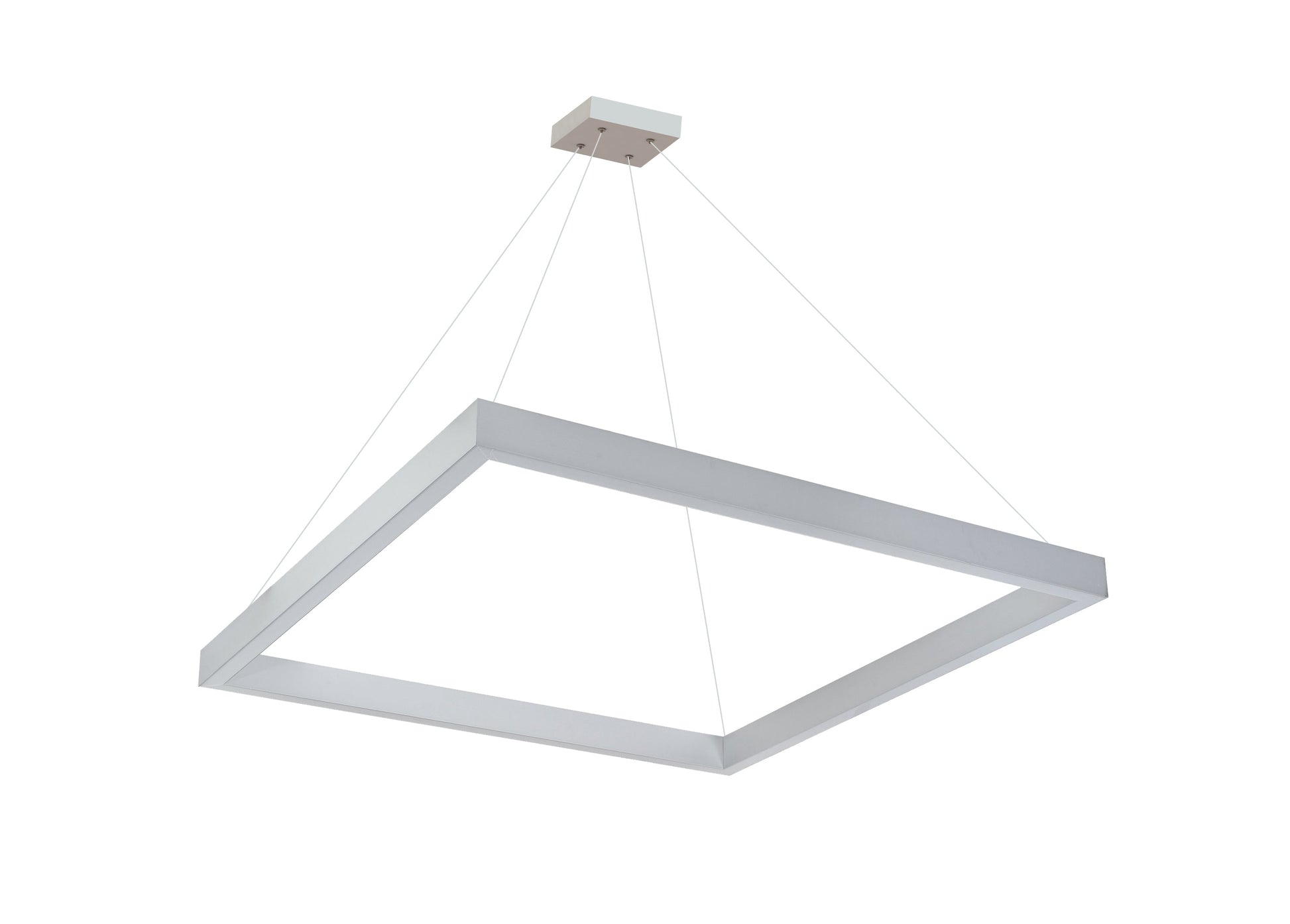

  • Square LED linear pendant light fixture, direct/indirect lighting

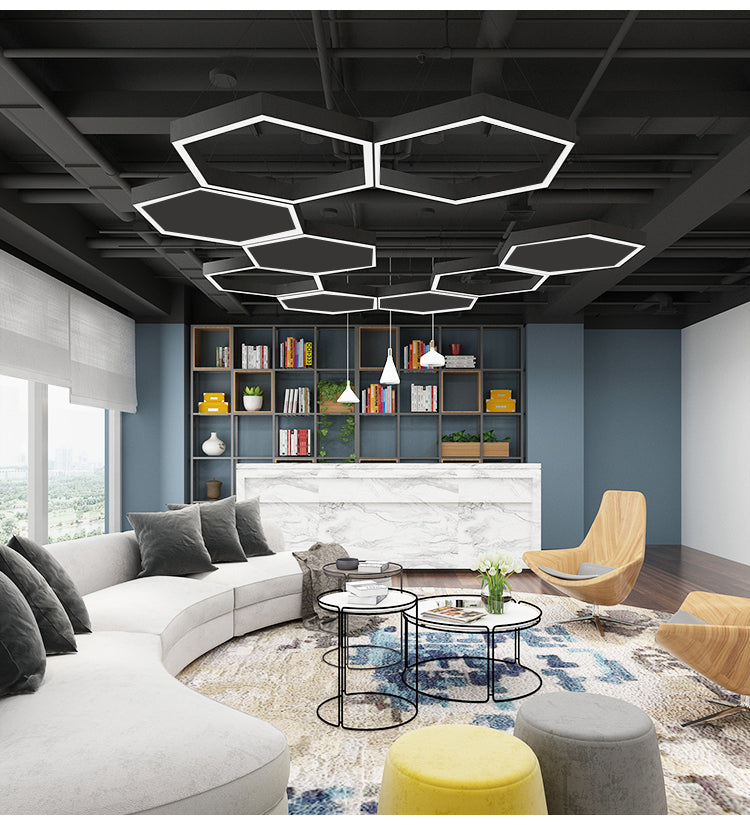

  • Modern hexagonal LED pendant lights in a stylish living room
1 4

Linkable Architectural LED Linear Light Pendant Up And Down Square Shape 120-277V 0-10V

Linkable Architectural LED Linear Light Pendant Up And Down Square Shape 120-277V 0-10V

Overview
Comparison Chart
Comparison Chart

Specification


HG-L242W-201F HG-L242W-302F HG-L242W-404F HG-L242W-605F HG-L242W-1008F
Size 374x50x75mm 574x50x75mm 1174x50x75mm 1474x50x75mm 2474x50x75mm
Nominal Wattage 10/15/20W 15/20/30W 20/30/40W 40/50/60W 40/60/80W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2300 lm 3450 lm 4600 lm 6900 lm 9200 lm
Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w
CCT 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
