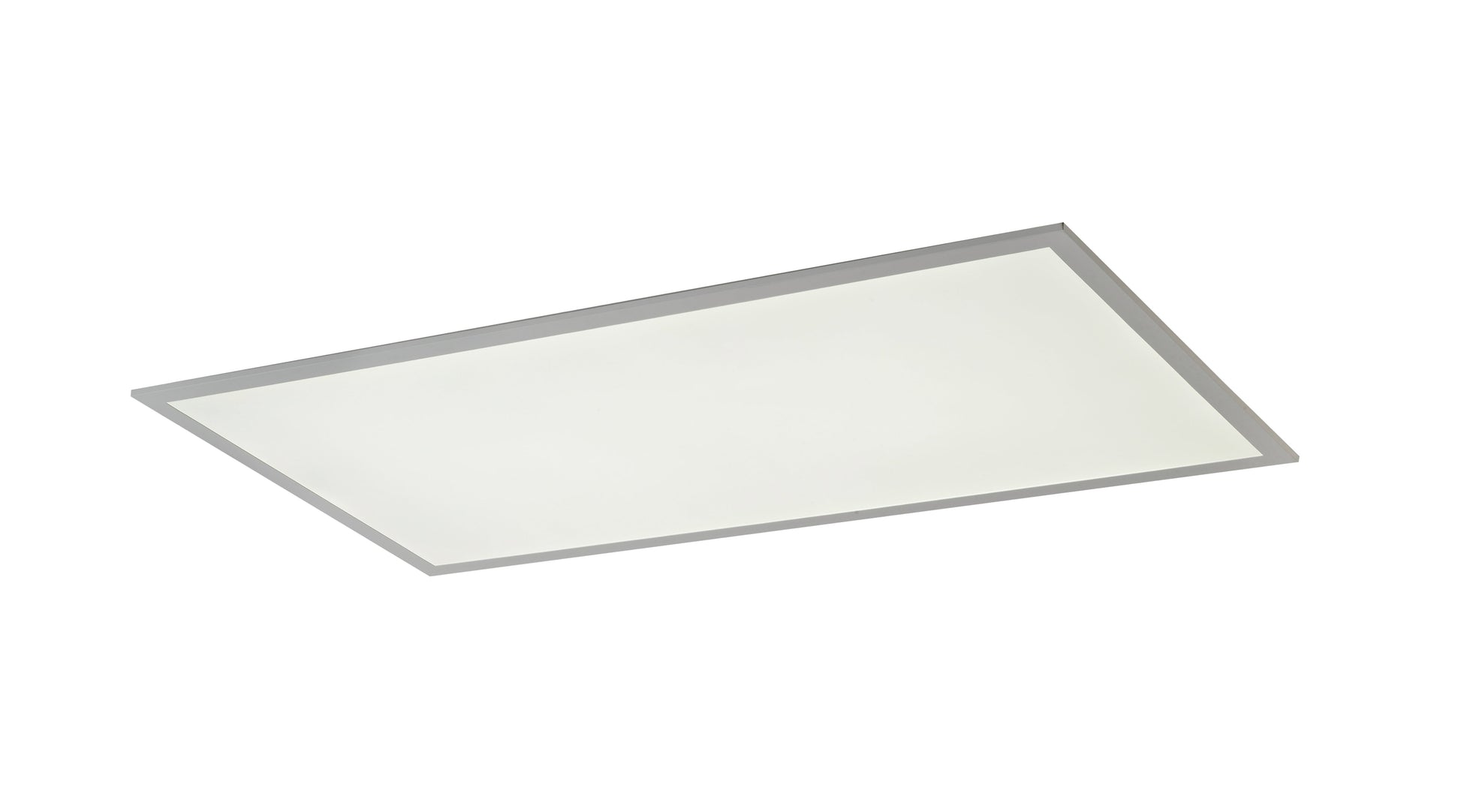

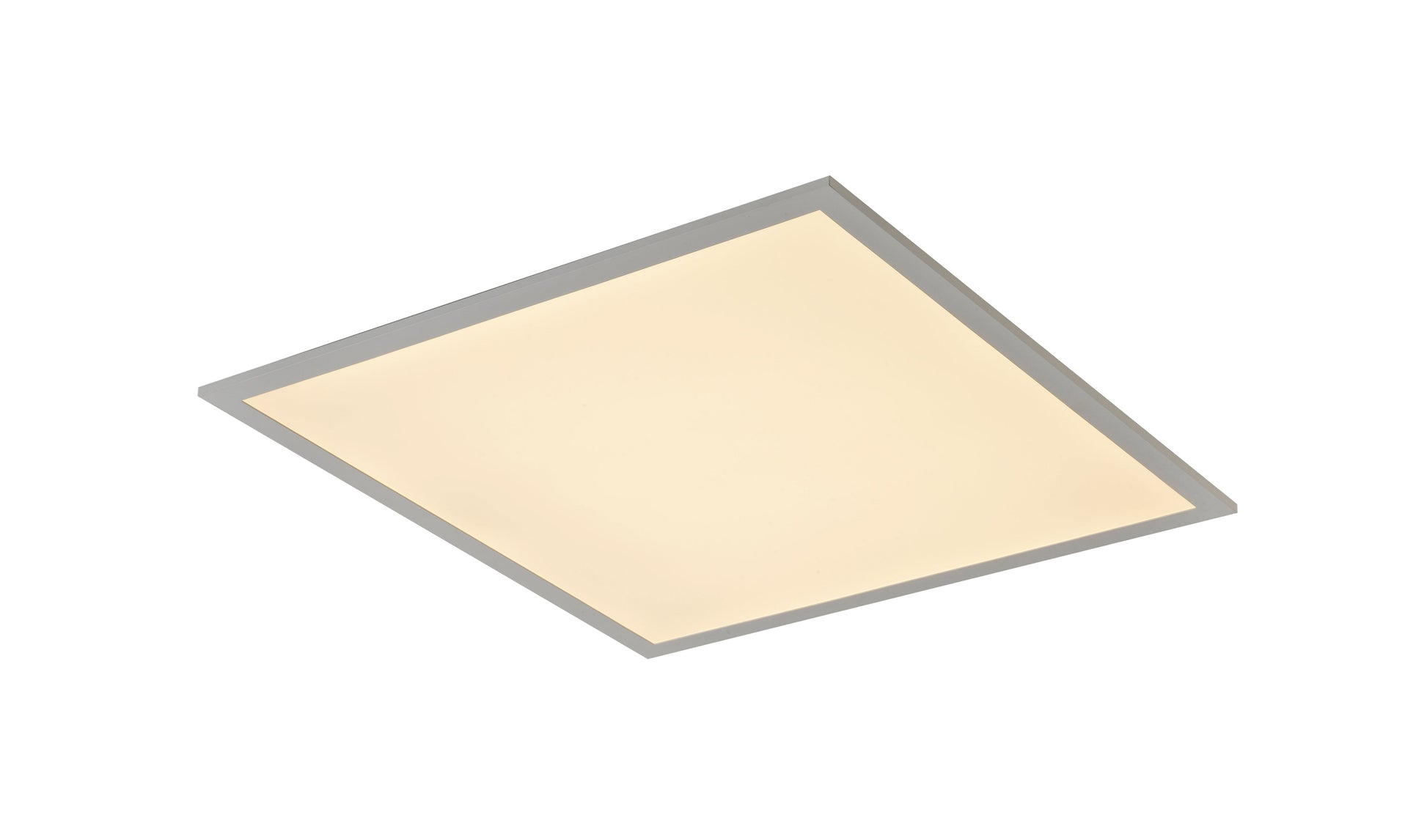

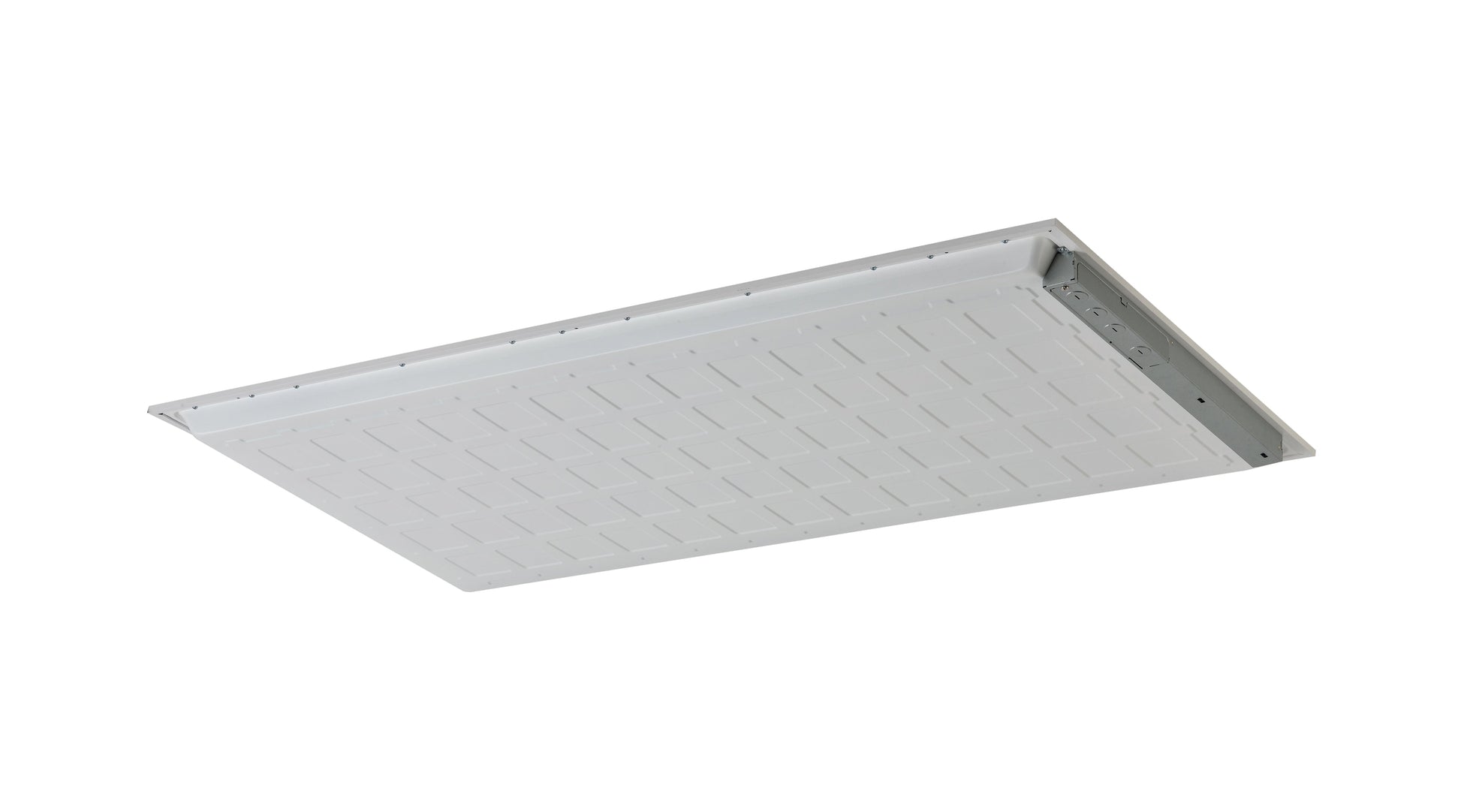

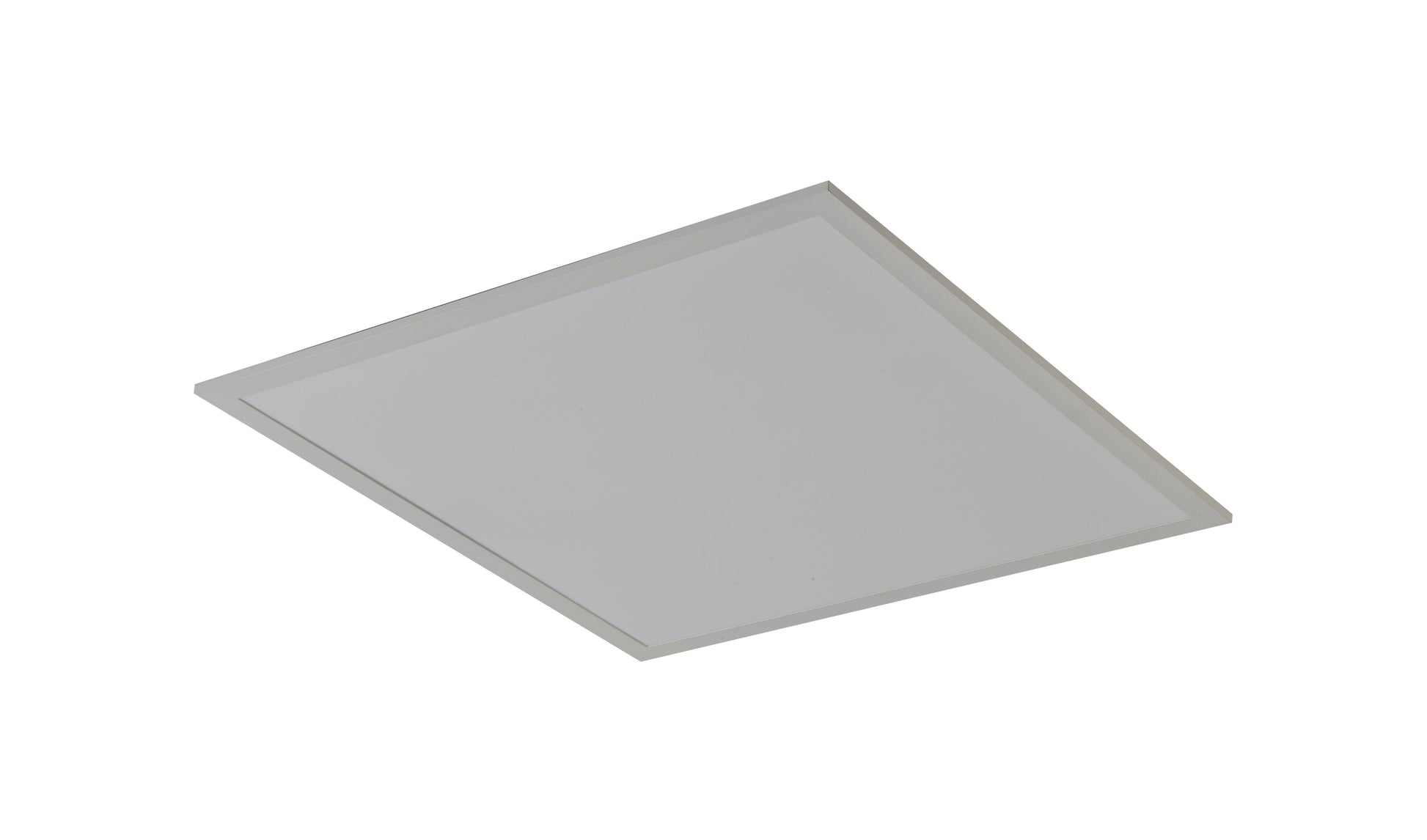

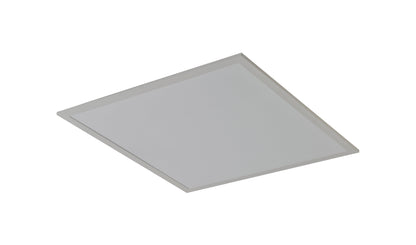

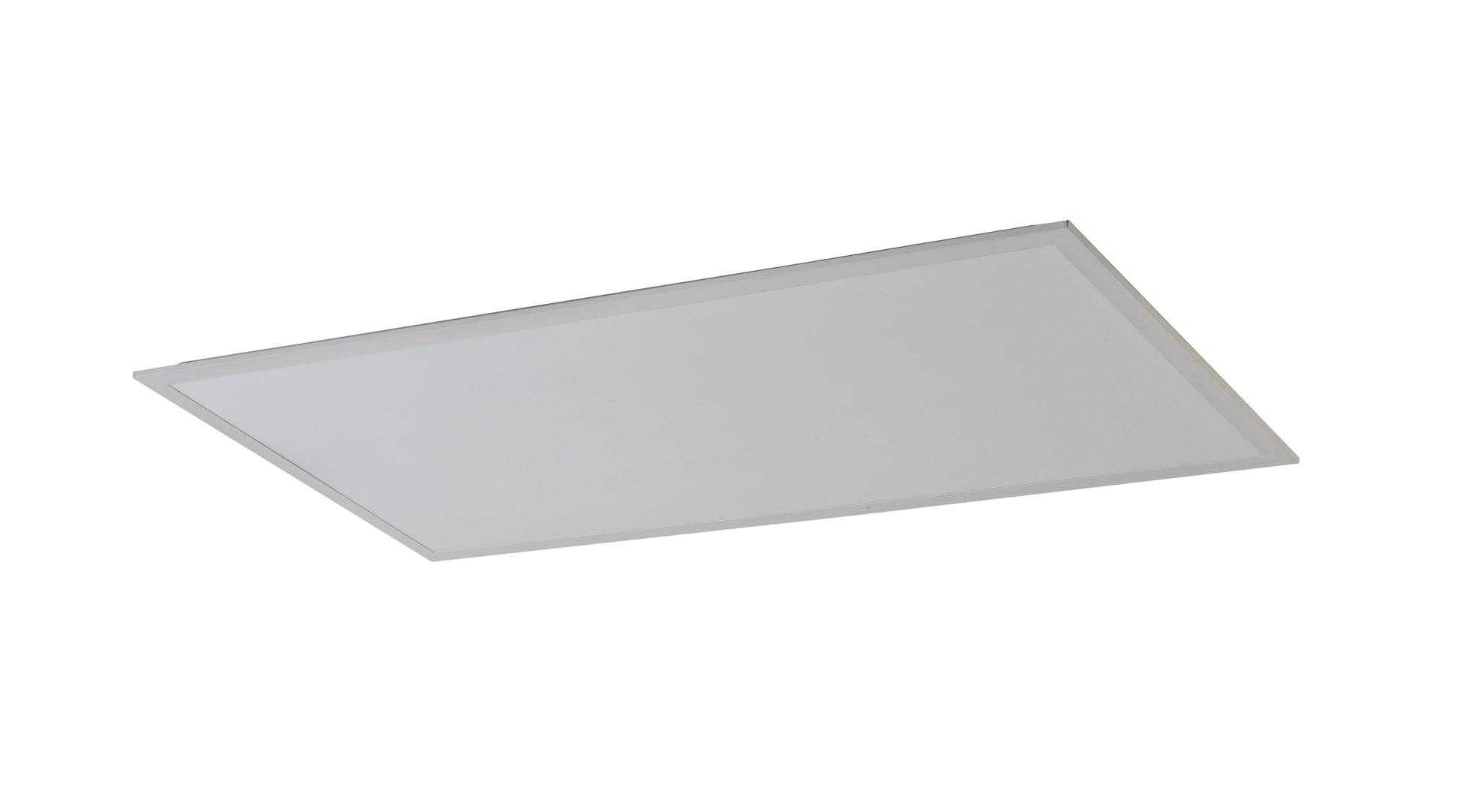

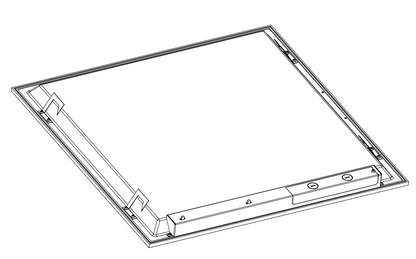

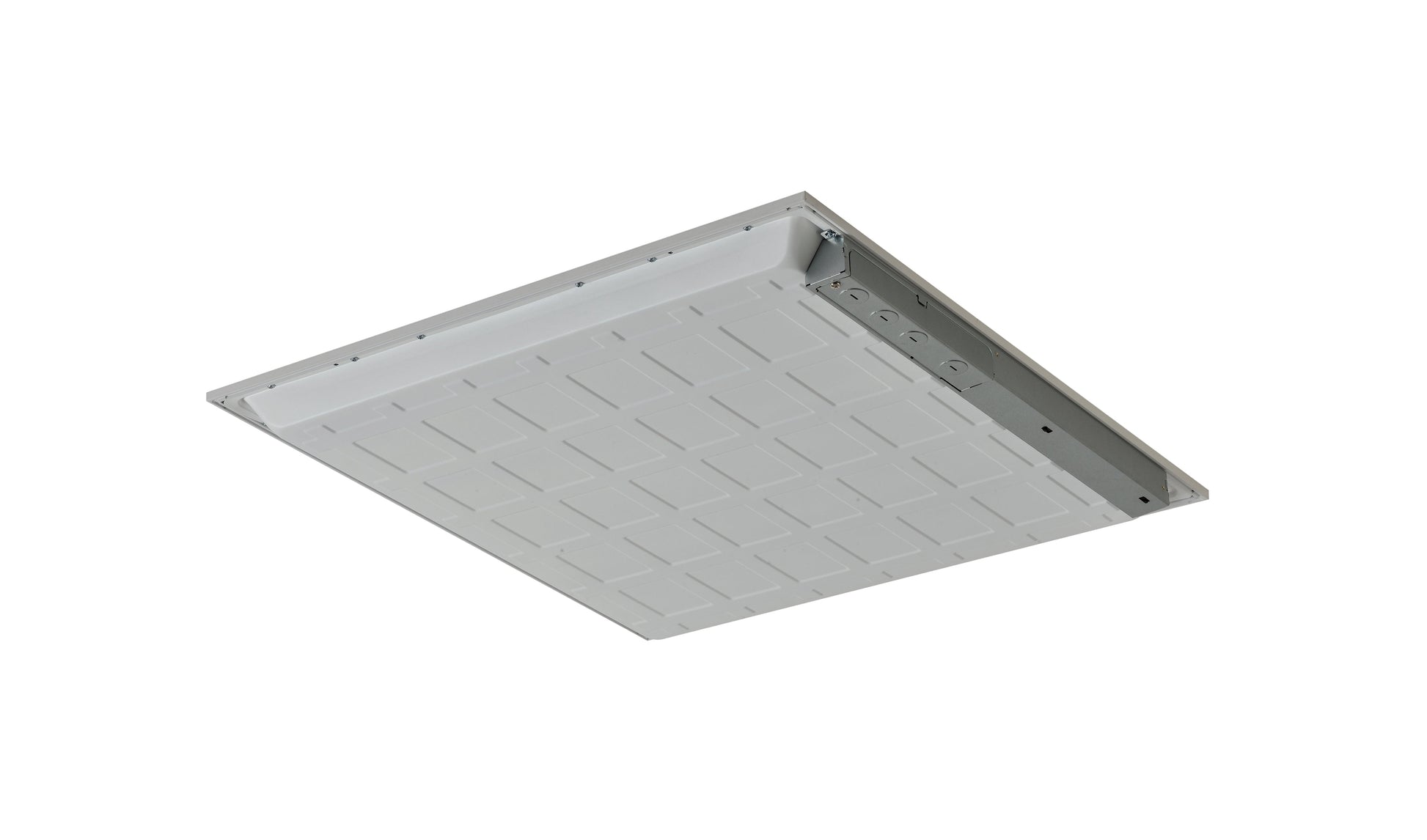

LED Flat Panel Light Backlit Surface Mount Wattage Selectable CCT Selectable 120-277V 0-10V Dimming

LED Flat Panel Light Backlit Surface Mount Wattage Selectable CCT Selectable 120-277V 0-10V Dimming

Overview
Use Cases
Use Cases
Comparison Chart
Comparison Chart

Specification

  • Manufacturer:Halcon Lighting
  • Fixture Type:LED Flat Panel Light
  • Lead Time: Ships in 1-2 weeks
  • Qualifications: DLC Standard/DLC Premium,ETL/CETL List
  • Voltage: Universal voltage 120-277V
  • CCT Adjustable: 3000K/3500K/4000K/5000K
  • Dimmable: 0-10V dimming standard

Controls Features
  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth
  • Model: E2010
  • Size: 2'x2', 1'x4', 2'x4'
  • Warranty: 5 years
  • Wattage Adjustable: 20 to 30Watts / 35 to 50Watts
  • CRI(Color rendering index):>80
  • Lumen output: 4375 lm-6250 lm
  • Light efficiency: 125 LP/W

Accessories

SENSOR control, Emergency kits, suspension kits.

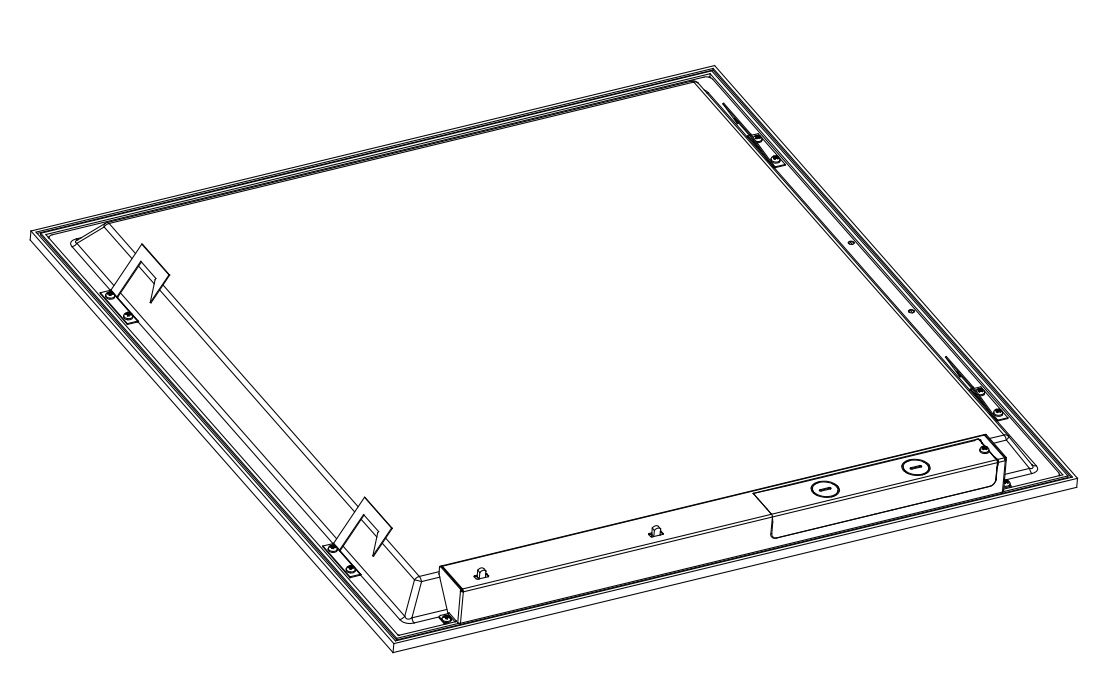

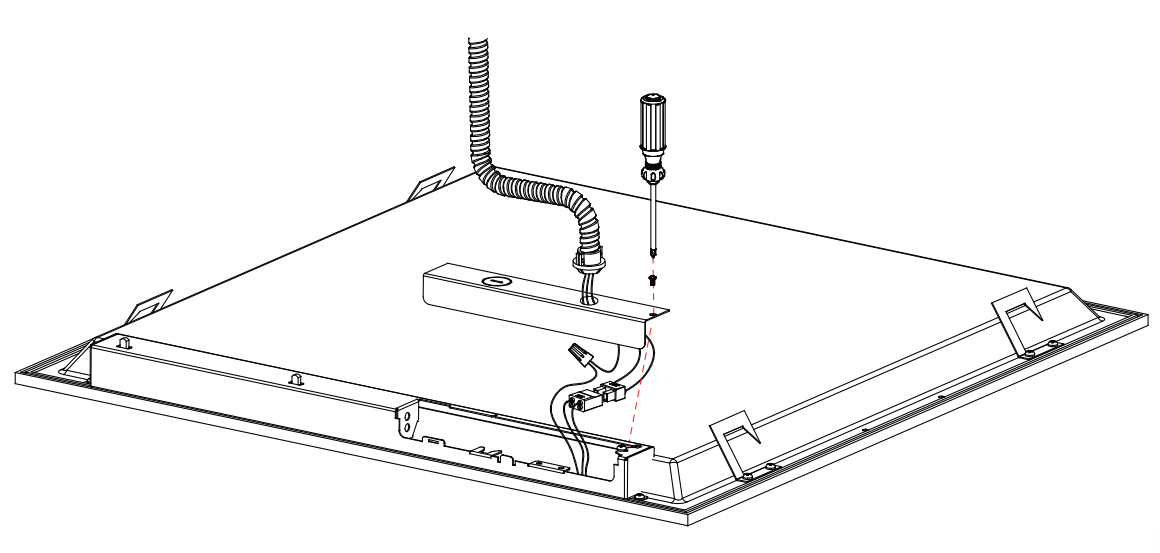

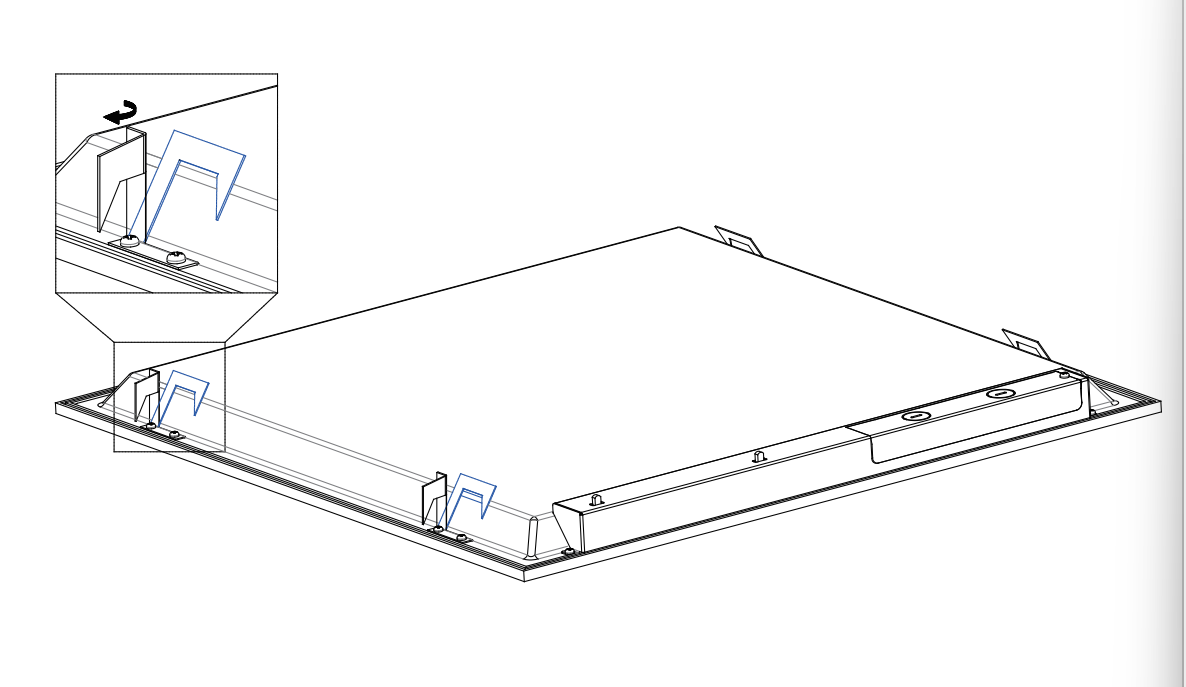

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Use Cases

halconlighting Computers Office
halconlighting Office Room
halconlighting Office
halconlighting Show Room

Comparison Chart


E2010-22 E2010-14 E2010-24
Size 603x603x40mm 1213x303x40mm 1213x603x40mm
Nominal Wattage 20/30/35W 30/40/50W 30/40/50W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4550 lm 6500 lm 6500 lm
Nominal Efficacy 125 lm/w 125 lm/w 125 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80
Power Factor >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years
