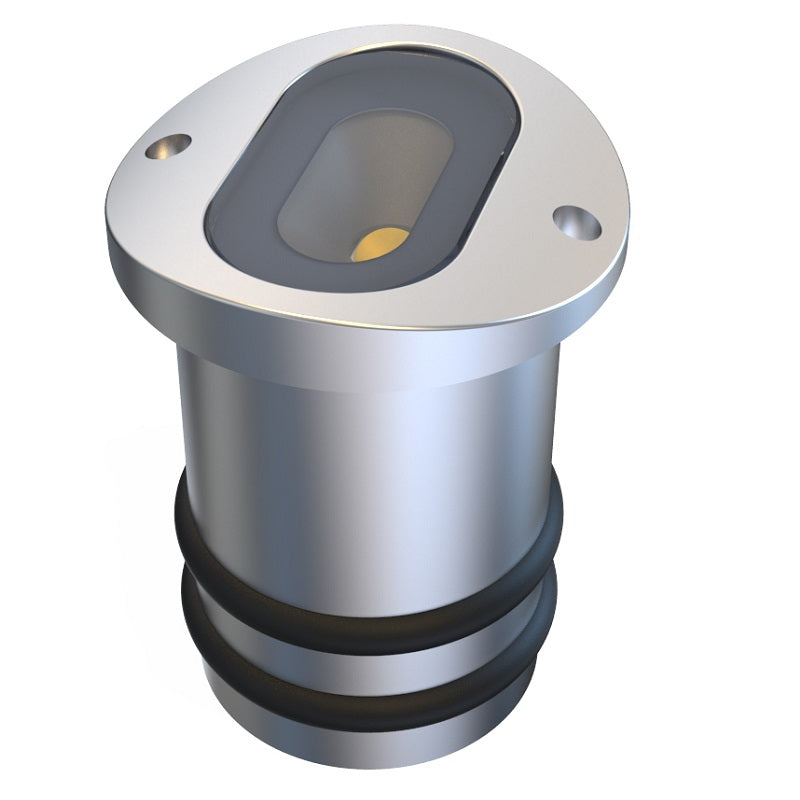

Outdoor Architecture Light EU1856
Outdoor Architecture Light EU1856
| Material | SUS316 |
| Surface | Polishing, wire drawing, passivation |
| PowerMode | External, constant current/voltage |
| Installation | Embedded installation of buried lamp |
| Weight | |
| Control | On/off |
| Approvals | CE’RoHSJP |
| Ambient temp | .-20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |
EU1856
Power(w) |
Input | Luminous Flux (lm) |
Color(k) |
Color Index | PowerMode |
Wiring |
Cable |
Beam (°) | Model No. |
1.5 |
24VDC | 120 | C,W,N,R,G,B,A |
80 |
Constant voltage | Parallel |
1.1M 2×0.4mm2 |
70X90/60×100 |
EU1856D |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
EU1856 1.5W 4000K 70×90°
| H（m） | Eavg（lx） | Emax（lx） |
D（cm） |
| 1 | 16.31 | 23.49 |
121.41 |
| 3 | 1.813 | 2.61 |
364.22 |
| 4 | 1.02 | 1.468 |
480.62 |
| 5 | 0.6526 |
0.9396 |
607.03 |
