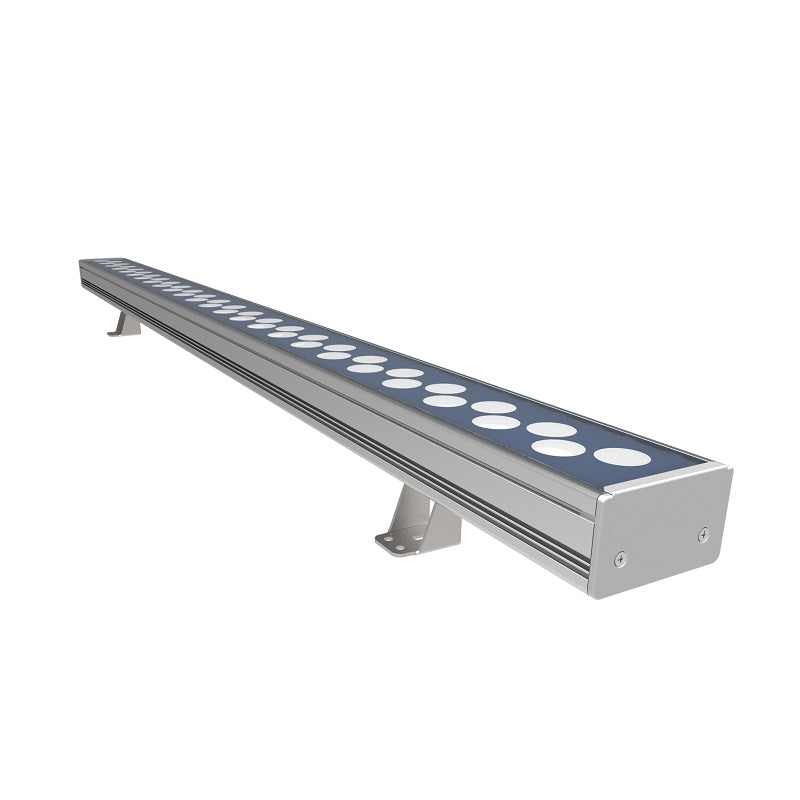

Line Light EU2018
Line Light EU2018
| Material | Aluminium |
| Surface | Tinting |
| PowerMode | External, constant voltage |
| Installation | installation |
| Weight | |
| Control | On/off, DMX dimming, color dimming |
| Approvals | CE’RoHS，JP |
| Ambient temp | .-20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |
EU2018
| Power(w) | Input 1 | uminous (lm) |
Flux Color(k) | Color Index PowerMode | Wiring |
Cable | Beam (°) | Model No. | |
| 24 | 24VDC | 2500 | c,w,n,r,g,b,a | 80 | Constant voltage | Parallel | 2-0.25M 2×0.75mm2Plug | 15/20/30 /45/60/10X45/10X60 | EU2018D-0.5M |
| 24 | 24VDC DMX | 2500 |
C,W,N,R,G,B,A | 80 | Constant voltage | Parallel | 2-0.25Mx1.0+3×0.2mm2Plug | 15/20/30 /45/60/10X45/10X60 | EU2018DMX-0.5M |
| 48 | 24VDC | 5100 |
C,W,N,R,G,B,A | 80 | Constant voltage | Parallel | 2-0.25M 2×0.75mm2Plug | 15/20/30 /45/60/10X45/10X60 | EU2018D-1M |
| 48 | 24VDC DMX | 5100 |
C,W,N,R,G,B,A | 80 | Constant voltage | Parallel | 2-0.25Mx1.0+3×0.2mm2Plug | 15/20/30 /45/60/10X45/10X60 | EU2018DMX-1M |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
Drive power supply to be provided separately page256/257
EU2018 24W 4000K 20°
Product lists V
| H(m) | Eavg(lx) | Emax(lx) | D(cm) |
| 1 | 18295 | 28092 | 30.38 |
| 2 | 4574 | 7023 | 60.75 |
| 3 | 2033 | 3121 | 71.13 |
| 4 | 1143 | 1756 | 121.5 |
| 5 | 731.8 | 1124 | 151.88 |
