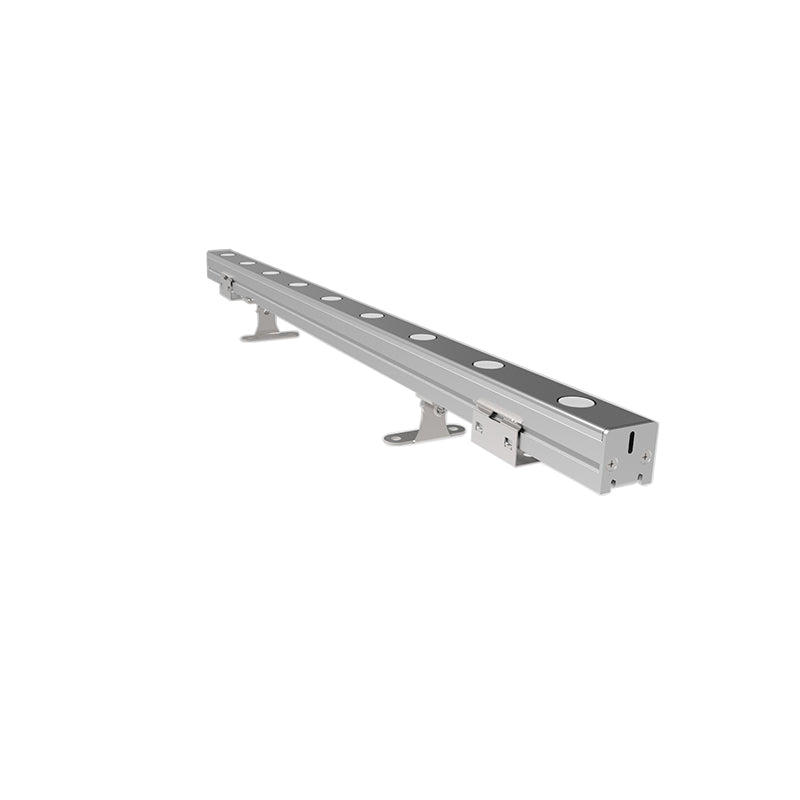

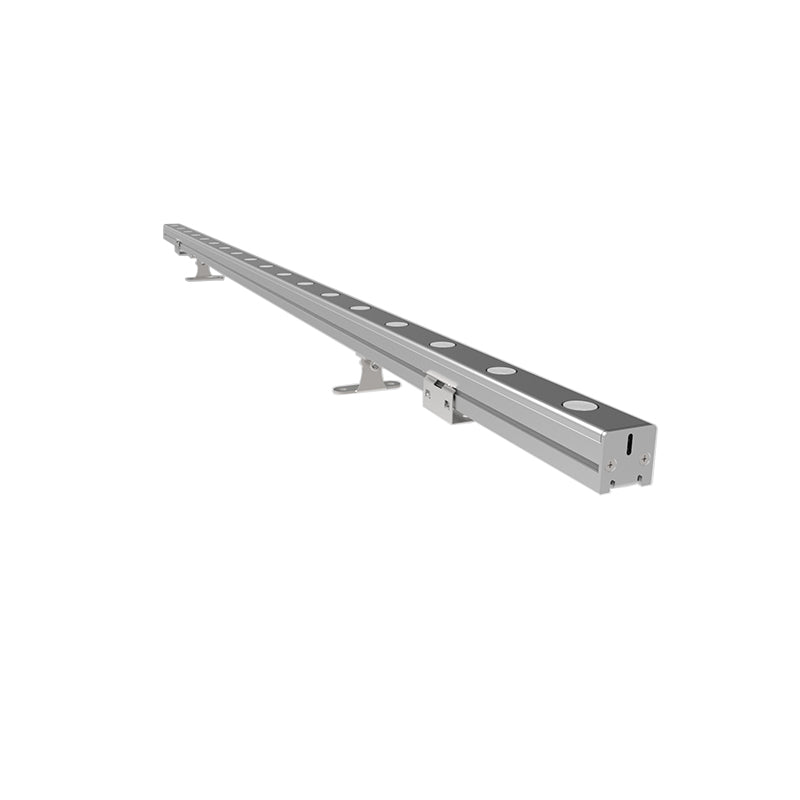

Line light EU2009HP
Line light EU2009HP
10/20/30/45/60/10×40 degree optic as standard for light projection. Aluminum construction rated to IP65, suitable for exterior applications. Supplied with optional mounting clips allowing for the fixture to be angled. LED linear lights have better environmental benefits. There is no ultraviolet and infrared in the spectrum, no heat or radiation, low glare, and waste can be recycled; cold light sources, which can be touched safely, are typical green lighting sources.
This model has 500mm and 1000mm length specifications to choose from. The product is lightweight and is one of the best choices for ceiling linear lighting fixtures. 120 degree optic as standard for light projection.
| LED Light source | Hight Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Ambe |
| Material | Aluminium |
| Optics | 1O°/2O°/3O°/45°/6O°/1OX4O° |
| Power | 18W / 9W |
| Power supply | N/A |
| Dimention | 1000X45X50 / 500X45X50 |
| Weight | N/A |
| IP Rating | IP65 |
| Approvals | CE, RoHS |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor |
| Optional brand | CREE |
EU2009HP LINE LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention |
| EU2009HP-1M | CREE | CW,WW,NW,Red Green.Blue,Amber | 107/207/307/450 /6O7/1OX4O0 | Constant voltage | 24VDC | Parallel | 0.2M 2X1.0mm² Plug | 18W | 1000LM | 1000X45X50 |
| EU2009HP-0.5M | CREE | CW,WW,NW,Red Green,Blue,Amber | 107/207/307/450 /607/10X400 | Constant voltage | 24VDC | Parallel | 0.2M 2X1.0mm² Plug | 9W | 500LM | 500X45X50 |
■ Project map
