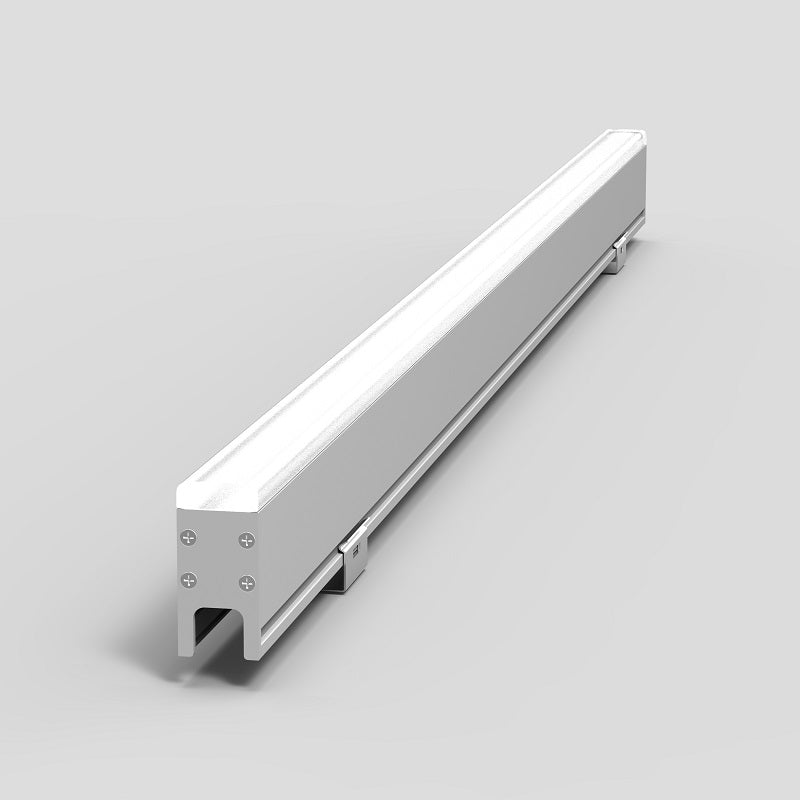

Line Light EU2007
Line Light EU2007
| Material | Aluminium |
| Surface | Tinting |
| PowerMode | External, constant voltage |
| Installation | installation |
| Weight | |
| Control | On/off, DMX dimming, color dimming |
| Approvals | CE’RoHS，JP |
| Ambient temp | .-20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |
EU2007
Power(w) |
Input |
Luminous (lm) |
;Flux Color(k) | Color Index PowerMode | Wiring |
Cable | Beam (°) Model No. | ||
12 |
24VDC | 450 | C,W,N,R,G,B,A | 80 | Constant voltage | Parallel | 2×0.3M 2*1.0mm2 Plug | 120 | EU2007D-1M-12W |
12 |
24VDC | 450 | C,W,N,R,G,B,A | 80 | Constant voltage | Parallel | 2×0.3M 2×1.0mm2+3×0.3mm2Plug | 120 | EU2007DMX-1M-12W |
12 |
24VDC | 450 | C,W,N,R,G,B,A | 80 | Constant voltage | Parallel | 2×0.3M 2×1.0mm2+3×0.3mm2Plug | 120 |
EU2007DMX-1M-15W |
12 |
24VDC | – |
RGB,RGBW | 80 | Constant voltage | Parallel | 2×0.3M 2×1.0mm2+3×0.3mm2Plug | 120 |
EU2007DMX-1M-12W |
12 |
24VDC | – |
RGB,RGBW | 80 | Constant voltage | Parallel | 2×0.3M 2×1.0mm2+3×0.3mm2Plug | 120 |
EU2007DMX-1M-15W |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
EU2007 12W 4000K 120°
Product lists V
| H(m) | Eavg(lx) | Emax(lx) |
D(cm) |
| 1 | 113.9 | 373.2 |
293.24 |
| 2 | 28.48 | 93.30 |
586.48 |
| 3 | 12.66 | 41.47 |
879.72 |
| 4 | 7.12 |
23.32 |
1172.97 |
| 5 | 4.557 | 14.93 |
1466.21 |
