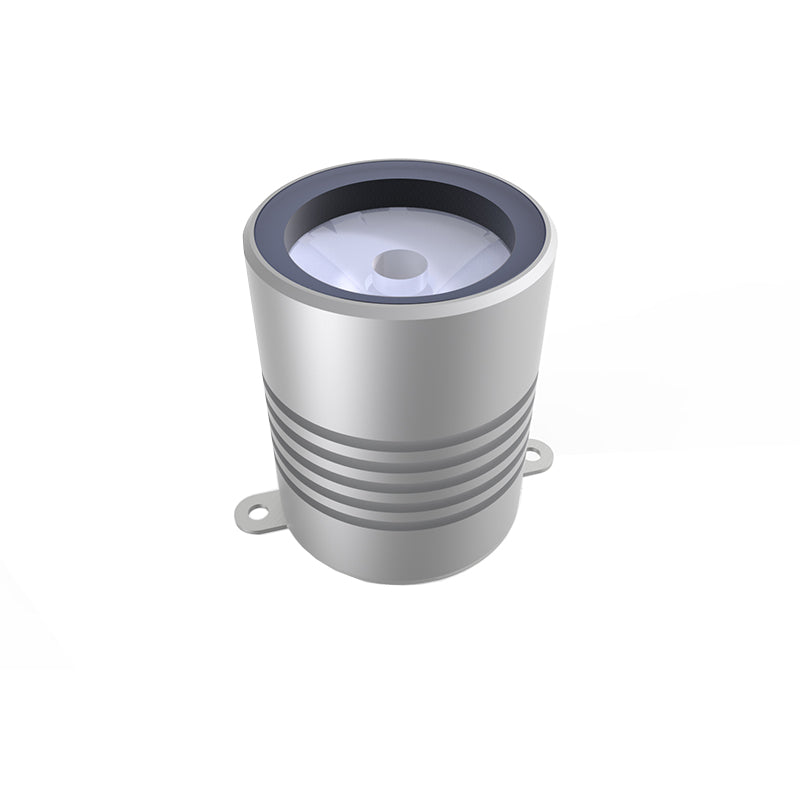

Line light EU2006
Line light EU2006
Finished to a high standard using anodized aluminum makes it suitable for both indoor and outdoor applications, construction rated to IP67 and configured to 3 degree beam angle. The luminance of the lamp is very far and bright. Nice and stylish architectural line light design with power of 7W. Possess good heat dissipation, corrosion resistance, and impact resistance with a lifetime 50,000 hours. It gives you the choice of Light colors: CW, WW, NW. It is suitable for exterior and landscape applications. Aluminum die-casting process, the heat dissipation of the product can bring more stable quality assurance to the product.
In a five-star commercial office building in Shenzhen, 15,000 EU2006s were installed in large quantities. The vertical installation method was adopted. The angle of the product is 3°. A very narrow beam of light is emitted from the lower net to just be embedded in Each narrow column makes the whole project more three-dimensional at night. And the project won an international lighting award.
.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW |
| Material | Aluminium |
| Optics | 3° |
| Power | 7W |
| Power supply | N/A |
| Dimention | D6OXH76 |
| Weight | N/A |
| IP Rating | IP67 |
| Approvals | CE.RoHS |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape |
| Optional brand | CREE |
EU2006 LINE LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention |
| EU2006 | CREE | CW,WW,NW | 3° | Constant current | 600mA@11.3VDC | Series | 1.1M 2X0.75mm² Cable | 7W | 600LM | D60XH76 |
| EU2006D | CREE | CW,WW,NW | 3° | Constant voltage | 24VDC | Parallel | 1.1M 2X0.75mm² Cable | 7.5W | 600LM | D60XH76 |
| EU2006DMX | CREE | CW,WW,NW | 3° | Constant voltage | 24VDC | Parallel | 1.1M 4X0.5mm² Cable | 7.5W | 600LM | D60XH76 |
| *IES Data support. | ||||||||||
■ Project map
