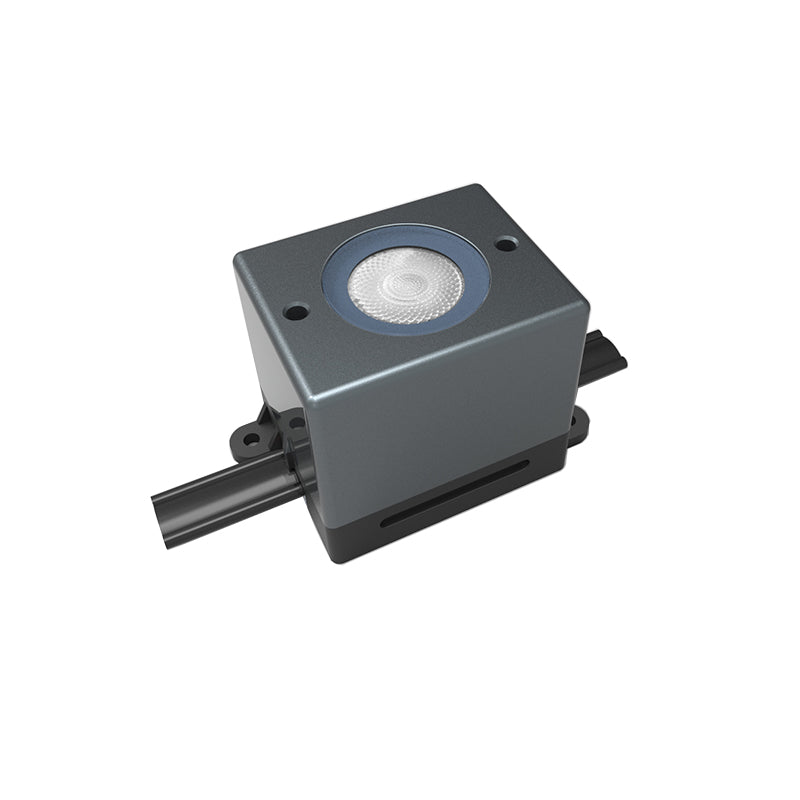

Line light EU2001
Line light EU2001
Square recessed fixture complete with integral CREE LED package and 20/60 degree beam option. Tempered glass, Aluminum option with construction rated to IP66. Small Product footprint ensures versatile application. Easy to install into the panels. Flexible and small linear lighting, allows linear lights to be flexible and changeable. It can not only realize multi-combination linear arrangement according to the design, but also realize dimming control to decorate buildings according to lighting requirements. It is the most cost-effective linear light select. Mainly used in the lighting of large buildings.
When the walls of commercial buildings are individually designed, it is possible that the walls cannot maintain a flat design, and there may be curved walls. This flexible aluminum LED lamp is ready to be perfectly fitted according to the special shape of the wall, enhancing the agility of the visual effect of the appearance.
.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber,RGB,RGBW |
| Material | Aluminium |
| Optics | S2O° / F6O° |
| Power | 2W |
| Power supply | 24VDC |
| Dimention | L69xW44xH41 |
| Weight | 150g |
| IP Rating | IP66 |
| Approvals | CE.RoHS |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor |
EU2001 LINE LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| EU2001D | CREE | CW.WW.NW.Red Green,Blue,Amber | S20°/F60° | Constant voltage | 24VDC | Parallel | 0.5M 2X1.0mm² Cable | 2W | 150LM | L69xW44xH41 | N/A |
| EU2001DMX | CREE | CW,WW,NW,Red Green,Blue,Amber | S20°/F60° | Constant voltage DMX | 24VDC DMX | Parallel | 0.5M 2X1.0mm² +4*0.2mm Cable | 2W | 150LM | L69xW44xH41 | N/A |
| EU2001DMX | EDISON | RGB.RGBW | S20°/F60° | Constant voltage DMX | 24VDC DMX | Parallel | 0.5M 2X1 0mm² +4*0.2mm Cable | 3W | 50LM | L69xW44xH41 | N/A |
