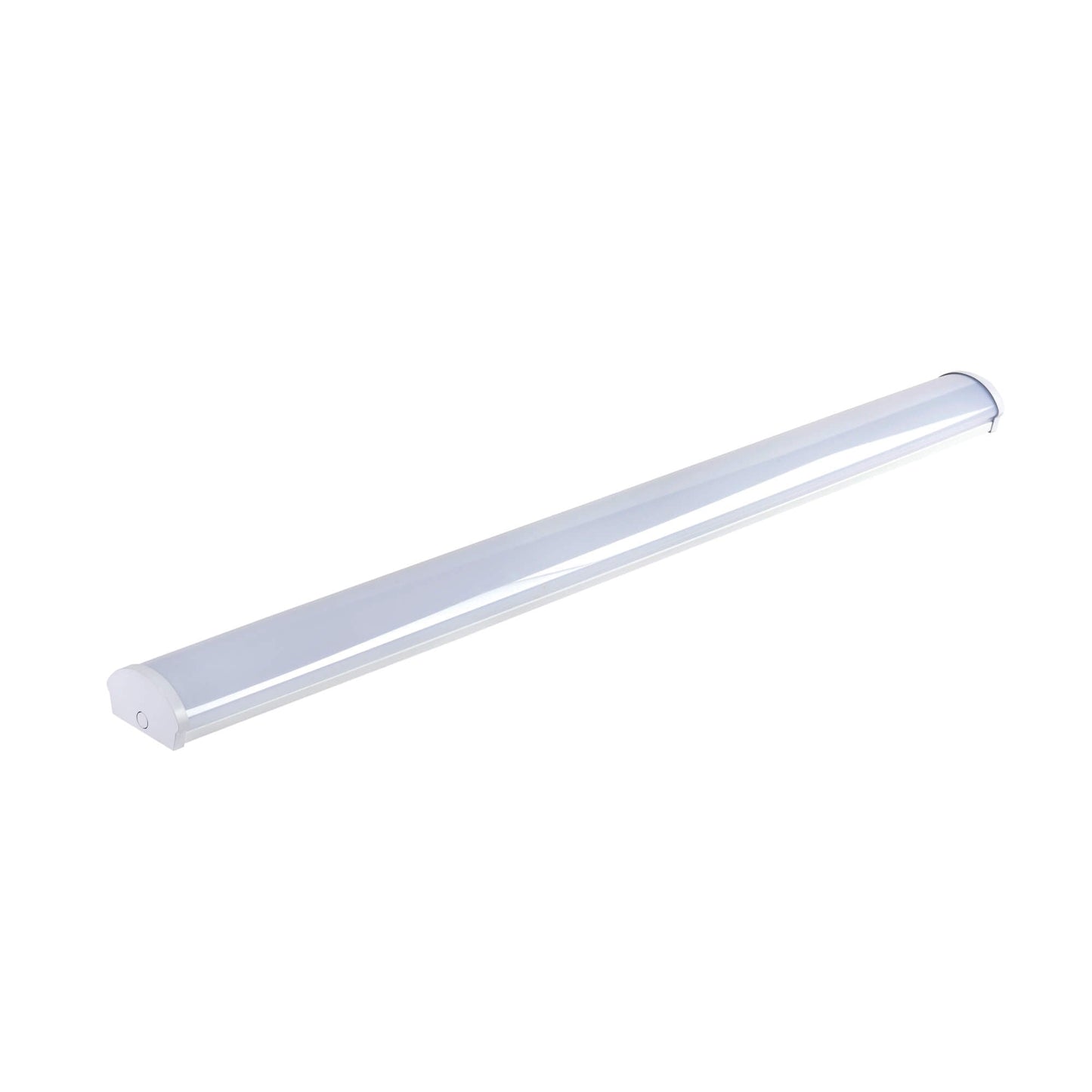

• Halcon LED Wrap Light C1801 with emergency battery backup and CCT selectable features for stairwells and parking garages

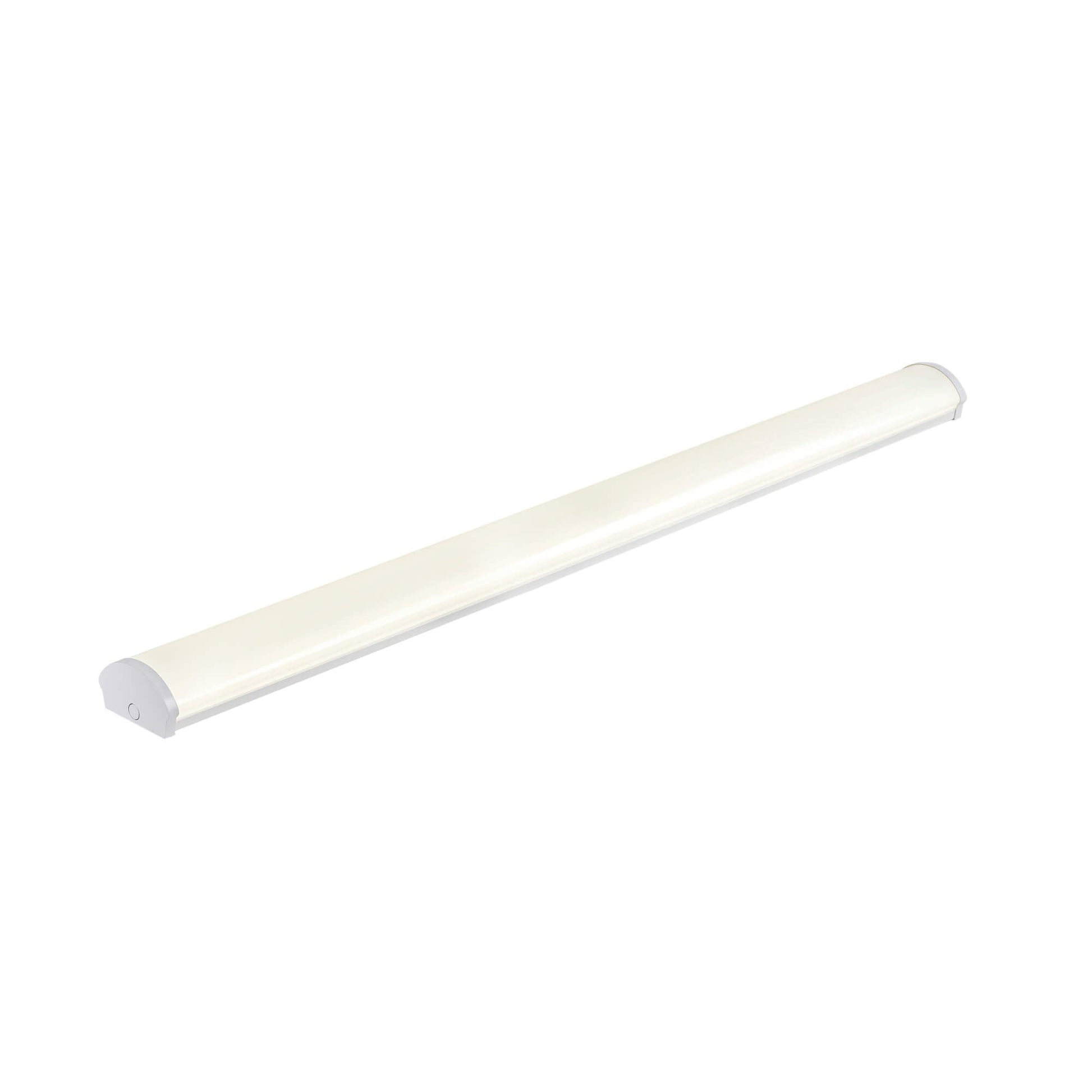

  • Halcon LED Wrap Light C1801 with selectable wattage and CCT for energy-efficient lighting in stairwells and parking garages.

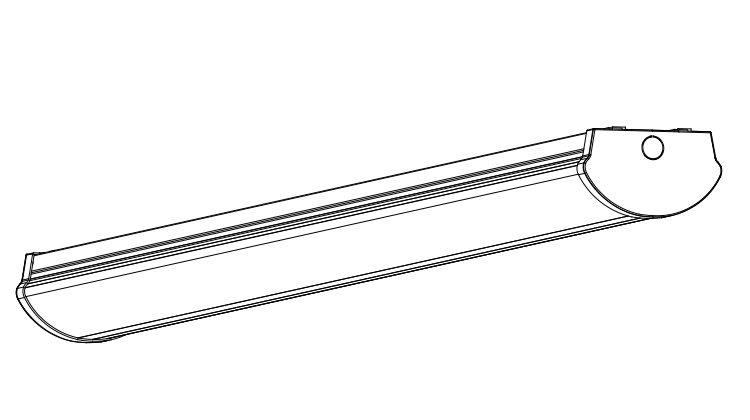

  • 4ft LED wrap-around light fixture for energy-efficient lighting

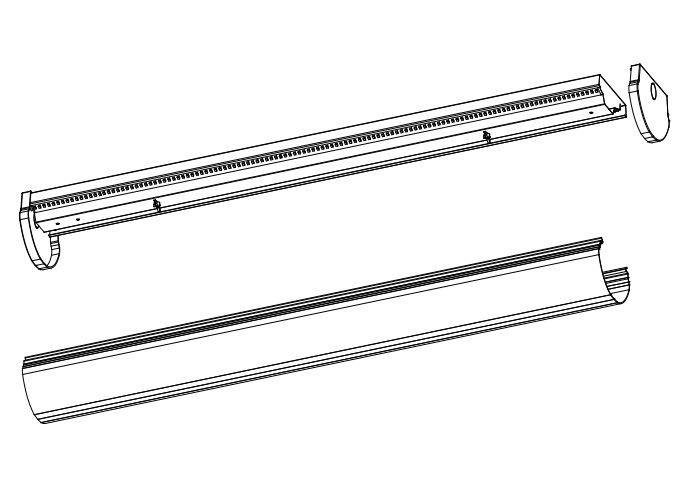

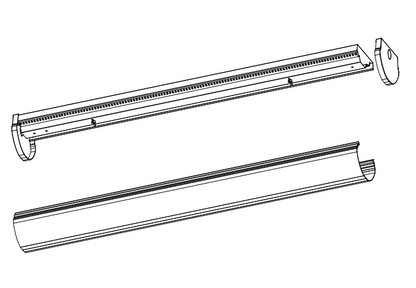

  • 4ft CCT selectable LED wrap-around light fixture parts for efficient lighting

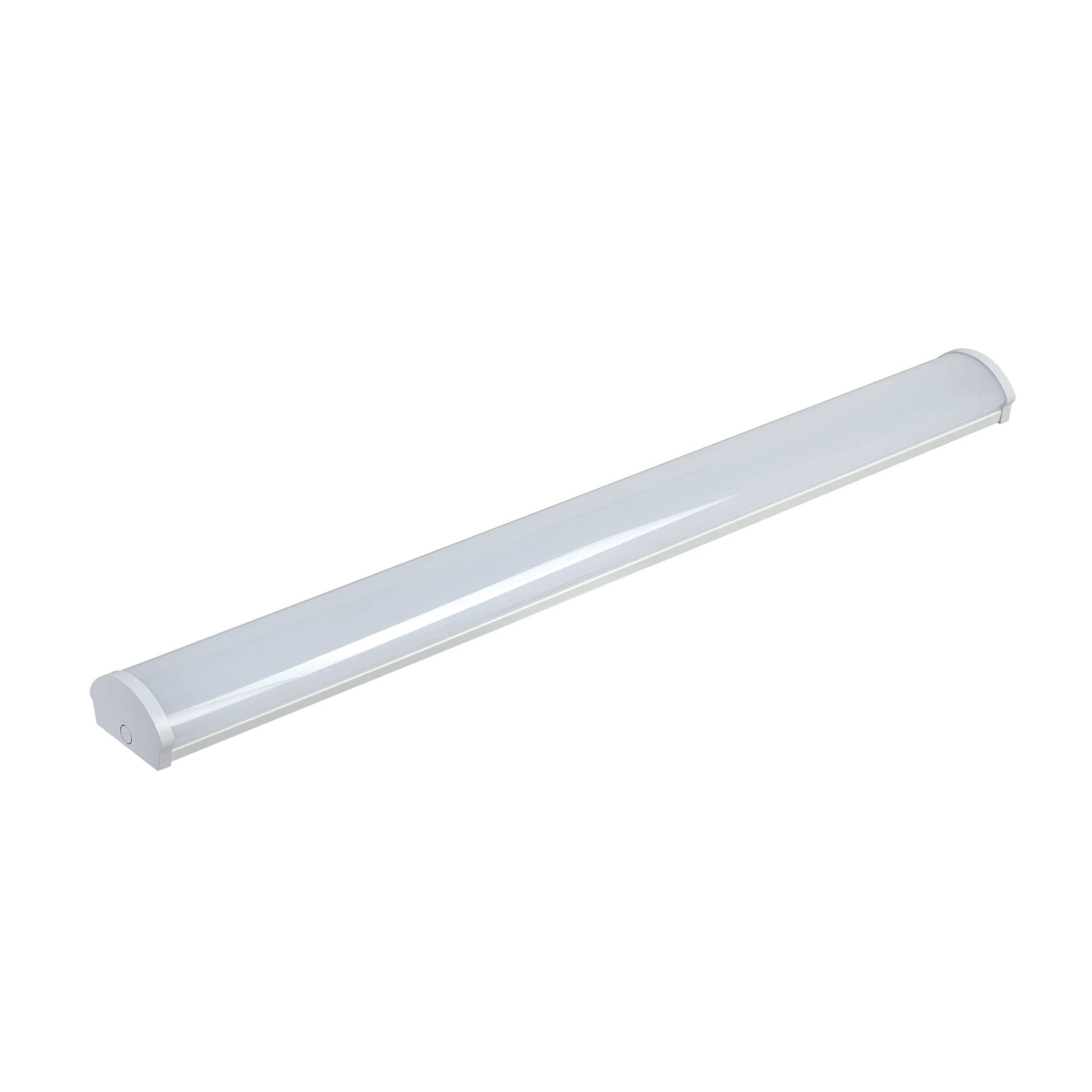

  • LED Wrap Light C1801 by Halcon with flexible wattage and CCT, controls ready, emergency backup option for stairwells and parking garages.

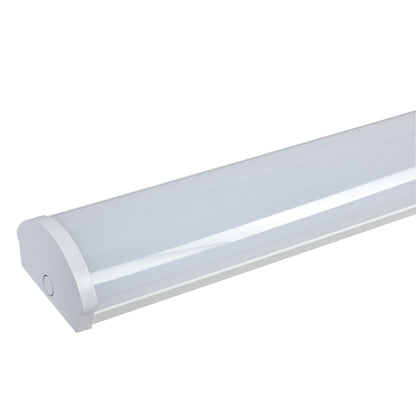

  • Halcon LED Wrap Light C1801 with selectable wattage and CCT for energy savings in stairwells and utility areas

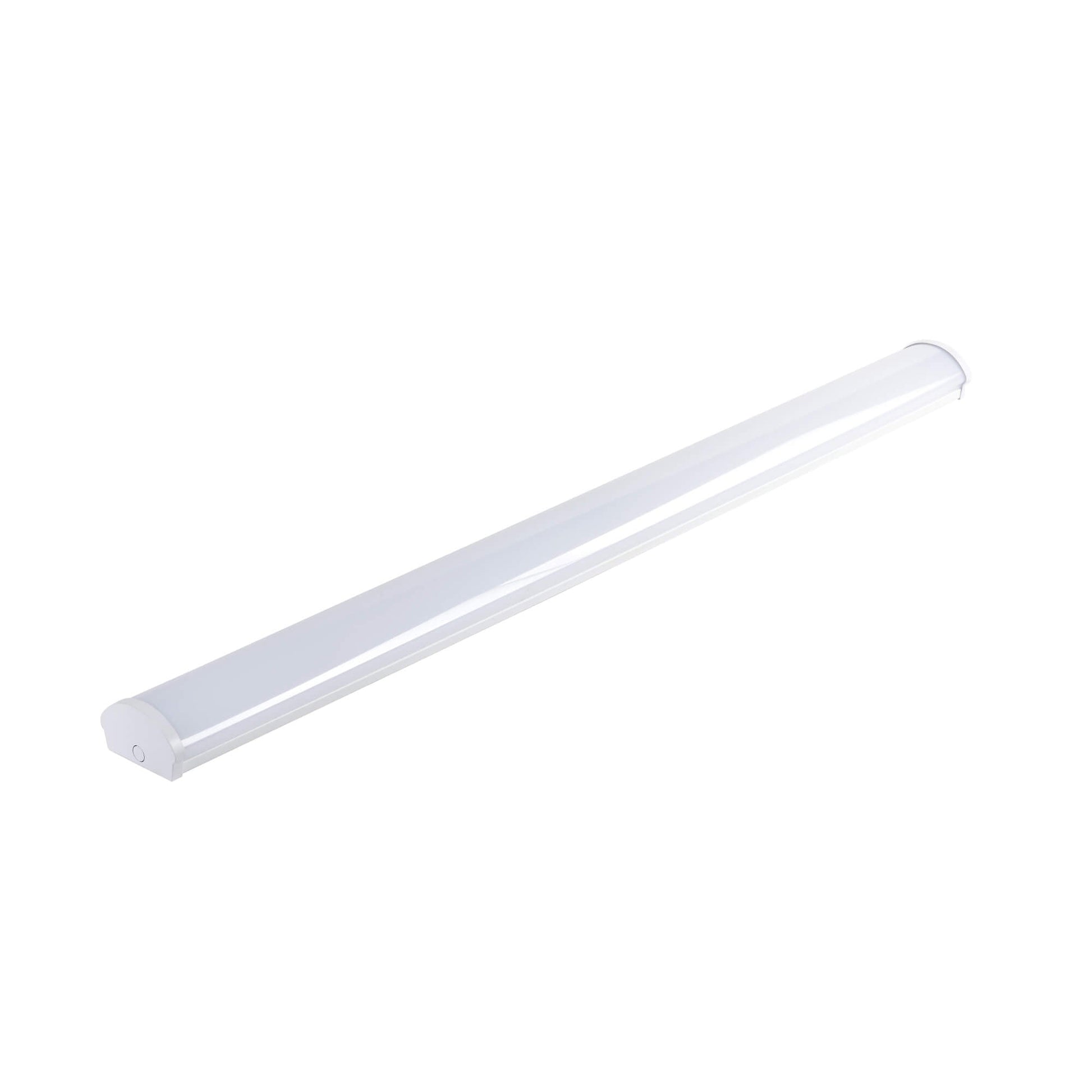

  • Halcon LED Wrap Light C1801 with selectable wattage and CCT, energy-saving linear fixture for continuous lighting in stairwells and parking garages.

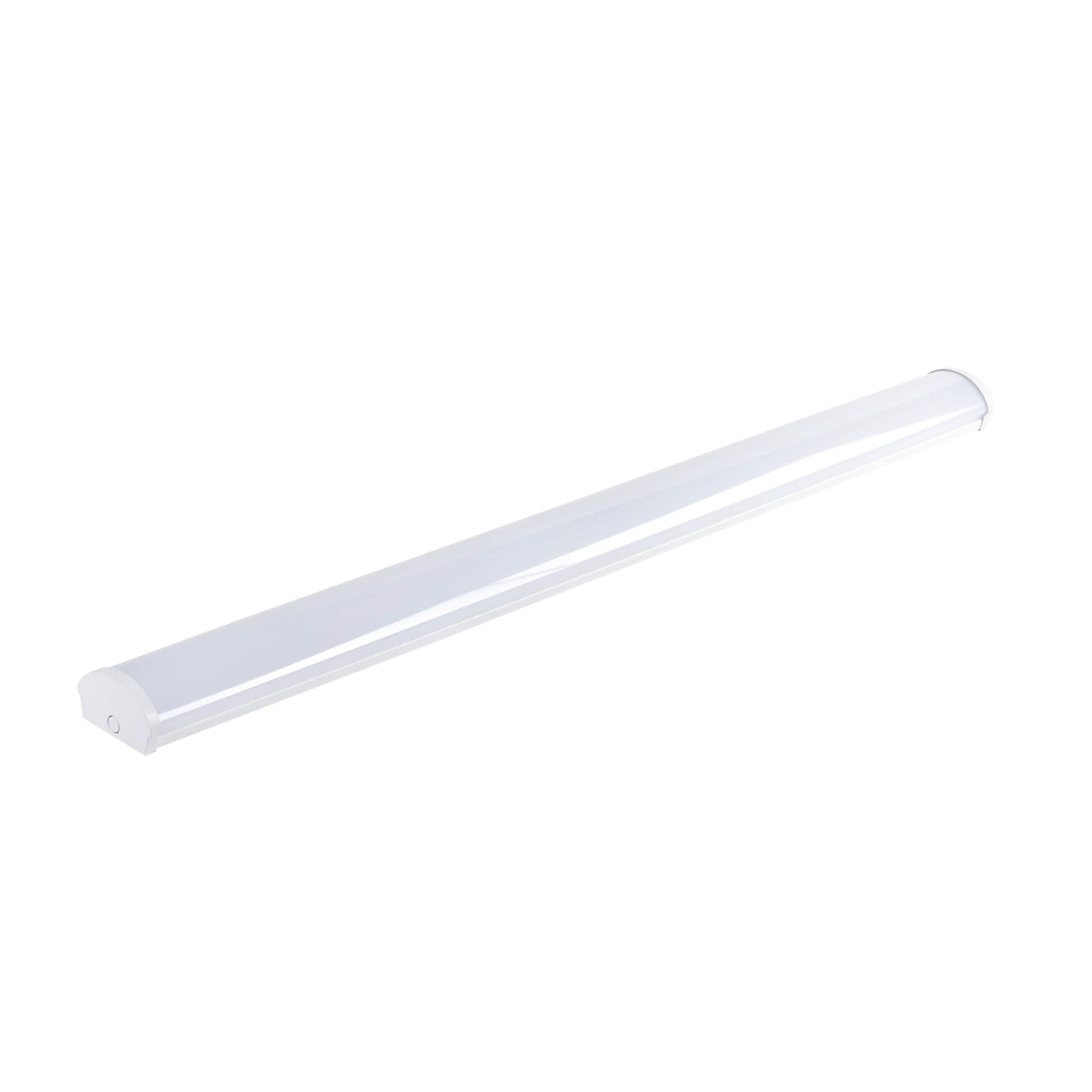

  • Halcon lighting LED Wrap Light C1801 with selectable wattage and color temperature, emergency battery backup ready for 24/7 areas

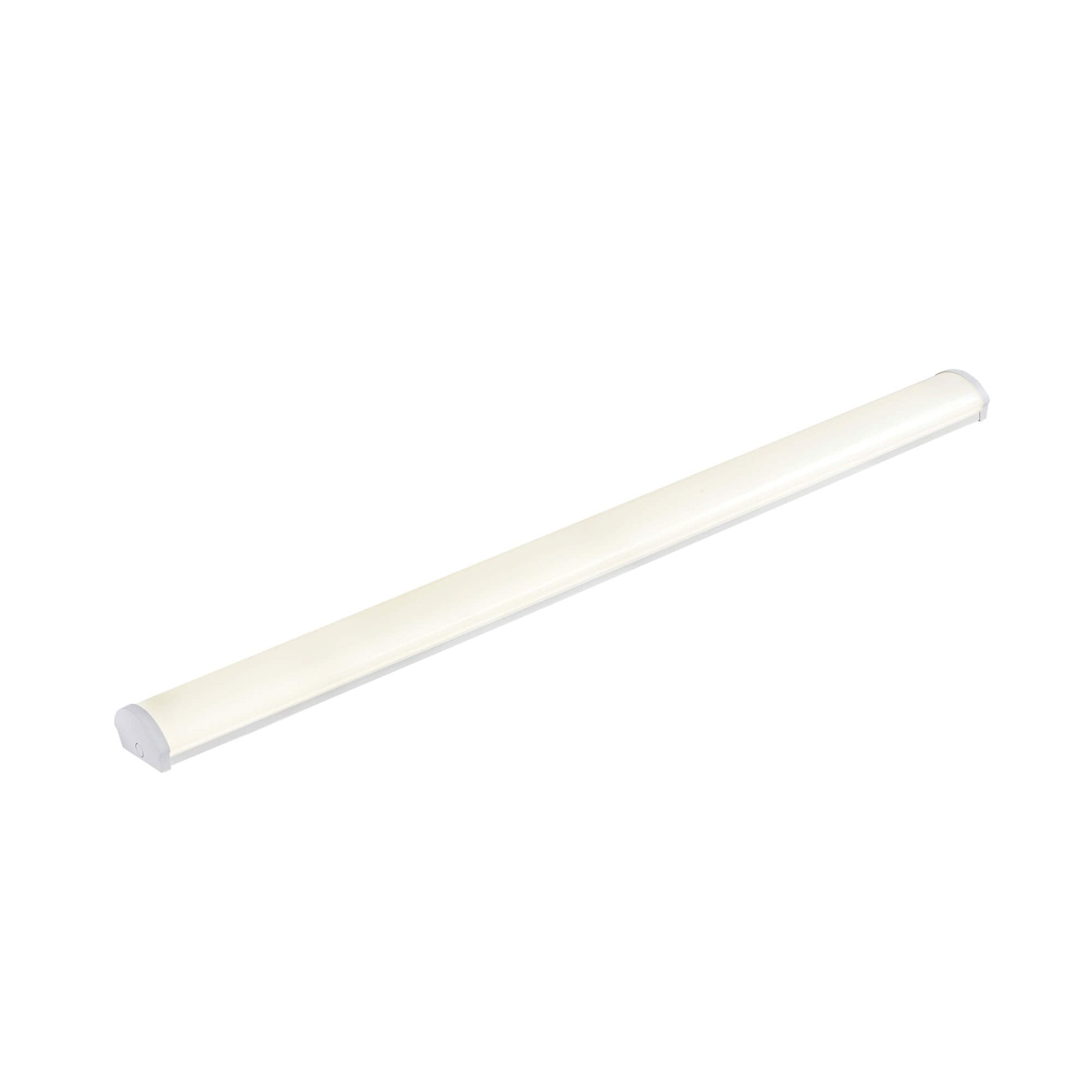

  • Halcon LED Wrap Light C1801 with selectable CCT and wattage, energy-saving illumination for stairwells and parking garages
1 9

The LED Wrap-Around Light 2ft 4ft 8ft CCT And Wattage Selectable 3000K To 5000K 10000 Lumen 120-277V 0-10V Dimming Emergency And Sensor Control Ready

The LED Wrap-Around Light 2ft 4ft 8ft CCT And Wattage Selectable 3000K To 5000K 10000 Lumen 120-277V 0-10V Dimming Emergency And Sensor Control Ready

Overview
Use Cases
Use Cases
Comparison Chart
Comparison Chart
Video

Use Cases

halconlighting Meeting Room

Specification


C1801-20W/2ft C1801-30W/4ft C1801-40W/5ft C1801-60W/5ft C1801-80W/6ft C1801-100W/8ft C1801-100W/8ft
Size 585x127x75mm 1198x127x75mm 1198x127x75mm 1488x127x75mm 1488x127x75mm 1788x127x75mm 2488x127x75mm
Nominal Wattage 20W 30W 40W 40W 60W 80W 100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2400 lm 3600 lm 4800 lm 4800 lm 7200 lm 9600 lm 12000 lm
Nominal Efficacy 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
