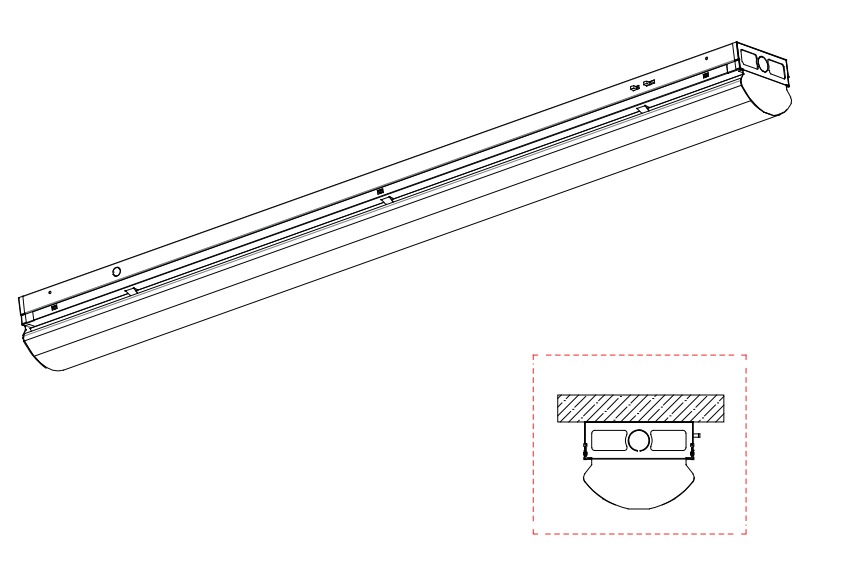

  • Linear LED light strip design with cross-section view

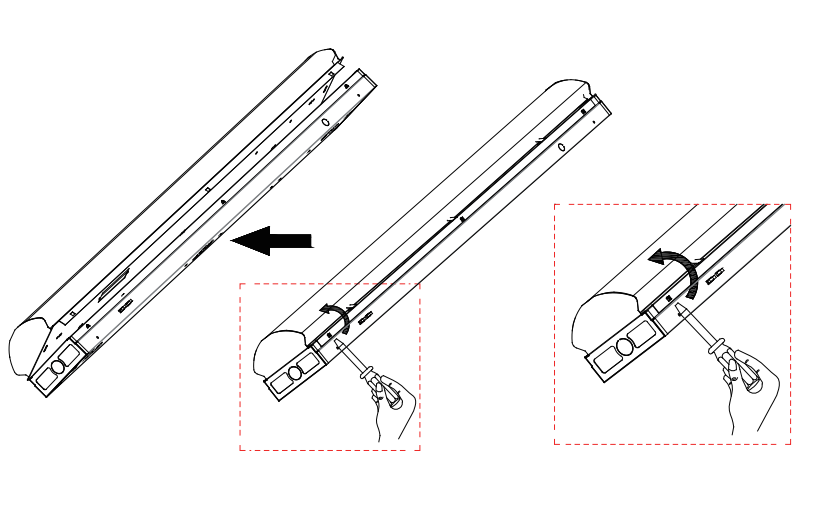

  • Cross-section view of LED linear light strip highlighting assembly features.

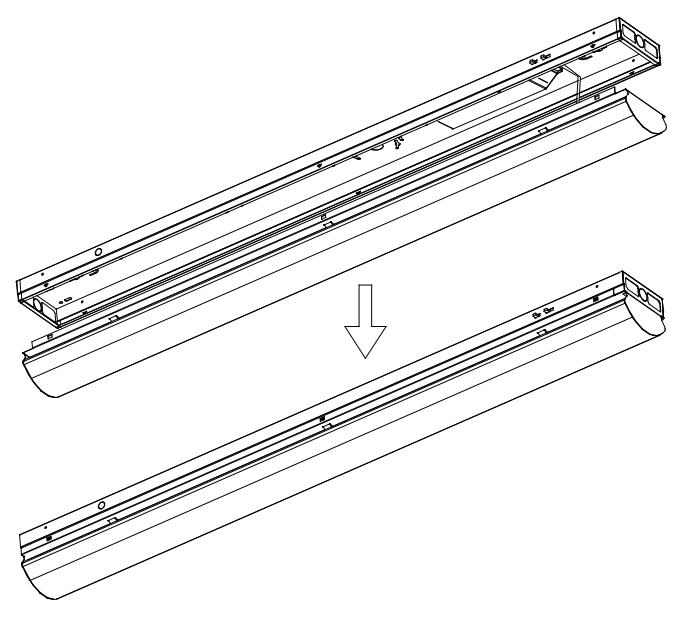

  • Cross-section design of linear LED light strip showing assembly features.
  • LED Wider Strip Light HG-L206
  • LED Wider Strip Light HG-L206
1 8

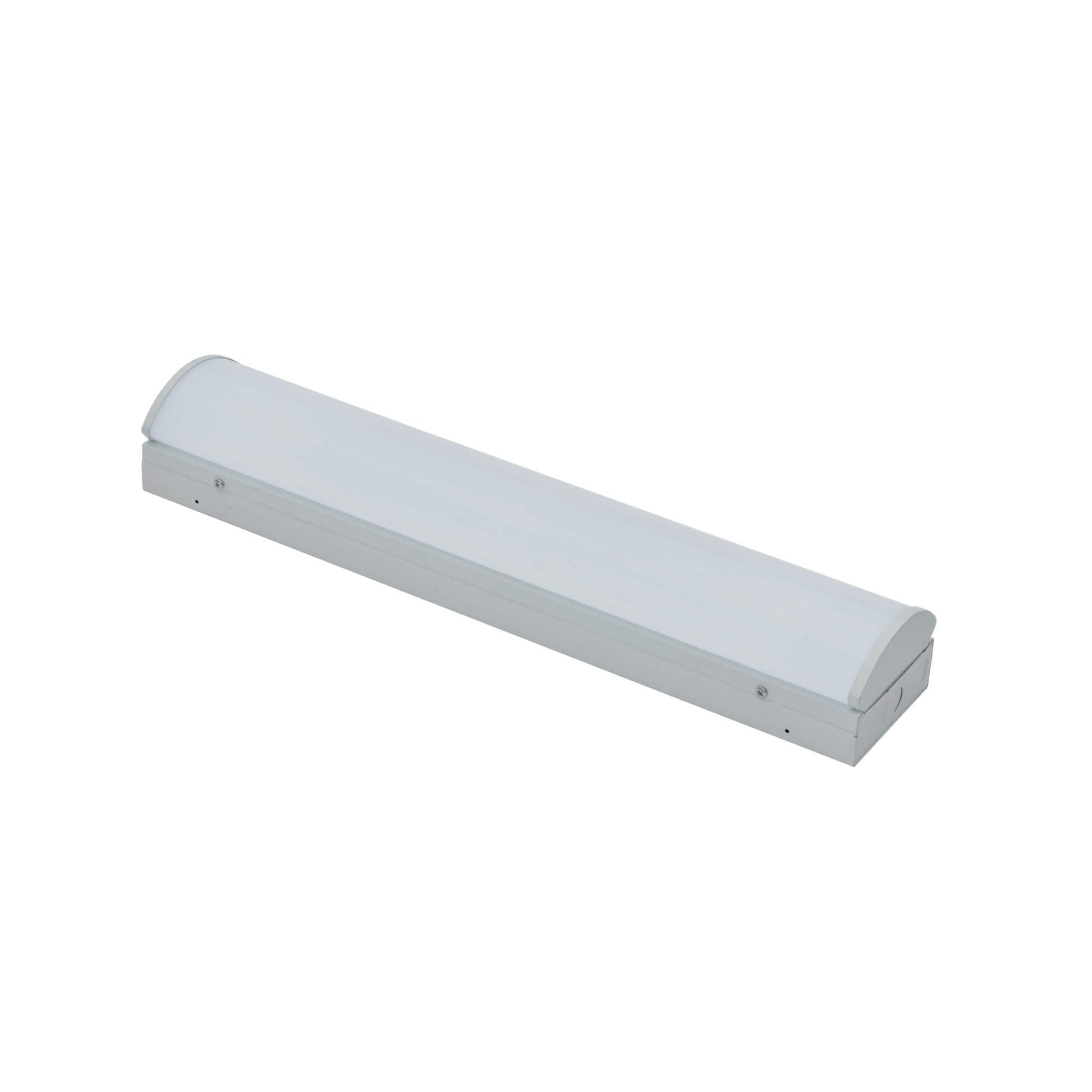

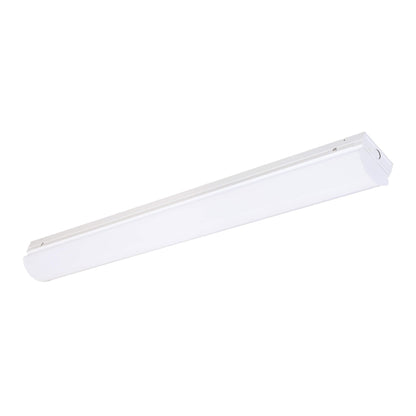

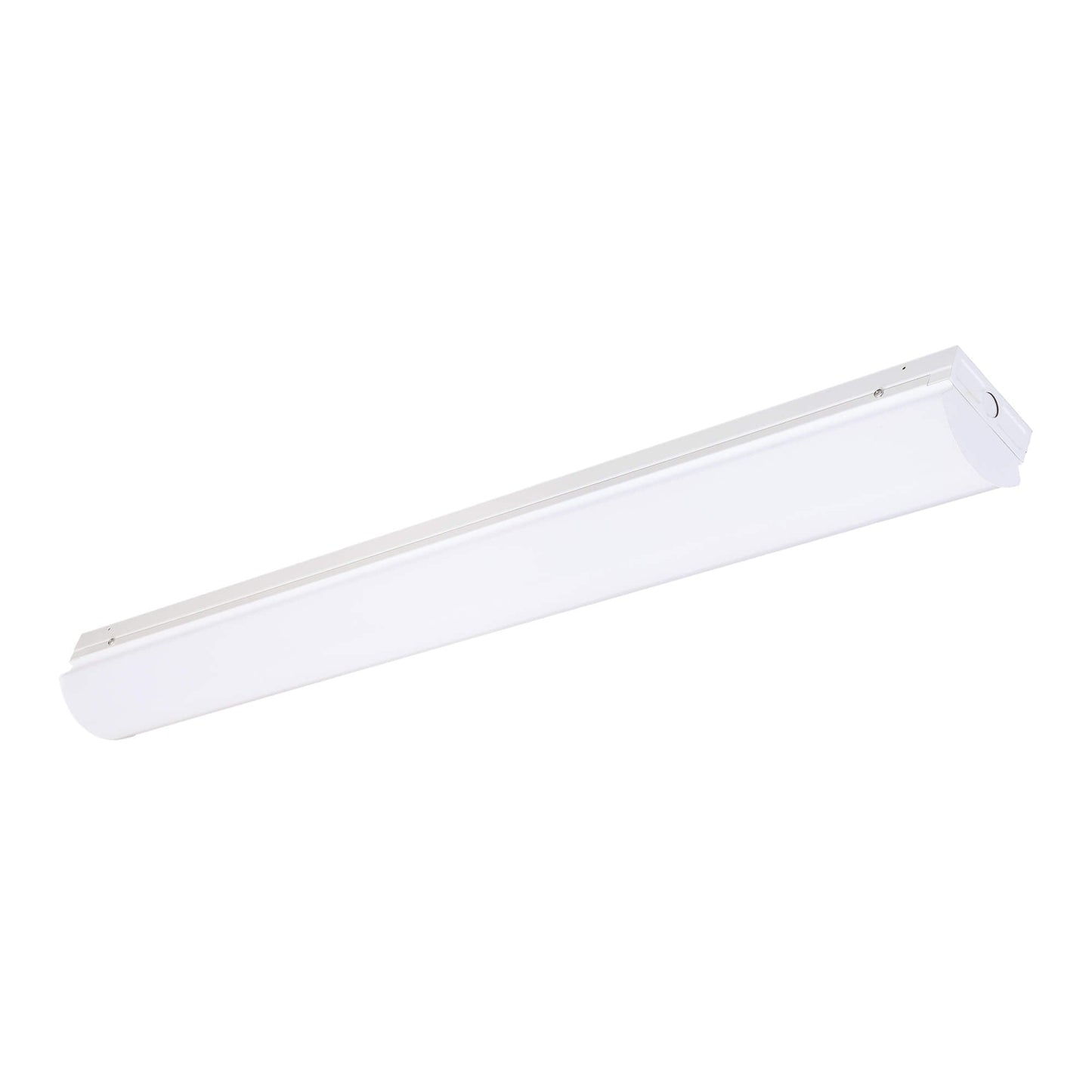

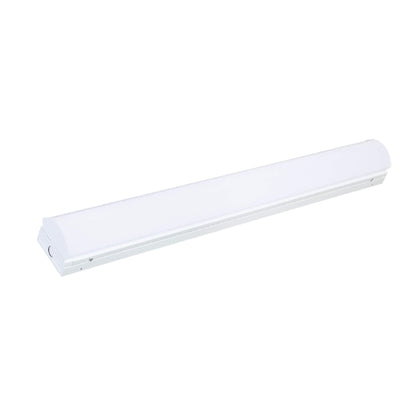

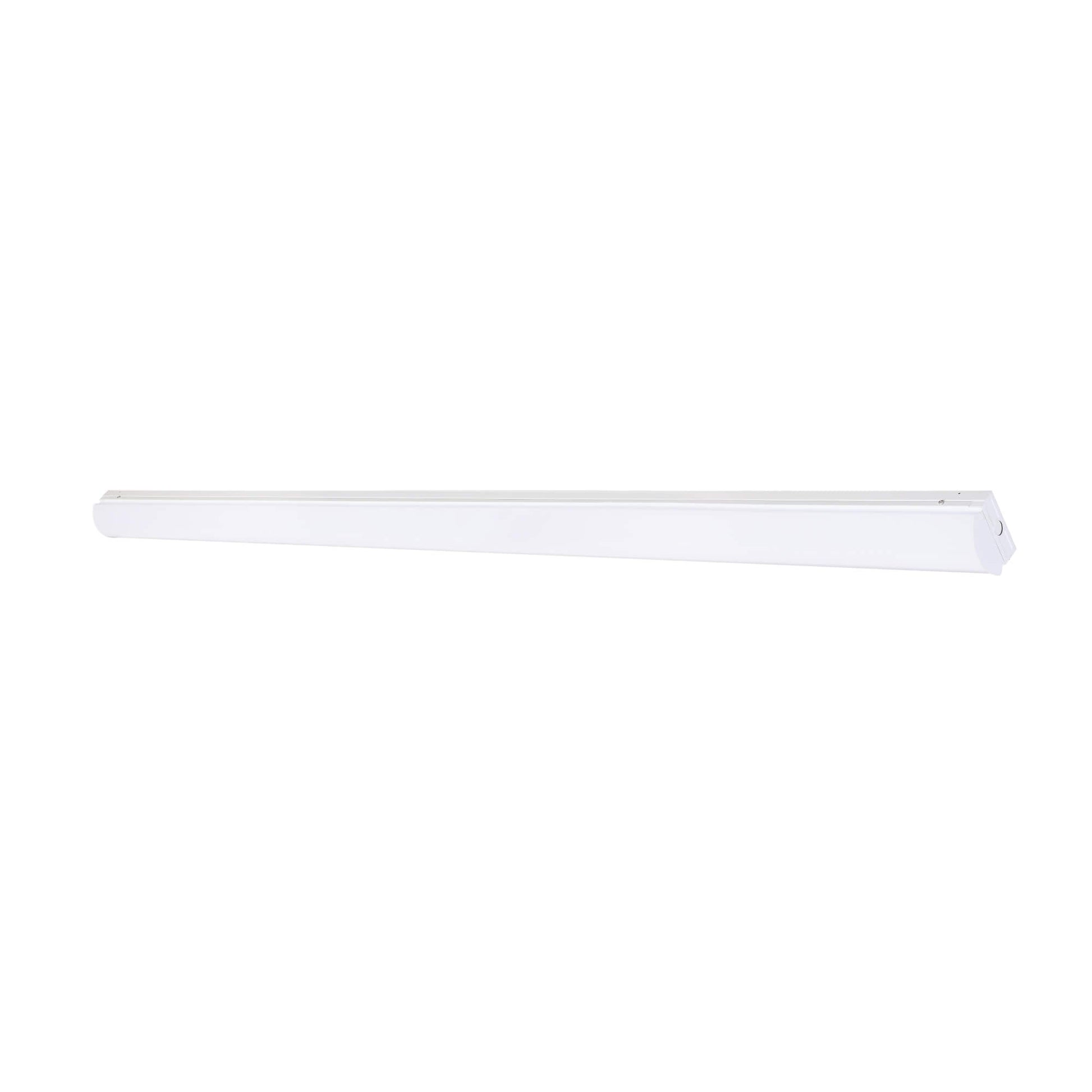

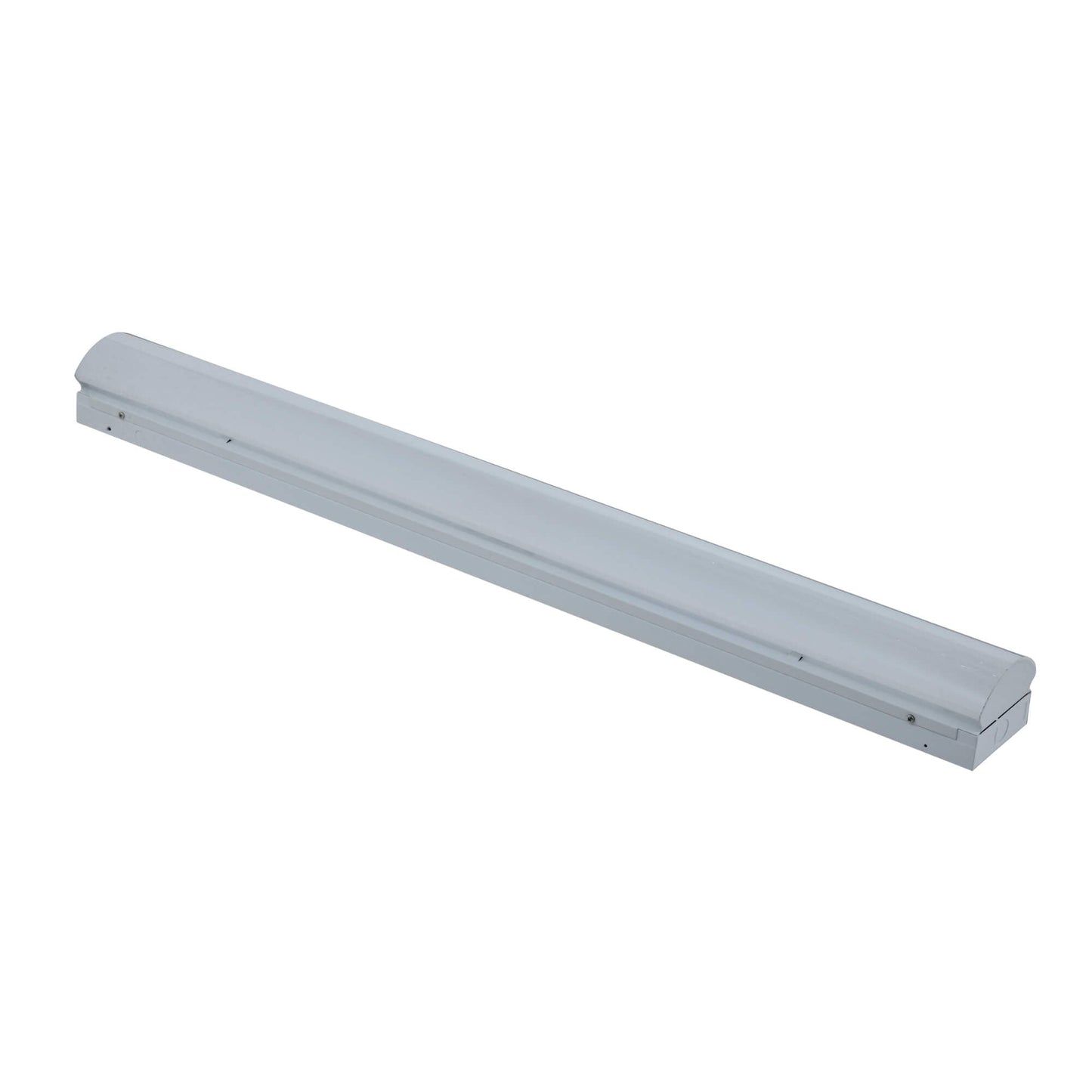

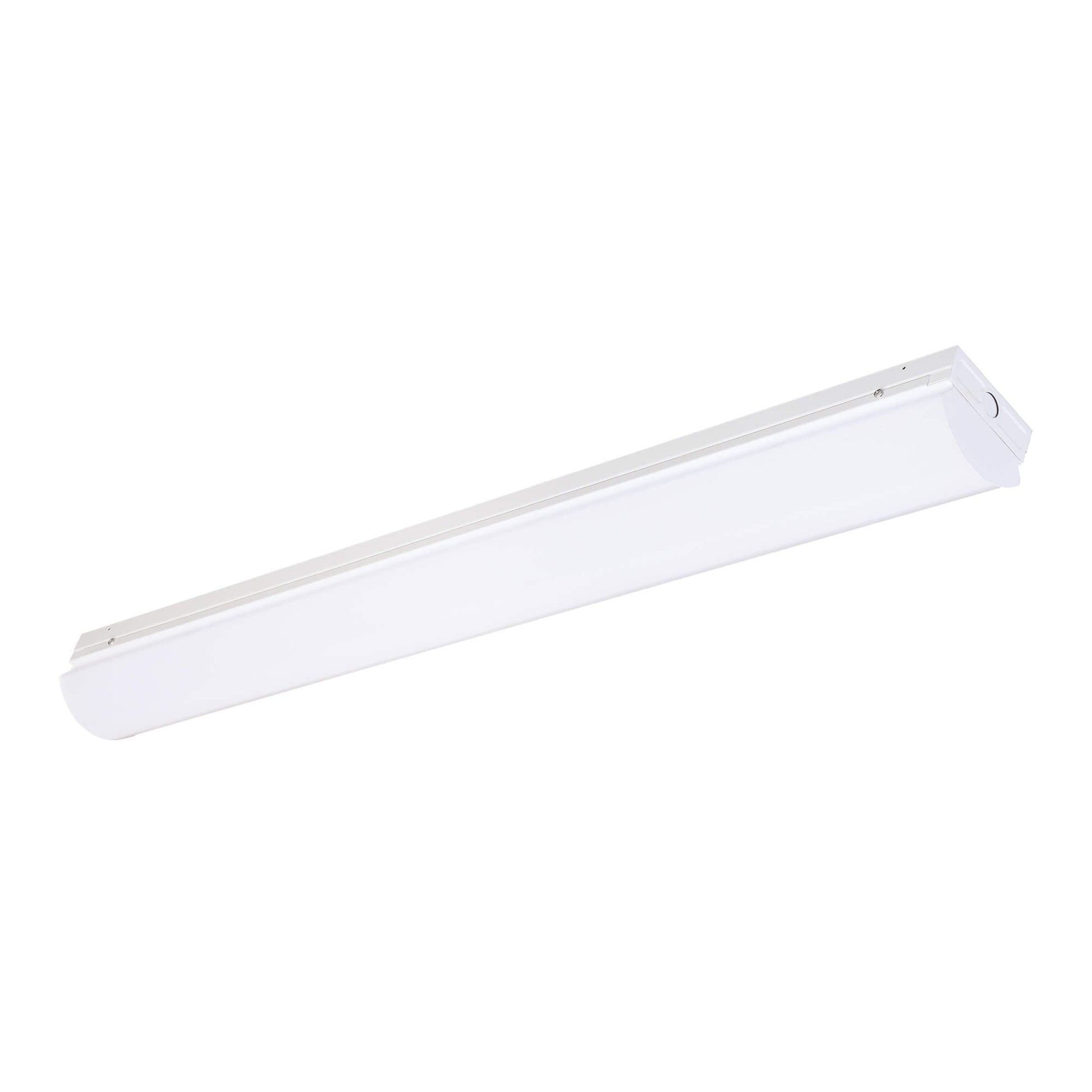

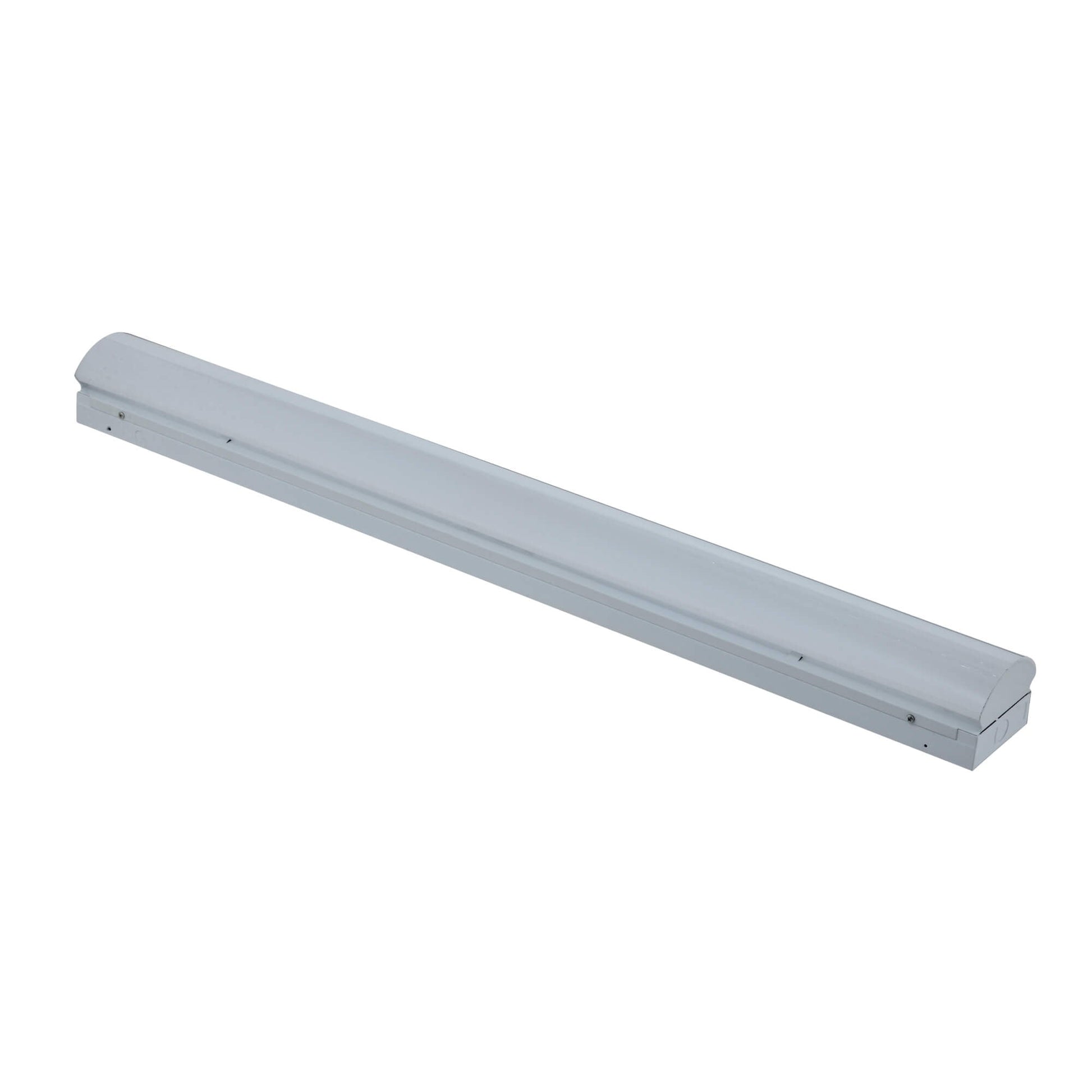

LED Linear Light Strip Diffuser CCT And Watt Selectable 3000K-5000K (5400 Lumen-11475 Lumen), 120-277V 0-10V Dimmable ETL DLC Listed Emergency Back And Bluetooth Sensor Technology

LED Linear Light Strip Diffuser CCT And Watt Selectable 3000K-5000K (5400 Lumen-11475 Lumen), 120-277V 0-10V Dimmable ETL DLC Listed Emergency Back And Bluetooth Sensor Technology

Overview
Comparison Chart
Comparison Chart
Video

Specification


HG-L206-182F HG-L206-244F HG-L206-638F HG-L206-858F HG-L206-858F
Size 606x115x91mm 1206x115x91mm 2438x115x91mm 2438x115x91mm 2438x115x91mm
Nominal Wattage 18W/24W 24W/40W 63W/83W 63W/83W 63W/83W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2340 lm 3120 lm 5200 lm 8190 lm 11050 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
