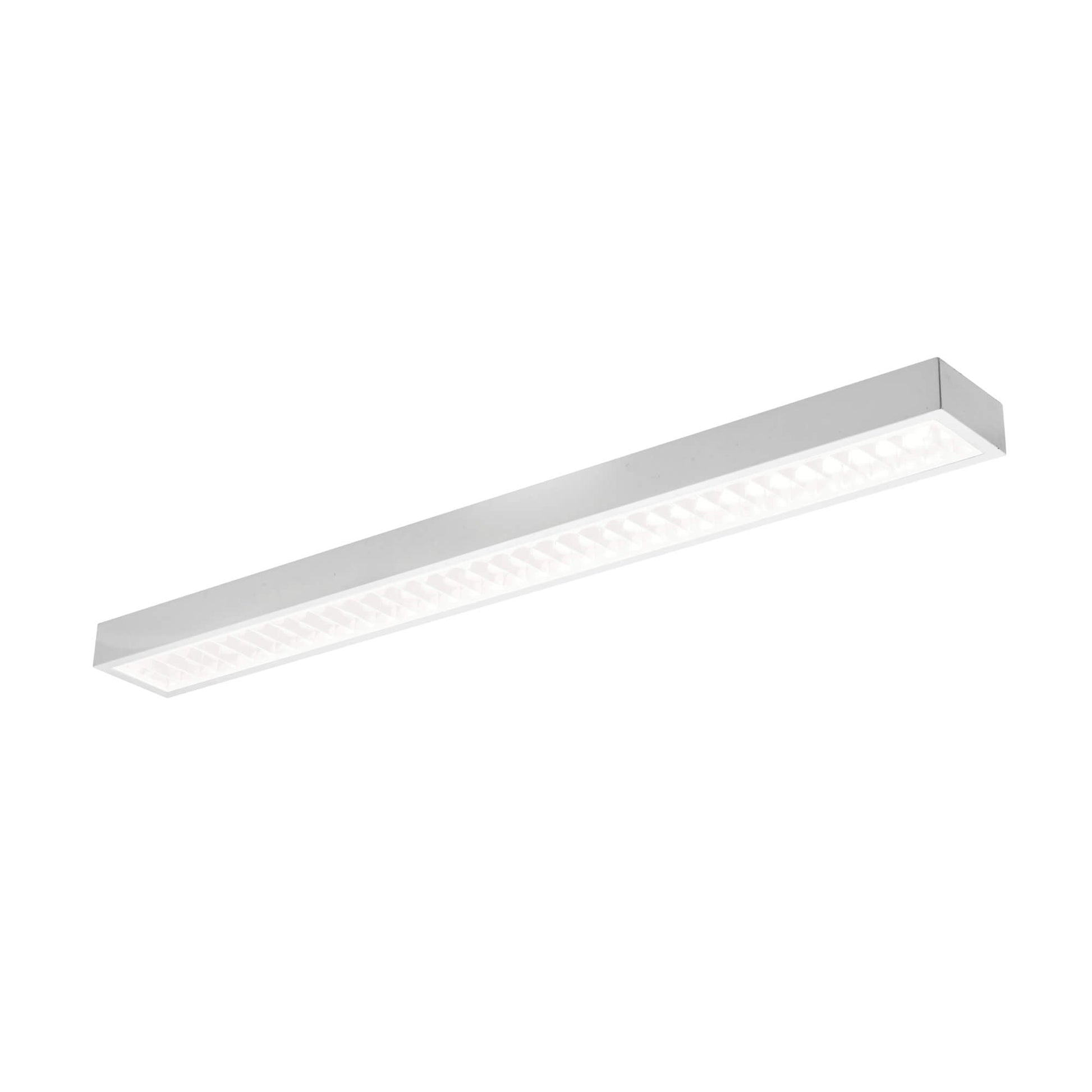

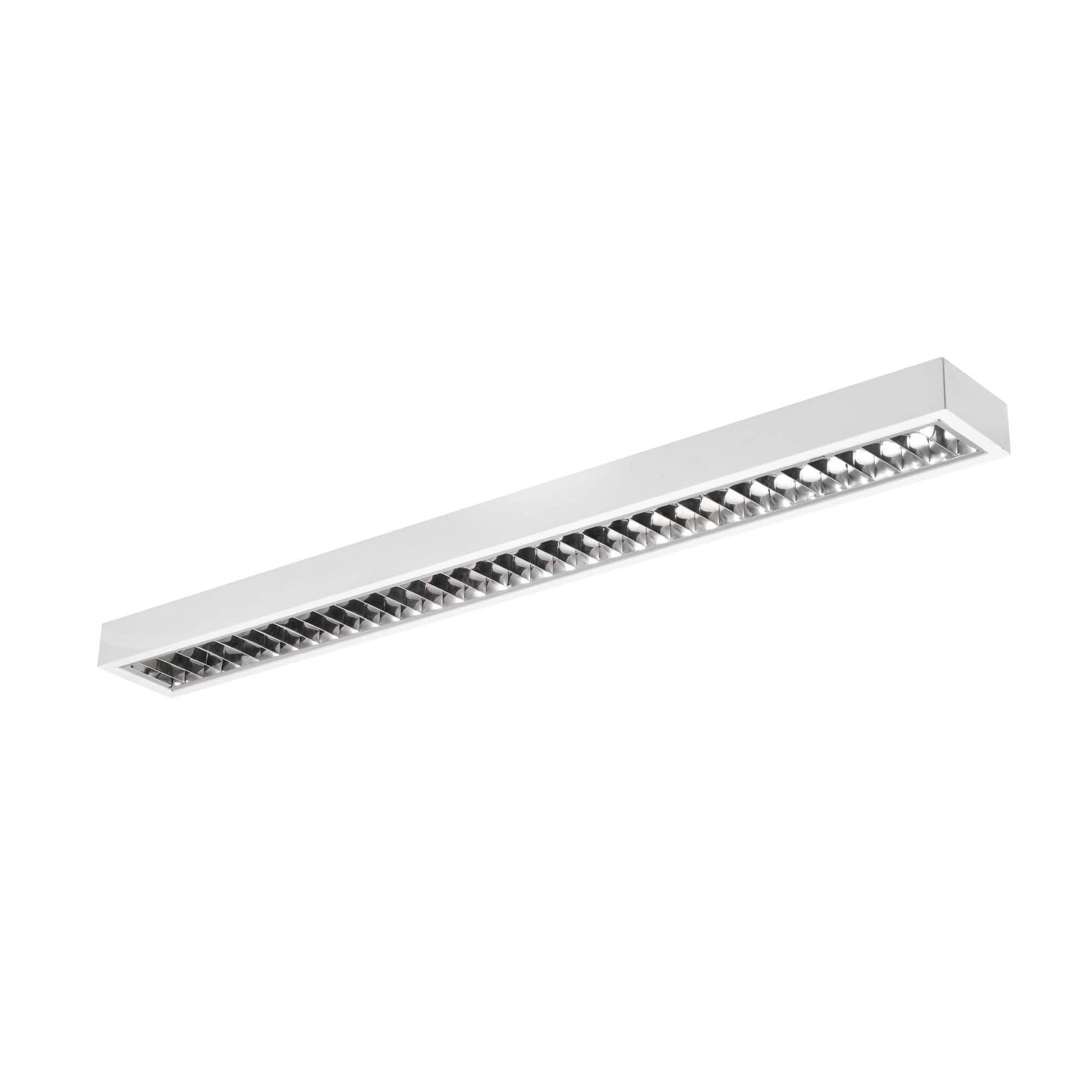

Linear Light Grille Louver Lens CCT And Watt Selectable 3000K-5000K (5400 Lumen-11475 Lumen), 120-277V 0-10V Dimmable ETL DLC Listed Emergency Back And Bluetooth Sensor Technology
Linear Light Grille Louver Lens CCT And Watt Selectable 3000K-5000K (5400 Lumen-11475 Lumen), 120-277V 0-10V Dimmable ETL DLC Listed Emergency Back And Bluetooth Sensor Technology
Overview
Use Cases
Use Cases
Comparison Chart
Use Cases
Meeting Room
Office
Office Specification
| HG-L206R-182F | HG-L206R-244F | HG-L206R-638F | HG-L206R-858F | HG-L206R-858F | |
| Size | 606x115x91mm | 1206x115x91mm | 2438x115x91mm | 2438x115x91mm | 2438x115x91mm |
| Nominal Wattage | 18W/24W | 24W/40W | 63W/83W | 63W/83W | 63W/83W |
| InputVoltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 2340 lm | 3120 lm | 5200 lm | 8190 lm | 11050 lm |
| Nominal Efficacy | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
