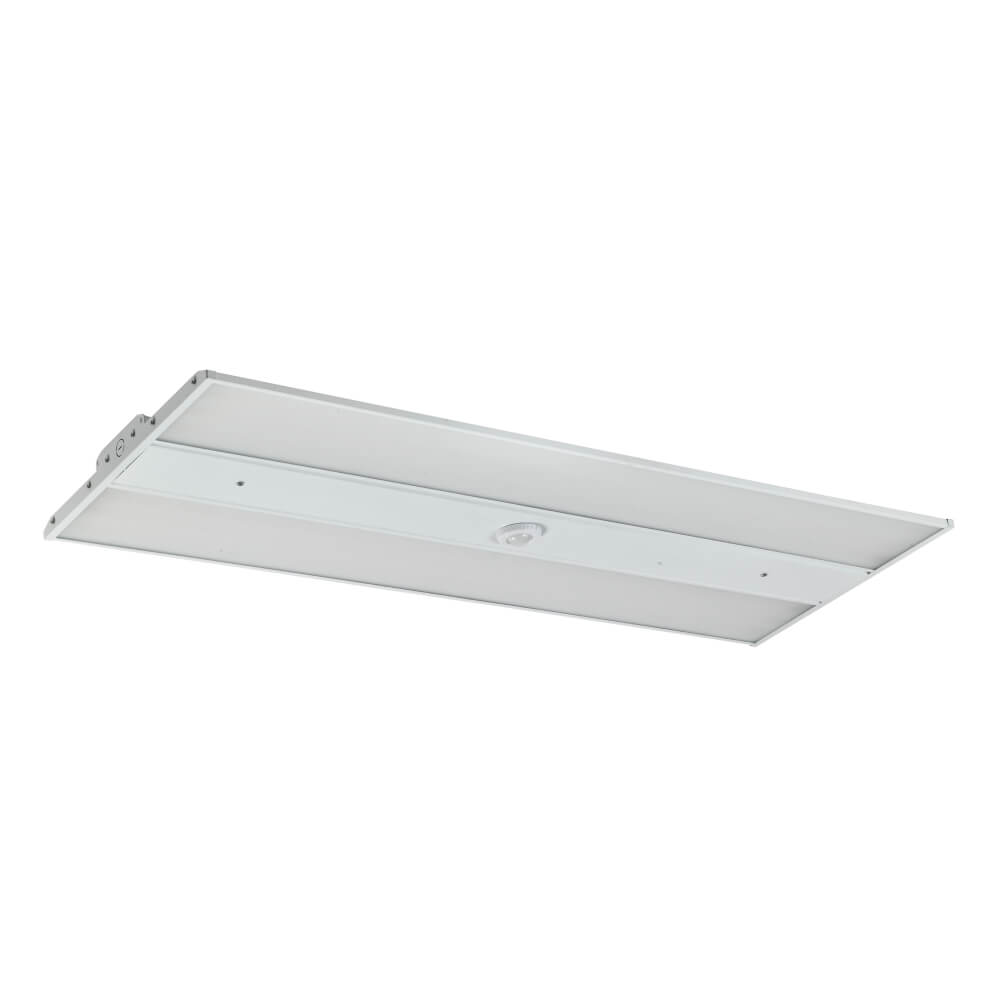

• Halcon slim Highbay Linear LED light with customizable CCT and wattage for high ceiling industrial applications.

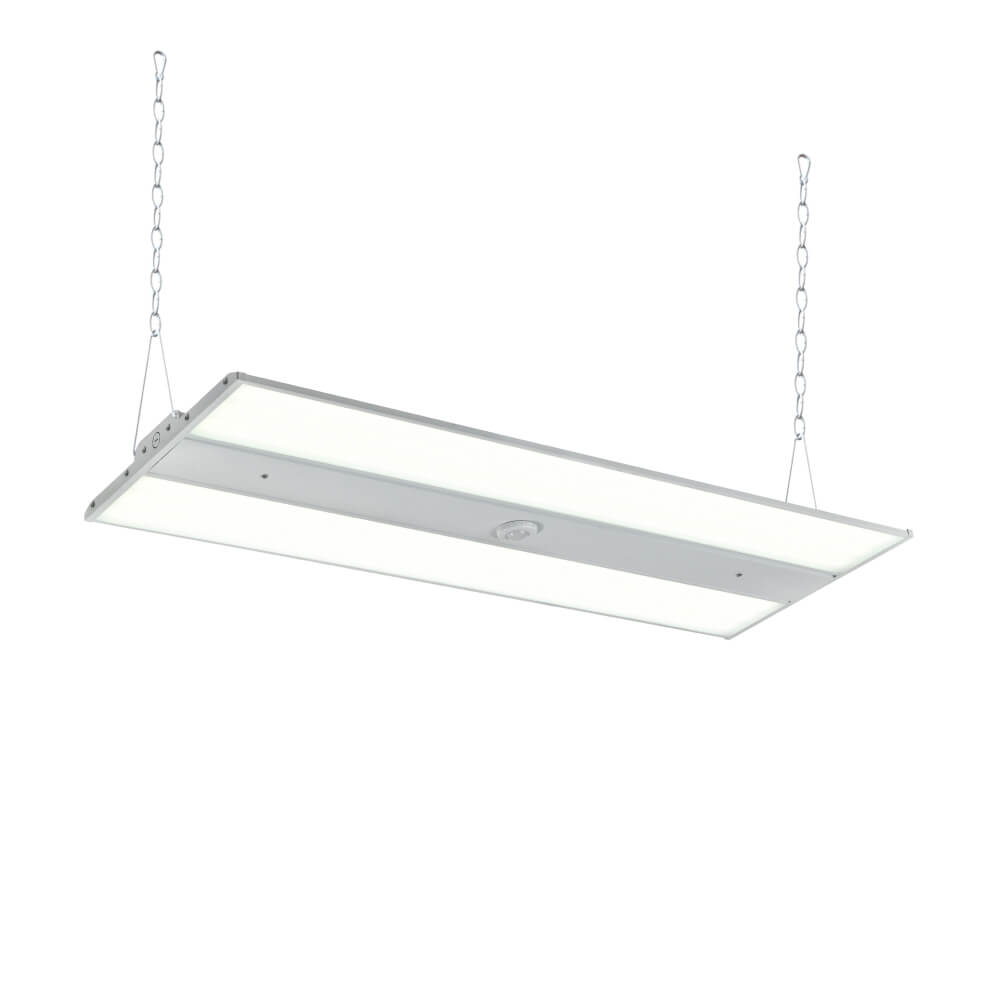

  • "Halcon slim Highbay Linear LED fixture with CCT and wattage selectable features for warehouses and big box retailers"

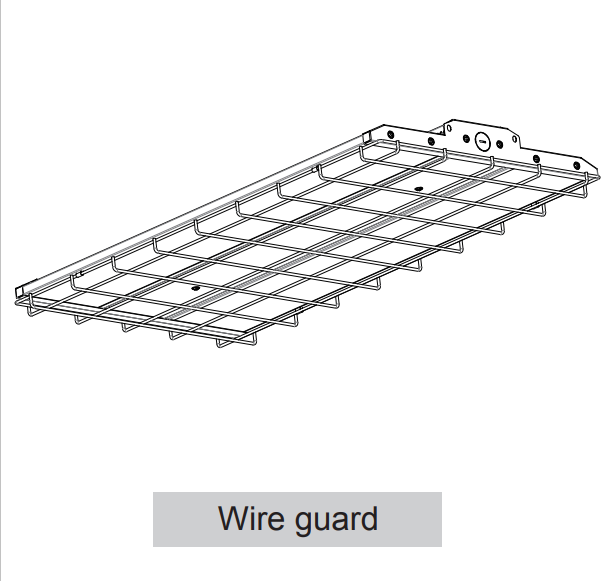

  • Wire guard for LED lighting fixture protection

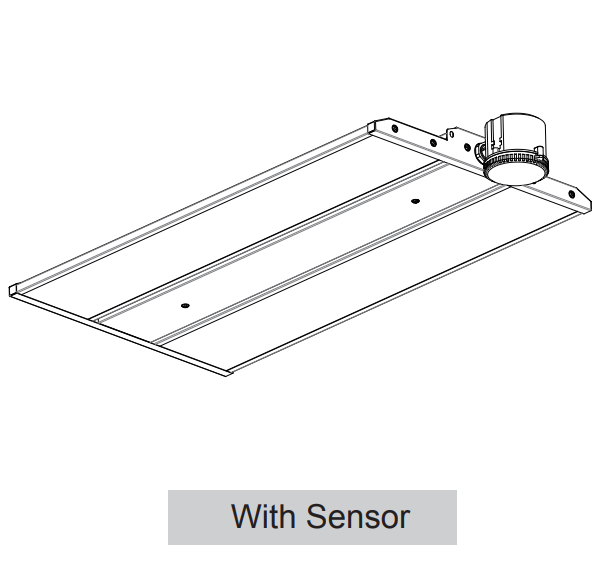

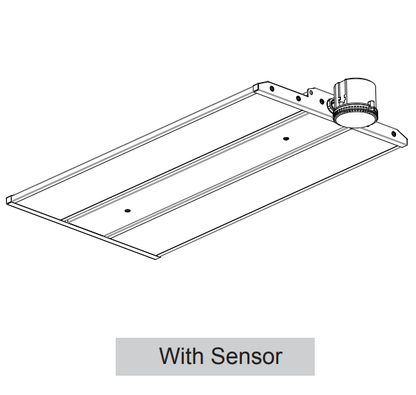

  • LED fixture diagram with wire guard and Bluetooth sensor installation

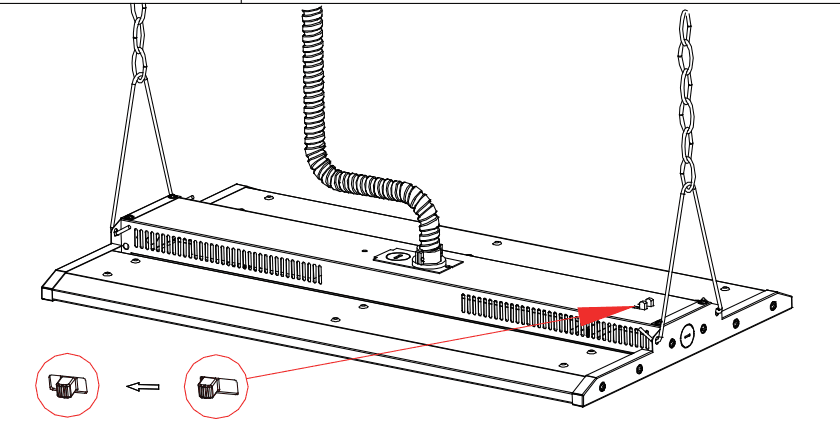

  • LED lighting fixture with wire guard and Bluetooth sensor installation guide
1 5

Linear High Bay 80W 140W 165W 225W Or 325W (10800 Lumen-43875 Lumen) Wattages & Color Selectable 4000K-5000K Universal Voltage 120 277V 0-10V Dimming Bluetooth Sensor Emergency Back Up

Linear High Bay 80W 140W 165W 225W Or 325W (10800 Lumen-43875 Lumen) Wattages & Color Selectable 4000K-5000K Universal Voltage 120 277V 0-10V Dimming Bluetooth Sensor Emergency Back Up

Overview
Use Cases
Use Cases
Comparison Chart
Comparison Chart
Video

Use Cases

halconlighting factory
halconlighting factory
halconlighting factory
halconlighting factory

Specification


HG-L225C-80W/2ft HG-L225C-100W/2ft HG-L225C-140W/2ft HG-L225C-165W/2ft HG-L225C-220W/2ft HG-L225C-165W/4ft HG-L225C-225W/4ft HG-L325W/4ft
Size 630x320x52.5mm 606x320x52.5mm 606x320x52.5mm 604x440x52.5mm 606x440x52.5mm 1165x320x52.5mm 1165x320x52.5mm 1165x440x52.5mm
Nominal Wattage 80W 100W 140W 165W 220W 165W 225W 325W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 10400 lm 13000 lm 18200 lm 21450 lm 28600 lm 29250 lm 42250 lm 42250 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
