Led component LED09
Led component LED09

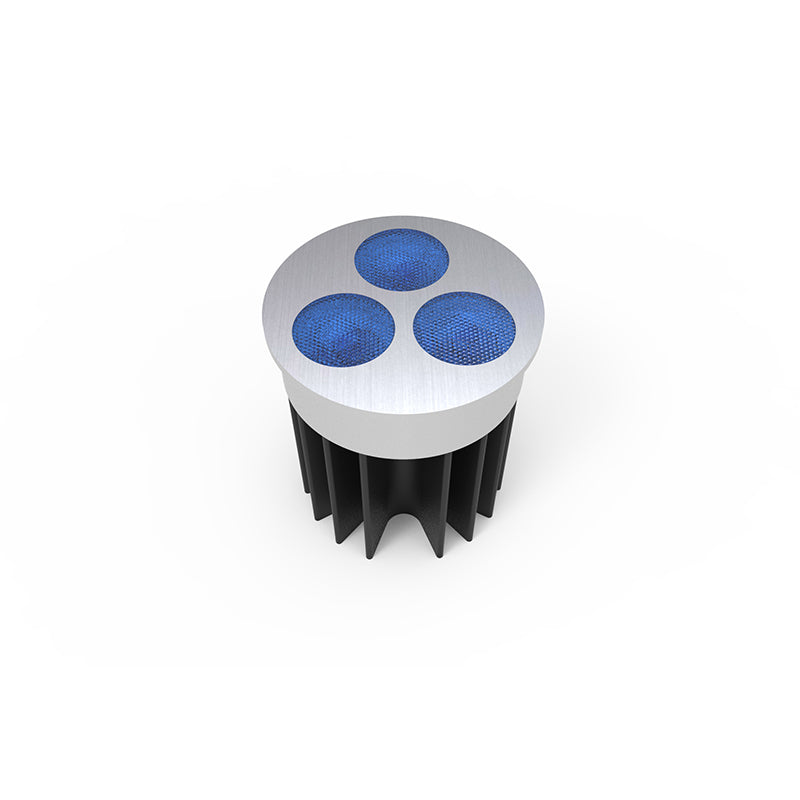

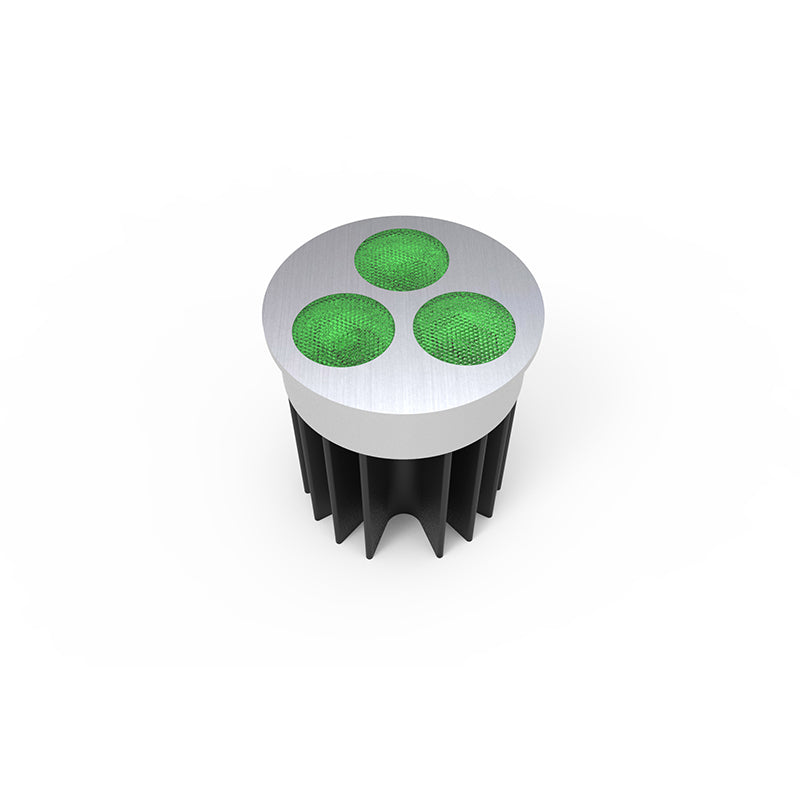

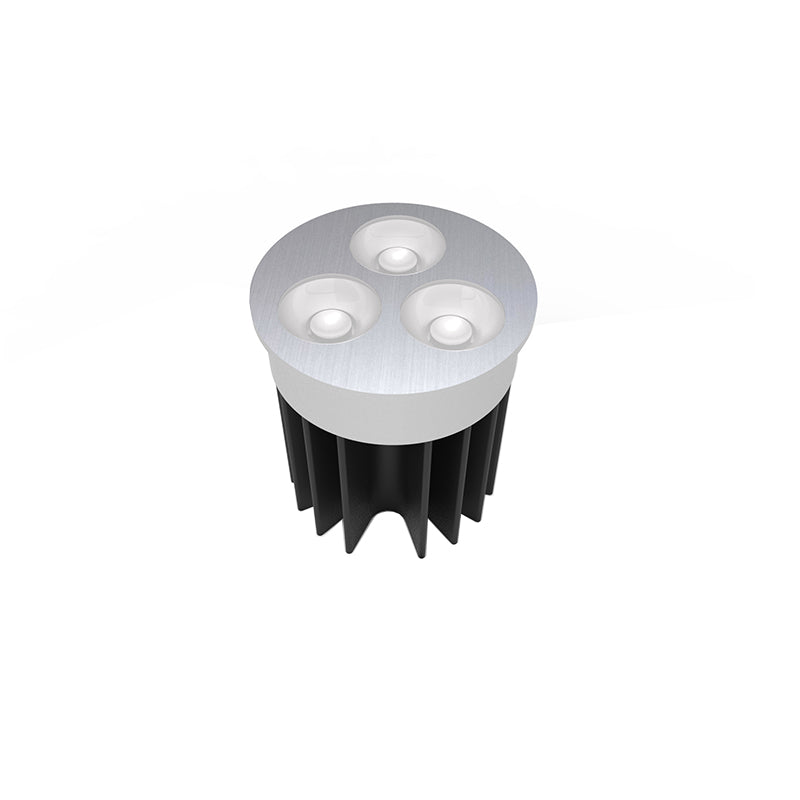

This low-energy, 50mm MR16 LED unit is a cost-saving alternative to expensive and maintenance hungry LV and GU halogens. It’s a zero maintenance replacement that fits straight into existing Lv housings, including ground lights, down lights, and wall lights.Tempered glass. The three high-power LEDs within this 9w lamp emit more light than a 35W halogen, yet they run at a fraction of the cost.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium |
| Optics | S2O° / F6O° |
| Power | 9W |
| Power supply | N/A |
| Dimention | D5OX55 |
| Weight | 15Og |
| IP Rating | IP4O |
| Approvals | CE.RoHS,IP |
| Average life | 5O,OOOHrs |
| Applications | Indoor |
LED09 LED COMPONENTS
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| LED09 | CREE | CW,WW, NW,Red Green,Blue,Amber | S20/F60 | Constant current | 700mA | Series | 1.1M 2X0.4MM² Cable | 9W | N/A | D50X55 | D47 |
| LED09RGB | EDISON | RGB | 45 | Constant current | RGB350mA | Series | 1.1M 4X24AWG Plug | 9W | N/A | D50X55 | D47 |
| *IES Data support. | |||||||||||
