Led component LED03
Led component LED03

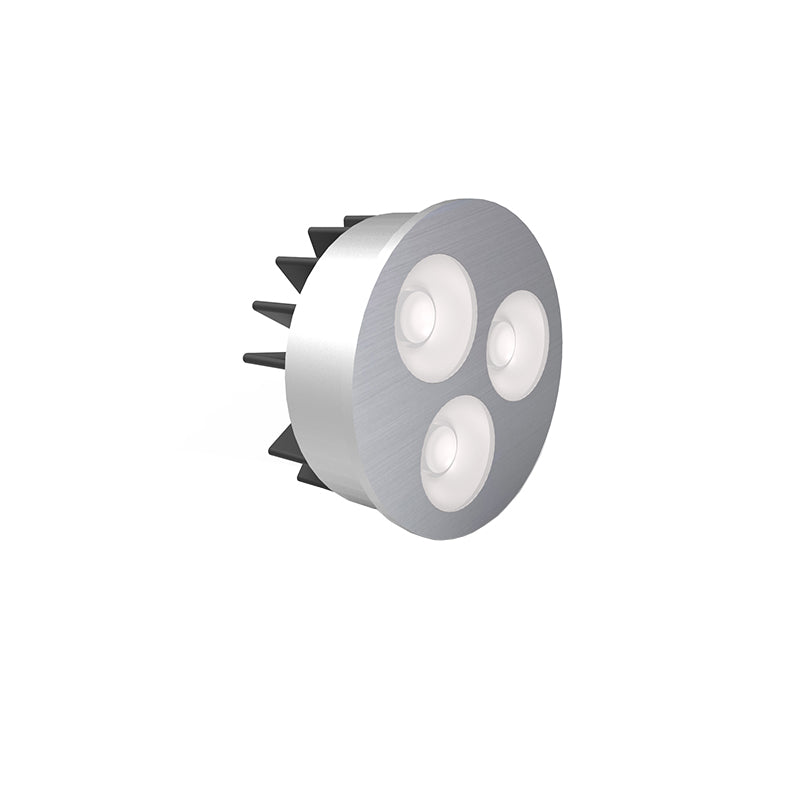

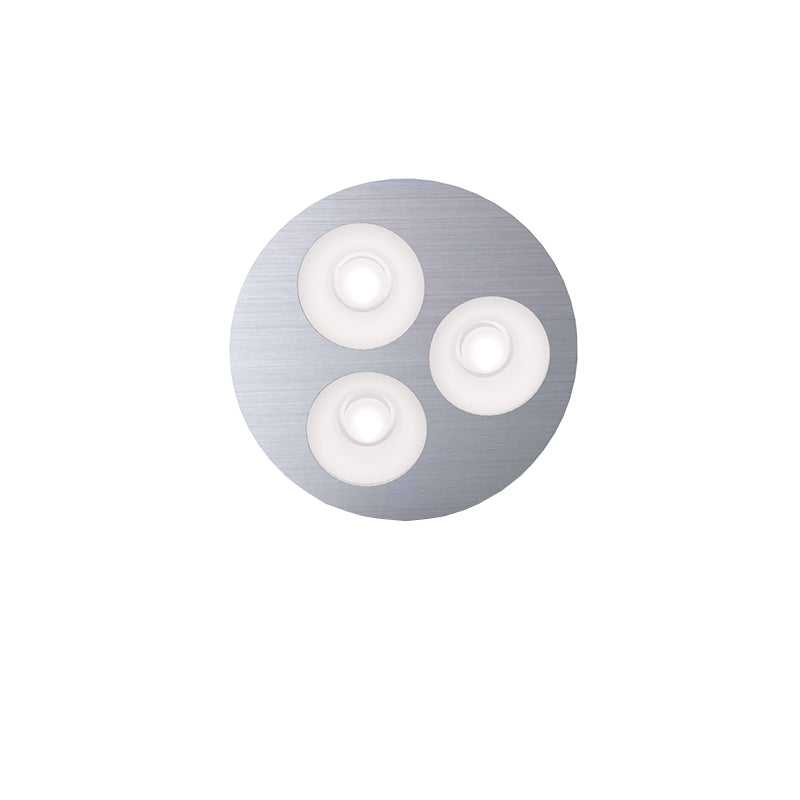

A 50mm MR16 LED for retrofitting into existing LV housings,including ground lights,down lights,and wall lights.Tempered glass,The three high-power LEDs within this 3W unit come in a range of LED colors and emit the same intensity of light as a 20w halogen. It has a short rear heat sink for fitting into shallow housings, and a choice of flood(60°) or spot(20°) lens formats.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | Aluminium |
| Optics | S2O° / F6O° |
| Power | 3W |
| Power supply | N/A |
| Dimention | D5OX25 |
| Weight | 1OOg |
| IP Rating | IP40 |
| Approvals | CE.RoHS,IP |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor |
LED03 LED COMPONENTS
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| LED03 | CREE | CW,WW, NW,Red Green,Blue.Amber | S20/F60 | Constant current | 350mA | Series | 1.1M 2X0.4MM² Cable | 3W | 300LM | D50X25 | D47 |

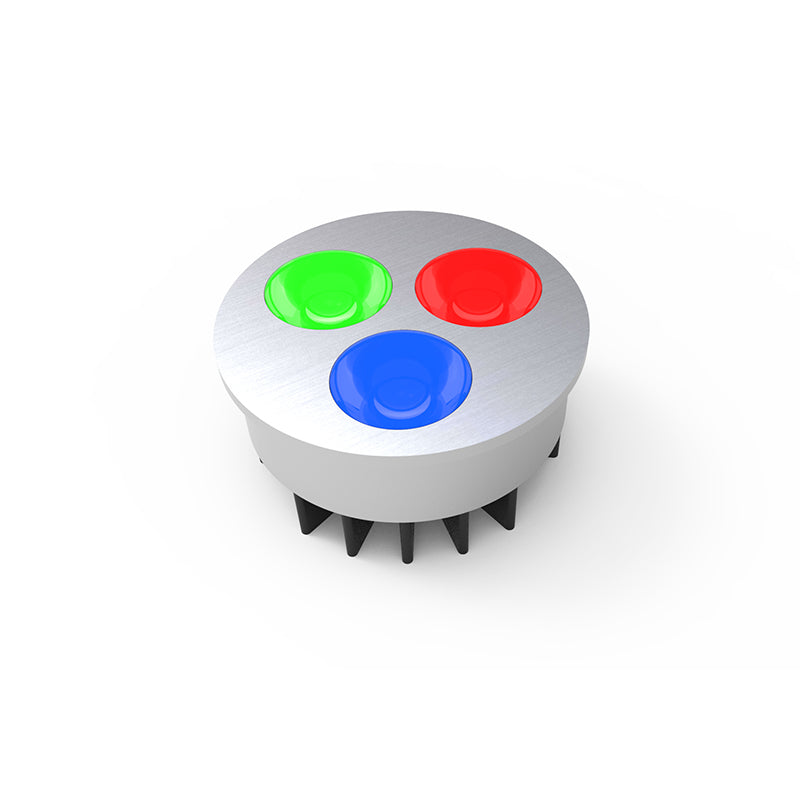

| LED03RGB | CREE | RGB | S20/F60 | Constant current | RGB350mA | Series | 2×1.1M 4X24AWG Plug | 3W | N/A | D50X25 | D47 |
| *IES Data support. | |||||||||||
